Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
BT740DAB

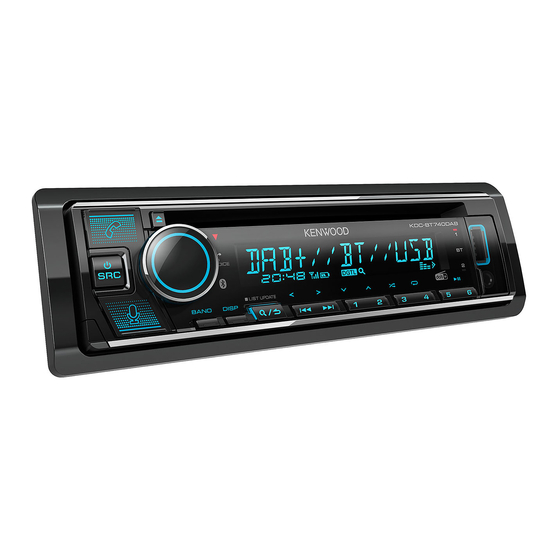

KDC-BT740DAB
CD-RECEIVER
INSTRUCTION MANUAL
© 2019 JVCKENWOOD Corporation
JS_KWD_KDC_BT740DAB_XN_C.indd 1
JS_KWD_KDC_BT740DAB_XN_C.indd 1
o cerca il tuo prodotto tra le
migliori offerte di Autoradio e Sistemi Multimediali
Data Size:
B6L (182 mm x 128 mm)
Book Size:
B6L (182 mm x 128 mm)
Kenwood KDC-
B5A-3138-00 (XN)
20/8/2019 4:03:38 PM
20/8/2019 4:03:38 PM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KDC-BT740DAB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JVC KENWOOD KDC-BT740DAB

Summary of Contents for JVC KENWOOD KDC-BT740DAB

  • Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Kenwood KDC- BT740DAB o cerca il tuo prodotto tra le migliori offerte di Autoradio e Sistemi Multimediali KDC-BT740DAB CD-RECEIVER INSTRUCTION MANUAL © 2019 JVCKENWOOD Corporation B5A-3138-00 (XN) JS_KWD_KDC_BT740DAB_XN_C.indd 1 JS_KWD_KDC_BT740DAB_XN_C.indd 1...
  • Page 2 SOFTWARE LICENSE AGREEMENT Article 4 Right pertaining to the Licensed Software Any and all copyrights and other rights pertaining to the Licensed Software and related documents The software embedded in the Product (hereinafter the "Licensed Software") provided by Licensor is shall belong to the Licensor or the original holder of the right who granted to the Licensor the license or copyrighted to or sublicensable by the Licensor, and this Agreement provides for the terms and conditions sublicense for the Licensed Software (hereinafter the "Original Rightholder"), and the User shall not be...
  • Page 3 Important Notice concerning the Software Article 9 Destruction of the Licensed Software If this Agreement is terminated pursuant to the provision of Article 8, the User shall destroy the Licensed -jansson Software, any related documents and copies thereof within two (2) weeks from such date of termination. Copyright (c) 2009-2012 Petri Lehtinen <petri@digip.org>...
  • Page 4 -CMP sha2 AUTHOR: Aaron D. Gifford - http://www.aarongifford.com/ The MIT License (MIT) Copyright (c) 2014 Charles Gunyon Copyright (c) 2000-2001, Aaron D. Gifford All rights reserved. Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without You may obtain a copy of the license at limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the...
  • Page 5 Copyright (c) 1995, 1996 Carnegie-Mellon University. All rights reserved. T-Kernel 2.0 Author: Chris G. Demetriou This product uses the source code of T-Kernel 2.0 under T-License 2.0 granted by T-Engine Forum (www.tron.org) Permission to use, copy, modify and distribute this software and its documentation is hereby granted, provided that both the copyright notice and this permission notice appear in all copies of the software, BSD-3-Clause derivative works or modified versions, and any portions thereof, and that both notices appear in supporting...

  • Page 6: Table Of Contents

    Contents Before Use ....................3 Audio Settings ..................25 Basics ......................4 Display Settings ..................29 Getting Started ..................5 Installation/Connection ............... 31 1 Cancel the demonstration References ....................37 2 Set the clock and date Maintenance 3 Set the other optional settings More information Digital Radio .....................

  • Page 7: Before Use

    Before Use IMPORTANT How to read this manual • To ensure proper use, please read through this manual before using this • The displays and faceplates shown in this manual are examples used to product. It is especially important that you read and observe Warnings and provide clear explanations of the operations.

  • Page 8: Basics

    Basics Faceplate Attach Volume knob Loading slot Detach Lights up when Bluetooth connection is established. (Page 18) How to reset Detach button Display window* Reset the unit within 5 seconds after detaching the faceplate. * Only for illustration purpose. On the faceplate Turn on the power Press B SRC.

  • Page 9: Getting Started

    Getting Started To set the date Turn the volume knob to select [DATE FORMAT], then press the knob. Turn the volume knob to select [DD/MM/YY] or [MM/DD/YY], then press the knob. Turn the volume knob to select [DATE SET], then press the knob. Turn the volume knob to make the settings, then press the knob.
  • Page 10 Getting Started [DISPLAY] [SOURCE SELECT] [EASY MENU] When entering [FUNCTION]... [SPOTIFY SRC] [ON]: Enables SPOTIFY/SPOTIFY BT in source selection. ; [ON]: [ZONE 1] illumination changes to white color. ; [OFF]: Disables. (Page 14) [OFF]: [ZONE 1] illumination remains as [COLOR SELECT] color. [BT AUDIO SRC] [ON]: Enables BT AUDIO in source selection.

  • Page 11: Digital Radio

    Digital Radio Getting Started About DAB (Digital Audio Broadcasting) Change the crossover type DAB is one of the digital radio broadcasting systems available today. It can Press B SRC repeatedly to enter STANDBY. deliver digital quality sound without any annoying interference or signal Press and hold number buttons 4 and 5 to enter crossover select.
  • Page 12 Digital Radio • “DGTL” lights up when receiving DAB digital signal and flashes when Other settings receiving a RDS signal. • The unit switches to DAB alarm automatically when receiving an alarm Press the volume knob to enter [FUNCTION]. signal from DAB broadcast. Turn the volume knob to select an item (see the following table), then press the knob.
  • Page 13 Digital Radio [ASW SELECT] [TRAVEL], [WARNINGS], [NEWS], [WEATHER], [EVENT], [SPECIAL], [CLOCK] [RAD INFO], [SPORTS], [FINANCE]: Turn the volume knob to make a [TIME SYNC] [ON]: Synchronizes the unit’s time to the Digital Radio station time. ; selection, then press the knob. [OFF]: Cancels.

  • Page 14: Analog Radio

    Analog Radio Default: [XX] [TUNER SETTING] [SEEK MODE] Selects the searching method for S / T buttons when pressed. [AUTO1]: Automatically search for a station. ; [AUTO2]: Search for a preset station. ; [MANUAL]: Manually search for a station. [LOCAL SEEK] [ON]: Searches only AM stations with good reception.

  • Page 15: Cd/Usb/Ipod

    CD/USB/iPod Analog Radio • [MONO SET]/[NEWS SET]/[REGIONAL]/[AF SET]/[PTY SEARCH] is selectable only Insert a disc when the band is FM1/FM2/FM3. Eject disc Label side • If the volume is adjusted during reception of traffic information, alarm or news bulletin, the adjusted volume is memorized automatically. It will be applied the next time traffic information, alarm or news bulletin is turned Available Program Type for [PTY SEARCH] The source changes to CD automatically and playback starts.
  • Page 16 CD/USB/iPod Select music drive While in USB source, press 5 repeatedly. Stored songs in the following drive will be played back. • Selected internal or external memory of a smartphone (Mass Storage Class). • Selected drive of a multiple drive device. On the faceplate You can also select the music drive from the [FUNCTION] menu.
  • Page 17 CD/USB/iPod [SKIP SEARCH] setting Select a file to play Press the volume knob to enter [FUNCTION]. From a folder or list Turn the volume knob to select [USB], then press the knob. Turn the volume knob to select [SKIP SEARCH], then press the knob. •...

  • Page 18: Spotify

    Spotify You can listen to Spotify on iPhone/iPod touch (via Bluetooth or via USB On the faceplate input terminal) or Android device (via Bluetooth) (page 18). Press 6 IW. Play back/pause Preparation: Press S*3 / T. Skip a track • Install the latest version of the Spotify application on your device (iPhone/ Select thumbs up or Press 2 iPod touch or Android device), then create an account and log in to...

  • Page 19: Aux

    Spotify You can listen to music from a portable audio player via the auxiliary input Search for a song or station jack. Press Preparation: Turn the volume knob to select a list type, then press the knob. Select [ON] for [BUILT-IN AUX] in [SOURCE SELECT]. (Page 6) The list types displayed differ depending on the information sent from Spotify.

  • Page 20: Using Other Applications

    Using Other Applications KENWOOD Remote application Settings to use KENWOOD Remote application You can control the KENWOOD car receiver from iPhone/iPod touch (via Press the volume knob to enter [FUNCTION]. Bluetooth or via USB input terminal) or Android device (via Bluetooth) using Turn the volume knob to select an item (see the following table), then KENWOOD Remote application.

  • Page 21: Bluetooth

    Bluetooth® Using Other Applications • Depending on the Bluetooth version, operating system and the firmware [STATUS] Shows the status of the selected device. version of your mobile phone, Bluetooth features may not work with this [IOS CONNECTED]: You are able to use the application using the iPhone/ unit.

  • Page 22: Bluetooth - Mobile Phone

    Press B SRC to turn on the unit. When you connect iPhone/iPod touch to the USB input terminal, pairing request (via Bluetooth) is automatically activated if [AUTO PAIRING] is set to Search and select the name of your receiver (“KDC-BT740DAB”) on the [ON]. (Page 21) Bluetooth device.
  • Page 23 Bluetooth® The following operations may differ or be unavailable depending on the Improve the voice quality connected phone. While talking on the phone... On the faceplate Press the volume knob to enter [FUNCTION]. Turn the volume knob to select an item (see the following table), then First incoming call...
  • Page 24 Bluetooth® Make a call [PHONE BOOK] (Applicable only if the phone supports PBAP.) 1 Turn the volume knob quickly to enter alphabet search mode (if the You can make a call from the call history, phonebook, or dialing the number. phonebook contains many contacts).
  • Page 25 Bluetooth® Make a call using voice recognition Bluetooth mode settings Press and hold to activate the voice recognition of the connected Press the volume knob to enter [FUNCTION]. phone. Turn the volume knob to select an item (see the following table), then Speak the name of the contact you want to call or the voice command press the knob.
  • Page 26 Press and hold “PLEASE PAIR YOUR PHONE PIN 0000” appears on the display. Listen to the audio player via Bluetooth Search and select the name of your receiver (“KDC-BT740DAB”) on the Bluetooth device. Press B SRC repeatedly to select BT AUDIO.

  • Page 27: Bluetooth - Audio

    AMAZON ALEXA Bluetooth® Alexa is the cloud-based voice service developed by Amazon. You can ask On the faceplate Alexa to play music, get weather reports, traffic information, control smart Select a file from a folder/list Refer to “Select a file to play” on page 13. home devices, shop on Amazon, search the internet, set reminders and more.
  • Page 28 4 Tap “Automotive Accessory” or “Headphones” from the list of device types. “THINKING...” appears when Alexa is processing your voice input. 5 Tap the name of your receiver (“KDC-BT740DAB” ) and follow the instructions. “SPEAKING...” appears while Alexa is responding to your voice input.

  • Page 29: Audio Settings

    Audio Settings [MANUAL EQ] Adjusts your own sound settings for each source. • The settings are stored to [USER] in [PRESET EQ]. • The settings made may affect the current settings of [EASY EQ]. [62.5HZ] [LEVEL] [LEVEL –9] to [LEVEL +9] ([LEVEL +5]): Adjusts the level to memorize for each source.
  • Page 30 Audio Settings Crossover settings [FADER] (Not applicable if 3-way crossover is selected.) [R15] to [F15] ([0]): Adjusts the front and rear speaker output balance. Below are the available setting items for 2-way crossover and 3-way [BALANCE] [L15] to [R15] ([0]): Adjusts the left and right speaker output balance. crossover.
  • Page 31 Audio Settings 2-way crossover setting items [SUBWOOFER LPF] [SW LPF FRQ] [30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/ [90HZ]/[100HZ]/[120HZ]/[150HZ]/[180HZ]/ [SPEAKER SIZE] [220HZ]/[250HZ]/[THROUGH] [FRONT] [SIZE] [8CM]/[10CM]/[12CM]/[13CM]/[16CM]/[17CM]/ [SW LPF SLOPE] [–6DB]/[–12DB]/[–18DB]/[–24DB] [18CM]/[4×6]/[5×7]/[6×8]/[6×9]/[7×10] [SW LPF PHASE] [REVERSE] (180°)/[NORMAL] (0°) [TWEETER] [SMALL]/[MIDDLE]/[LARGE]/[NONE] [SW LPF GAIN] [–8] to [0] (not connected) •...
  • Page 32 Audio Settings [MID RANGE] [HPF FRQ] [30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/[90HZ]/ [DTA SETTINGS] [100HZ]/[120HZ]/[150HZ]/[180HZ]/[220HZ]/[250HZ]/ [POSITION] Selects your listening position (reference point). [THROUGH] [ALL]: Not compensating ; [FRONT RIGHT]: Front right seat ; [HPF SLOPE] [–6DB]/[–12DB] [FRONT LEFT]: Front left seat ; [FRONT ALL]: Front seats •...

  • Page 33: Display Settings

    Display Settings Audio Settings When 3-way crossover is selected: Zone identification for color settings and brightness settings [TWEETER LEFT]/[TWEETER RIGHT]/[MID LEFT]/[MID RIGHT]/[WOOFER] – You can only select [WOOFER] if a setting other than [NONE] is selected for [WOOFER] of [SPEAKER SIZE]. (Page 27) •...
  • Page 34 Display Settings Default: [XX] [LEVEL METER] [ON]: Shows the level meter on the display window (as shown below). ; [OFF]: Cancels. [DISPLAY] [COLOR SELECT] Selects illumination colors for [ALL ZONE], [ZONE 1] and [ZONE 2] separately. 1 Select a zone. (See the illustration on page 29.) Level meter 2 Select a preset color for the selected zone.

  • Page 35: Installation/Connection

    Installation/Connection Part list for installation This section is for the professional installer. For safety’s sake, leave wiring and mounting to professionals. Consult the (A) Faceplate (×1) (B) Trim plate (×1) car audio dealer. WARNING • The unit can only be used with a 12 V DC power supply, negative ground. •...
  • Page 36 Installation/Connection Installing the unit (in-dash mounting) Installing the unit (without mounting sleeve) Remove the mounting sleeve and trim plate from the unit. Align the holes in the unit (on both sides) with the vehicle mounting bracket and secure the unit with screws (commercially available). Use only the specified screws.
  • Page 37 Installation/Connection Wiring connection IMPORTANT We recommend installing the unit with a commercially available Antenna terminal Fuse (10 A) custom wiring harness specific for your car and leave this job to professionals for your safety. Consult your car audio dealer. White To front speaker (left)/ If no connections are made, do not let the wire come out from the tab.
  • Page 38 Installation/Connection Connect external components Installing the DAB antenna Connect the supplied DAB antenna to the DAB antenna jack. (See the left column.) CAUTION • The film antenna (F) is exclusively for use inside the vehicle. • Do not install at the following locations: –...
  • Page 39 Installation/Connection Part list for installation CAUTION When installing the antenna cable inside the front pillar with the air bag installed (F) Film antenna (×1) (G) Amplifier unit (cable with (H) Cable clamper booster, 3.5 m) (×1) (×3) • The front pillar cover is secured with a special clip which may need to be replaced when it is removed.
  • Page 40 Installation/Connection 4 Rub the film antenna gently onto the windscreen in the 6 Set the position of the protrusion of the amplifier unit Antenna installation (G) with the K mark on the film antenna (F) and paste. direction of the arrow shown to allow it to stick firmly. Do not touch the lead terminal or the pasting surface 1 Remove the front pillar cover of your car.

  • Page 41: References

    References Installation/Connection 7 Remove the film covering the earth sheet and paste the earth sheet on the metal part Maintenance of the vehicle. Provide sufficient leeway for the earth sheet so that it does not interfere with the interior parts Cleaning the unit (front pillar cover).

  • Page 42: Change The Display Information

    References Playable files About Spotify • Playable audio file: • Spotify application supports: For disc: MP3 (.mp3), WMA (.wma), AAC (.aac) – iPhone 5S, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus, 8, 8 Plus, X, XS, XS MAX, XR (iOS 12.1 or later) For USB mass storage class device: –...

  • Page 43: Troubleshooting

    Troubleshooting References Source name Display information: Main display Symptom Remedy STANDBY Source name Date back to the beginning Sound cannot be heard. • Adjust the volume to the optimum level. • Check the cords and connections. DIGITAL AUDIO Service label Ensemble label Dynamic label Song title/Artist...
  • Page 44 Troubleshooting Symptom Remedy Symptom Remedy Disc cannot be ejected. Press and hold to forcibly eject the disc. Be careful not “LOADING” appears when This unit is still preparing the iPod/iPhone music list. It to drop the disc when it is ejected. If this does not solve you enter search mode by may take some time to load, try again later.
  • Page 45 Troubleshooting Symptom Remedy Symptom Remedy No Bluetooth device is • Search from the Bluetooth device again. “NO ENTRY”/“NO PAIR” There is no registered device connected/found via detected. • Reset the unit. (Page 4) Bluetooth. Bluetooth pairing cannot • Make sure you have entered the same PIN code to both “ERROR”...

  • Page 46: Specifications

    Specifications Frequency Range Band III: Laser Diode GaAIAs 174.928 MHz — 239.200 MHz Digital Filter (D/A) 8 times over sampling Sensitivity –100 dBm Spindle Speed 500 rpm — 200 rpm (CLV) Signal-to-Noise Ratio 90 dB Wow & Flutter Below measurable limit Antenna Connector Type Frequency Response (±1 dB) 20 Hz —...
  • Page 47 Specifications Version Bluetooth 4.2 Operating Voltage 12 V DC car battery Frequency Range 2.402 GHz — 2.480 GHz Installation Size (W × H × D) 182 mm × 53 mm × 155.5 mm RF Output Power (E.I.R.P.) +4 dBm (MAX), Power Class 2 Net Weight (includes Trimplate, 1.2 kg Mounting Sleeve)
  • Page 48 • Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. • Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge and has been certified by the developer to meet Apple performance standards.
