MICH3510S, MIC3510SB, MIC3510S, MICA3510S

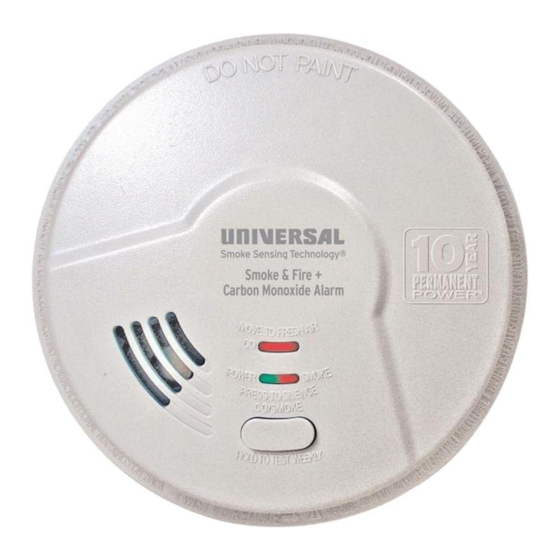

THANK YOU for purchasing this 3-in-1 Smoke + Fire + Carbon Monoxide Smart Alarm .
This alarm does not require battery changes . This alarm contains a 10 year permanent
power sealed battery to provide continuous protection--even in the event of a power
outage . The sealed battery will last for approximately 10 years . This manual includes
important information regarding where to install the alarm, how to operate, maintenance,
testing and product features . It also includes tips and information which can help protect
you and your family .
Alarm Technology & Key Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Alarm Limitations and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Where This Alarm Should Be Installed . . . . . . . . . . . . . . . . . . . . . . . 3
Where This Alarm Should Not Be Installed . . . . . . . . . . . . . . . . . . . . 5
Mounting Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Tamper Resistant Alarm Locking Feature . . . . . . . . . . . . . . . . . . . . . 6
Industry & Agency Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Alarm Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Normal Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Trouble Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Alarm Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Quick Find® Alarm Origination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Silence Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Testing Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Alarm & Battery Deactivation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
What To Do If Alarm Sounds-Carbon Monoxide Detected . . . . . . . . . . . . 10
What You Should Know about Carbon Monoxide . . . . . . . . . . . . . . 10
Symptoms of CO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Required CO Alarm Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Response to CO Alarm Sounding . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Potential Sources of CO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
What To Do If Alarm Sounds-Smoke Detected . . . . . . . . . . . . . . . . . . . . . . 12
How Can I Protect My Family from Fire . . . . . . . . . . . . . . . . . . . . . 12
Develop An Escape Plan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Quick Reference Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Troubleshooting Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Warranty
Alarm Returns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Repairs and Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Regular Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
PLEASE READ AND SAVE!
TABLE OF CONTENTS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Universal Security Instruments MICA3510S
Summary of Contents for Universal Security Instruments MICA3510S
-
Page 1: Table Of Contents
MICH3510S, MIC3510SB, MIC3510S, MICA3510S PLEASE READ AND SAVE! THANK YOU for purchasing this 3-in-1 Smoke + Fire + Carbon Monoxide Smart Alarm . This alarm does not require battery changes . This alarm contains a 10 year permanent power sealed battery to provide continuous protection--even in the event of a power outage . -
Page 2: Alarm Technology & Key Product Features
ALARM TECHNOLOGY & FEATURES This is a 3-in-1 combination smoke + fire + carbon monoxide (CO) alarm. The 10 year sealed battery provides continuous protection even in the event of a power outage . • There are three basic smoke alarm types: Universal Smoke Sensing Technology , Ionization ®... -
Page 3: Installation Instructions
• SMOKE ALARMS MAY NOT DETECT FIRE ON ANOTHER FLOOR OR AREA OF THE HOME. Recommended minimum protection is at least one smoke alarm inside every bed- room, outside every sleeping area and on every level of the residence . Interconnected alarms may provide earlier warning than stand-alone alarms since all alarms will sound when the initiating alarm sounds . - Page 4 • Install an alarm in every family living unit containing a fuel-burning appliance, fireplace, or an attached garage . • Alarms should be centrally located outside of each separate sleeping area in the immediate vi- cinity of the bedrooms . Where bedrooms are separated and audibility of the alarm to occupants within the bedroom area could be seriously impaired, more than one alarm may be needed .
-
Page 5: Where This Alarm Should Not Be Installed
Mobile Home Installation: For minimum protection, smoke alarms should be installed in compliance with H .U .D . Manu- factured Home Construction Safety Standards, Title 24 CFR, Section 3280.208 and Section 3282 . For additional protection, see Single Story Residence smoke alarm requirements/rec- ommendations for Existing Homes and New Construction Homes . -
Page 6: Mounting Instructions
• Less than 12 inches (306mm) away from fluorescent lights. Electrical noise can interfere with the operation of the alarm . • In the kitchen, some gas appliances can emit a short burst of CO or gas upon startup . This is normal . -
Page 7: Industry & Agency Recommendations
4. Insert the pin into the opening located in the base of the alarm (Figure 2) TO REMOVE: To remove the alarm after the tamper resistant locking feature has been engaged; remove the locking pin using long nose pliers. The locking pin is reusable. IMPORTANT: Two self-adhesive labels are included with this alarm . -
Page 8: Alarm Reset
once approximately every two minutes . The red CO LED is off . The trouble signal cannot be silenced . Reset the alarm . If this does not clear this trouble signal, deactivate the alarm . Refer to the “alarm deactivation section .” Replace alarm immediately . RESET ALARM: Press the test/silence button for 10-15 seconds, then release . -
Page 9: Silence Feature
NOTE: The alarm horn loudness meets or exceeds current UL standards of 85 dB at 10 feet (3 meters). WEEKLY TESTING: This alarm is designed to act as a monitor, not for use as a short-term testing device, or to perform a quick check for the presence of CO or smoke . The built-in test switch accurately tests the alarm operation as required by ANSI/UL 2034/UL 217 Standards for Safety . -
Page 10: What To Do If Alarm Sounds-Carbon Monoxide Detected
WHAT YOU SHOULD KNOW ABOUT CO Carbon monoxide (CO) is an insidious poison. It is a colorless, odorless, tasteless gas. It is a cumulative poison . Even low levels of CO have been shown to cause brain and other vital organ damage in unborn infants with no effect on the mother . -
Page 11: Potential Sources Of Co
Because carbon monoxide may dissipate by the time a first responder or investigator arrives, it may be difficult to locate the source of CO . USI Electric/Universal Security Instruments shall not be obligated to pay for or reimburse the user of this alarm for any carbon monoxide investigation or service calls . Fire departments, HVAC contractors and most utility companies will perform CO inspections . -
Page 12: What To Do If Alarm Sounds-Smoke Detected
Make regular visual inspections of all fuel-burning appliances. Check appliances for excessive rust and scaling. Check the color of the flame on the burner and pilot lights to ensure they are burning properly. They should be blue. If the flame is orange or yellow, it is a sign the fuel is not burning completely and a repair technician should be contacted . -
Page 13: Quick Reference Guide
ALARM AUDIBLE & VISUAL SIGNALS C O N D I T I O N RECOMMENDATION SMK RED CO RED HORN New-Out of package . To activate the alarm remove the pull tab . Silent The alarm will sound one long beep to confirm it is powered up . - Page 14 Page 14...
-
Page 15: Alarm Returns
TEN-YEAR LIMITED WARRANTY USI Electric, Inc. /Universal Security Instruments, Inc. (“USI”) warrants this product to be free from defects in material and workmanship for a period of 10 (ten) years from the date of purchase. This warranty shall not apply to any damage which may be caused by the sealed batteries used in this product .
