Chamberlain CWA2000 User Manual

Wireless motion alert.
Hide thumbs
The Wireless Motion Alert uses a Passive Infra-Red (PIR) Motion Sensor to detect movement of people and vehicles, while allowing
small animals to pass through undetected. The Base Station is powered by the DC adapter and the 4 AA batteries supply power in case
of a power outage.
NOTE: The Base Station is intended for indoor use only.

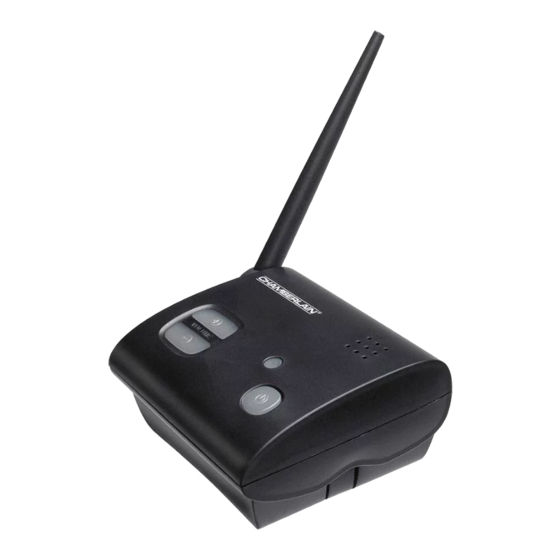

Base Station
Operation & Features
On/Off: To turn the Base Station on and off, hold down the
power button until you hear the on/off tone.
Volume: The Base Station is equipped with adjustable
volume controls. The lowest volume setting is the mute
Swivel Bushing
Passive Infra-Red (PIR)
Motion Sensor
Rubber Pads
On/Off Button
Sun/Rain Shield
Batteries: If the DC adapter is not connected, the
AA batteries in the Base Station should last up to one week.
If the Base Station batteries are low, the Base Station will
beep every 30 minutes. The AA batteries in the PIR Motion
Sensor will last up to 2 years depending on use (lithium
batteries are recommended for colder environments). If
the PIR Motion Sensor batteries are low, the Base Station
will beep every 30 minutes until the batteries are replaced.
The PIR Motion Sensor will continue to operate with a
low battery, however the light will not illuminate. For peak
performance, inspect batteries annually and replace as
Programming Additional PIR Motion Sensors: The Base
Station can learn the code of up to 7 additional PIR Motion
Sensors, responding with unique buzzes. To program
additional PIR Motion Sensors see Step 4.
To order additional PIR Motion Sensors call
Clear Memory: Press and hold the Learn Button on the Base
Station until 3 beeps are heard.
Models CWA2000 & CWA2000C
Mounting Plate
DC Adapter
(9 Vdc @ 200mA)


   Also See for Chamberlain CWA2000

   Related Manuals for Chamberlain CWA2000

   Summary of Contents for Chamberlain CWA2000

  • Page 1: Carton Inventory

    To order additional PIR Motion Sensors call 1-800-528-9131. Clear Memory: Press and hold the Learn Button on the Base Station until 3 beeps are heard. Models CWA2000 & CWA2000C WIRELESS MOTION ALERT DC Adapter Mounting Plate (9 Vdc @ 200mA)

  • Page 2: Assembly & Programming

    Assembly & Programming Attach PIR Motion Sensor box to mounting plate with large silver screw. Tighten screw until PIR Motion Sensor stays in place when repositioned. Install 4 AA Alkaline batteries. (Lithium batteries recommended for colder environments.) LED light will fl ash. SWITCH SETTINGS Antenna PIR Motion Sensor...

  • Page 3: Troubleshooting

    Troubleshooting The PIR Motion Sensor lights up, but the Base Station does not respond. The PIR Motion Sensor must be programmed to Base Station (See Step 4). Ensure Base Station is on and the volume is turned up. PIR Motion Sensor is detecting motion only part of the time. Ensure the PIR Motion Sensor is set to the High Sensitivity setting (See Step 2).

  • Page 4

    (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FOR TECHNICAL SUPPORT DIAL OUR TOLL FREE NUMBER: 1-800-528-9131 © 2011, The Chamberlain Group Inc. 114A3896E All Rights Reserved...
