Summary of Contents for Epson EB-U42

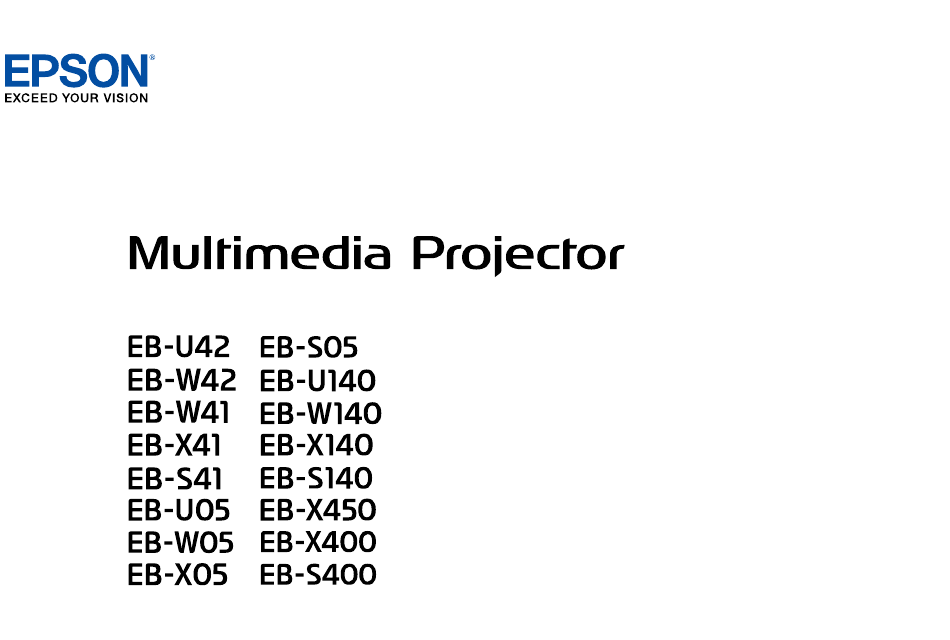

  • Page 1 User's Guide...

  • Page 2: Table Of Contents

    Contents Notations Used in This Guide Connecting to External USB Devices ..................24 USB Device Projection ......................24 Connecting to a USB Device ....................24 Introduction to Your Projector Disconnecting a USB Device ....................25 Connecting to a Document Camera ..................25 Projector Features................
  • Page 3 Monitoring and Controlling the Projector Saving a User's Logo Image ............68 Color Difference Correction when Projecting from Multiple Epson Projector Management ............92 Projectors..................70 Controlling a Networked Projector Using a Web Browser... 93 Setting the Projector ID ......................70 Setting Up Projector Network E-Mail Alerts........
  • Page 4 Contents Maintaining the Projector Setting Up Monitoring Using SNMP..........97 Adjusting the Menu Settings Cleaning the Lens................125 Cleaning the Projector Case............126 Using the Projector's Menus ............99 Air Filter and Vent Maintenance ..........127 Using the On-screen Keyboard............. 100 Cleaning the Air Filter and Vents..................
  • Page 5 Contents Solving Projector or Remote Control Operation Problems ..146 Indication of the manufacturer and the importer in accordance with requirements of EU directive....................169 Solutions to Projector Power or Shut-Off Problems............146 Restriction of Use ........................169 Solutions to Problems with the Remote Control............146 Operating System References....................

  • Page 6: Notations Used In This Guide

    Notations Used in This Guide Safety Symbols The projector and its manuals use graphical symbols and labels to indicate content that tells you how to use the projector safely. Read and carefully follow the instructions that are marked with these symbols and labels to avoid injury to persons or damage to property. This symbol indicates information that, if ignored, could possibly result in personal injury or even death.

  • Page 7: Introduction To Your Projector

    Introduction to Your Projector Refer to these sections to learn more about your projector's features and part names. g g Related Links • "Projector Features" • "Projector Parts and Functions" p.10...

  • Page 8: Projector Features

    • Auto Power On feature to turn on the projector when the projector detects • Epson iProjection (Windows/Mac) to project up to four images at the same an image signal from the port you specified as the Auto Power On source.

  • Page 9: Flexible Connectivity

    Projector Features • "Connect with Mobile Devices" • When projecting images using a wireless LAN, you must install the Epson 802.11b/g/n wireless LAN module, and then set up your projector and computer for wireless projection Connect with Computers (EB‑W41/EB‑X41/EB‑S41/EB‑U05/EB‑W05/EB‑X05/EB‑S05/EB‑U1 40/EB‑W140/EB‑X140/EB‑S140/EB‑X450/EB‑X400/EB‑S400).

  • Page 10: Projector Parts And Functions

    Projector Parts and Functions The following sections explain the projector parts and their functions. Name Function All of the features in this guide are explained using illustrations of EB‑W05 unless otherwise mentioned. Warning g g Related Links Do not look into the vents. If the lamp •...

  • Page 11: Projector Parts - Rear

    Projector Parts and Functions EB‑W42/EB‑W41/EB‑X41/EB‑S41/EB‑W05/EB‑X05/EB‑S05/EB‑W140/EB‑X1 Name Function 40/EB‑S140/EB‑X450/EB‑X400/EB‑S400 Security slot The security slot is compatible with the Microsaver Security System manufactured by Kensington. Control panel Operates the projector. Zoom ring Adjusts the image size. (EB‑U42/EB‑W42/EB‑ W41/EB‑X41/EB‑U05 /EB‑W05/EB‑X05/EB‑ U140/EB‑W140/EB‑X 140/EB‑X450/EB‑X40 Focus ring Adjusts the image focus.

  • Page 12: Projector Parts - Base

    Projector Parts and Functions Name Function Projector Parts - Base HDMI1, Inputs video signals from HDMI compatible video HDMI2/MHL ports equipment and computers. (EB‑U42/EB‑U05/EB‑ The HDMI/MHL port can also input video signals U140) from MHL (Mobile High-Definition) compatible HDMI/MHL port mobile devices.

  • Page 13: Projector Parts - Control Panel

    Projector Parts and Functions Name Function Name Function Front adjustable foot When the projector is set up on a surface such as a Keystone adjustment Displays the Keystone screen allowing you to correct desk, extend the foot to adjust the position of the buttons and arrow keystone distortion.

  • Page 14: Projector Parts - Remote Control

    Projector Parts and Functions Projector Parts - Remote Control Name Function Power button Turns the projector on or off. [Computer] button Selects the Computer port as the image source. [HDMI/Video] Switches the image source between the HDMI and Video button ports.
  • Page 15 Projector Parts and Functions g g Related Links Name Function • "Image Aspect Ratio" p.48 [Split] button Projects two images from different image sources • "Color Mode" p.50 (EB‑U42/EB‑W42/ simultaneously by splitting the projected screen. • "Input Signal Settings - Signal Menu" p.102 EB‑W41/EB‑U05/E •...

  • Page 16: Setting Up The Projector

    Setting Up the Projector Follow the instructions in these sections to set up your projector. g g Related Links • "Projector Placement" p.17 • "Projector Connections" p.19 • "Installing Batteries in the Remote Control" p.26 • "Remote Control Operation" p.27 •...

  • Page 17: Projector Placement

    Projector Placement You can place the projector on almost any flat surface to project an image. If you cannot install the projector parallel to the screen, correct keystone distortion using the projector controls. You can also install the projector in a ceiling mount if you want to use it in a fixed location.

  • Page 18: Projector Setup And Installation Options

    Projector Placement projector is from the screen, but can vary depending on the zoom factor, Projector Setup and Installation Options aspect ratio, and other settings. See the Appendix for details about how far to place the projector from the You can set up or install your projector in the following ways: screen based on the size of the projected image.

  • Page 19: Projector Connections

    Connect the other end to a Computer port on the projector. • For slide shows or presentations without a computer, you can connect USB devices (such as a flash drive or camera) or the optional Epson document camera. g g Related Links •...

  • Page 20: Connecting To A Computer For Usb Video And Audio

    Connect the other end to the projector's Audio ports. Turn on the projector and your computer. Do one of the following to install the Epson USB Display software: You only need to install this software the first time you connect the projector to the computer.

  • Page 21: Connecting To A Computer For Hdmi Video And Audio

    Projector Connections Connect the MHL cable to your device's Micro-USB port. Connecting to a Computer for HDMI Video and Audio If your computer has an HDMI port, you can connect it to the projector using Connect the other end to the projector's HDMI/MHL port. an HDMI cable and send the computer's audio with the projected image.

  • Page 22: Connecting To Video Sources

    Projector Connections work or you may not be able to perform operations using the Connecting to an HDMI Video Source projector's remote control. If your video source has an HDMI port, you can connect it to the projector using an HDMI cable and send the image source's audio with the projected •...

  • Page 23: Connecting To A Composite Video Source

    Projector Connections Connect the component connectors to your video source's color-coded If your image colors appear incorrectly, you may need to change the Input component video output ports. Signal setting in the projector's Signal menu. Signal > Advanced > Input Signal The ports usually labeled Y, Pb, Pr or Y, Cb, Cr.

  • Page 24: Connecting To External Usb Devices

    Projector Connections Connect the other end to the projector's Audio ports. • Digital cameras or smartphones must be USB-mounted devices, not TWAIN-compliant devices, and must be USB Mass Storage Class- compliant. • USB hard drives must meet these requirements: • USB Mass Storage Class-compliant (not all USB Mass Storage Class devices are supported) •...

  • Page 25: Disconnecting A Usb Device

    Disconnect the USB device from the projector. Connecting to a Document Camera You can connect a document camera to your projector to project images viewed by the camera. The connection method varies depending on your Epson document camera model. See the document camera manual for details.

  • Page 26: Installing Batteries In The Remote Control

    Installing Batteries in the Remote Control The remote control uses the two AA batteries that came with the projector. Warning Attention Check the positions of the (+) and (–) marks inside the battery holder to ensure the batteries are inserted the correct way. If the batteries are not used Make sure you read the Safety Instructions before handling the batteries.

  • Page 27: Remote Control Operation

    Remote Control Operation The remote control lets you control the projector from almost anywhere in the room. Make sure that you aim the remote control at the projector's receivers within the distance and angles listed here. Avoid using the remote control in conditions with bright fluorescent lights or in direct sunlight, or the projector may not respond to commands.

  • Page 28: Opening The Lens Cover

    Opening the Lens Cover To open the projector's lens cover, slide the A/V Mute slide lever until it clicks. To cover the lens or temporarily turn off the projected image and sound, close the lens cover.

  • Page 29: Using Basic Projector Features

    Using Basic Projector Features Follow the instructions in these sections to use your projector's basic features. g g Related Links • "Turning On the Projector" p.30 • "Turning Off the Projector" p.33 • "Selecting the Language for the Projector Menus" p.34 •...

  • Page 30: Turning On The Projector

    Turning On the Projector Turn on the computer or video equipment you want to use after you turn on Open the projector's lens cover. the projector. Connect the power cord to the projector's power inlet and plug it into an electrical outlet. Try the following if you do not see a projected image.

  • Page 31: Home Screen

    Turning On the Projector • "Projector Setup Settings - Extended Menu" p.106 Warning • Never look into the projector lens when the lamp is on. This can damage your eyes and is especially dangerous for children. Home Screen • When turning on the projector at a distance using the remote control, make sure there is no one looking into the lens.
  • Page 32 Turning On the Projector Projects two images from different image sources simultaneously by splitting the projected screen (EB‑U42/EB‑W42/EB‑W41/EB‑U05/EB‑W05/EB‑U140/EB‑W140). Selects the brightness mode of the projector lamp (EB‑X41/EB‑S41/EB‑X05/EB‑S05/EB‑X140/EB‑S140/EB‑X450/EB‑X400/EB‑S400 Corrects the shape of an image that is an uneven rectangle. The Home screen disappears after 10 minutes of inactivity. g g Related Links •...

  • Page 33: Turning Off The Projector

    Press the power button again. (To leave it on, press any other button.) The projector beeps twice, the lamp turns off, and the status indicator turns off. With Epson's Instant Off technology, there is no cool-down period so you can pack up the projector for transport right away.

  • Page 34: Selecting The Language For The Projector Menus

    Selecting the Language for the Projector Menus If you want to view the projector's menus and messages in another language, Press [Menu] or [Esc] to exit the menus. you can change the Language setting. Turn on the projector. Press the [Menu] button on the control panel or remote control. Select the Extended menu and press [Enter].

  • Page 35: Projection Modes

    Projection Modes Depending on how you positioned the projector, you may need to change the To change projection back to the original mode, hold down the [A/V projection mode so your images project correctly. Mute] button for 5 seconds again. •...
  • Page 36 Projection Modes Select Projection and press [Enter]. Select a projection mode and press [Enter]. Press [Menu] or [Esc] to exit the menus.

  • Page 37: Adjusting The Image Height

    Adjusting the Image Height If you are projecting from a table or other flat surface and the image is too If the image is tilted, rotate the rear feet to adjust their height. high or low, you can adjust the image height using the projector's adjustable feet.

  • Page 38: Image Shape

    Image Shape You can project an even, rectangular image by placing the projector directly Correcting the Image Shape with the Horizontal in front of the center of the screen and keeping it level. If you place the Keystone Slider projector at an angle to the screen, or tilt it up or down, or off to the side, you may need to correct the image shape.

  • Page 39: Correcting The Image Shape With The Keystone Buttons

    Image Shape Press a keystone button to adjust the image shape. Correcting the Image Shape with the Keystone Buttons You can use the projector's keystone correction buttons to correct the shape of an image that is unevenly rectangular. You can use keystone buttons to correct images up to 30º right, left, up, or down.

  • Page 40: Correcting The Image Shape With Quick Corner

    Image Shape Select the Settings menu and press [Enter]. g g Related Links • "Projector Feature Settings - Settings Menu" p.104 Correcting the Image Shape with Quick Corner You can use the projector's Quick Corner setting to correct the shape and size of an image that is unevenly rectangular.
  • Page 41 Image Shape Select Quick Corner and press [Enter]. Press [Enter] again if necessary. • If you see this screen, you cannot adjust the shape any further in the direction indicated by the gray triangle. You see the area selection screen. Use the arrow buttons to select the corner of the image you want to adjust.
  • Page 42 Image Shape g g Related Links • "Projector Feature Settings - Settings Menu" p.104...

  • Page 43: Resizing The Image With The Zoom Ring

    Resizing the Image with the Zoom Ring You can resize the image using the projector's zoom ring (EB‑U42/EB‑W42/EB‑W41/EB‑X41/EB‑U05/EB‑W05/EB‑X05/EB‑U140/EB‑W 140/EB‑X140/EB‑X450/EB‑X400). Turn on the projector and display an image. Rotate the zoom ring to enlarge or reduce the image.

  • Page 44: Resizing The Image With The Buttons

    Resizing the Image with the Buttons You can resize the image using the Wide and Tele buttons (EB‑S41/EB‑S05/EB‑S140/EB‑S400). Turn on the projector and display an image. Press the Wide button on the projector's control panel to enlarge the image size. Press the Tele button to reduce the image size.

  • Page 45: Focusing The Image Using The Focus Ring

    Focusing the Image Using the Focus Ring You can correct the focus using the focus ring. EB‑U42/EB‑W42/EB‑W41/EB‑X41/EB‑U05/EB‑W05/EB‑X05/EB‑U140/EB‑W 140/EB‑X140/EB‑X450/EB‑X400 EB‑S41/EB‑S05/EB‑S140/EB‑S400...

  • Page 46: Selecting An Image Source

    Selecting an Image Source When multiple image sources are connected to the projector, such as a This screen is displayed when no image signal is detected. computer and DVD player, you can switch from one image source to the Check the cable connections between the projector and image other.
  • Page 47 Selecting an Image Source • Press the [Home] button on the control panel or remote control. Then select the source you want to use from the screen displayed. • Screen Mirroring is available only with the EB‑U42. • HDMI2 is available only with the EB‑U42/EB‑05.

  • Page 48: Image Aspect Ratio

    Image Aspect Ratio The projector can display images in different width-to-height ratios called To display images without black bars, set Resolution to Wide or aspect ratios. Normally, the input signal from your video source determines Normal in the projector’s Signal menu according to the computer’s the image's aspect ratio.

  • Page 49: Projected Image Appearance With Each Aspect Mode

    Image Aspect Ratio Aspect mode Description Aspect mode Aspect ratio for input signals Native Displays images as is (aspect ratio and resolution are 16:10 16:9 maintained). 16:9 For projectors with a resolution of XGA (1024 × 768) or SVGA (800 × 600) Full Aspect mode Description...

  • Page 50: Color Mode

    Color Mode The projector offers different color modes to provide optimum brightness, You can also set the Color Mode setting in the projector's Image contrast, and color for a variety of viewing environments and image types. menu. You can select the mode designed to match your image and environment, or experiment with the available modes.
  • Page 51 Color Mode Press the [Menu] button on the control panel or remote control. Select Auto Iris and press [Enter]. Select the Image menu and press [Enter]. Choose one of the following options and press [Enter]: • High Speed to adjust brightness as soon as the scene changes. •...

  • Page 52: Controlling The Volume With The Volume Buttons

    Controlling the Volume with the Volume Buttons The volume buttons control the projector's internal speaker system. You must adjust the volume separately for each connected input source. Turn on the projector and start a presentation. To lower or raise the volume, press the [Volume] buttons on the control panel or remote control as shown.

  • Page 53: Adjusting Projector Features

    Adjusting Projector Features Follow the instructions in these sections to use your projector's adjustment features. g g Related Links • "Projecting Two Images Simultaneously" p.54 • "Projecting a PC Free Presentation" p.57 • "Shutting Off the Image and Sound Temporarily" p.62 •...

  • Page 54: Projecting Two Images Simultaneously

    Projecting Two Images Simultaneously You can use the split screen feature to simultaneously project two images Press the [Split] button on the remote control. from different image sources (EB‑U42/EB‑W42/EB‑W41/EB‑U05/EB‑W05/EB‑U140/EB‑W140). You can control the split screen feature using the remote control or the projector menus.

  • Page 55: Unsupported Input Source Combinations For Split Screen Projection

    Projecting Two Images Simultaneously To select an input source for the other image, select the Source setting, To enlarge one image while reducing the other image, select Screen press [Enter], select the input source, select Execute, and press [Enter]. Size, press [Enter], select a size, and press [Enter]. To exit the menu, press [Menu].

  • Page 56: Split Screen Projection Restrictions

    Projecting Two Images Simultaneously • Computer and Video • "Color Mode" p.50 • "Projector Feature Settings - Settings Menu" p.104 • HDMI1 and Screen Mirroring (EB‑U42) • "Projector Setup Settings - Extended Menu" p.106 • USB Display and USB/LAN • "Image Quality Settings - Image Menu" p.101 •...

  • Page 57: Projecting A Pc Free Presentation

    Projecting a PC Free Presentation You can use your projector's PC Free feature whenever you connect a USB File contents File type Details device that contains compatible presentation files. This lets you quickly and (extension) easily display a presentation and control it using the projector's remote Image .jpg Make sure the file is not:...

  • Page 58: Starting A Pc Free Slide Show

    Projecting a PC Free Presentation The PC Free file list screen is displayed. • You may not be able to use the security features on certain USB storage devices with PC Free features. • When connecting a USB device that includes an AC adapter, connect the AC adapter to an electrical outlet when you use the device with your projector.

  • Page 59: Starting A Pc Free Movie Presentation

    Projecting a PC Free Presentation • To display a slide show of all the images in a folder, press the arrow Turn off the USB device, if necessary, and then disconnect the device buttons to highlight the Slideshow option at the bottom of the screen from the projector.

  • Page 60: Pc Free Display Options

    Projecting a PC Free Presentation PC Free Display Options • If the Select Drive screen is displayed, press the arrow buttons to select the drive and press [Enter]. • To display the Select Drive screen, highlight Select Drive at the You can select these display options when using PC Free.
  • Page 61 Projecting a PC Free Presentation Setting Options Description Effect No effect Wipe Transitions between images using a wipe effect Dissolve Transitions between images using a dissolve effect Random Transitions between images using a random variety of effects...

  • Page 62: Shutting Off The Image And Sound Temporarily

    Shutting Off the Image and Sound Temporarily You can temporarily turn off the projected image and sound if you want to • You can also stop projection using the A/V Mute slide lever on the redirect your audience's attention during a presentation. Any sound or video projector.

  • Page 63: Stopping Video Action Temporarily

    Stopping Video Action Temporarily You can temporarily stop the action in a video or computer presentation and keep the current image on the screen. Any sound or video action continues to run, however, so you cannot resume projection at the point that you stopped Press the [Freeze] button on the remote control to stop the video action.

  • Page 64: Zooming Images

    You can enlarge the selected area to between one to four times in 25 incremental steps. When projecting images from an Epson document camera using a USB connection, you can enlarge the selected area from one to eight times its size in 57 incremental steps.

  • Page 65: Using The Remote Control As A Wireless Mouse

    Using the Remote Control as a Wireless Mouse You can use the projector's remote control as a wireless mouse so you can Use the following buttons on the remote control to control your control projection at a distance from the computer. presentation: You can use the wireless mouse features with Windows Vista and later, or OS X 10.7.x and later.
  • Page 66 Using the Remote Control as a Wireless Mouse g g Related Links • "Zooming Images" p.64 • "Using the Remote Control as a Pointer" p.67...

  • Page 67: Using The Remote Control As A Pointer

    Using the Remote Control as a Pointer You can use the projector's remote control as a pointer to help you focus your g g Related Links audience on important information on the screen. The default pointer shape • "Projector Feature Settings - Settings Menu" p.104 is an arrow.

  • Page 68: Saving A User's Logo Image

    Saving a User's Logo Image You can save an image on the projector and display it whenever the projector Select User's Logo and press [Enter]. turns on. You can also display the image when the projector is not receiving an input signal or when you temporarily stop projection (using A/V Mute). This image is called the user's logo screen.
  • Page 69 Saving a User's Logo Image Use the arrow buttons to surround the image area you want to use as Select Yes and press [Enter]. the user's logo and press [Enter]. The user's logo is overwritten and a completion message appears. Press [Esc] to exit the message screen.

  • Page 70: Color Difference Correction When Projecting From Multiple Projectors

    Color Difference Correction when Projecting from Multiple Projectors When lining up multiple projectors to project images, you can correct the Use the arrow buttons to select the identification number you want to brightness and color tone of each projector's image so that the images match use for the projector.
  • Page 71 Color Difference Correction when Projecting from Multiple Projectors Aim the remote control at the target projector and press the [ID] While holding the [ID] button, press the number button that matches button. the ID of the projector you want to operate. The current Projector ID is displayed on the projected screen.

  • Page 72: Matching Multiple-Projector Display Quality

    Color Difference Correction when Projecting from Multiple Projectors Matching Multiple-Projector Display Quality You can match the display quality of multiple projectors that will project next to each other. Turn on all the projectors on which you want to match the display quality.

  • Page 73: Projector Security Features

    Projector Security Features You can secure your projector to deter theft or prevent unintended use by g g Related Links setting up the following security features: • "Setting a Password" p.73 • "Selecting Password Security Types" p.74 • Password security to prevent people who do not know the password from •...

  • Page 74: Selecting Password Security Types

    Projector Security Features Select Password and press [Enter]. The password displays as **** as it is entered. A confirmation prompt is displayed when you enter the fourth digit. Enter the password again. You see the message "Password accepted". If you enter the password incorrectly, a message is displayed prompting you to re-enter the password.

  • Page 75: Entering A Password To Use The Projector

    When the password screen is displayed, enter the correct password. • If you have forgotten the password, make a note of the "Request Code: xxxxx" number that appears on the screen and contact Epson for help. • If you continue to repeat the above operation and input the wrong password 30 times in succession, the message "The projector's operation...

  • Page 76: Unlocking The Projector's Buttons

    Projector Security Features Select the Settings menu and press [Enter]. Select Control Panel Lock and press [Enter]. Select one of these lock types and press [Enter]: Select Lock Setting and press [Enter]. • To lock all of the projector's buttons, select Full Lock. •...

  • Page 77: Installing A Security Cable

    Projector Security Features Settings > Lock Setting > Control Panel Lock g g Related Links • "Projector Feature Settings - Settings Menu" p.104 Installing a Security Cable You can install the security cable on the projector to deter theft. • Use the security slot on the projector to attach a Kensington Microsaver Security system.

  • Page 78: Using The Projector On A Network

    Using the Projector on a Network Follow the instructions in these sections to set up your projector for use on a network. g g Related Links • "Wireless Network Projection" p.79 • "Wireless Network Projection from a Mobile Device (Screen Mirroring)" p.86...

  • Page 79: Wireless Network Projection

    You can send images to your projector through a wireless network. Installing the Wireless LAN Module • To do this, you must install the Epson 802.11b/g/n wireless LAN module, To use the projector over a wireless network, install the Epson 802.11b/g/n...

  • Page 80: Selecting Wireless Network Settings Manually

    Wireless Network Projection Connect the wireless LAN module to the USB-A port. Selecting Wireless Network Settings Manually Before you can project from your wireless network, you need to select network settings for the projector. Press the [Menu] button on the control panel or remote control. Select the Network menu and press [Enter].
  • Page 81 Web. (User name is EPSONWEB; default password is admin.) • Moderator Password lets you enter a four-digit number password for accessing the projector as a moderator using Epson iProjection. (No password is set by default.) • Projector Keyword lets you turn on a security password to prevent access to the projector by anyone not in the room with it.
  • Page 82 Wireless Network Projection Select the Wireless LAN menu and press [Enter]. • If you want to connect the projector to the network using IPv6, select IPv6 Settings to set the IPv6 setting to On, and then set the Auto Configuration and Use Temporary Address settings as necessary. To prevent the SSID or IP address from being displayed on the LAN standby screen and Home screen, set the SSID Display setting or the IP Address Display setting to Off.

  • Page 83: Selecting Wireless Network Settings In Windows

    Wireless Network Projection Selecting Wireless Network Settings in Windows Contact your network administrator for guidance on entering the correct information. Before connecting to the projector, select the correct wireless network on your computer. Press the [Menu] button on the control panel or remote control. To access your wireless utility software, double-click the network icon Select the Network menu and press [Enter].

  • Page 84: Using A Qr Code To Connect A Mobile Device

    USB key, you can quickly project images from the network projector. on your device (V1.3.0 or later supports this feature). • You can download Epson iProjection for free from the App Store or Google Play. Any fees incurred when communicating with the App Set up the USB key using Epson iProjection (Windows/Mac) software.
  • Page 85 Wireless Network Projection Make sure the wireless LAN module is installed or built into your • If the Windows Firewall message is displayed, click Yes to projector. disable the firewall. • You need administrator authority to install the software. Turn on the projector. •...

  • Page 86: Wireless Network Projection From A Mobile Device (Screen Mirroring)

    Wireless Network Projection from a Mobile Device (Screen Mirroring) You can send image to your projector from mobile devices such as laptops, Selecting Screen Mirroring Settings smartphones, and tablets using Miracast technology (EB‑U42). If your device supports Miracast, you do not need to install any additional You must select Screen Mirroring settings for your projector to project images software.
  • Page 87 Wireless Network Projection from a Mobile Device (Screen Mirroring) Select Screen Mirroring On as the Wireless Mode setting. Set the Display Name setting as necessary. Select the Operation Mode setting. • Basic lets you connect with basic options. • Extended lets you connect with advanced options. Select Screen Mirroring Settings and press [Enter].

  • Page 88: Connecting Using Screen Mirroring In Windows 10

    Wireless Network Projection from a Mobile Device (Screen Mirroring) Select the Display setting as necessary. Display Action Center, and then select Connect. • Display PIN Code lets you display the PIN code on the projected image while projecting input sources other than Screen Mirroring. •...

  • Page 89: Connecting Using Screen Mirroring In Windows 8.1

    Wireless Network Projection from a Mobile Device (Screen Mirroring) Select Add a wireless display. It may take some time until the connection is established. While connecting, do not disconnect the projector's power cord. Doing so may cause your device to freeze or malfunction. Connecting Using Screen Mirroring in Windows 8.1 You can set up your computer for wireless projection from Charms in Windows 8.1.

  • Page 90: Connecting Using Screen Mirroring With The Miracast Function

    Wireless Network Projection from a Mobile Device (Screen Mirroring) It may take some time until the connection is established. While connecting, do not disconnect the projector's power cord. Doing so may cause your device to freeze or malfunction. Connecting Using Screen Mirroring with the Miracast Function If your mobile device such as a smartphone supports Miracast, you can connect it to the projector wirelessly and project images.

  • Page 91: Monitoring And Controlling The Projector

    Monitoring and Controlling the Projector Follow the instructions in these sections to monitor and control the projector over a network. g g Related Links • "Epson Projector Management" p.92 • "Controlling a Networked Projector Using a Web Browser" p.93 • "Setting Up Projector Network E-Mail Alerts"...

  • Page 92: Epson Projector Management

    Epson Projector Management Epson Projector Management software (Windows only) lets you monitor and control your projector through the network. See the Epson Projector Management Operation Guide for instructions. You can download Epson Projector Management from the following Web site. http://www.epson.com/...

  • Page 93: Controlling A Networked Projector Using A Web Browser

    Start your Web browser on the computer or device. Go to the Epson Web Control screen by entering the projector's IP To control projection remotely, select Basic Control. address into the browser's address box. When entering an IPv6 address, wrap the address with [ and ].
  • Page 94 Selects Computer port source Selects Video source Searches for sources To select projector menu settings, select Advanced on the Epson Web Control screen. • You can also change projector settings by accessing the projector menu system from OSD Control Pad. See help on how to use the OSD Control Pad screen.
  • Page 95 Controlling a Networked Projector Using a Web Browser • You cannot select the following settings using a Web browser. • Pointer Shape • User Button • User's Logo • Language • HDMI EQ Setting • Reset Lamp Hours • You can select the following settings only using a Web browser.

  • Page 96: Setting Up Projector Network E-Mail Alerts

    Set the Mail Notification setting to On. • The email address set in From as the mail sender • Epson Projector in the subject line Enter the IP address for the SMTP Server option. • The name of the projector experiencing a problem Do not use these addresses: 127.x.x.x or 224.0.0.0 through...

  • Page 97: Setting Up Monitoring Using Snmp

    Setting Up Monitoring Using SNMP Network administrators can install SNMP (Simple Network Management Enter the SNMP Community Name up to 32 alphanumeric characters Protocol) software on network computers so they can monitor projectors. If long. your network uses this software, you can set up the projector for SNMP monitoring.

  • Page 98: Adjusting The Menu Settings

    Adjusting the Menu Settings Follow the instructions in these sections to access the projector menu system and change projector settings. g g Related Links • "Using the Projector's Menus" p.99 • "Using the On-screen Keyboard" p.100 • "Image Quality Settings - Image Menu" p.101 •...

  • Page 99: Using The Projector's Menus

    Using the Projector's Menus You can use the projector's menus to adjust the settings that control how your To change settings in the displayed menu, press [Enter]. projector works. The projector displays the menus on the screen. Press the up or down arrow button to move through the settings. Press the [Menu] button on the control panel or remote control.

  • Page 100: Using The On-Screen Keyboard

    Using the On-screen Keyboard The on-screen keyboard is displayed when you need to enter numbers and Text type Details characters. Numbers 0123456789 Alphabet ABCDEFGHIJKLMNOPQRSTUVWXY Use the arrow buttons on the control panel or remote control to highlight the number or character you want to enter and press the abcdefghijklmnopqrstuvwxyz [Enter] button.

  • Page 101: Image Quality Settings - Image Menu

    Image Quality Settings - Image Menu Settings on the Image menu let you adjust the quality of your image for the Setting Options Description input source you are currently using. The available settings depend on the Color Temp. Sets the color tone based on color currently selected input source.

  • Page 102: Input Signal Settings - Signal Menu

    Input Signal Settings - Signal Menu Normally the projector automatically detects and optimizes the input signal Setting Options Description settings. If you need to customize the settings, you can use the Signal menu. Aspect See the list of Sets the aspect ratio (width-to-height The available settings depend on the currently selected input source.
  • Page 103 Input Signal Settings - Signal Menu Setting Options Description Video Signal Video Signal: specifies the signal type from the input sources connected to the video ports. If interference appears or no image appears when set to Auto, select the appropriate signal according to the connected equipment.

  • Page 104: Projector Feature Settings - Settings Menu

    Projector Feature Settings - Settings Menu Options on the Settings menu let you customize various projector features. Setting Options Description Zoom ** Varying levels Adjusts the size of the projected image. available Volume Varying levels Adjusts the volume of projector’s speaker available system.
  • Page 105 Projector Feature Settings - Settings Menu Setting Options Description Test Pattern — Displays a test pattern to assist in focusing and zooming the image and correcting image shape (press the [Esc] button to cancel pattern display). Attention If a pattern is displayed for a long time, a residual image may be visible in projected images.

  • Page 106: Projector Setup Settings - Extended Menu

    Projector Setup Settings - Extended Menu Settings on the Extended menu let you customize various projector setup Setting Options Description features. Display Display Background: sets the screen Background color or logo to display when no signal is received. Startup Screen: set to On to display a Startup Screen logo when the projector starts up.
  • Page 107 Projector Setup Settings - Extended Menu Setting Options Description HDMI EQ Setting Adjust the HDMI input signal level depending on the devices connected to the HDMI port. If there is a lot of interference in the image, or if a problem such as no image being projected occurs, change the setting.

  • Page 108: Projector Network Settings - Network Menu

    Display the QR — Displays a QR code for connecting with wireless LAN, turn it off to prevent Code iOS or Android devices using the Epson unauthorized access by others. iProjection app. Wireless Mode ** Wireless LAN On Configures your wireless settings.

  • Page 109: Network Menu - Screen Mirroring Settings

    Projector Network Settings - Network Menu Setting Options Description Once you have connected your projector to your network, you can select projector settings and control projection using a compatible Web Operation Mode Basic Select Extended to connect with browser. This allows you to access the projector remotely. advanced options.

  • Page 110: Network Menu - Basic Menu

    Moderator Four-digit number Enter a password for accessing the Network > Network Configuration > Basic Password projector as a moderator using Epson iProjection. (No password is set by default.) Projector Keyword Set to On to enable a security password to prevent access to the projector by anyone not in the same room as the projector.

  • Page 111: Network Menu - Wireless Lan Menu

    Text directly using wireless communication. By simply reading the QR code with Epson iProjection, you can connect the When you select Quick connection mobile device to the projector through a mode, the projector acts as an easy access network.

  • Page 112: Network Menu - Notifications Menu

    IPv6 is supported to monitor and control (when entering When the passphrase is entered and the the projector over a network using Epson from a Web [Enter] button is pressed, the value is set Web Control.

  • Page 113: Network Menu - Others Menu

    Do not use these addresses: 127.x.x.x or Message Set to On to enable the Message 224.0.0.0 through 255.255.255.255 Broadcasting Broadcasting feature. See the Epson (where x is a number from 0 to 255). Projector Management Operation Guide for details.

  • Page 114: Network Menu - Reset Menu

    Projector Network Settings - Network Menu Network Menu - Reset Menu Settings on the Reset menu let you reset all of the network settings. Network > Network Configuration > Reset Setting Options Description Select Yes to reset all network settings. Reset network settings.

  • Page 115: Projector Setup Settings - Eco Menu

    Projector Setup Settings - ECO Menu Settings on the ECO menu let you customize projector functions to save Setting Options Description power. Light Optimizer When set to On, the lamp brightness is When you select a power-saving setting, a leaf icon appears next to the menu adjusted according to the projected item.
  • Page 116 Projector Setup Settings - ECO Menu • When the Sleep Mode Timer setting is enabled, the lamp dims for a short time before the timer limit is reached and the projector turns off. • When the Lens Cover Timer or A/V Mute Timer settings are enabled, the lamp uses less power when the lens cover is closed or A/V Mute is activated.

  • Page 117: Projector Information Display - Info Menu

    Displays the number of hours (H) the lamp has been used in Normal and ECO Power Consumption modes; if the information is displayed in yellow, obtain a genuine Epson replacement lamp soon. Source Displays the name of the port to which the current input source is connected.

  • Page 118: Event Id Code List

    0481 If you cannot resolve the problem, contact your network administrator or the network again. 0482 Epson for technical support. 0485 Event ID Cause and solution 0483 The network software quit unexpectedly. Check the network code communication status, then turn the projector off and then on again.
  • Page 119 Projector Information Display - Info Menu Event ID Cause and solution code 0893 The WEP/TKIP/AES encryption type does not match. Make sure the wireless network security settings are correct. 0894 Communication with an unauthorized access point was disconnected. Contact your network administrator. 0898 Failed to acquire DHCP.

  • Page 120: Projector Reset Options - Reset Menu

    Projector Reset Options - Reset Menu You can reset most of the projector settings to their default values using the • Password Reset menu. * Available when you have saved a user's logo. Setting Options Description Reset Lamp Hours — Reset the projector's lamp usage timer to zero when you replace the lamp.

  • Page 121: Copying Menu Settings Between Projectors (Batch Setup)

    If the power cord or USB flash drive is disconnected, the projector may not start correctly. Epson takes no responsibility for batch setup failures and associated repair costs due to power outages, communication errors, or other problems that may cause such failures.

  • Page 122: Transferring Settings From A Computer

    Copying Menu Settings Between Projectors (Batch Setup) Connect the USB flash drive containing the saved batch setup file to the Hold down the [Esc] button on the remote control or the control panel projector's USB-A port. and connect the power cord to the projector. Hold down the [Menu] button on the remote control or the control When all of the projector's indicators turn on, release the [Esc] button.

  • Page 123: Batch Setup Error Notification

    Stop using the projector, remove the power plug from Caution the electrical outlet. Contact Epson for help. Do not disconnect the power cord from the projector while the file is being written. If the power cord is disconnected, the projector may not start •...

  • Page 124: Maintaining The Projector

    You may need to clean the projector's lens periodically, and clean the air filter and air vents to prevent the projector from overheating due to blocked ventilation. The only parts you should replace are the lamp, air filter, and remote control batteries. If any other part needs replacing, contact Epson or an authorized Epson servicer.

  • Page 125: Cleaning The Lens

    Cleaning the Lens Clean the projector's lens periodically, or whenever you notice dust or smudges on the surface. • To remove dust or smudges, gently wipe the lens with lens-cleaning paper. • To remove stubborn smudges, moisten a soft, lint-free cloth with lens cleaner and gently wipe the lens.

  • Page 126: Cleaning The Projector Case

    Cleaning the Projector Case Before cleaning the projector case, turn off the projector and unplug the power cord. • To remove dust or dirt, use a soft, dry, lint-free cloth. • To remove stubborn dirt, use a soft cloth moistened with water and mild soap.

  • Page 127: Air Filter And Vent Maintenance

    Do not use canned air. The gases may leave a flammable residue or push dust and debris into the projector's optics or other sensitive areas. If regular maintenance is not performed, your Epson projector will notify you when the temperature inside the projector has reached a high level. Do not wait...
  • Page 128 Air Filter and Vent Maintenance Open the air filter cover. Pull the air filter out of the projector. Dispose of used air filters according to local regulations. • Filter frame: ABS • Filter: Polyurethane foam...
  • Page 129 Air Filter and Vent Maintenance Place the new air filter in the projector as shown and push gently until it clicks into place. Close the air filter cover. g g Related Links • "Replacement Parts" p.152...

  • Page 130: Projector Lamp Maintenance

    You should always have a spare lamp unit ready in case it is needed. • We recommend the use of genuine Epson replacement lamps. The use of non- genuine lamps may affect projection quality and safety. Any damage or malfunction caused by the use of non-genuine lamps may not be covered by Epson's warranty.
  • Page 131 Projector Lamp Maintenance Use the screwdriver included with the replacement lamp to loosen the Slide the lamp cover out and lift it off. screw securing the lamp cover. Warning When replacing the lamp, there is a possibility that the lamp may be broken.
  • Page 132 Push in the lamp firmly and tighten the screws to secure it. • If you notice the lamp is cracked when removing the lamp, contact Epson for help. • The lamp(s) in this product contain mercury (Hg). Check your local laws and regulations regarding disposal or recycling. Do not put in the trash.

  • Page 133: Resetting The Lamp Timer

    Projector Lamp Maintenance Select Reset Lamp Hours and press [Enter]. • Make sure the lamp cover is securely installed or the lamp will not turn on. • Do not replace the lamp cover with too much force and make sure the lamp cover is not deformed. Reset the lamp timer to zero to monitor the new lamp's usage.

  • Page 134: Replacing The Remote Control Batteries

    Replacing the Remote Control Batteries The remote control uses two AA manganese or alkaline batteries. Replace the Warning batteries as soon as they run out. Check the positions of the (+) and (–) marks inside the battery holder to Attention ensure the batteries are inserted the correct way.

  • Page 135: Solving Problems

    Solving Problems Check the solutions in these sections if you have any problems using the projector. g g Related Links • "Projection Problems" p.136 • "Projector Indicator Status" p.137 • "Using the Projector Help Displays" p.139 • "Solving Image or Sound Problems" p.140 •...

  • Page 136: Projection Problems

    • The indicators on the projector may indicate the problem. • The projector's Help system can display information about common problems. • The solutions in this manual can help you solve many problems. If none of these solutions help, contact Epson for technical support.

  • Page 137: Projector Indicator Status

    Lamp: Off • If the indicators display a pattern not listed in the table below, turn down. Temp: Off the projector off, unplug it, and contact Epson for help. Power: Lit blue Standby, sleep mode, or monitoring. Status: Off When you press the power button, projection starts.
  • Page 138 • "Replacing the Lamp" p.130 Power: Off A fan or sensor has a problem. Turn the projector off, unplug it, and contact Epson for help. Status: Flashing blue Lamp: Off Temp: Flashing orange Power: Off Internal projector error. Turn the projector off, unplug it, and contact Epson for help.

  • Page 139: Using The Projector Help Displays

    Using the Projector Help Displays You can display information to help you solve common problems using the Use the up and down arrow buttons to highlight the problem you want projector's Help system. to solve. Turn on the projector. Press the [Home] button on the control panel or remote control. Press [Enter] to view the solutions.

  • Page 140: Solving Image Or Sound Problems

    • "Projector Setup Settings - Extended Menu" p.106 control panel or remote control, an internal error may have occurred in the • "Unlocking the Projector's Buttons" p.76 projector. Contact Epson for help. • Make sure the projector's menu settings are correct.

  • Page 141: Solutions When Image Is Incorrect Using The Usb Display Function

    If the message "No Signal" is displayed when projecting from a laptop, you • Turn off the Transfer layered window setting in the Epson USB Display need to set up the laptop to display on an external monitor. Settings program on your computer.

  • Page 142: Displaying From A Mac Laptop

    Solving Image or Sound Problems enabled and extended desktop mode is disabled. (See your computer or Solutions When Only a Partial Image Appears Windows manual for instructions.) If only a partial computer image appears, try the following solutions: If necessary, check your video card settings and set the multiple display •...

  • Page 143: Solutions When The Image Contains Noise Or Static

    Settings > Keystone > Quick Corner • If you are using the USB Display function, turn off the Transfer layered g g Related Links window setting in the Epson USB Display Settings program on your • "Auto V-Keystone" p.38 computer.

  • Page 144: Solutions When The Image Brightness Or Colors Are Incorrect

    • If you are using the USB Display function, turn on the Output audio from video device. If you connected long cables, try connecting shorter cables. the projector setting in the Epson USB Display Settings program on your computer. • If you are using ECO as Power Consumption, try selecting Normal.

  • Page 145: Solutions When Image File Names Are Not Displayed Correctly In Pc Free

    • If the volume for the computer is set to the minimum while the projector is set to the maximum, the noise may be mixed. Turn up the computer's volume and turn down the projector's volume. (When you use Epson iProjection (Windows/Mac) or USB Display.) g g Related Links •...

  • Page 146: Solving Projector Or Remote Control Operation Problems

    • If you assigned an ID number to the projector to operate multiple projectors off. from the remote control, you may need to check or change the ID setting. • If you lose the remote control, you can order another one from Epson.

  • Page 147: Solutions To Password Problems

    Try entering 0000 using the remote control. • If you have entered an incorrect password too many times and see a message displaying a request code, write down the code and contact Epson for help. Provide the request code and proof of ownership for assistance in unlocking the projector.

  • Page 148: Solving Network Problems

    • "Projector Setup Settings - ECO Menu" p.115 Network > Network Configuration > Basic > Remote Password • When accessing Advanced in Epson Web Control, enter EPSONWEB as the user ID. (You cannot change the user ID.) Solutions When the Image Contains Static During •...

  • Page 149: Solutions When You Cannot Connect Using Screen Mirroring

    Solving Network Problems • If the wireless connection is slow or your projected image contains noise, g g Related Links • "Projector Network Settings - Network Menu" p.108 check for interference from other equipment, such as a Bluetooth device or •...

  • Page 150: Appendix

    Appendix Check these sections for the technical specifications and important notices about your projector. g g Related Links • "Optional Accessories and Replacement Parts" p.151 • "Screen Size and Projection Distance" p.153 • "Supported Monitor Display Resolutions" p.157 • "Projector Specifications" p.159 •...

  • Page 151: Optional Accessories And Replacement Parts

    A compact screen that can be carried easily. (aspect ratio 4:3) Special expertise is required to suspend the projector from a ceiling. 80" Mobile X-Type Screen ELPSC21B Contact Epson for help. Portable X-type screens. (aspect ratio 16:9) Multi Aspect Screen ELPSC26/ELPSC26H Portable multi-aspect screen.

  • Page 152: External Devices

    Optional Accessories and Replacement Parts External Devices Document Camera ELPDC21/ELPDC13/ELPDC07 Use when projecting image such as books, OHP documents, or slides. Soft carrying case ELPKS69 Use this to carry the projector by hand. Replacement Parts Lamp unit ELPLP96 Use as a replacement for used lamps. Air filter ELPAF32 Use as a replacement for used air filters.

  • Page 153: Screen Size And Projection Distance

    Screen Size and Projection Distance Check the table here to determine how far to place the projector from the 16:10 screen size screen based on the size of the projected image. Minimum (Wide) to Maximum (Tele) 40" 86 × 54 118 - 144 50"...
  • Page 154 Screen Size and Projection Distance 16:9 screen size 4:3 screen size Minimum (Wide) to Minimum (Wide) to Maximum (Tele) Maximum (Tele) 30" 66 × 37 90 - 110 29" 59 × 44 90 - 109 35" 78 × 44 105 - 129 30"...
  • Page 155 Screen Size and Projection Distance XGA (EB‑ ‑ X41/EB‑ ‑ X05/EB‑ ‑ X140/EB‑ ‑ X450/EB‑ ‑ X400) 16:10 screen size Minimum (Wide) to 4:3 screen size Maximum (Tele) Minimum (Wide) to 29" 63 × 39 91 - 110 Maximum (Tele) 30"...
  • Page 156 Screen Size and Projection Distance 16:9 screen size Minimum (Wide) to Minimum (Wide) Maximum (Tele) 28" 62 × 35 89 - 121 30" 66 × 37 96 - 130 50" 111 × 62 161 - 218 60" 133 × 75 193 - 262 70"...

  • Page 157: Supported Monitor Display Resolutions

    Supported Monitor Display Resolutions The table here list the compatible refresh rate and resolution for each Signal Refresh rate (Hz) Resolution (dots) compatible video display format. 60/72/75/85 640 × 480 Component Signals (Analog RGB) SVGA 60/72/75/85 800 × 600 60/70/75/85 1024 ×...
  • Page 158 Supported Monitor Display Resolutions HDMI Port Input Signals MHL Input Signal (EB‑ ‑ U42/EB‑ ‑ W42/EB‑ ‑ W41/EB‑ ‑ U05/EB‑ ‑ U140) Signal Refresh rate (Hz) Resolution (dots) Signal Refresh rate (Hz) Resolution (dots) 640 × 480 640 × 480 SVGA 800 ×...

  • Page 159: Projector Specifications

    Projector Specifications Product name EB‑U42/EB‑W42/EB‑W41/EB‑X41/EB‑S41/EB‑U05/EB‑W05 Zoom adjustment EB‑ ‑ U42/EB‑ ‑ W42/EB‑ ‑ W41/EB‑ ‑ X41/EB‑ ‑ U05/EB‑ ‑ W05/EB‑ ‑ X 05/EB‑ ‑ U140/EB‑ ‑ W140/EB‑ ‑ X140/EB‑ ‑ X450/EB‑ ‑ X400: /EB‑X05/EB‑S05/EB‑U140/EB‑W140/EB‑X140/EB‑S140/EB‑ X450/EB‑X400/EB‑S400 1-1.2 EB‑ ‑ U42/EB‑ ‑ U05/EB‑ ‑ U140: EB‑...

  • Page 160: Connector Specifications

    Projector Specifications Angle of tilt Power consumption EB‑ ‑ U42: (220 to 240 V area) Operating: 298 W Standby power consumption (Communication On): 2.2 W Standby power consumption (Communication Off): 0.2 W EB‑ ‑ W42/EB‑ ‑ W41/EB‑ ‑ X41/EB‑ ‑ S41/EB‑ ‑ W05/EB‑ ‑ X05/EB‑ ‑ S0 5/EB‑...

  • Page 161: External Dimensions

    External Dimensions EB‑ ‑ U42/EB‑ ‑ U05/EB‑ ‑ U140 EB‑ ‑ U42/EB‑ ‑ U05/EB‑ ‑ U140 EB‑ ‑ W42/EB‑ ‑ W41/EB‑ ‑ X41/EB‑ ‑ S41/EB‑ ‑ W05/EB‑ ‑ X05/EB‑ ‑ S05/EB‑ ‑ W140/EB‑ ‑ X140/EB‑ ‑ S140/EB‑ ‑ X450/EB‑ ‑ X400/EB‑ ‑ S400 Center of lens Distance from center of lens to suspension bracket fixing point...
  • Page 162 External Dimensions EB‑ ‑ W42/EB‑ ‑ W41/EB‑ ‑ X41/EB‑ ‑ S41/EB‑ ‑ W05/EB‑ ‑ X05/EB‑ ‑ S05/EB‑ ‑ W140/EB‑ ‑ X140/EB‑ ‑ S140/EB‑ ‑ X450/EB‑ ‑ X400/EB‑ ‑ S400 The unit in these illustrations is mm.

  • Page 163: Usb Display System Requirements

    USB Display System Requirements To use the projector's Epson USB Display software, your computer must meet Requirement Windows the following system requirements. Memory 2GB or more (4GB or more recommended) Requirement Windows Hard disk space 20 MB or more Operating system Windows Vista...

  • Page 164: List Of Safety Symbols (Corresponding To Iec60950-1 A2)

    List of Safety Symbols (corresponding to IEC60950-1 A2) The following table lists the meaning of the safety symbols labeled on the No. Symbol mark Approved Description equipment. standards — The same as No.8. No. Symbol mark Approved Description standards IEC60417 Battery, general IEC60417 "ON"...
  • Page 165 List of Safety Symbols (corresponding to IEC60950-1 A2) No. Symbol mark Approved Description standards IEC60417 Class II equipment No.5172 To identify equipment meeting the safety requirements specified for Class II equipment according to IEC 61140. ISO 3864 General prohibition To identify actions or operations that are prohibited.

  • Page 166: Glossary

    Glossary This section briefly explains the difficult terms that are not explained in the HDMI ™ An abbreviation for High Definition Multimedia Interface. text of this guide. For details, refer to other commercially available HDMI ™ is a standard aimed at digital consumer electronics and publications.
  • Page 167 Glossary SDTV An abbreviation for Standard Definition Television that refers Trap IP Address This is the IP address for the destination computer used for to standard television systems which do not satisfy the error notification in SNMP. conditions for HDTV High-Definition Television. A screen size standard with a resolution of 640 (horizontal) ×...

  • Page 168: Notices

    • Consult the dealer or an experienced radio/TV technician for help. CPU Boards and Power Supplies used with Class B Personal Computers WARNING We: Epson America, Inc. The connection of a non-shielded equipment interface cable to this equipment will invalidate the FCC Certification or Declaration of this device...
  • Page 169 EPSON is a registered trademark, EXCEED YOUR VISION, ELPLP and their functional/precision devices etc, you should use this product only after giving logos are registered trademarks or trademarks of Seiko Epson Corporation.
  • Page 170 ™ are trademarks of the Wi-Fi Alliance. Other product names used herein are also for identification purposes only and may be trademarks of their respective owners. Epson disclaims any and all rights in those marks. Copyright Notice All rights reserved. No part of this publication may be reproduced, stored in a...

This manual is also suitable for:

Eb-s05Eb-w42Eb-u140Eb-w41Eb-w140Eb-x41 ... Show all

Table of Contents

Save PDF
