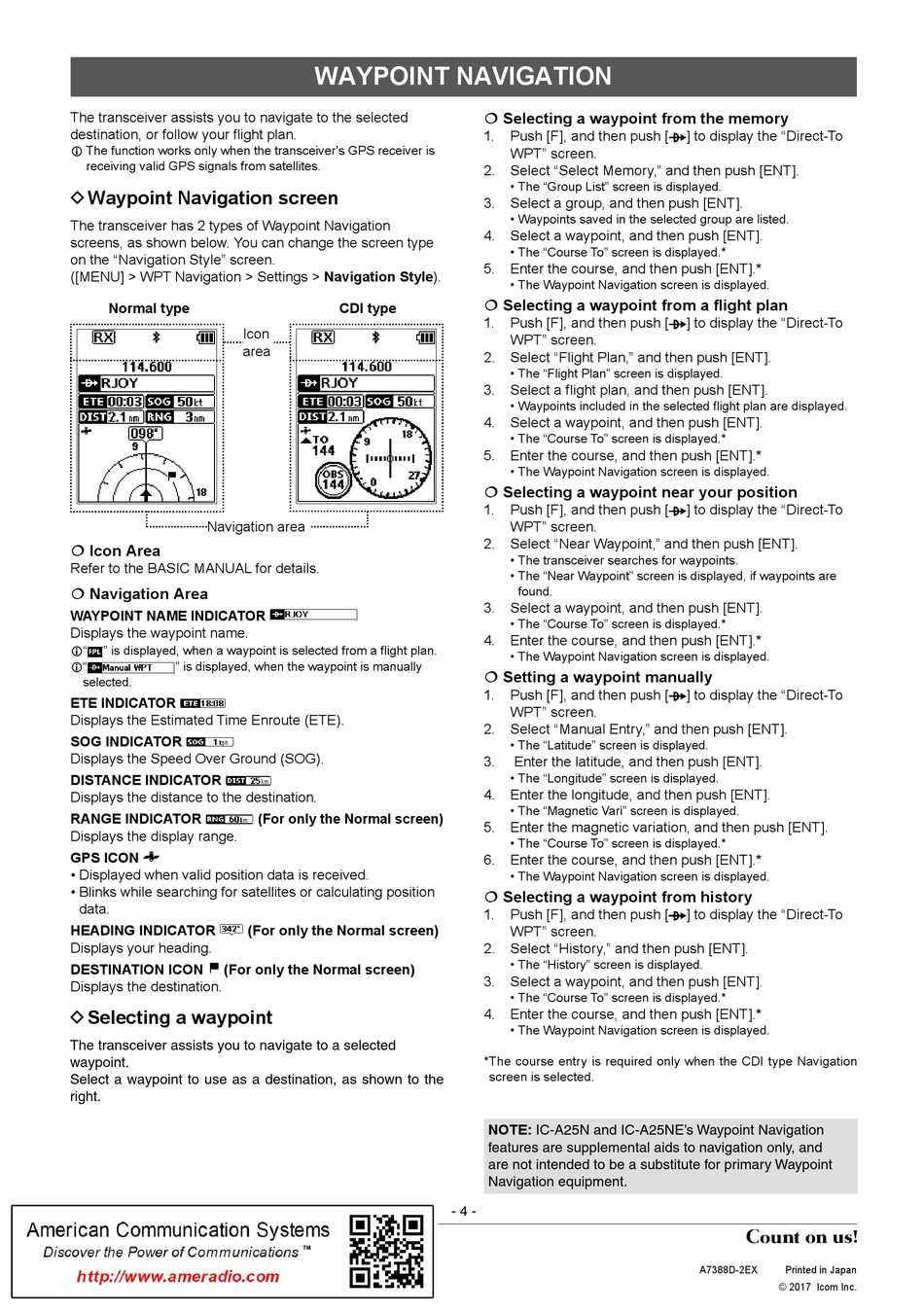

Icom A25C SPORT 66 USA Navigation Manual page 4

The transceiver assists you to navigate to the selected
destination, or follow your flight plan.
L The function works only when the transceiver's GPS receiver is
receiving valid GPS signals from satellites.
D Waypoint Navigation screen
The transceiver has 2 types of Waypoint Navigation
screens, as shown below. You can change the screen type
on the "Navigation Style" screen.
([MENU] > WPT Navigation > Settings > Navigation Style).
Normal type
Icon
area
Navigation area
 Icon Area
Refer to the BASIC MANUAL for details.
 Navigation Area
WAYPOINT NAME INDICATOR
Displays the waypoint name.
L " " is displayed, when a waypoint is selected from a flight plan.
L " " is displayed, when the waypoint is manually
selected.
ETE INDICATOR
Displays the Estimated Time Enroute (ETE).
SOG INDICATOR
Displays the Speed Over Ground (SOG).
DISTANCE INDICATOR
Displays the distance to the destination.
RANGE INDICATOR
Displays the display range.
GPS ICON
• Displayed when valid position data is received.
• Blinks while searching for satellites or calculating position
data.
HEADING INDICATOR
Displays your heading.
DESTINATION ICON (For only the Normal screen)
Displays the destination.
D Selecting a waypoint
The transceiver assists you to navigate to a selected
waypoint.
Select a waypoint to use as a destination, as shown to the
right.
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan
WAYPOINT NAVIGATION
CDI type
(For only the Normal screen)
(For only the Normal screen)
 Selecting a waypoint from the memory
1. Push [F], and then push [
WPT" screen.
2. Select "Select Memory," and then push [ENT].
• The "Group List" screen is displayed.
3. Select a group, and then push [ENT].
• Waypoints saved in the selected group are listed.
4. Select a waypoint, and then push [ENT].
• The "Course To" screen is displayed.*
5. Enter the course, and then push [ENT].*
• The Waypoint Navigation screen is displayed.
 Selecting a waypoint from a flight plan
1. Push [F], and then push [
WPT" screen.
2. Select "Flight Plan," and then push [ENT].
• The "Flight Plan" screen is displayed.
3. Select a flight plan, and then push [ENT].
• Waypoints included in the selected flight plan are displayed.
4. Select a waypoint, and then push [ENT].
• The "Course To" screen is displayed.*
5. Enter the course, and then push [ENT].*
• The Waypoint Navigation screen is displayed.
 Selecting a waypoint near your position
1. Push [F], and then push [
WPT" screen.
2. Select "Near Waypoint," and then push [ENT].
• The transceiver searches for waypoints.
• The "Near Waypoint" screen is displayed, if waypoints are
found.
3. Select a waypoint, and then push [ENT].
• The "Course To" screen is displayed.*
4. Enter the course, and then push [ENT].*
• The Waypoint Navigation screen is displayed.
 Setting a waypoint manually
1. Push [F], and then push [
WPT" screen.
2. Select "Manual Entry," and then push [ENT].
• The "Latitude" screen is displayed.
3. Enter the latitude, and then push [ENT].
• The "Longitude" screen is displayed.
4. Enter the longitude, and then push [ENT].
• The "Magnetic Vari" screen is displayed.
5. Enter the magnetic variation, and then push [ENT].
• The "Course To" screen is displayed.*
6. Enter the course, and then push [ENT].*
• The Waypoint Navigation screen is displayed.
 Selecting a waypoint from history
1. Push [F], and then push [
WPT" screen.
2. Select "History," and then push [ENT].
• The "History" screen is displayed.
3. Select a waypoint, and then push [ENT].
• The "Course To" screen is displayed.*
4. Enter the course, and then push [ENT].*
• The Waypoint Navigation screen is displayed.
* The course entry is required only when the CDI type Navigation
screen is selected.
NOTE: IC-A25N and IC-A25NE's Waypoint Navigation
features are supplemental aids to navigation only, and
are not intended to be a substitute for primary Waypoint
Navigation equipment.
- 4 -
] to display the "Direct-To
] to display the "Direct-To
] to display the "Direct-To
] to display the "Direct-To
] to display the "Direct-To
