SERVICE, INSTALLATION AND
For AUTHORIZED PARTS or TECHNICAL SERVICE, please contact:
3355 Enterprise Avenue, Suite 160, Fort Lauderdale, FL 33331 USA
10/3/2017
1-877-368-2797
Service@MaxxHelp.com
Phone: (954) 202-7419
Website: MaxximumFoodService.com

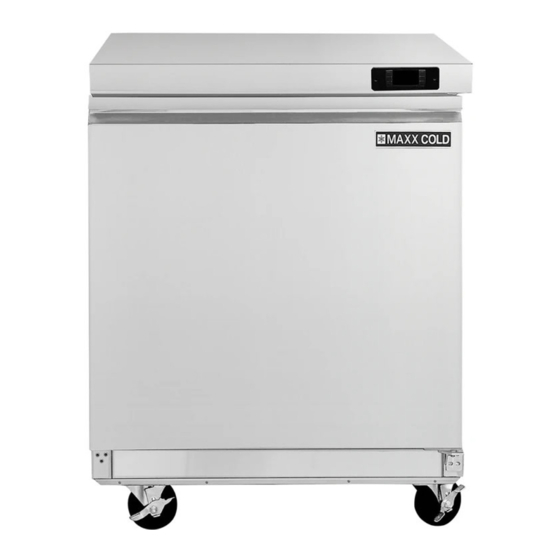

MXSR29U W/1 DOOR
MXSR48U W/2 DOOR
MXSR60U W/2 DOOR
UNDERCOUNTER REFRIGERATORS
PLEASE READ CAREFULLY
OPERATION
MANUAL
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Maxx Cold SELECT MXSR29U
Summary of Contents for Maxx Cold SELECT MXSR29U
- Page 1 SERVICE, INSTALLATION AND OPERATION MANUAL For AUTHORIZED PARTS or TECHNICAL SERVICE, please contact: 1-877-368-2797 Service@MaxxHelp.com 3355 Enterprise Avenue, Suite 160, Fort Lauderdale, FL 33331 USA Phone: (954) 202-7419 Website: MaxximumFoodService.com MXSR29U W/1 DOOR MXSR48U W/2 DOOR MXSR60U W/2 DOOR UNDERCOUNTER REFRIGERATORS PLEASE READ CAREFULLY 10/3/2017...
-
Page 2: Table Of Contents
TABLE of CONTENTS SERIAL NUMBER INFORMATION ............................. 3 APPLIANCE SAFETY ..................................4 IMPORTANT SAFEGUARDS ................................ 5 DIMENSIONS ....................................7 TECHNICAL INFORMATION ............................... 7 RECEIVING AND INSPECTING THE EQUIPMENT ........................8 INTRODUCTION ................................... 8 COMPONENT INFORMATION ..............................9 APPLIANCE INSTALLATION ..............................10 Remove Packaging Materials .............................. -
Page 3: Serial Number Information
VISIT OUR WEBSITE for the MOST UP-TO-DATE VERSION of this MANUAL. http://www.maxximumfoodservice.com/ Fill out and return the enclosed warranty postcard or visit our website/warranty registration. Keep the dated proof of purchase invoice which establishes the appliance's warranty period. SERIAL #:______________________________________________________________________________________________ MODEL #:________________________________________ DATE OF PURCHASE:_______________________________ SERIAL NUMBER INFORMATION... -
Page 4: Appliance Safety
APPLIANCE SAFETY Always read and obey all safety messages. This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can injure or kill you and others. All safety messages will follow the Safety Alert Symbol and either the words “DANGER”, “WARNING”... -
Page 5: Important Safeguards
IMPORTANT SAFEGUARDS Before appliance is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. We strongly recommend that you have a professional install your new machine. The warranty may be affected or voided by an incorrect installation. - Page 6 IMPORTANT SAFEGUARDS (cont.) Electrical Connection Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded. The power cord of this appliance is equipped with a 3-prong grounding plug that mates with a standard 3-prong grounding wall outlet to minimize the possibility of electric shock hazard from the appliance.
-
Page 7: Dimensions
DIMENSIONS MXSR29U MXSR48U MXSR60U 61 in (1555 mm) 29 in (735 mm) 48 in (1230 mm) 29 in (735 mm) 48 in (1230 mm) 61 in (1555 mm) TECHNICAL INFORMATION Model MXSR29U MXSR48U MXSR60U in: Exterior Dimension W*D*H 29 x 30.3 x 38.3 48 x 30.3 x 38.3 61 x 30.3 x 38.3 mm: Exterior Dimension W*D*H... -
Page 8: Receiving And Inspecting The Equipment
UL 471 and sanitation standard NSF 7. The Legacy Companies assumes no liability or responsibility of any kind for products manufactured by Maxx Cold, that have been altered in any way, including the use of any parts and/or other components not specifically approved by The Legacy Companies. -
Page 9: Component Information
COMPONENT INFORMATION MXSR29U MXSR48U THERMOSTAT THERMOSTAT CONTROL CONTROL PANEL PANEL REFRIGERATOR REFRIGERATOR SOLID DOOR SOLID DOORS POWER SWITCH CORD LOCATED POWER ON UNIT REAR SWITCH AND CORD LOCATED ON UNIT REAR CASTERS MXSR60U THERMOSTAT CONTROL PANEL REFRIGERATOR SOLID DOORS POWER SWITCH AND CORD LOCATED ON UNIT REAR CASTERS... -
Page 10: Appliance Installation
APPLIANCE INSTALLATION WARNING Excessive Weight Hazard Use two or more persons to move and install appliances. Failure to do so may result in back or other injury. Remove Packaging Materials IMPORTANT: Do not remove any permanent instruction labels or the data label on your appliance. Remove tape and glue from your appliance before using. -
Page 11: Installation Clearance
APPLIANCE INSTALLATION (cont.) Installation Clearance 2” MXSR48U/ MXSR60U MXSR29U 51mm MXSR48U 53 in 1346 mm Max Door Swing Clearance MXSR29U 58 in 1473 mm Max Door Swing MXSR60U Clearance 59.5 in 1511 mm Max Door Swing Clearance Leveling Ensure the floor where the unit is to be located is level or shim the unit to level it. Stabilizing All models are supplied with casters for your convenience. -
Page 12: Operation
OPERATION Refrigerated cycle Refrigerators: During the refrigeration cycle, the evaporator fans will run continuously even when one or more doors are open. The door switch will activate the lights when opened on solid door models only. Glass door models lights are turned on manually using a switch located next to the main power switch. -
Page 13: Main Functions
OPERATION (cont.) 2. MAIN FUNCTIONS 2.1 HOW TO SEE THE SET POINT 1. Push and immediately release the SET key, the set point will be showed; 2. Push and immediately release the SET key or wait about 5s to return to normal visualization. -
Page 14: Cleaning And Maintenance
CLEANING AND MAINTENANCE DANGER The unit must be turned off and disconnected from the power source whenever performing service, maintenance functions or cleaning the refrigerated area. Failure to comply may result in death or severe personnel injury. Exterior and Interior Cleaning of Appliances Clean using soap and warm water. -
Page 15: Stainless Steel Care And Cleaning
CLEANING AND MAINTENANCE (cont.) Stainless Steel Care and Cleaning To prevent rust or discoloration on stainless steel several important steps need to be taken. First, we need to understand the properties of stainless steel. Stainless steel contains 70-80% iron which will rust. It also contains 12-20% chromium which forms an invisible passive film over the steels surface which acts as a shield against corrosion. -
Page 16: Troubleshooting Guide
TROUBLESHOOTING GUIDE BEFORE CALLING FOR SERVICE If the unit appears to be malfunctioning, read through the OPERATION section of this manual first. If the problem persists, see Troubleshooting below. The problem may be something very simple that can be solved without a service call. -
Page 17: Wiring Diagrams
WIRING DIAGRAMS MODEL: MXSR29U Page 17 of 18... - Page 18 WIRING DIAGRAMS (cont.) MODEL: MXSR48U/MXSR60U Page 18 of 18...
