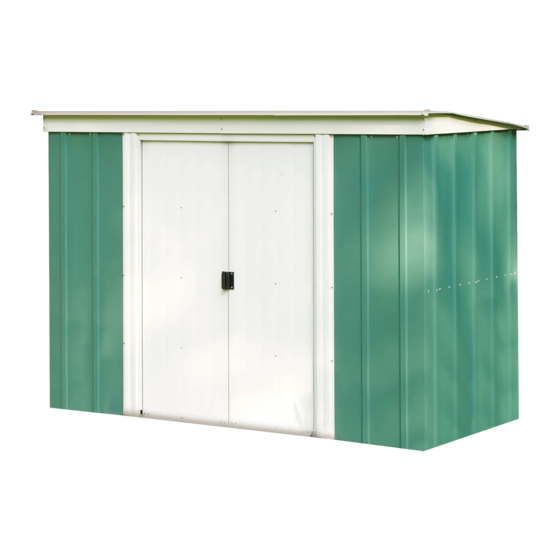

Arrow Storage Products EPA84 Owner's Manual & Assembly Instructions

Hide thumbs Also See for EPA84:

Advertisement

Quick Links

Download this manual
Owner's Manual & Assembly Instructions
YL01
Model No.
716440616
Storage Area: 28 Sq. Ft.
2,6 m
BUILDING DIMENSIONS
*Approx.
Base
Size
Size
8' x 4'
97 1/2" x 45 1/4"
2,4 m x 1,1 m 247,7 cm x 114,9 cm
EPA84
150 Cu. Ft.
4,2 m
2
3
* Size rounded off to the nearest foot
Exterior Dimensions
(Roof Edge to Roof Edge)
Width
Depth
100"
254,0 cm
119,4 cm
Height
Width
47"
67 3/4"
94 3/4"
172,1 cm
240,7 cm
CAUTION: SOME PARTS HAVE SHARP EDGES. CARE
MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES
TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ
SAFETY INFORMATION PROVIDED IN THIS MANUAL
BEFORE BEGINNING CONSTRUCTION. WEAR GLOVES
WHEN HANDLING METAL PARTS.
Interior Dimensions
(Wall to Wall)
Depth
Height
42 1/2"
66 9/16"
108,0 cm
169,1 cm
Door
Opening
Width
Height
43 1/2"
60"
110,5 cm
152,4 cm

Advertisement

loading
Need help?

Need help?

Do you have a question about the EPA84 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Arrow Storage Products EPA84

Summary of Contents for Arrow Storage Products EPA84

  • Page 1 Owner's Manual & Assembly Instructions YL01 Model No. EPA84 716440616 CAUTION: SOME PARTS HAVE SHARP EDGES. CARE Storage Area: 28 Sq. Ft. 150 Cu. Ft. MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES 2,6 m 4,2 m TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ SAFETY INFORMATION PROVIDED IN THIS MANUAL BEFORE BEGINNING CONSTRUCTION.
  • Page 3 BEFORE YOU BEGIN..XA02 Owner's Manual Before beginning construction, check local building codes regarding footings, location and other requirements. Study and understand this owner's manual. Important information and helpful tips will make your construction easier and more enjoyable. Assembly Instructions: Instructions are supplied in this manual and contain all appropriate information for your building model.

  • Page 4: Tools And Materials

    PLAN AHEAD..XA03 Watch the Weather: Be sure the day you select to install your building is dry and calm. Do not attempt to assemble your building on a windy day. Be careful on wet or muddy ground. Teamwork: Whenever possible, two or more people should work together to assemble your building.
  • Page 5 SAFETY FIRST..XA04 Safety precautions are important to follow throughout the construction of your building. •Care must be taken when handling various •Practice caution with the tools being used in pieces of your building since some contain the assembly of this building. Be familiar with sharp edges.
  • Page 6 CARE & MAINTENANCE..XA05 Finish: For long lasting fi nish, periodically clean and wax the exterior surface. Touch-up scratches as soon as you notice them on your unit. Immediately clean the area with a wire brush; wash it and apply touch-up paint per manufacturer's recommendation. Roof: Keep roof clear of leaves and snow with long handled, soft-bristled broom.
  • Page 7 Base YL06 The Base For Your Building OPTION 1: Wood Platform If you decide to build your own base, be sure to select the appropriate materials. These are the recommended materials for your base:  2 x 4's (38 mm x 89 mm) Pressure Treated Lumber ...
  • Page 8 Anchoring XA07 Anchoring Down The Building It is important that the entire fl oor frame be anchored after the building is erected. Below are recommended ways of anchoring. Anchoring into Wood/Post: Use 1/4" (6 mm) Wood Screws. There are 1/4" (6 mm) dia.
  • Page 9 Hardware YL08 Remove from bag of screws and save for the last step 65900A 65923 #10Bx1/2" (13 mm) 65004 65103 #8-32x3/8" (10 mm) Black Screw (8) #8Ax5/16" (8 mm) #8-32 Hex Nut (62) Bolt (62) (Packed with Screws) Screw (234) 65109 66646 66775...

  • Page 10: Parts List

    Parts List YL09 Assembly Part Part Quantity Check Key No. Number Description in Carton List 10566 Rear Wall Angle 6617 Door Track Splice 10498 Horizontal Door Brace 10573 Front Header 10557 Roof Panel 10562 Right Gable 80015 Left Gable 9316 Right Roof Trim 10560 Right Roof Panel...
  • Page 11 Assembly by Key No. YL10...
  • Page 12 Step 1  8941 Ramp (1)  Parts Needed For   9379 Front Floor Frame (2) Floor Frame Assemblies  9377 Rear Floor Frame (2) YL11 9379 The front fl oor frame is made up of 8941 three pieces. The rear fl oor frame is made up of two pieces.

  • Page 13: Frame Assemblies

    Step 2  Parts Needed For   10566 Rear Wall Angle (2) Frame Assemblies  9924 Rear Wall Channel (2) YL12 Rear Wall Channel 94 5/8" 240,3 cm 9924 The main frame pieces reinforce 9924 the walls. These pieces will later be installed in the center and at the top edge of the rear wall.
  • Page 14 Step 3  Parts Needed For   10570 Roof Beam (2) Roof Beam Assemblies YL13 The roof beams support the roof 10570 panels. The roof beam is made up of two pieces overlapped at the center. 10570 Hint: These pieces are force-fi tted, 96 3/8"...
  • Page 15  Parts Needed For  Step 4  6617 Door Track Splice (1) Door Track / Header  9378 Door Track (2) YL14  10573 Header (2) Assembly NOTE: Door Track Splice (painted part) (16) The door track/header assembly 6617 supports the sliding doors and rein- forces the front wall.
  • Page 16 Step 5  Front Floor Assembly (1)  Parts Needed For   10544 Side Floor Frame (2) Floor Frame  Rear Floor Assembly (1) YL15 RIGHT REAR 10544 STEP 10544 9377 Assemble the four corners of the fl oor frame using two screws at each corner as shown.
  • Page 17 Step 6  Parts Needed For   9381 Front Corner Panel (2) Corners  9385 Rear Corner Panel (2) YL16 Wide Side (14) 9385 Narrow Side NOTE The remainder of the building assembly STEP REAR requires many hours and more than one 9385 person.
  • Page 18  Rear Wall Angle Assembly (1) Step 7  Rear Wall Channel Assembly (1)  Parts Needed For   10545 Side Wall Channel (2) Frames  10564 Side Wall Angle (2)  Door Track/Header Assembly (1) YL17 STEP (24) The main frame pieces give rigidity to Side Wall Angles the side walls and provide a surface...
  • Page 19 Step 8  Parts Needed For   6243 Wall Panel (2) Wall Panels  10563 Wall Panel (4) YL18 Fasten the wall panels at the top and bottom with screws. (84) Fasten the center of each panel to the wall channel with screws. The wall panels come in two widths.
  • Page 20 Step 9  Parts Needed For   9369 Door Jamb (2) Door Jamb YL19 STEP (3) bolts TOP VIEW Door Track Hex Nut Acorn Nut Plug The door jambs reinforce the door 9369 opening and provide an attractive Bolt trim.
  • Page 21 Step 10  Parts Needed For   Roof Beam Assembly (1) Roof Beam YL20 The dimension stated below mea- sures from the end of the angle to- wards the front of the building. Fasten the roof beam assembly, small holes on top, to the side wall angle with a bolt and nut.
  • Page 22 Step 11  Parts Needed For   10560 Right Roof Panel (1) Right/Left Roof Panels  80013 Left Roof Panel (1) YL21 Position a right roof panel at the right side and fasten to the header, roof beam and rear wall angle using screws as shown.

  • Page 23: Roof Panel

    Step 12  Parts Needed For   10557 Roof Panel (3) Roof Panel YL22 Screws To Rear Wall Angle (36) Install the roof panels 10557, in the positions shown. Fasten middle Fasten At of rib overlap with a bolt and nut. Overlap With Bolt NOTE...
  • Page 24 Step 13  Parts Needed For   10562 Right Gable (1) Gables  80015 Left Gable (1) YL23 Fasten to the right roof panel, side wall angle and front header using screws, bolts and nuts as shown. (10) Repeat steps 1 and 2 for the left Position the right gable at the gable.
  • Page 25 Step 14  Parts Needed For   9316 Right Roof Trim (2) Roof Trim  80017 Left Roof Trim (2) YL24 Using your thumb and index fi nger, overbend the bottom fl ange of the roof trim at the corner inward enough so the right and left roof trim caps fi...

  • Page 26: Door Assembly

    Step 15  Parts Needed For   10478 Right and Left Doors (2)  10498 Horizontal Door Brace (4) Door Assembly  6278 Vertical Door Brace (2) YL25 (12) 66045 10498 6278 66045 10498 The steps on this page tell how to 6278 assemble the right door.
  • Page 27 Step 16  Parts Needed For   Right Door Assembly (1) Door Installation & Adjustment  Left Door Assembly (1) YL26 Horizontal Door Brace Gable Door Track Door Slide From inside the building, put the bottom of the right door assembly (on your left when you are inside the building) behind door jamb into the front frame track.
  • Page 28 EPA84 YL28 Anchoring Anchor your building at this time. SOME FACTS ABOUT RUST 1. Avoid nicking or scraping the coating surface, Rusting is a natural oxidizing process that occurs inside and out. when bare metal is exposed to moisture. Problem areas include screw holes, unfi...
