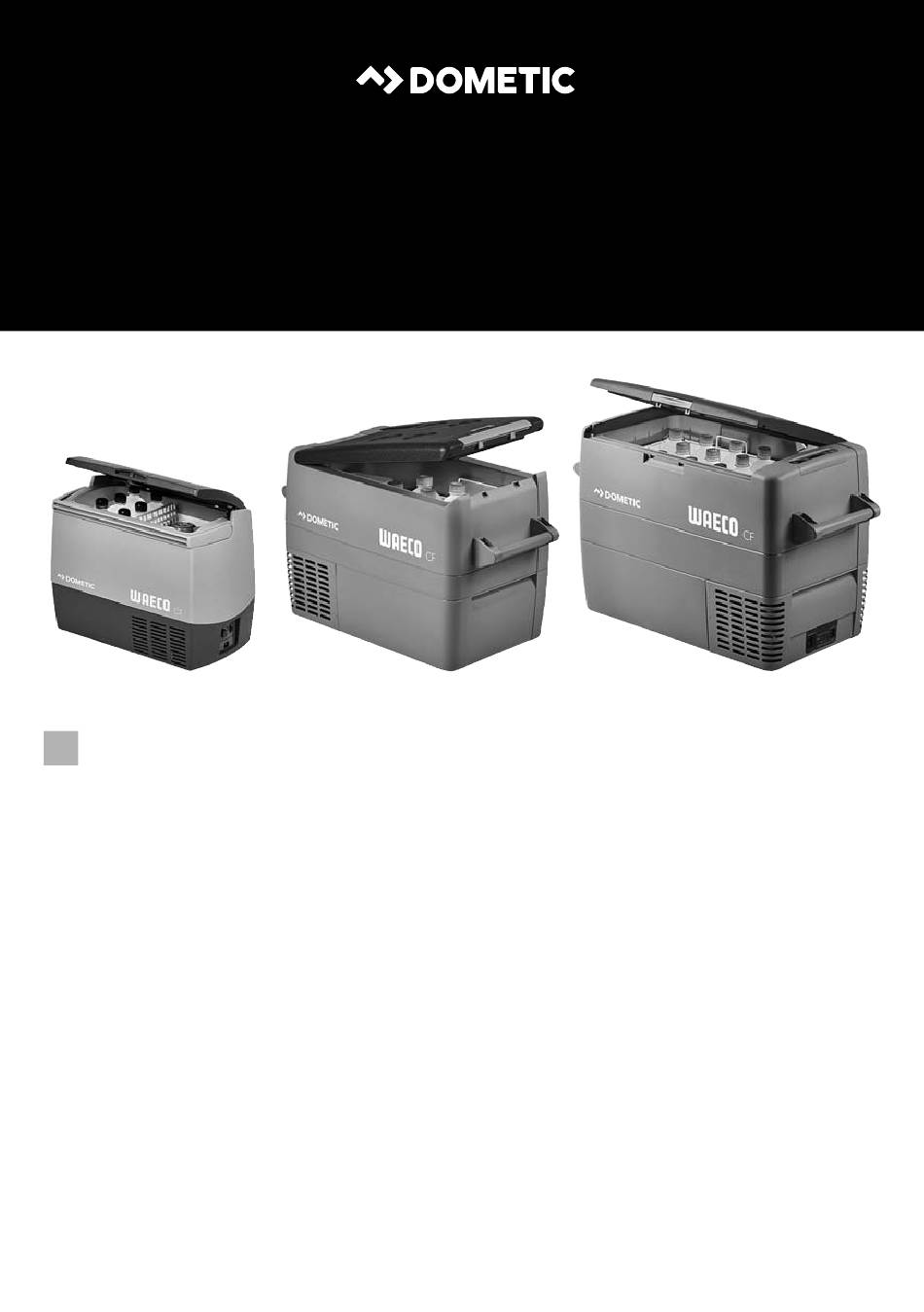

- Page 1 MOBILE COOLING CF18, CF25, CF35, CF40, CF50, CF60 Compressor Fridge/Freezer Operating manual...
-
Page 2: Table Of Contents
Explanation of symbols CF18 – CF60 Please read this manual carefully before starting the device. Keep it in a safe place for future reference. If the device is passed on to another person, this manual must be handed over to the user along with it. The manufacturer cannot be held liable for damage resulting from improper usage or incorrect operation. -
Page 3: Safety Instructions
CF18 – CF60 Safety instructions CAUTION! Safety instruction: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury. NOTICE! Indicates a situation that, if not avoided, can result in property damage. NOTE Supplementary information for operating the product. Safety instructions The manufacturer accepts no liability for damage in the following cases: •... - Page 4 Safety instructions CF18 – CF60 • Cleaning and user maintenance must not be carried out by children without supervision. • Children must not play with the device. • Children must be supervised to ensure that they do not play with the device.
- Page 5 CF18 – CF60 Safety instructions Operating the device safely CAUTION! • Before starting the device, ensure that the power supply line and the plug are dry. NOTICE! • Do not use electrical devices inside the cooler unless they are recommended by the manufacturer for the purpose. •...
-
Page 6: Scope Of Delivery
Scope of delivery CF18 – CF60 Scope of delivery Item Quantity Description Cooler Connection cable for DC connection Only CF35, CF40, CF50, CF60 Connection cable for AC connection Only CF35, CF40, CF50, CF60 Carrying handle, consisting of: – 2 holders –... -
Page 7: Accessories
CF18 – CF60 Accessories Accessories Available as accessories (not included in the scope of delivery): Description Ref. no. AC/DC power supply rectifier 9109002086 For CF18, CF25: EPS-817 If you have questions regarding the accessories, contact your local service partner. Intended use The cooling device is suitable for cooling and freezing foods. -
Page 8: Function Description
Function description CF18 – CF60 Function description The cooler can refrigerate or freeze food products. A fast-acting and efficient cooling system provides low maintenance cooling performance with a compressor and con- trol module. The cooler is designed for mobile use and can be carried by using a folding carrying bracket (CF18), two recessed grips (CF25) or two removable carrying handles (CF35, CF40, CF50, CF60). - Page 9 CF18 – CF60 Function description Operating and display elements Latch for lid CF 25, CF 35, CF 40 Operating panel and DC power supply inlet (CF18) CF 18...
- Page 10 Function description CF18 – CF60 Item Description Explanation TEMPERATURE Temperature controller, cooling temperature at the end positions: COLD: +10 °C (+50 °F) FREEZE: –18 °C (0 °F) POWER Status indication LED lights up green: Device is switched on and ready for operation LED lights up yellow: Set temperature has been reached...
- Page 11 CF18 – CF60 Function description Item Description Explanation Switches the cooler on or off when the button is pressed for between one and two seconds POWER Status indication LED lights up green: Compressor is on LED lights up orange: Compressor is off LED flashes orange: Display switched off automatically due to low...
-
Page 12: Operation
Operation CF18 – CF60 Item in Description fig. 5 DC voltage supply inlet Emergency switch Item in Description fig. 6 AC voltage supply inlet Fuse holder DC voltage supply inlet Emergency switch Operation Before initial use NOTE Before starting your new cooler for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (please also refer to the chapter “Cleaning and maintenance”... - Page 13 CF18 – CF60 Operation Mounting the handles CF 35, CF 40, CF 50, CF 60 The handles are enclosed unassembled. If you wish to attach the handles, proceed as follows: ➤ Make a handle by putting two holders (1) and a handle (2) together. ➤...
- Page 14 Operation CF18 – CF60 Turning the lid around (CF50, CF60) CF 50, CF 60 You can turn the lid around if you want to open the lid from the other side. To do this, proceed as follows: ➤ Open the lid and pull it out (A). ➤...
- Page 15 CF18 – CF60 Operation Energy saving tips • Choose a well ventilated location which is protected from direct sunlight. • Allow warm food to cool down first before placing it in the cooling device. • Do not open the cooling device more often than necessary. •...
- Page 16 Operation CF18 – CF60 Connecting to an AC power supply (e.g. in the home or office) (CF35, CF40, CF50, CF60) DANGER! Danger of electrocution! • Never handle plugs and switches with wet hands or if you are standing on a wet surface. •...
- Page 17 CF18 – CF60 Operation In “HIGH” mode, the battery monitor responds faster than at the levels “LOW” and “MED” (see the following table). CF25, CF35, CF40, CF18 CF50, CF60 Battery monitor mode HIGH HIGH 10.4 V 11.5 V 10.1 V 11.4 V 11.8 V Switch-off voltage at 12 V...
- Page 18 Operation CF18 – CF60 Using the cooler NOTICE! Danger of overheating! Ensure at all times that there is sufficient ventilation so that the heat that generated during operation can dissipate. Ensure that the ventilation slots are not covered. The cooler MUST maintain a MINIMUM of 50 mm away from walls or similar surfaces which could restrict important air flow requirements of the cooling system.
- Page 19 CF18 – CF60 Operation NOTE The temperature displayed is that of the middle of the interior. The temperatures elsewhere can deviate from this temperature. ✓ The cooler starts cooling the interior. NOTE During low voltage: If switched off by the battery monitor due to low voltage, the display goes blank, and the LED “POWER”...
- Page 20 Operation CF18 – CF60 ➤ In the unlikely event of an electronic control failure slide the switch to EMERGENCY OVERRIDE. NOTE In this position the appliance will run all the time and will therefore per- form as a freezer only. Switching off the cooler ➤...
- Page 21 CF18 – CF60 Operation 7.10 Replacing the AC fuse (CF35, CF40, CF50, CF60) DANGER! Danger of electrocution! Disconnect the connection cable before you replace the device fuse. ➤ Pull off the connection cable. ➤ Pry out the fuse insert (fig. 6 2, page 11) with a screwdriver. ➤...
-
Page 22: Cleaning And Maintenance
Cleaning and maintenance CF18 – CF60 7.12 Replacing the light bulb (CF25, CF35, CF40, CF50, CF60) ➤ Press the switch pin (2) downwards so that the transparent part (1) of the lamp can be removed at the front. ➤ Replace the light bulb. NOTE The LEDs in the light bulb must be facing the transparent part of the lamp. -
Page 23: Guarantee
CF18 – CF60 Guarantee Guarantee The statutory warranty period applies. If the product is defective, please contact the manufacturer's branch in your country (see back page) or your retailer. For repair and warranty processing, please include the following documents when you send in the device: •... -
Page 24: Disposal
Disposal CF18 – CF60 Fault Possible cause Suggested remedy When operating from The DC outlet is dirty. If the plug of your cooler becomes very the DC outlet: This results in a poor warm in the DC outlet, either the DC electrical contact. -
Page 25: Technical Data
CF18 – CF60 Technical data Technical data CF18 CF25 Connection voltage: 12/24 Vg Rated current – 12 Vg: 3.1 A 6.8 A – 24 Vg: 1.9 A 3.0 A – 100 – 240 Vw: – – Cooling capacity: +10 °C to –18 °C (+50 °F to 0 °F) Gross volume: 18 l 25 l... - Page 26 Technical data CF18 – CF60 CF35 CF40 Connection voltage: 12/24 Vg and 100 – 240 Vw Rated current – 12 Vg: 6.0 A – 24 Vg: 3.0 A – 100 – 240 Vw: 1.3 A to 0.7 A Cooling capacity: +10 °C to –18 °C (+50 °F to 0 °F) Gross volume: 35 l...
- Page 27 CF18 – CF60 Technical data CF50 CF60 Connection voltage: 12/24 Vg and 100 – 240 Vw Rated current – 12 Vg: 7.0 A – 24 Vg: 3.0 A – 100 – 240 Vw: 1.3 A to 0.7 A Cooling capacity: +10 °C to –18 °C (+50 °F to 0 °F) Gross volume: 48 l...
- Page 28 YOUR LOCAL YOUR LOCAL YOUR LOCAL DEALER SUPPORT SALES OFFICE dometic.com/dealer dometic.com/contact dometic DOMETIC GROUP AB...
