HuddleCamHD 3x Installation & Operation Manual

Usb 2.0 ptz camera w/ built-in mic array
Hide thumbs Also See for HuddleCamHD 3x:

Advertisement

Quick Links

Download this manual

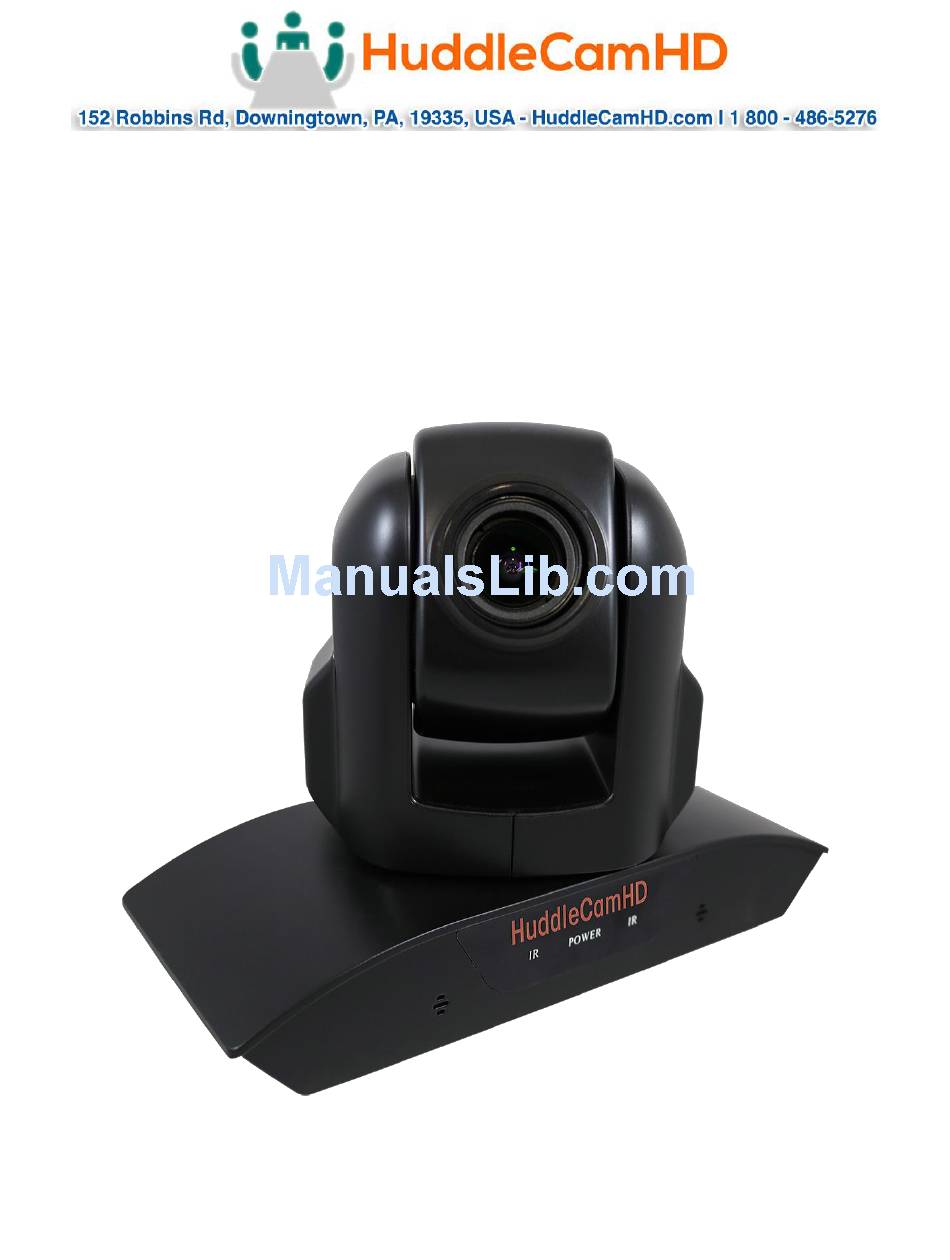

HuddleCamHD 3x with Audio
USB 2.0 PTZ Camera w/ built-in Mic Array
INSTALLATION & OPERATION MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the HuddleCamHD 3x and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HuddleCamHD HuddleCamHD 3x

Summary of Contents for HuddleCamHD HuddleCamHD 3x

  • Page 1 HuddleCamHD 3x with Audio USB 2.0 PTZ Camera w/ built-in Mic Array INSTALLATION & OPERATION MANUAL...
  • Page 2 Precautions…………………………………………………………………………………………. Safety Tips…………………………………………………………………………………………….  Please read this manual carefully before using the camera.  Avoid damage from stress, violent vibration or liquid intrusion during transportation, storage or installation.  Take care of the camera during installation to prevent damage to the camera case, ports, lens or PTZ mechanism.
  • Page 3 Physical Description………………………………………………………………………… Front View…………………………………………………………………………………………. Lens 3x Optical Zoom Left Microphone Element IR Receiver To receive IR remote controller signal. Power LED Blue LED lights when unit is powered and is dark in Stand-By status. IR Receiver To receive IR remote controller signal. Right Microphone Element Ver 1.0 12/16...
  • Page 4 Rear View…………………………………………………………………………………… USB 2.0 Interface For video/audio connection to PC (USB 2.0 port. Will also function in a USB 3.0 port as a USB 2.0 device) IR Receiver To receive IR remote controller signals DC IN 12V Socket Only use the Power Adapter supplied with this camera Ver 1.0 12/16...
  • Page 5 Bottom View………………………………………………………………………………… 1. Dip-Switches Used for selecting serial (virtual com port via USB) and IR communications settings. 2. Tripod Will accept 1/4-20 bolt from 3 party tripod, wall or ceiling mount using included tripod adapter. Ver 1.0 12/16...
  • Page 6 38400bps PELCO-D DIP-3,4,5: IR Remote Control – Camera ID Switch State IR Remote Address DIP-3 DIP-4 DIP-5 1 (Default) OFF (Default) OFF (Default) OFF (Default) OSD MENU…………………………………………………………………………………………….. There is no On Screen Display for the HuddlecamHD 3XA. Ver 1.0 12/16...

  • Page 7: Ir Remote Controller

    IR Remote Controller (Note: Some buttons do not operate for all camera models) 1. Reset Restarts the camera and restores it to Factory Default settings. (Note: Will delete all saved settings and presets.) 2. Camera Selection Select which Camera to control via IR: 1, 2 or 3 Preset Positions 1-9: Preset Positions Set: Set a Preset Position...
  • Page 8 Connection Instructions……………………………………………………………………… Connect included Power Supply to the camera. Wait for camera to come to Home Position. Connect included USB 2.0 cable to camera and USB 2.0 port of PC. Select and configure camera in your software of choice. NOTE: Failure to follow this sequence may result in no connection to PC. Care Of The Unit…………………………………………………...
  • Page 9 Tripod Installation………………………………………………………………………………… When using the HuddleCam with a tripod, screw the tripod to the bottom of the cam-  era. The tripod screw must fit below specifications: Note: Tripod must stand on a level surface. To fix the tripod mount to the bottom of the camera, use the supplied screws to hold it in place.
  • Page 10 Troubleshooting………….………………………………………………………………………… Problem Cause Resolution There is no power to the Power adapter is Check the connections camera. disconnected from mains between the camera, or from camera. power adapter and mains. If anything is disconnected, reconnect Camera will not connect USB cable is bad. Try new USB Cable to the PC via USB.
  • Page 11 HuddleCam Cameras – Video (General to all HuddleCamHD models) All HuddleCamHD cameras utilize the UVC (USB Video Class) drivers that are built into Windows, Mac OS and Linux to stream HD video to your device via your device’s USB port (USB 2.0 or USB 3.0 depending upon HuddleCam model).
  • Page 12 In this example, you can see the HuddleCam model in use connected as a fully functional USB 3.0 device (HuddleCamHD) as well as a USB 2.0 device with limited functionality (USB2.0 Camera). If your device has not connected to or has not recognized the HuddleCam as an imaging device (in which case, you may see a new “unknown device”, “Westbridge”...
  • Page 13 HuddleCam Cameras – Audio (Specific to HuddleCamHD models with built-in audio) In the case of the HuddleCamHD model HC3XA-xx, the unit also has a built-in microphone array. Because of this, it also shows up as a UAC (USB Audio Class) device on your PC.
  • Page 14 HuddleCam Cameras – Serial Control (Specific to HuddleCamHD models with virtual COM) Since the HuddleCamHD model HC3XA-xx also includes a virtual serial connection, the camera will actually make 3 separate connections to your PC: UVC for video, UAC for audio and virtual com port for serial communication, as can be seen here: This view uses the Windows Device Manager’s “View by Connection”...
  • Page 15 Specs…………………………………………………………………………………………….. Model Number: HC3XA-(xx) Color (xx): WH=White; BK=Black; SV=Silver Camera & Lens  Video CMOS Sensor 1/2.7” CMOS, 2.1 Mega Pixel  Resolutions 1080p-30/25, 720p-30/25, SVGA, VGA  Frame Rate up to 30fps (MJPEG)  Lens Zoom 3X Optical Zoom f = 3-10mm; F = 1.4 ...
