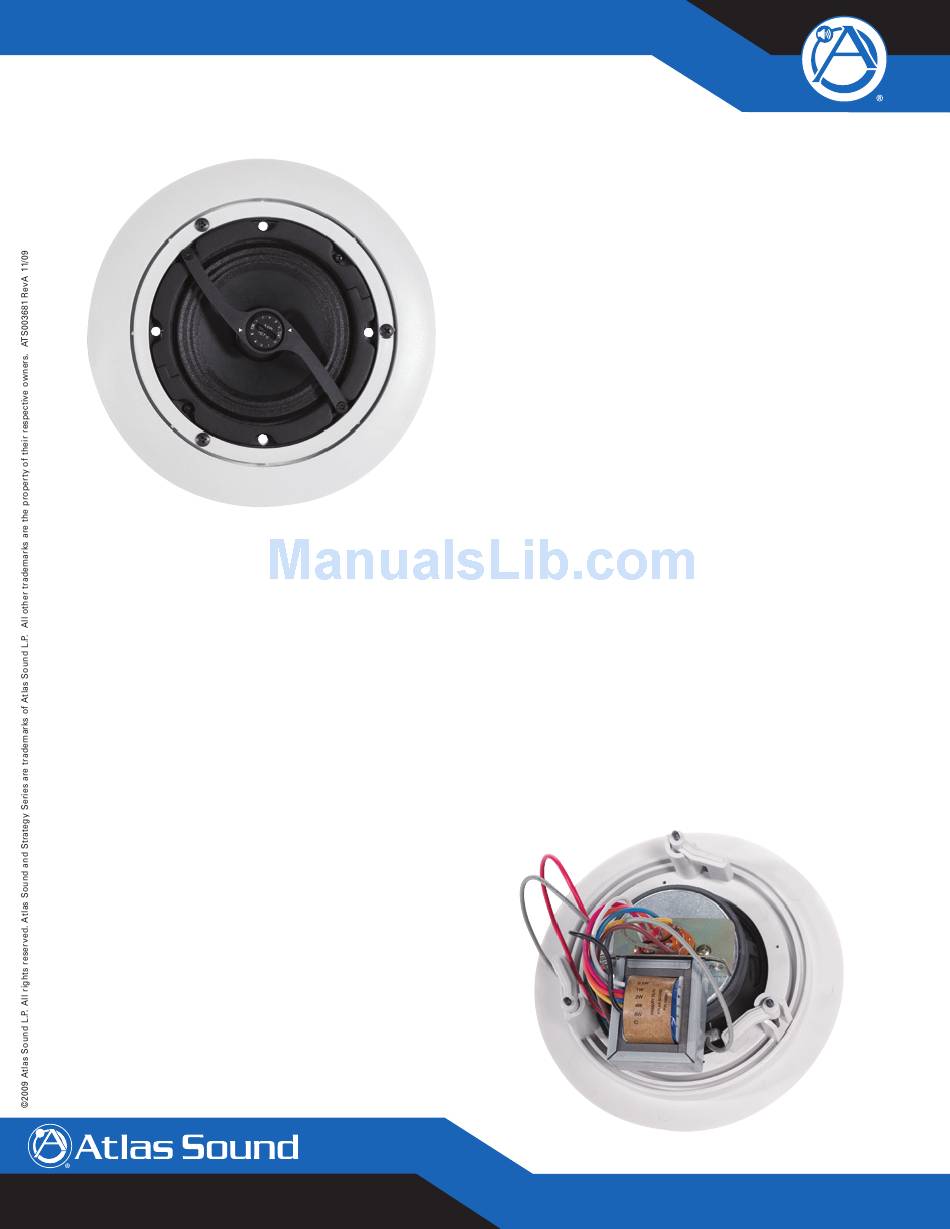

Atlas DLS4 Specification Sheet

4" Dog Leg Speaker with 8 Watt Transformer
Features
• S mall Footprint and Press-Fit Grilles Give Discrete Installed
Appearance
• T ap Selector Switch Located Behind Speaker Magnet with Shaft
Through Center of Cone. Selector Knob Doubles as a Dispersion
Cone and Allows Tap Selection to be Done After the Speaker is
Installed in the Ceiling
• 8 Watt, High Efficiency Internal Transformer (May Be Bypassed by
Tap Selector Switch for 8Ω Operation)
• W orks in Most New or Retro-Fit Ceiling Application with Atlas Sound
Hardware
• U L1480 for General Signaling and are Certified for Use in Air Handling
Spaces Under UL2043

Specifications

Power Rating
Frequency Response
Sensitivity (1W/1M)
Dispersion
Woofer
Woofer Magnet Weight
Bezel Diameter
Depth
Cut-Out Diameter
Weight
1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
FAX (800) 765-3435
DLS4
DLS4
16 Watts at 8Ω
150Hz – 17kHz (±5dB)
92dB
105°
4" Paper Cone
10oz (283g)
7.75" (197mm)
4.25" (108mm)
6.25" (159mm)
3lbs 5oz (1.5kg)

General Description

The DLS4 was specially designed for optimum use in low ceiling
paging and background music applications where wide dispersion, high
efficiency and ease of installation are required. The DLS4 is perfectly
suited for use in airports, rail stations, retail stores, and hospitality
applications.
The system consists of a 4" high efficiency driver. A unique (patent
pending) tap selector switch design allows for easy system tuning. A
full selection of taps up to 8 Watts as well as an 8Ω bypass setting
is included for maximum system versatility. This switch "knob" also
functions as a diffuser cone, providing smooth, even dispersion of the
high frequency content from the center of the 4" driver. In fact, the high
frequency response of the DLS4 is so natural that many would assume
that the driver in the DLS4 was a coaxial design instead of a cone driver.
The easy to use DLS4 "dog leg" mounting system works with several
popular Atlas Sound hardware combinations for use in new or existing
drywall or acoustic ceilings with or without conduit! For mineral tile
applications the popular FA81-4 tile bridge has been equipped to allow
"twist lock" installation of the economical CS95-8.
Suggested Mounting Hardware:
Mineral Tile - no enclosure - FA81-4 Tile Bridge
Mineral Tile - with enclosure - FA81-4, CS95-8
Drywall Ceiling new construction - no enclosure - FA-TR4
Drywall Ceiling new construction - with enclosure - FA-TR4, E410NT
The DLS4 will also retro-fit into existing E410 & E410-11 enclosures.
(Torsion tabs inside enclosure must be bent inwards to allow for
complete clearance of the DLS4 dog leg mounting system)
AtlasSound.com
DLS4
(Back)
