6

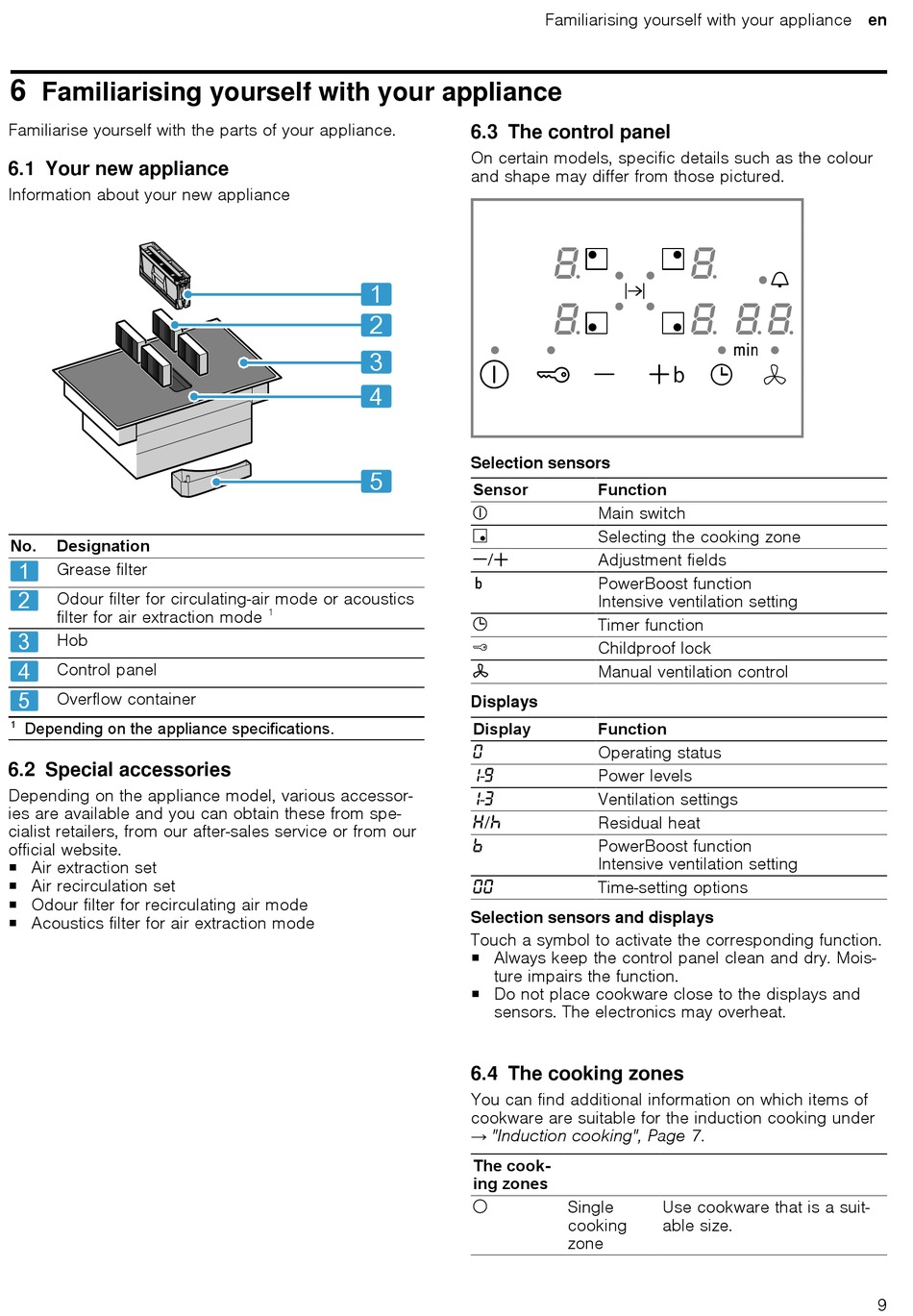

Familiarising yourself with your appliance
Familiarise yourself with the parts of your appliance.
6.1 Your new appliance
Information about your new appliance
No.
Designation
Grease filter
1
Odour filter for circulating-air mode or acoustics
2
filter for air extraction mode
Hob
3
Control panel
4
Overflow container
5
1
Depending on the appliance specifications.
6.2 Special accessories
Depending on the appliance model, various accessor-
ies are available and you can obtain these from spe-
cialist retailers, from our after-sales service or from our
official website.
¡ Air extraction set
¡ Air recirculation set
¡ Odour filter for recirculating air mode
¡ Acoustics filter for air extraction mode
1
2
3
4
5
1
Familiarising yourself with your appliance en
6.3 The control panel
On certain models, specific details such as the colour
and shape may differ from those pictured.
Selection sensors
Sensor
Function
Main switch
Selecting the cooking zone
/
Adjustment fields
PowerBoost function
Intensive ventilation setting
Timer function
Childproof lock
Manual ventilation control
Displays
Display
Function
Operating status
-
Power levels
-
Ventilation settings
/
Residual heat
PowerBoost function
Intensive ventilation setting
Time-setting options
Selection sensors and displays
Touch a symbol to activate the corresponding function.
¡ Always keep the control panel clean and dry. Mois-
ture impairs the function.
¡ Do not place cookware close to the displays and
sensors. The electronics may overheat.
6.4 The cooking zones
You can find additional information on which items of
cookware are suitable for the induction cooking under
→ "Induction cooking", Page 7.
The cook-
ing zones
Single
cooking
zone
Use cookware that is a suit-
able size.
9
