PREPARE THE HOOD
Unpack hood and check contents.
You should receive:
1 - Hood
1 - Decorative Flue Assembly
1 - Parts Bag (B080810501) containing:
1 - Mounting Bracket
1 - Discharge Collar
1 - Flue Mounting Bracket
8 - Mounting Screws (4,8 x 38mm Pan Head)
6 - Mounting Screws (3,9 x 9,5mm Pan Head)
8 - Drywall Anchors
1 - Installation Instructions

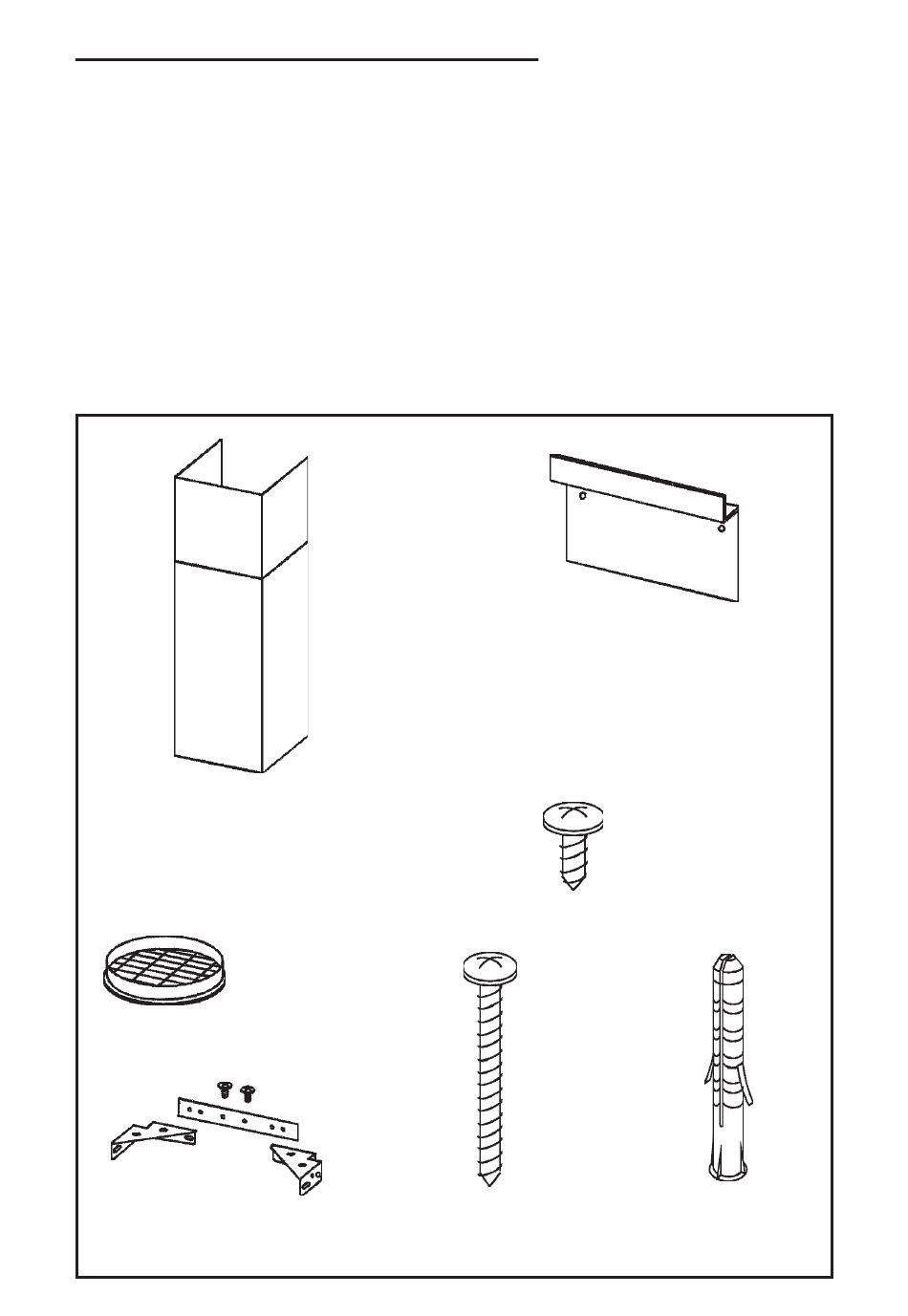

DECORATIVE FLUE
DISCHARGE
COLLAR
FLUE MOUNTING
BRACKET
8 MOUNTING SCREWS
(4,8 x 38mm Pan Head)
- 5 -
MOUNTING
BRACKET
6 MOUNTING
(3,9 x
SCREWS
9,5mm Pan Head)
8 DRYWALL
ANCHORS
