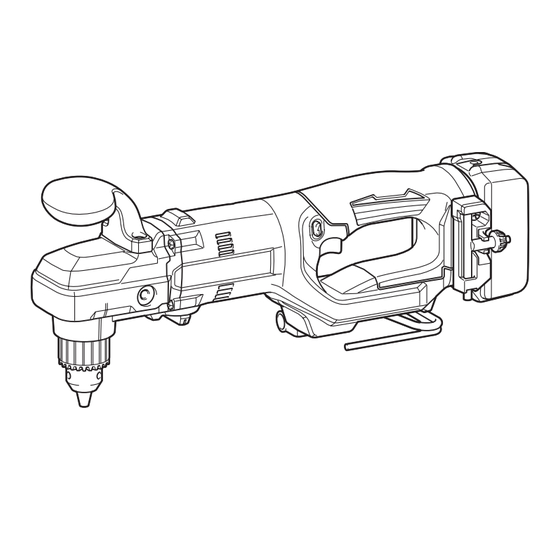

- Page 1 INSTRUCTION MANUAL Cordless Angle Drill DDA450 Read before use.
-
Page 2: Specifications
SPECIFICATIONS Model: DDA450 Gear speed High Drilling capacities Steel 13 mm Wood Auger bit: 38 mm Auger bit: 38 mm Self-feed bit: 50 mm Self-feed bit: 65 mm Hole saw: 101 mm Hole saw: 127 mm No load speed 0 - 1,400 min 0 - 450 min Overall length (With battery cartridge BL1860B) 434 mm... -
Page 3: Ec Declaration Of Conformity
Do not abuse the cord. Never use the cord for WARNING: The vibration emission during carrying, pulling or unplugging the power tool. actual use of the power tool can differ from the Keep cord away from heat, oil, sharp edges declared value(s) depending on the ways in which or moving parts. - Page 4 Battery tool use and care Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. Use power tools only with specifically desig- nated battery packs. Use of any other battery packs may create a risk of injury and fire.
- Page 5 Avoid storing battery cartridge in a con- also void the Makita warranty for the Makita tool and tainer with other metal objects such as charger. nails, coins, etc.
-
Page 6: Tips For Maintaining Maximum Battery Life
Tips for maintaining maximum CAUTION: Always install the battery cartridge battery life fully until the red indicator cannot be seen. If not, it may accidentally fall out of the tool, causing injury to Charge the battery cartridge before completely you or someone around you. discharged. Always stop tool operation and charge the battery cartridge when you notice CAUTION: Do not install the battery cartridge... -
Page 7: Overload Protection
Tool / battery protection system Lighting up the front lamp The tool is equipped with a tool/battery protection sys- CAUTION: Do not look in the light or see the tem. This system automatically cuts off power to the source of light directly. motor to extend tool and battery life. The tool will auto- matically stop during operation if the tool or battery is placed under one of the following conditions: Overload protection... -
Page 8: Electronic Function
This tool is equipped with an electric brake. If the tool consistently fails to quickly cease to function after the switch trigger is released, have the tool serviced at a Makita service center. Soft start feature This function allows the smooth start-up of the tool by limiting the start-up torque. - Page 9 Installing or removing drill bit Hook To install the drill bit, place it in the chuck as far as it will CAUTION: Always remove the battery when go. Tighten the chuck by hand. Place the chuck key in hanging the tool with the hook. each of the three holes and tighten clockwise.
-
Page 10: Drilling Operation
The hook is also used for connecting the lanyard (tether Drilling operation strap). Be sure to connect the lanyard (tether strap) to the double looped portion of the hook. Drilling in wood When drilling in wood, the best results are obtained with wood drills equipped with a guide screw. -
Page 11: Optional Accessories
CAUTION: These accessories or attachments Fasten the other end of the lanyard outside are recommended for use with your Makita tool the working area so that a falling tool is held specified in this manual. The use of any other securely. - Page 12 Makita Europe N.V. Jan-Baptist Vinkstraat 2, 3070 Kortenberg, Belgium Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502 Japan 885869-227 www.makita.com 20201202...
