Edison picco T265 Quick Start Manual

Congratulations on purchasing an EDISΙON picco T265
Please note that this information is valid at the time of publication.
Current information and detailed user manuals can be found on the Internet at: www.edision.gr
1

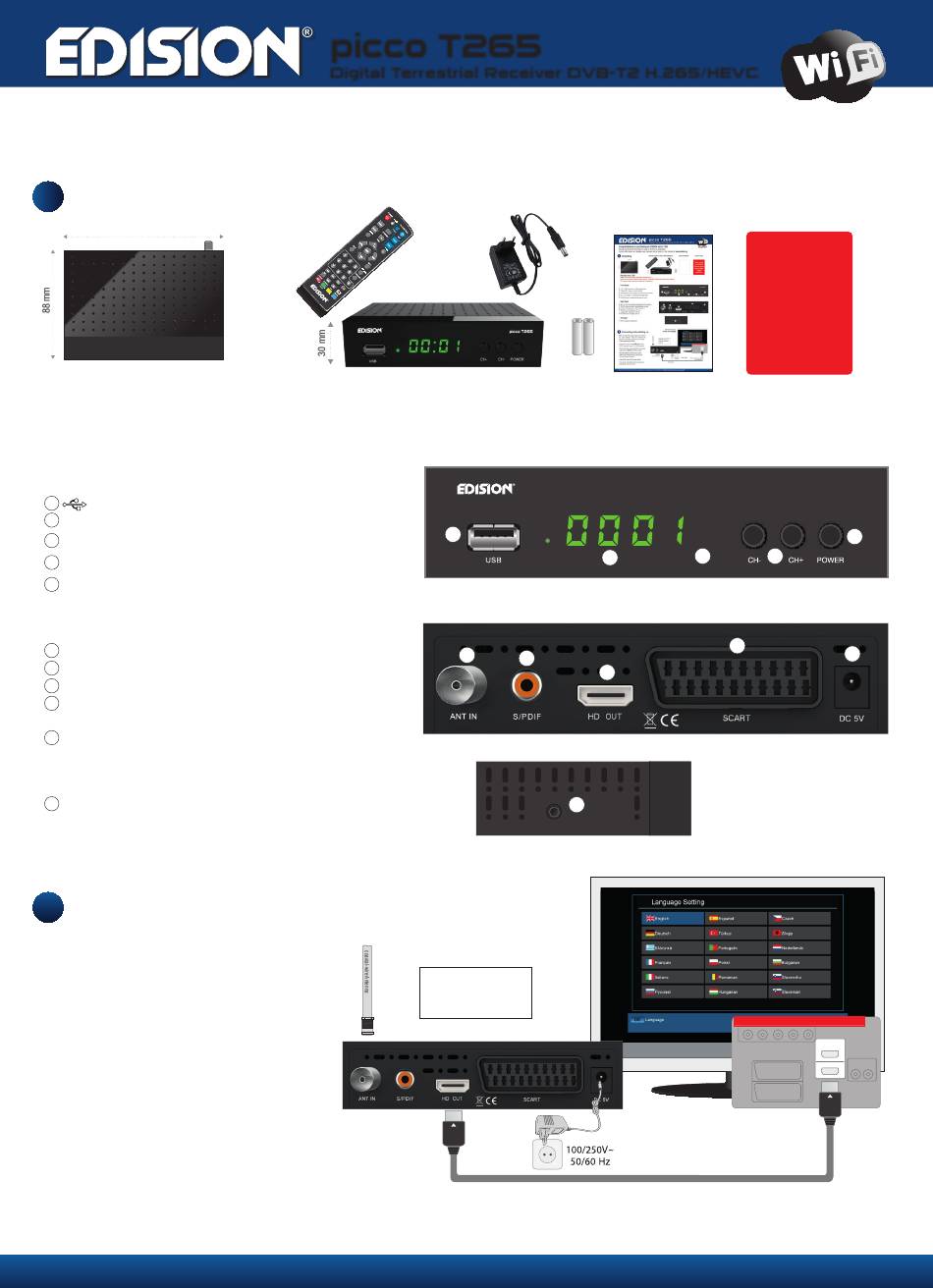

Unpacking

126 mm
Receiver picco T265
Notes: The front is factory fitted with a protective foil
which can be removed easily and with caution. (Protective foil only for devices with display)
The scope of delivery may also include parts not listed here

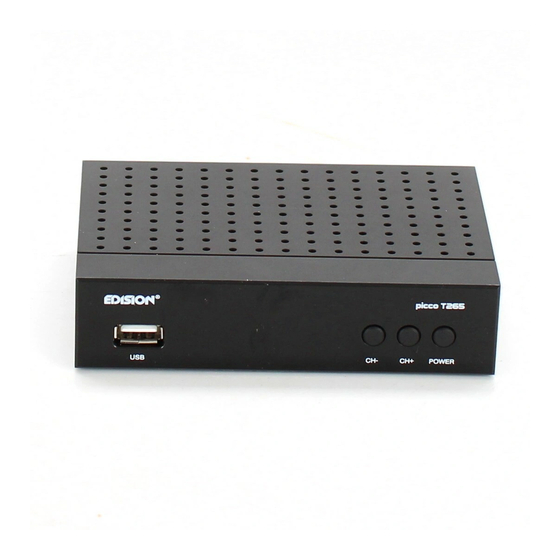

Front Panel

1
/ USB: Connection for USB storage devices
2 Display LED, displays current information
3 Infrared sensor for the reception of remote control commands
4 CH- / CH+ buttons: for moving in the program lists
5 POWER button: Activates/Deactivates the device

Back Panel

6 ANT IN: Input for connecting the signal from the antenna
7 S/PDIF: Audio interface for amplifier/audio console
8 HD OUT: Connection to an HDTV quality TV
9 SCART: For connecting to a TV set,
using SCART cable [not for HD TV]
10 Connection for an adapter (DC 5V)

Subpages

11 IR IN: Infrared connection port
2

Connecting and switching on

Note: For trouble-free signal reception your antenna
and cable installation should be calibrated and
inspected by a qualified professional with a digital
TV-level-measuring instrument.
• Connect the receiver using HDMI cable via the
HD OUT output port to your TV's HDMI input port
• Then connect the coaxial cable from the terrestrial
antenna to the ANT IN input of the receiver.
• Insert the batteries into the remote control.
Notes on the remote control can be found on
the back of these instructions.
• Connect the receiver to the power supply.
• The receiver starts with the BOOT process and
is operational within a short time
For information about EDISION Hardware or Software matters, please contact support@edision.gr
The CE certificate of the product is available on our webpage, by visiting this link: https://www.edision.gr/en/support
picco T265
Digital Terrestrial Receiver DVB-T2 H.265/HEVC
Remote control with 2 AAA batteries
1
6
After the first start,
choose your language
ANT IN: coaxial-wire
input from terrestrial
antenna.
HD OUT:
Output receiver
HDMI
kabel
Documentation
2
7
8
11
IR
Power socket
HDMI cable
Support
Service note
Please contact
your EDISION
specialist dealer
for any further
support
and service.
picco T265
5
3 4
9
10
HDMI in
2
1
m
HD i
kabel
TV set connection panel
Use an HDMI input!
