- Page 1 OTT / IPTV Full HD Linux OTT IPTV Receiver User’s Guide...
- Page 2 The CE certificate of the product is available on our webpage, by visiting this link: https://www.edision.gr/en/support Version of 20 August 2020...
-
Page 3: Table Of Contents
Contents ►Safety .......................4-5 ►Remote control ....................6 ►Description ......................7 ►Technical Data ....................8 ►Installation ......................10 Language ............................10 Network Settings ..........................10 Software Upgrade ...........................11 AV Settings ............................ 12 Time Settings ..........................12 Hotkey Settings ..........................13 Parental Control ..........................13 Information ............................. 13 ►Move Apps ......................14 ►Menu ........................14 Paok TV ............................14... -
Page 4: Safety
► Important safety instructions Read these instructions. Keep these instructions in a safe place. Follow all warnings. Follow all instructions. Do not use the device near water. Only clean with a dry cloth. Do not use near heat sources, such as radiators, heat accumulators, ovens or other devices (including amplifiers) generating heat. - Page 5 This symbol indicates that there is risk of electric shock. This symbol indicates that the operating instructions contain important operating and maintenance instructions. This symbol indicates that there is a double insulation between voltage and user accessible parts between the product. This symbol on the product or in the operating instructions indicates that the electrical or electronic device must be disposed of separately from household waste at the end of the service life.
-
Page 6: Remote Control
Return to the previous channel/service or move to the end of the Service List or the Play List Help HELP This provides users with a quick guide of using Edision Ping Menu MENU Open main menu & select sub menu using by navigation buttons... -
Page 7: Description

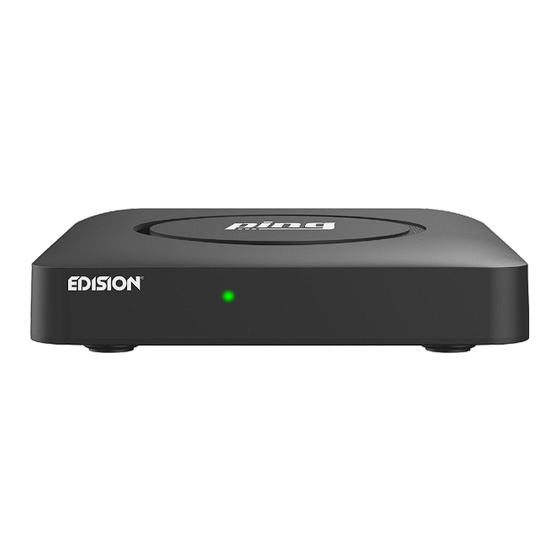

►Description Front Panel Infrared sensor for the reception of remote control commands Back Panel HD OUT: Connection to an HDTV quality TV S/PDIF: Audio interface for amplifier/audio console AV OUT: For broadcasting video and sound signals (optional) ETHERNET: Ethernet port RJ45 10/100 Mbps Connection for an adapter (DC 5V/2,0A) Subpage... -
Page 8: Technical Data
► Technical Features: • Type: Full HD OTT IPTV Receiver • H.265 HEVC decoding support • Resolution: 576i, 576p, 720p_50, 720p_60, 1080i_50, 1080i_60, 1080p_50, 1080p_60 & Auto • Linux Operating System • 600 MHz Processor • 1GBit RAM DDR3 • 16MB NAND Flash Memory •... - Page 9 During the initial start-up, please, select your language. ► Installation ► Move Apps ► Μenu ► Paok TV ► Stalker ► YouTube ► Web TV ► More Apps (Dailymotion) ► Media Player ► Weather ► Shoutcast Version of 20 August 2020...
-
Page 10: Installation
►Installation Configure your receiver, accord- ing to your needs, from the vari- ous settings available. Language Menu language: You can select the language in which the menu texts are dis- played from here. Subtitle language: You can set the language in which the subtitles information will be displayed from here (Language must be supported by... -
Page 11: Software Upgrade
Save the downloaded file to your computer in the USB memory module and insert this module into the USB port of the “ping”. USB Upgrade File path: Select the upgrade file you wish with the arrows and the OK key. -
Page 12: Av Settings
USB Upgrade Ability to upgrade the receiver OnLine. Select HTTP protocol and press OK at the beginning to start the update process. To activate a software update message, select ON. AV Settings Display settings: Standard: Adjust Resolution, Auto, 576i, 576p, 720p_50, 720p_60, 1080i_50, 1080i_60, 1080p_50 or 1080p_60... -
Page 13: Hotkey Settings
Hotkey Settings Immediate operation program- ming for the colored keys. Select for each colored key your favorite application for the quick access function by clicking the color of your choice from the main menu. Parental Control This menu is only available after entering a PIN code. -
Page 14: Move Apps
►Move Apps By pressing the “info” button of the remote control you can move your favorite applications to any position you wish within the main menu. ► MENU ►Paok TV Prerequisites for proper opera- tion of PAOK TV APPLICATION: You must log in or create an ac- count on PAOK TV first and pur- chase your subscription from the Subscriptions or Pay Per View... -
Page 15: Stalker
►Stalker Access your favorite Stalker Portal. Stalker Login Portal settings: Access the Stalker application, enter the up to 8 different URLs & MAC to the portal. Addresses to watch all the free popular POR- TALS of your choice. ►YouTube Access your favorite YouTube videos. -
Page 16: Web Tv
►Web TV Access the Web TV application to watch all the free popular chan- nels of your choice via URL. ►More Apps Here you will find the additional available applications, such as e.g. DailyMotion, etc. Dailymotion Access your favorite Dailymotion videos. - Page 17 ►Xtream Access your favorite Xtream Portal. ►Vimeo Access your favorite Vimeo videos. Version of 20 August 2020...
-
Page 18: Media Player
►Media Player This menu is only available if a suitable USB memory module, recognized by the receiver, is connected. You can play Videos with subti- tles, Music, Images & Text. For safe USB removal, click on the USB Removal icon. ►Weather For weather updates, enter new city using the green Add key. - Page 19 Version of 20 August 2020...
- Page 20 w w w . e d i s i o n . g r EDISION HELLAS LTD • FARMAKEIKA - 57001 N. RISIO • THESSALONIKI - GREECE...
