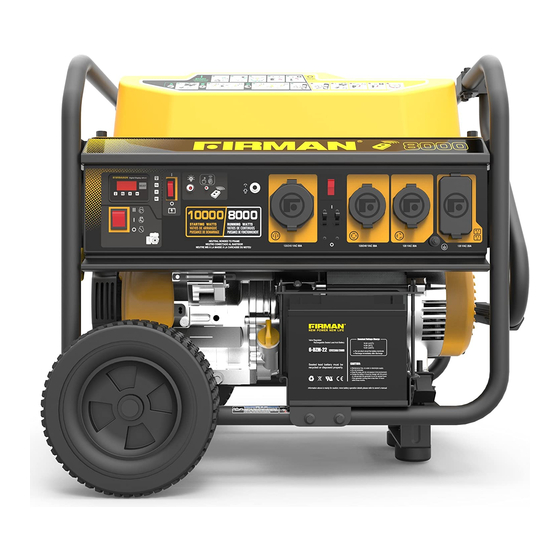

OWNER'S MANUAL
PORTABLE GENERATOR
IMPORTANT:
Record product information to reference when ordering parts or
obtaining warranty coverage.
DO NOT RETURN TO
STORE!
CALL US FIRST!
CUSTOMER HOTLINE
1-844-347-6261
FOR QUESTIONS OR SERVICE
INFORMATION
Read all safety precautions and instructions carefully
before operating equipment.
Ensure engine is stopped and level before performing
any maintenance or service.
MODEL NUMBER
P08004
Serial Number:
Purchase Date:
P/N:380745453 Rev:04
Rev Level:01

Advertisement

Table of Contents
loading

Related Manuals for Firman P08004

Summary of Contents for Firman P08004

  • Page 1 OWNER’S MANUAL PORTABLE GENERATOR MODEL NUMBER P08004 Rev Level:01 IMPORTANT: Read all safety precautions and instructions carefully before operating equipment. Ensure engine is stopped and level before performing any maintenance or service. Record product information to reference when ordering parts or obtaining warranty coverage.

  • Page 2: Table Of Contents

    Table of Contents Introduction ......1 Maintenance And Storage....22 Safety Precautions .

  • Page 3: Introduction

    Save these original instructions for future reference. This manual covers operation and maintenance of the FIRMAN generators. All information in this publication is based on the latest production information available at the time of approval for printing.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS • WARNING POISONOUS GAS HAZARD. • • • • English Page 02 Customer Service: 1-844-FIRMAN1...
  • Page 5 CORRECT USAGE Example location to reduce risk of carbon monoxide poisoning • ONLY use outside and downwind, far away from windows, doors and vents. • Direct exhaust away from occupied spaces. INCORRECT USAGE Do not operate in any of the following locations: Near any door, window or vent Garage Basement...
  • Page 6 WHEN OPERATING EQUIPMENT WARNING • • DO NOT tip engine or equipment at angle which causes fuel to spill. • DO NOT stop engine by moving choke • control to “Start” position. WHEN TRANSPORTING, MOVING • OR REPAIRING EQUIPMENT • NEVER start or stop engine with electrical Transport/move/repair with fuel tank devices plugged in and turned on.
  • Page 7 • When using generator for backup power, WARNING notify utility company. Unintentional sparking • Use a ground fault circuit interrupter (GFCI) could cause fire or in any damp or highly conductive area, electric shock resulting such as metal decking or steel work. in death or serious •...

  • Page 8: Unpacking The Generator

    NOTE: 1. Axle pin ....... . .2 Improper treatment of generator could damage 2.

  • Page 9: Assembly

    ASSEMBLY Install the Handle The generator requires some assembly prior to 1. Place the handle K over the mounting channel usage. If problems arise when assembling the on the frame. generator, call 1-844-347-6261. 2. Secure the handle to the frame using the two Install the Wheel Kit handle flange bolts H(M8x50).

  • Page 10: Battery Cable Connection

    Battery Cable Connection NOTE: The generator comes equiped with the positive(red) and negative(black) cables already attached to battery terminals. 1. Cut wire tie that is binding the black battery cables A and B. 2. Insert the male connector of cable A into female connector of cable B. English Page 08 Customer Service: 1-844-FIRMAN1...

  • Page 11: Controls And Features

    12- Control Panel 5- Fuel Valve 13- Handle 6- Air Filter 14- Battery 7- 439cc FIRMAN OHV Engine 15- Remote Holder 8- Recoil Starter The remote controller can be placed inside the remote holder for easy access. *We are always working to improve our products. Therefore, the enclosed product may differ slightly from the image on this page.

  • Page 12: Control Panel

    Control Panel NOTE: Total power drawn from all receptacles must not exceed the name plate rating. Engine Start Switch – Used to start engine 120/240V, 30A Twist-Lock – (NEMA L14-30R) from the starter motor(Electric start model Maximum full load current may be drawn from this 120/240 Volt, 30 Amp receptacle.

  • Page 13: Remote Start

    Remote Start 2. Flip the battery switch to the "ON"(l) position. This generator is equipped with a wireless remote start system for starting and stopping. The Remote Start functions are enabled when: 1.The Engine Switch is in the “RUN”(l) position, AND 2.The Battery Switch is in the “ON”(l) position.

  • Page 14: Specifications

    SPECIFICATIONS Model P08004 Starting Watts 10000 8000 Running Watts Rated AC Voltage 120/240V Rated Fequency 60Hz Phase Single Voltage Regulator Power Factor Standard Total Harmonic Distortion(THD) Alternator Type Brushed Engine FIRMAN Engine Type Single Cylinder, 4-Stroke OHV Air Cooled Displacement...

  • Page 15: Add Engine Oil

    4.Using oil funnel, slowly pour contents of ADD ENGINE OIL provided oil bottle into oil fill opening to the "H" mark on dipstick. Be careful do not CAUTION overfill. Overfilling with oil could cause the engine to not start or hard starting. NOTE: Degrees Celsiusº(Outside) 5.Replace oil fill cap/dipstick and fully tighten.

  • Page 16: Add Fuel

    ADD FUEL Fuel must meet these requirements: • Clean, fresh, unleaded gasoline. • Use regular UNLEADED gasoline with the generator engine with a minimum 87 octane / 87 AKI (91 RON). For high altitude use, see "Operation at High Altitude". •...

  • Page 17: Grounding

    THE GENERATOR (STATOR WINDING) AND THE Installation instructions are also available in the FRAME. Technical Bulletin area of the FIRMAN internet site. The part number and recommended minimum Connecting to a Building's Electrical System altitude for the application of the high altitude carburetor main jet is listed in the table below.

  • Page 18: Operation

    5. OPERATION • Generator Location WARNING Make sure you review each warning in order to • prevent fire hazard. Keep area clear of inflammables or other hazardous materials. Select a site that is dry, well ventilated and protected from the weather. •...

  • Page 19: Starting The Generator (Recoil Start)

    Starting the Generator (Recoil Start) 7. Move the choke lever to the “START” position. 1. Before starting the generator, check for loose or missing parts and for any damage which may have occurred during shipment. 2. Check oil level and fuel. 8.

  • Page 20: Starting The Generator (Electric Start)

    4. Turn the fuel valve to the “ON” (l)position. Starting the Generator (Electric Start) Electric Start and Remote Start Operations 5. Flip the engine switch to the "RUN"(l) position. WARNING 6. Flip the battery switch to the "ON"(l) position. WARNING 7.

  • Page 21: Starting The Generator (Remote Start)

    9. Do not over-choke. As soon as engine starts and warms up, move the choke lever to the “RUN” position. 4. Turn the fuel valve to the “ON” (l)position. 10. Allow generator to run at no load for few minutes upon each initial start-up to permit engine and generator to stablize.

  • Page 22: Connecting Electrical Loads

    If the engine fails to start within 3 to 5 seconds, the engine will attempt to start five additional times. If the generator failed to start, the remote start indicator light will flash. If the generator fails to start after a total of six attempts, the start button on the remote control must be pushed again to begin another cycle of six start attempts.

  • Page 23: Low Oil Shutdown

    1.DO NOT try to restart the engine. 4. Flip the battery switch on "OFF"(O) position. 2.Contact an Authorized FIRMAN Service Dealer. 3.DO NOT operate engine until oil level is corrected. If oil level is below LOW mark on dipstick: 1.Add oil to bring level to HIGH mark.

  • Page 24: Maintenance And Storage

    MAINTENANCE AND STORAGE MAINTENANCE SCHEDULE Every Daily(Before Initial Every Every 100 hours ITEM NOTES operation) 25 hours 50 hours 250 hours (or annual) Check condition. Adjust gap √ Spark Plug and clean. Replace if necessary. √ Check oil level. Engine Oil √...

  • Page 25: Engine Maintenance

    • Use fresh and high quality lubricating oil to the ENGINE MAINTENANCE specified quantity. If contaminated or deteriorated oil is used or To prevent accidental starting, remove and the quantity of the engine oil is not sufficient, ground spark plug wire before performing any the engine damage will result and its life will be service.

  • Page 26: Spark Plug Maintenance

    Spark Plug Maintenance Cleaning Fuel Strainer Changing the spark plug will help your engine Dirt and water in the fuel are removed by the fuel to start easier and run better. strainer. (a) Remove the spark plug cap. (b) Remove spark plug using provided wrench. (a) Remove the strainer cup and throw away water and dirt.

  • Page 27: Generator Maintenance

    • DO NOT touch hot parts and AVOID hot exhaust CAUTION gases. • Failure to clean the spark arrester will result in Allow equipment to cool before touching. degraded engine performance. • Keep at least 5 feet (1.5 m) of clearance on all GENERATOR MAINTENANCE sides of generator including overhead.

  • Page 28: Service And Storage

    WARNING Long Term Storage It is important to prevent gum deposits from forming in essential fuel system parts such as the carburetor, fuel hoses or tank during storage. Also, experience indicates that alcohol-blended fuels (called gasohol, ethanol or methanol) can attract moisture, which leads To avoid electric shock: to separation and formation of acids during storage.
  • Page 29 8-Keep the engine switch and fuel valve on “OFF” position. 9-Cover the unit and store in a clean, dry place out of direct sunlight. NEVER USE WATER TO CLEAN GENERATOR. NOTE: • We recommend always using a fuel stabilizer. A FUEL STABLIZER will minimize the formula- tion of fuel gum deposits during storage, the fuel stabilizer can be added to the gasoline in the fuel tank, or into the gasoline in a storage...

  • Page 30: Trouble Shooting

    TROUBLE SHOOTING Problem Cause Correction 1. Circuit breaker is open. 1. Reset circuit breaker. 2. Fault in generator. 2. Contact authorized service facility. Engine is running, but no 3. Poor connection or defective cord 3. Check and repair. AC output is available. set.

  • Page 31: Parts Diagram And Parts List

    PARTS DIAGRAM AND PART LIST P08004 PARTS DIAGRAM Page 29 English Customer Service: 1-844-FIRMAN1...
  • Page 32 439cc ENGINE PARTS DIAGRAM English Page 30 Customer Service: 1-844-FIRMAN1...
  • Page 33 P08004 PARTS LIST Description Qty. Description Qty. NO. Part Number NO. Part Number Isolator A 380713522 FIRMAN 439cc Engine 357713533 357713534 Wheel Rubber Cap B 357713501 357713535 Axle Assy Flange. Bolt M6×8 336713528 357713536 Lock Pin Generator Wind Shield 357713502...
  • Page 34 FIRMAN 439cc Engine Parts List Qty. Qty. NO. Part Number Description NO. Part Number Description Crankcase Subassembly. Spring 380723500 336723601 Bolt, Drain Plug Step Moter Holder 357723501 357723553 Washer,drain Bolt Step Moter 357723502 336723603 Sensor, Engine Oil Bolt M4×8 357723503 336723604 Flg.

  • Page 35: Parts List

    1. Model No. ,Rev. Level and Serial No. and all of Purchase specifications shown on the Model No./Serial Contact the FIRMAN Service Center and FIRMAN No. plate. will troubleshoot any issue via phone or e-mail. 2. Parts number or numbers as shown in the If the problem is not corrected by this method, Parts List section.
  • Page 36 Normal maintenance is not covered by this www.firmanpowerequipment.com warranty. Other Exclusions We are FIRMAN POWER - And we are here for you. Customer Service Desk - 1-844-347-6261(844-FIRMAN1) This warranty excludes: 6am PST(9am EST) until 8pm EST(5pm PST) – cosmetic defects such as paint, decals, etc.
  • Page 37 If any such part fails during the period of warranty coverage, the part will be repaired or replaced by FIRMAN at no charge to the owner. Any such part repaired or replaced under the warranty will be warranted for the remaining warranty period.
  • Page 38 (8) Throughout the emissions warranty period defined in Subsection (b)(2), FIRMAN will maintain a supply of warranted parts sufficient to meet the expected demand for such parts. (9) Any replacement part may be used in the performance of any warranty maintenance or repairs and must be provided without charge to the owner.
  • Page 39 Firman Power Equipment Inc. 8716 West Ludlow Dr. Suite #6 Peoria, AZ 85381 www.firmanpowerequipment.com P/N:380745453 Rev 0 4...
