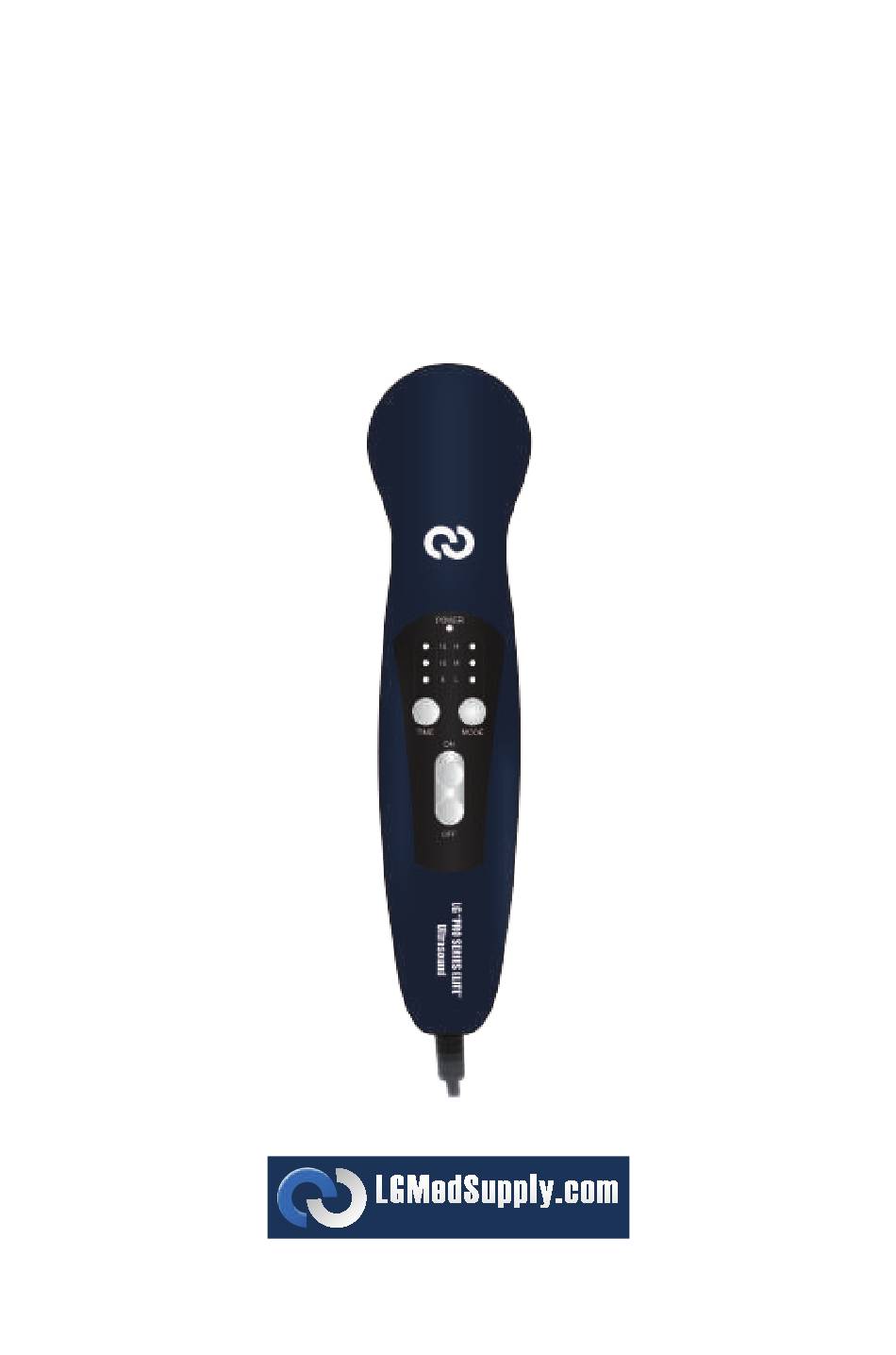

Portable ultrasound unit

Advertisement

LG "PRO SERIES ELITE"
PORTABLE ULTRASOUND
INSTRUCTION MANUAL
Model # DU3037
Live Pain Free, Live Good Today!
CAUTION: Federal Law restricts this device to sale by or on the
order of a physician or licensed practitioner

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO Series ELITE DU3037 and is the answer not in the manual?

Questions and answers

Gerard
February 19, 2025

The time indicator doesn’t stop moving also I never noticed it warming up-how does the power mode relate to the time indicator ie; the troubleshooting info states there could be settings issues between time and mode settings

1 comments:
Mr. Anderson
February 19, 2025

The power mode on the LGMedSupply PRO Series ELITE DU3037 is related to the time indicator through the modulation duty cycle settings. The available power modes are Low (5%), Medium (50%), and High (100%), corresponding to output power levels of 0.32W, 3.20W, and 6.40W, respectively. The time indicator allows the user to choose working durations of 5, 10, or 15 minutes.

For troubleshooting settings issues:
1. Ensure the AC/DC adapter is securely connected to both the ultrasound unit and the wall outlet.
2. Verify that the correct working time and modulation duty cycle are selected.
3. Check if the indication lights for time and duty cycle are functioning properly.
4. Confirm that the unit is being used according to the prescribed guidelines (no more than 2-3 times per day for 15-minute intervals).
5. If issues persist, refer to the instruction manual or contact the distributor for further assistance.

This answer is automatically generated

Summary of Contents for LGMedSupply PRO Series ELITE DU3037

  • Page 1 LG “PRO SERIES ELITE” PORTABLE ULTRASOUND INSTRUCTION MANUAL Model # DU3037 Live Pain Free, Live Good Today! CAUTION: Federal Law restricts this device to sale by or on the order of a physician or licensed practitioner...
  • Page 2 Portable Ultrasound Unit This user manual is published by LGMedSupply.com. LGMedSupply.com does not guarantee its contents and reserves the right to improve and amend it at any time without prior notice. Amendments will however be published in a new edition of this manual.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. FORWARD 2. INTENDED USE 3. EXPLANATION OF ULTRASONIC STIMULATOR EFFECT 4. CONTRAINDICATIONS 5. PRECAUTIONS 6. CAUTIONS 7. PARTS OF THE DEVICE 8. SPECIAL FEATURES 9. STEPS TO CONNECT THE ADAPTOR 10. INSTRUCTIONS FOR USE 11. LOAD DETECTION SYSTEM CAUTION 11.
  • Page 4: Forward

    FORWARD This manual contains general information on the operation, precautionary practices, and maintenance information of the DU3037 LG “ Pro Series Elite”. In order to maximize the use, e ciency, and life of the device, please read the manual thoroughly and become familiar with it before operating the device. In particular, pay attention to: 1.
  • Page 5: Contraindications

    CONTRAINDICATIONS 1. Do not use over or near bone growth centers until bone growth is complete. 2. Do not use over a healing fracture. 3. Do not use over the eyes. 4. Do not use on patients with implanted neurostimulation systems because tissue damage can occur at the location of the implanted electrodes resulting in severe injury or death.
  • Page 6: Cautions

    CAUTIONS 1. Always use this device under the directions of a physician. 2. Patients with the following diseases, symptoms or conditions should not use the device: During pregnancy or menstrual cycle. ● Acute disease, heart disease, tubercle disease, facial neuralgia (sharp ●...
  • Page 7: Parts Of The Device

    PARTS OF THE DEVICE (1) TIME INDICATOR LIGHT (2) TIME BUTTON (3) POWER INDICATOR LIGHT (4) INTENSITY INDICATOR LIGHT (5) MODE BUTTON (6) POWER SWITCH (7) ULTRASOUND HEAD SPECIAL FEATURES 1. All the ultrasound parts are assembled and tested under strict process controls.
  • Page 8: Steps To Connect The Adaptor

    LG “Pro Series Elite” requires the following steps for proper setup: 1. Ultrasound transmission gel is required when treating a patient with the LG “Pro Series Elite” portable ultrasound device. 2. The AC/DC adapter is required to power the device. No battery is used. 3.
  • Page 9: Instructions For Use

    INSTRUCTIONS FOR USE Please read this instruction manual carefully before using the US Pro 2000 ™ Edition Portable Ultrasound Unit. 1. Turning on the device and head warming feature: Turn the device on by sliding the power switch upwards (towards “ON”). The power indicator light will illuminate. The device will automatically enter the preheat mode.
  • Page 10 3. Set ultrasound intensity: Press the “MODE” button to select the modulation duty cycle. The mode button has three levels, Low (L) - 5%, Medium (M) - 50% and High (H) - 100%, each level corresponds to a LED light indicator. 4.
  • Page 11: Load Detection System Caution

    LOAD DETECTION SYSTEM CAUTION: 1. The device has a load detection system for safety. When the treatment head does not have good contact with the skin, the device will stop treatment automatically, and the time indicator light will flash one time. The device will not continue the treatment program until good contact is made.
  • Page 12: Storage Conditions

    STORAGE CONDITIONS When not in use, store the device with the adapter in a dry room and protect it against extreme moisture, heat and direct sunlight. Never place any heavy objects on the storage case. STORAGE CONDITIONS: 14°F ~ 122°F; 20% - 93% RH ●...
  • Page 13: Unit Specifications

    UNIT SPECIFICATIONS Speci cations Item Description Ultrasound Modulation Frequency: 1.0MHz±10% Max. Output Power: 6.4W±20% (Modulation duty cycle at100%) Output Power: L: 0.32W±20% M:3.20W±20% H:6.40W±20% Pulse Repetition Rate: 100Hz±10% Modulation Duty Cycle: L (5%), M (50%), H (100%) E ective Radiating Area: 4.0cm²±...
  • Page 14: Prescription Statement

    PRESCRIPTION STATEMENT CAUTION: United States Federal Law restricts this device to sale by or on the order of a physician or licensed practitioner by the law of the State in which he/she practices, according to 21 CFR 801.109. GLOSSARY OF SYMBOLS Type BF Applied Part Caution Type of protection against electric shock: Class II Equipment...
  • Page 15: Important Information Regarding Emc

    ELECTROMAGNETIC COMPATIBILITY (EMC) IMPORTANT INFORMATION REGARDING ELECTROMAGNETIC COMPATIBILITY (EMC) With the increased number of electronic devices such as PC’s and mobile (cellular) telephones, medical devices in use may be susceptible to electromagnetic interference from other devices. Electromagnetic interference may result in incorrect operation of the medical device and create a potentially unsafe situation.
  • Page 16 TABLE 1 Guidance and manufacturer’s declaration - electromagnetic emissions the user of the DU3037 should assure that it is used in such an environment. Emissions test Compliance Electromagnetic environment - guidance The DU3037 device uses RF energy only for its internal function.
  • Page 17 TABLE 2 Guidance and manufacturer’s declaration - electromagnetic immunity The DU3037 device is intended for use in the electromagnetic environment speci ed below. The customer or the user of the DU3037 should assure that it is used in such environment. IEC 60601 Compliance Electromagnetic...
  • Page 18 TABLE 3 Guidance and manufacturer’s declaration - electromagnetic emissions The DU3037 device is intended for use in the electromagnetic environment speci ed below. The customer or the user of the Du3037 should assure that it is used in such an environment. IEC 60601 Compliance Electromagnetic...
  • Page 19 TABLE 4 Recommended separation distances between portable and mobile RF communications equipment and the device The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the device can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and as recommended below, according to the maximum output power of the communications equipment.
  • Page 20: Limited Warranty

    Product: LG “ Pro Series Elite” Model: DU3037 Serial Number: Date of Purchase: Distributor: Live Pain Free, Live Good Today! Manufactured for: LGMedSupply Cherry Hill, NJ 08003 www.lgmedsupply.com Labeled by: Compass Health Brands Corp.
