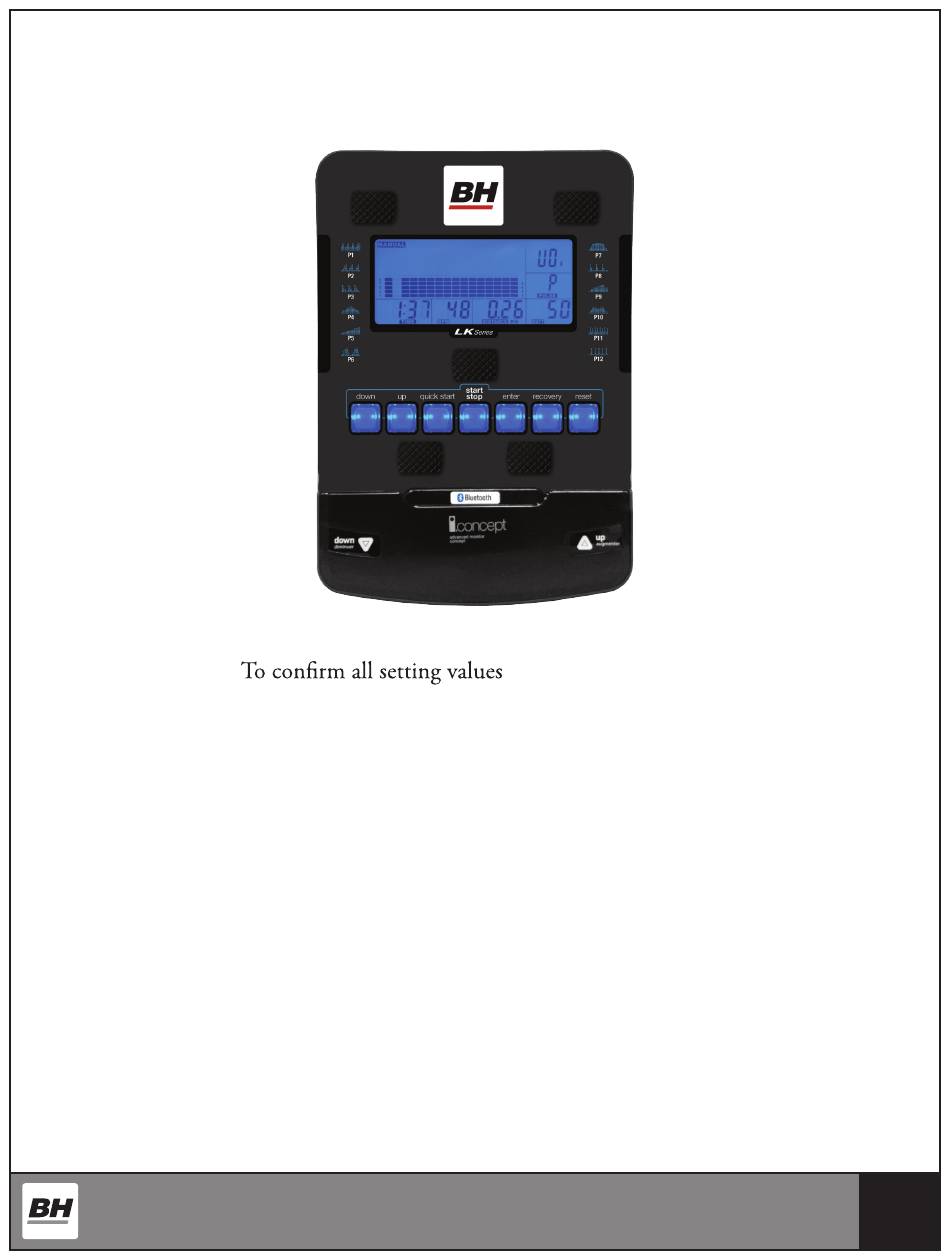

LK500Ui / Ri / Ei CONSOLE OPERATIONS
SPECIFICATIONS:
ENTER
RESET
START/STOP
UP
DOWN
RECOVERY
QUICK START
FUNCTION:
TIME
SPEED
DISTANCE
PULSE
CALORIES
RPM
To reset all parameters to default value
To start or stop training
To make upward setting change
To make downward setting change
In stop or start mode, pressing this button will start Heart Rate
recovery status measurement. Time will count down from 60 seconds
Starts the machine without any preset program or data from user
Displaying the workout time while exercising
Displaying the current speed
Accumulating the distance while exercising
30-240 BPM
Counts calories while exercising
Displaying crank speed in revolution per minute
25
Advertisement
Table of Contents
Related Manuals for BH LK500Ui
Summary of Contents for BH LK500Ui
- Page 1 LK500Ui / Ri / Ei CONSOLE OPERATIONS SPECIFICATIONS: ENTER RESET To reset all parameters to default value START/STOP To start or stop training To make upward setting change DOWN To make downward setting change RECOVERY In stop or start mode, pressing this button will start Heart Rate recovery status measurement.
-
Page 2: Power Mode
POWER MODE When the machine powers on, the display will light up with all numerals. After two seconds, it will enter the "user selecting" mode. If the user does not operate the machine, or the machine receives no signal after 4 minutes, the computer will enter an idol mode. GETTING STARTED - OPERATING PROCEDURE: Start pedaling and the console will turn on. - Page 3 3. Press ENTER to confirm the AGE setting, then enter the HEIGHT setting. The right side will display HEIGHT, use the UP/DOWN buttons to select the HEIGHT setting. 4. Press ENTER to confirm the WEIGHT setting, then enter WEIGHT setting. The right side will display WEIGHT, use the UP/DOWN buttons to select the WEIGHT value.
-
Page 4: Program Mode
NAVIGATING THE PROGRAMS MANUAL MODE User may preset their own resistance level from 1 to 24 by pressing the UP/DOWN buttons. The default resistance level is 1. Press ENTER to confirm. Using the UP/DOWN buttons enter values for TIME, DISTANCE, CALORIES, PULSE, and then press START to begin your workout. -
Page 5: Preset Programs
PRESET PROGRAMS HRC PROGRAMS (55%, 75%, 90%, TAG) HRC 55% HRC 75% HRC 90% HRC Target Heart Rate... - Page 6 TEST FUNCTIONS RECOVERY TEST Press RECOVERY key to test HRC recovery speed. When in test mode, it will detect the HRC within 10 seconds. When finished, if there is no HRC displayed, the program will exit out of the HRC recovery mode. If there is HRC displayed, the workout will enter into 60 seconds HRC recovery.
- Page 7 FUNCTION STATISTICS AND RANGES ITEM SCREEN SHOWN RANGE SETTING RANGE PRESET VALUE SAVE MALE/ FEM 10 - 100 WEIGHT(METRIC) 20 - 330(Lb) 10 - 150 (KG) HEIGHT 36 - 84(INCH) 90 – 21 0(CM) TIME 0:00 - 99:59 0:00 - 99:00 0:00 DISTANCE 0.0 - 99.99...
- Page 8 DOWNLOADING APPS AND PAIRING YOUR DEVICE WITH YOUR EQUIPMENT DOWNLOADING THE SOFTWARE Connect the Apple device with the App Store (iTunes) or your Android Device with Google Play, search for "Pafers", then read the APP introductions and Download the APPs with bicycle/elliptical machine functions to your device, for example Pedal Monitor or other applicable apps.
-
Page 9: Compatible Devices
PAIRING THE BLUETOOTH DEVICE WITH AN ANDROID DEVICE 1. Place the Android Device on the area in front of the LCD screen. 2. Enter into settings and turn Bluetooth on. 3. Your Android Device will detect all Bluetooth devices within range (following on screen instructions), click on the appropriate bluetooth device name and confirm your connection. -
Page 10: Maintenance And Cleaning
for the operation of this device or its compliance with safety and regulatory standards. trademarks of Apple Inc., registered in the U.S. and other countries. MAINTENANCE AND CLEANING Care has been taken to assure that your equipment has been properly adjusted and lubricated at the factory. -
Page 11: Exploded View Drawing
EXPLODED VIEW DRAWING... -
Page 12: Parts List
PARTS LIST To order replacement parts: provide your customer service representative with the product model number and the part number located on the Parts List below, along with the quantity you require. Description Description Description FRAME AND FITTINGS REAR STABILIZER SET Bearing Frame assembly Rear stabilizer set assembly... -
Page 13: This Warranty Does Not Cover
WARRANTY LIMITED LIGHT COMMERCIAL WARRANTY BH North America will repair or replace, free of charge, at its option, parts that are defective as a result of material or workmanship. Seven (7) year replacement warranty coverage on frame and five (5) years on other parts. Labor warranty coverage is one (1) year.
