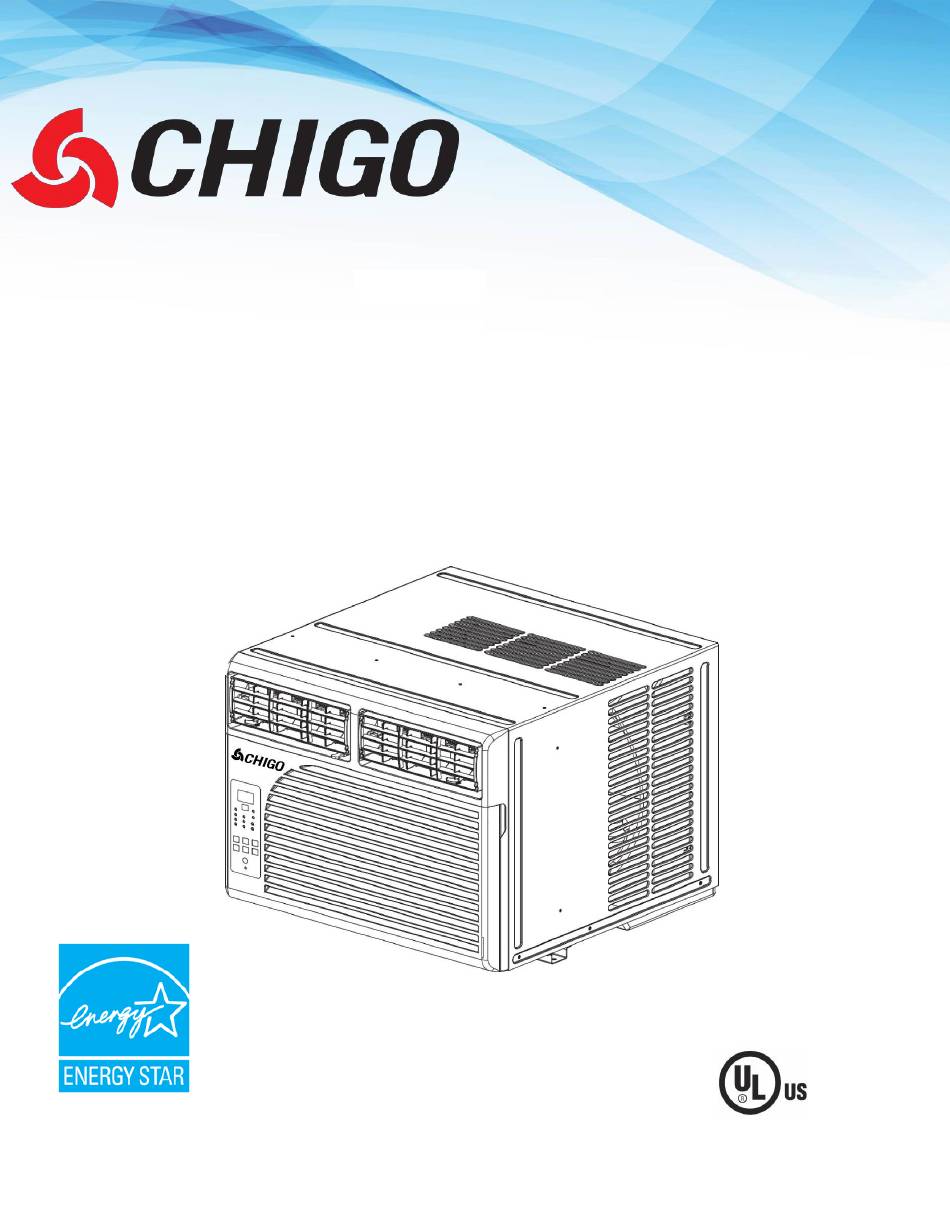

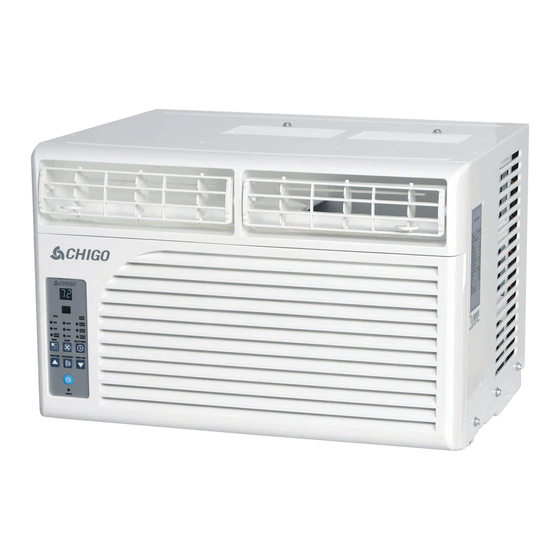

- Page 1 Models WC1-06E-01 6,400 BTU WC1-08E-01 8,500 BTU WC1-10E-01 10,200 BTU WC1-12E2-01 12,600 BTU Electronic Window Air Conditioner Operating Instructions V170216...
-
Page 2: Purchase Information
PURCHASE INFORMATION Thank you for choosing a Chigo Air Conditioner. This owner’s manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new air conditioner. -
Page 3: Power Cord And Plug
If test button is pressed and unit can still be turned on, current leakage has been detected. Do not use the air conditioner or attempt to reset the LCDI Plug. Contact Chigo Customer Service for troubleshooting recommendations. -
Page 4: Package Contents
PACKAGE CONTENTS Top Mounting Rail Air Conditioner 2 AAA Remote Control Batteries Owner's Manual Foam Seal Mounting Rail Weather Insulation Board Insert Strip Curtain Curtain Lock Long Screw Short Screw Sash Lock Part List: Sash Lock (2) Window Air Conditioner (1) ... -
Page 5: Specifications
Power consumption is measured when the fan runs at the highest speed setting. These specifications are for reference only. For actual data, please refer to the rating label on the back of the unit. Model WC1-06E-01 WC1-08E-01 WM1-06E-01 Power Supply (Ph/V/Hz) -
Page 6: Electrical Safety
Power supply cord with 3-prong grounding plug and current detection device DISCLAIMER ALL INFORMATION AND THE TECHNICAL SPECIFI- CATIONS PRESENTED IN THIS USER’S MANUAL ARE THE PRESENTATION OF THE MANUFAC- TURER. CHIGO CON-DUCTED INDEPENDENT TEST TO THE INFORMA- TION AND THE SPECIFICATIONS PRESENTED HEREWITHIN. -
Page 7: Installation
Make sure the window is in good shape and able to firmly hold the needed screws. If not, make repairs prior to installing the unit. Model WC1-06E-01 WC1-08E-01 / WC1-10E-01 WC1-12E2-01 Unit Height 12 5/8”... -
Page 8: Top Rail Installation
TOP RAIL INSTALLATION NOTE: Top Rail and the side Panels are offset to provide the proper pitch to the rear of (5/16”). This is necessary for proper condensation utilization and drainage. If you are not using the side panels, the rear pitch must still be maintained. Attach the top rail onto the top of the outer case using four Short Screws. - Page 9 INSTALLATION Placing the Unit Inside a Normal Window Curtain & Weather Insulation Board Installa- tion 1. Set the unit in the window so that is centered. Place the unit so that front edge of the bottom rail is NOTE: The Weather Insulation Board adds an extra layer of against the back edge of the sill.
- Page 10 INSTALLATION IF AC is Blocked by a Storm Window Removing the Air Conditioner from the Window A storm window frame will not allow the air conditioner to tilt properly which in turn will keep it from draining properly. 1. Turn the air conditioner off, and disconnect the power To adjust for this, attach a board or piece of wood to the cord.
-
Page 11: Control Panel Layout
CONTROL PANEL LAYOUT Electronic Control Panel & Remote 4. Timer Set: Use these buttons on the Control control panel and remote control to set Note: This control panel display always shows the the timer. Each press of the▲or▼ button room temperature in Fan Mode except when setting will increase or decrease the timer. -
Page 12: Remote Control
REMOTE CONTROL LCD Display MODE SLEEP ENERGY HIGH SAVER TIMER C/ F CHILD MYTEMP MODE LOCK Battery Size: AAA - NOTE: Do not mix old and new batteries or different types of AAA batteries. - Page 13 OPERATING INSTRUCTIONS 1. ON/OFF - Press the button to turn the A/C on or off. When the unit is turned off, the Timer function will be cancelled. The set temperature will be saved. 2. MODE SELECTION - Press the MODE button repeatedly to cycle between the different modes: Auto, Cool, Dry (Dehumidifier), and Fan.
- Page 14 The fan may continue to run for a short time after the compressor cycles off. When the Energy Saver mode is OFF, the fan *Fresh Air Lever is unavailable on runs all the time in fan or cool mode. WC1-06E-01 model.
-
Page 15: Care And Cleaning
USE THE AIR CONDITONER CARE AND CLEANING Cabinet Cleaning Clean your air conditioner to keep it looking new To clean the air conditioner cabinet: and to minimize dust build up. Unplug the air conditioner to prevent shock or Air Filter Cleaning a fire hazard. -
Page 16: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSES SOLUTIONS The Air Conditioner will not start The air conditioner is unplugged Make sure the air conditioner plug is pushed completely into the outlet. Check the main fuse/circuit The fuse is blown/circuit breaker is breaker box and replace the fuse tripped. - Page 17 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES SOLUTIONS Water is dripping outside Hot and Humid weather. This is normal Water is dripping inside the room The air conditioner is not correctly For proper water drainage, make tilted outside. sure the air conditioner is slightly tilted downward from the front of the unit to the rear.
-
Page 18: Limited Warranty
FIVE (5) years for the compressor from the date of original retail purchase in the United States. If the unit exhibits a defect in normal use, Chigo will, at its option, either repair or replace it, free of charge within a reasonable time after the unit is returned during the warranty period.
