3M MPro110 Operator's Manual

Micro professional projector
Hide thumbs Also See for MPro110:
Table of Contents

Advertisement

Quick Links

3M
Micro Professional Projector
™
MPro110
Operator's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MPro110 and is the answer not in the manual?

Questions and answers

Related Manuals for 3M MPro110

Summary of Contents for 3M MPro110

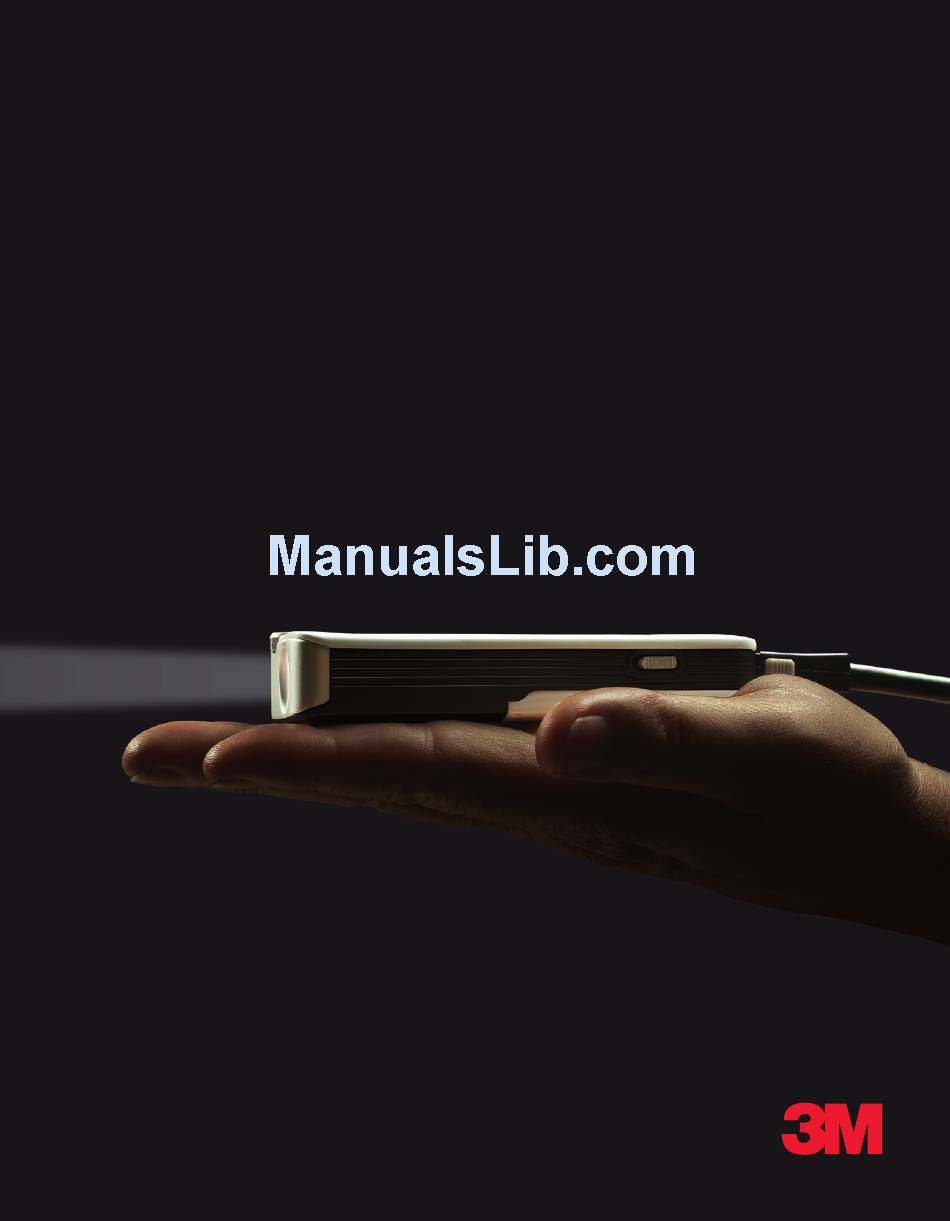

  • Page 1 Micro Professional Projector ™ MPro110 Operator’s Guide...

  • Page 2: Table Of Contents

    Trademarks and Copyrights ... 3 Safety Information ... 3 Safety Labels ... 5 Package Contents ... 7 Parts ... 7 Getting Started ... 8 Operating Instructions ... 10 Troubleshooting ... 13 Specifications ... 14 Limited Warranty ... 16 © 2008 3M. All Rights Reserved.

  • Page 3: Intended Use Statement

    Micro Professional Projector MPro110 Intended Use Statement The 3M Micro Professional Projector MPro110 is designed to operate with the 3M-specified ™ battery and 3M battery charger and in a normal office and home environment. • 10˚–27˚C (50˚–80˚F) • 10–80% RH (without condensation) •...
  • Page 4 Warning To reduce the risk associated with hazardous voltage: • Do not modify this product in any way. Use only 3M approved replacement components. • Do not attempt to service this projector other than battery replacement. There are no user serviceable parts other than the battery. Service to be performed only by a 3M-authorized service provider using 3M-approved system components.

  • Page 5: Safety Labels

    NOTICE: This Class B digital apparatus meets all requirements of the Canadian Interference- Causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. © 2008 3M. All Rights Reserved. CLASS 1 LED PRODUCT...
  • Page 6 RoHS, as amended:(a) 0.1% (by weight) for lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. This information represents 3M’s knowledge and belief, which may be based on information provided by third party suppliers to 3M.

  • Page 7: Package Contents

    Battery RCA Adapter Note: In some regions, the battery charger/AC adapter will come with an outlet adapter. Parts Focus Wheel Lens Power On/Off Video IN VGA IN Power and Charge LEDs DC Power IN © 2008 3M. All Rights Reserved.

  • Page 8: Getting Started

    Getting Started Install Battery The 3M MPro110 comes with a rechargeable Lithium-Ion (Li-Ion) battery. The battery should be charged before using the projector with the battery. Important Note: Switch projector OFF and disconnect all cables before installing the battery. Use only the 3M-specified battery: 78-6969-9974-3.
  • Page 9 Micro Professional Projector MPro110 Charge the Battery The 3M MPro110 comes with a battery charger/AC adapter. Use the battery charger/AC adapter to power the projector when the battery is not charged or installed and to charge the battery. When the battery needs charging, the image will turn black and the Power LED will flash red.

  • Page 10: Operating Instructions

    There are many devices that output video signals: digital cameras, video phones, and portable video players. The 3M MPro110 can project the video from these devices using its video port. (1) Connect the included video cable to the projector (2) Connect the video cable to the video source’s cable or the video output port.
  • Page 11 (PDAs). The 3M MPro110 can project the video from these devices using its VGA port. (1) Connect the included VGA Cable to the projector. (2) Connect the VGA Cable to the device’s video output.
  • Page 12 ™ Micro Professional Projector MPro110 Image Width 163 mm (6.4 in) 235 mm (9.3 in) 355 mm (14 in) 523 mm (20.6 in) 739 mm (29.1 in) 975 mm (38.4 in) © 2008 3M. All Rights Reserved.

  • Page 13: Troubleshooting

    LED flashing red LED is green LED is orange Video or VGA icon is flashing Video/VGA icons alternate flashing © 2008 3M. All Rights Reserved. Cause Projector-to-screen distance out- side of limits. Image not focused. Battery not charged. Battery needs replacement.

  • Page 14: Specifications

    NTSC, PAL, NTSC (M), PAL (BGHI) 115 mm (L) x 50 mm (W) x 22 mm (H) (4 1/2" x 1 31/32" x 7/8") 160 g (5.6 oz.) ¼"-20 10˚–27˚C (50˚–80˚F) Sea Level to 1,829 m (6000') © 2008 3M. All Rights Reserved.
  • Page 15 UK AC Power Adapter Rechargeable Battery AV Cable Kit ( Video Cable and RCA Adapter) VGA Cable © 2008 3M. All Rights Reserved. Specification Rechargeable Lithium-ion Battery 3.7 V/ 1050mAh 40.4 x 34.4 x 9.4 mm (1.6” x 1.4” x 0.4”)

  • Page 16: Limited Warranty

    3M. If the product is repaired, 3M will repair the defective part(s) with a new or used part(s). If the 3M product is replaced, 3M will replace the 3M product with the same or equivalent model and with a new or refurbished 3M product. In the case of an approved warranty claim, the replacement 3M product will carry only the remaining term of the original 3M product’s warranty period as stated above.
  • Page 17 0–1828m (0–6000 feet) above sea level The air intake and exhaust vent must be clear of obstructions. Inadequate air ventilation will cause the 3M product to malfunction or will cause damage to the 3M product which will void the warranty.
  • Page 18 What 3M Will Do To Correct Problems: • If your 3M product requires service, 3M will ask you to bring or send the 3M product, securely packaged in its original container or equivalent, along with proof of the date of original purchase, to your 3M Service Dealer or 3M Service Center.
  • Page 20 3M is a trademark of 3M Company. Projection Systems 3M Austin Center 6801 River Place Blvd. Austin, TX 78726-9000 866-631-1656 Please recycle. Printed in Taiwan. www.3M.com/meetings © 3M 2008. All rights reserved. e-mail: meetings@mmm.com August 2008 78-6971-1437-5-C...
