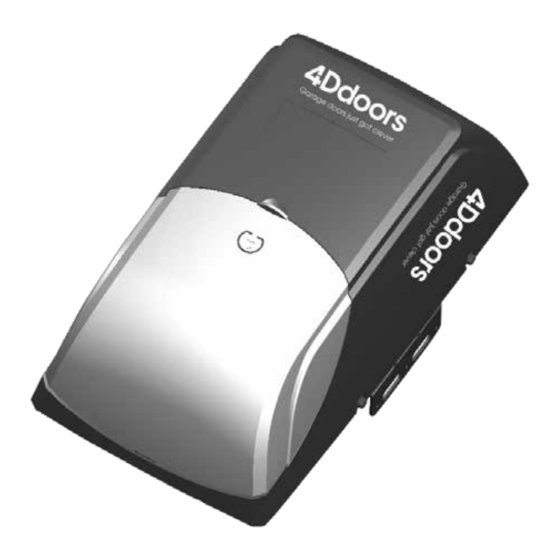

- Page 1 4DS1 v1 OVERHEAD DOOR OPERATOR Installation Instructions and Owner’s Manual READ THIS MANUAL CAREFULLY BEFORE BEGINNING INSTALLATION Installer: Permanently attach manual to the wall. 4DOMU06A-1...
- Page 2 Specification Electrical Rating Input AC 220V~240V 50/60Hz Current Power ~200W Standby power <1W (Upon door is fully stopped and courtesy light is off) Motor Type DC 24V Brush Max. capacity 800Nmm Operation Lifting capacity 35kg Travel rate 150mm/s approx. Door Type Max.
- Page 3 Read and Follow These Important Safety Instructions You will see Warning and Caution statements on the following Pages. Read and follow these safety instructions carefully. Failure to do so could result in serious personal injury or death. Warning means that severe injury or death may result from failure to follow instructions Caution means that property damage or injury may result from failure to follow instructions •...
-
Page 4: Product Features
Product Features Motor: Permanent Magnet Direct Current 24V DC Brush Motor. Opener Lights: Turn on and off automatically with 4.5 minutes illumination for your safety and convenience. Sensing System: A built-in sensing system detects obstructions during door operation. If in the Downward (close) travel mode, the Opener will sense an obstruction and reverse to the full open position. - Page 5 Door Test Before beginning installation of the operator please complete the following test to insure that your door is balanced and in good working condition. A poorly balanced door could cause severe personal injury and damage to the opener. Always have a qualified garage door service person make any needed adjustments and/or repairs to your door before proceeding with installation.
- Page 6 Components Identification and Inventory (10) (01) Power Head (02) Header Bracket (03) Door Bracket (04) Door Arm: Curved (05) Door Arm: Straight (06) Warning Label (07) Remote Control (08) Trolley (09) Rail Assembly (10) Rail support Fastener (parts in screw bag) Identification (01) Hex Bolt 5/16”18x1 (4 pcs) (02) Lag Screw # 5/16- 9x2”...
- Page 7 Assembly 01 STEP 1. Remove packing materials. STEP 2. Insert trolley (see fig.2). STEP 3. 2 . 1/4” -20Hex Flange Place the rail support on the power head. Align rail and Nuts (4) power head and slide rail over drive shaft & retaining lugs. Fasten with 4 nuts.
- Page 8 Assembly 02 Header Wall STEP 5. Install head bracket. The height is seen in fig.5 Head bracket position is higher than header wall and mark the horizontal line. Track 5cm Clearance High Point of Door Door Travel Support Block STEP 6. Pre-Drawn Hori- Make a centerline on door frame, and cross the previous zontal Line...
- Page 9 Assembly 03 STEP 9. Open the door to the full open position. Allow 5cm of space between the rail and the door 5cm Clearance Full Open STEP 10. Assemble track to fix the opener (perforated steel angle Perforated Steel Angel and hex head machine bolts not supplied) (Not Supplied) Hex Head...
- Page 10 Assembly 04 STEP 13. Trolley Mount trolley to curved arm and fix it with clevis pin short and hitch pin. (Please note that at this point the Trolley should be in the rail. The purpose of this diagram is only act as a visual aid) Hitch Pin Clevis Pin Short...
- Page 11 Assembly 05 STEP 17.(OPTIONAL) Put signal wires through the hole on the up right side. STEP 18.(OPTIONAL) Pull out the signal wires from hole of the front side...
- Page 12 Interface Photo Eye Selection Ground Jumper off = Selected Push Button Inside Inside Alternative Floor-mounting Garage Garage Place the Photo Eyes facing each other on each side of the garage door, as shown in Fig.2. If attaching to concrete, secure the photo eyes using Alignment concrete anchors and bolts (not provided).
-
Page 13: Travel Limit Adjustment- I. Up Limit
Travel Limit Adjustment— I. UP Limit WARNING To prevent SERIOUS INJURY or DEATH from improper Force Adjustment: - DO NOT adjust force to compensate binding or sticking of the garage door. Call a qualified garage door service person to make necessary adjustments in case of binding. - DO NOT increase force beyond minimum force required for closing the door. -
Page 14: Travel Limit Adjustment- Ii. Down Limit
Travel Limit Adjustment— II. DOWN Limit WARNING To prevent SERIOUS INJURY or DEATH from improper Force Adjustment: - DO NOT adjust force to compensate binding or sticking of the garage door. Call a qualified garage door service person to make necessary adjustments in case of binding. - DO NOT increase force beyond minimum force required for closing the door. -
Page 15: Auto Force Adjustment
Auto Force Adjustment WARNING To prevent SERIOUS INJURY or DEATH from improper Force Adjustment: - DO NOT adjust force to compensate binding or sticking of the garage door. Call a qualified garage door service person to make necessary adjustments in case of binding. - DO NOT increase force beyond minimum force required for closing the door. -
Page 16: Testing The Safety Reverse System
Testing the Safety Reverse System Warning: Failure to Test Reversing System Could Result in Death or Serious Injury. Test This System Once A Month. To test the Opener Reversing Feature at floor level place a solid object 5cm thick on the ground so that the center of the door will come into contact with it. -
Page 17: Programming The Remote Controls
Programming the Remote Controls 1. To program transmitter, press “RADIO SET” button, “OK” LED flashes twice. The unit is ready to accept a transmitter within a 30 seconds time frame. DOWN LIMIT FORCE DOWN 2. Press any button on the transmitter within 30 seconds. DOWN FORCE LIMIT... -
Page 18: Final Installation
Final Installation Make Sure That: 1. The front and rear mounts for the opener are sound and secure and the rail is positioned correctly above the high arc of the door and that the opener is positioned over the door action centerline. 2. -
Page 19: After The Installation
After the Installation 1. Never permit children to play with or operate the garage door opener either from the wall station or the remote controls. Keep radio transmitter locked in the car. Misuse of the push button or transmitter could result in serious injury or even death. - Page 20 Rail and Hardware Parts List A-12 A-13 A-11 A-10 Housing Assembly Dome Cover LED Light Logic Board Logic Board Holder RPM Encoder Motor Transformer Standby Power Module A-10 LED Light Cover A-11 Chassis A-12 Power Cord A-13 Rail Support...
- Page 21 If you are a consumer under the Australian Consumer Law, 4D Garage Doors Pty Ltd (4D Doors) will provide you, the original purchaser of this 4DS1 v1 (Product), with this limited warranty in addition to any rights that you have under Australian consumer protection laws.
- Page 22 4D Doors and provide the copy of the receipt and the completed warranty claim form and 4D Doors will forward these to the relevant authorised dealer. This warranty is supplied by 4D Garage Doors Pty Ltd (ABN 96 659 631 559) at info@4ddoors.com WARRANTY CERTIFICATE Invoice No:...
