Summary of Contents for Seagate Technology SkyHawk ST2000LV000
- Page 1 SATA Product Manual Standard models ST2000LV000 ST1000LV000 100813751, Rev. E February 2019...
- Page 2 Seagate, Seagate Technology and the Spiral logo are registered trademarks of Seagate Technology LLC in the United States and/or other countries. SeaTools and 3D Defense System are either a trademark or registered trademark of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. The FIPS logo is a certification mark of NIST, which does not imply product endorsement by NIST, the U.S., or Canadian governments.
-
Page 3: Table Of Contents
Contents Seagate® Technology Support Services ..............5 Introduction . - Page 4 Contents Configuring and Mounting the Drive ..............21 Handling and Static-Discharge Precautions .
- Page 5 Figures Figure 1 Typical 1D - 5V Startup and Operation Current Profile ........... 11 Figure 2 Typical 2D - 5V Startup and Operation Current Profile .
-
Page 6: Seagate® Technology Support Services
Seagate® Technology Support Services For information regarding online support and services, visit: http://www.seagate.com/contacts/ For information regarding Warranty Support, visit: http://www.seagate.com/support/warranty-and-replacements/ For information regarding data recovery services, visit: http://www.seagate.com/services-software/recover/ For Seagate OEM, Distribution partner and reseller portals, visit: http://www.seagate.com/partners/ Seagate SkyHawk Product Manual, Rev. E... -
Page 7: Introduction

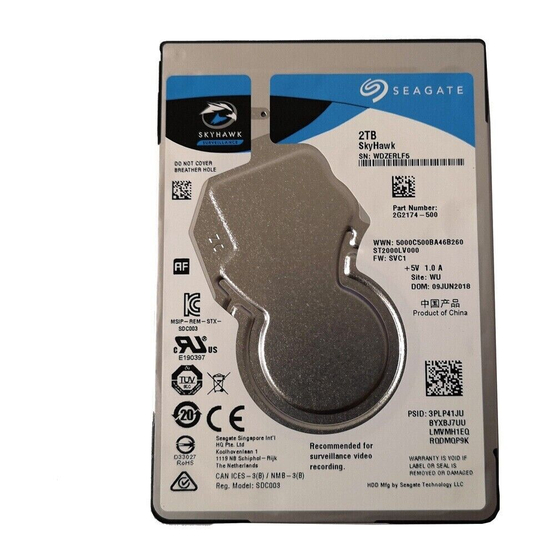

Introduction This manual describes the functional, mechanical and interface specifications for the following Seagate® SkyHawk™ model drives: Standard models ST2000LV000 ST1000LV000 These drives provide the following key features: • 1000 Gs non-operating shock and 400 Gs of operating shock. • 128MB buffer. •... -
Page 8: Drive Specifications
Drive Specifications Unless otherwise noted, all specifications are measured under ambient conditions, at 25°C, and nominal power. For convenience, the phrases the drive and this drive are used throughout this manual to indicate the following drive models: The specification summaries listed in the following tables are for quick reference. For details on specification measurement or definition, refer to the appropriate section of this manual. -
Page 9: Formatted Capacity
Drive Specifications Table 1 Drive Specifications Summary (continued) Drive Specification ST2000LV000 ST1000LV000 Non-Operational Shock 1000 Gs at 1 ms max Linear Operating Vibration 5 - 200Hz @ 2.4 Grms ref Rotational Operating Vibration 10 - 500Hz @ 15 rad/s Vibration, non-operating 5–500 Hz: 5.0 Gs Non-recoverable read errors 1 per 10... -
Page 10: Physical Organization
Drive Specifications Physical organization Drive model Read/write heads Number of discs ST2000LV000 ST1000LV000 Recording and Interface Technology Interface SATA 6Gb/s Recording method Perpendicular Recording density 2276 Kb/in Track density 580 ktracks/in avg Areal density 1320 Gb/in Spindle speed 5400 RPM Data transfer rate (up to) 140 MB/s Physical Characteristics... -
Page 11: Start/Stop Times
Drive Specifications Start/stop times Table 3 Start/stop times Capacity 1-disk models 2-disk models 1-disk models 2-disk models Typical seek times (ms) Typical Max @ 25°C Power-on to ready (sec) Standby to ready (sec) Power Specifications The drive receives DC power (+5V) through a native SATA power connector (refer to Figure 2.7.1 Power consumption... -
Page 12: Figure 1 Typical 1D - 5V Startup And Operation Current Profile
Drive Specifications 2.7.1.1 Typical current profiles The typical 5V startup and operation current profile is shown in Figure 1 Figure Figure 1 Typical 1D - 5V Startup and Operation Current Profile Seagate SkyHawk Product Manual, Rev. E... -
Page 13: Figure 2 Typical 2D - 5V Startup And Operation Current Profile
Drive Specifications Figure 2 Typical 2D - 5V Startup and Operation Current Profile Seagate SkyHawk Product Manual, Rev. E... -
Page 14: Conducted Noise
Drive Specifications 2.7.2 Conducted noise Input noise ripple is measured at the host system power supply across an equivalent 15-ohm resistive load on the +5 volt line. • Using 5-volt power, the drive is expected to operate with a maximum of 100 mV peak-to-peak square-wave injected noise at up to 20 MHz. Equivalent resistance is calculated by dividing the nominal voltage by the typical RMS read/write current. -
Page 15: Environmental Specifications
Drive Specifications Environmental Specifications This section provides the temperature, humidity, shock, and vibration specifications for SkyHawk drives. Ambient temperature is defined as the temperature of the environment immediately surrounding the drive. Above 1000 feet (305 meters), the maximum temperature is derated linearly by 1°C every 1000 feet. Table 6 Environmental specifications Parameters... -
Page 16: Vibration
Drive Specifications 2.8.2 Vibration All vibration specifications assume that the drive is mounted securely with the input vibration applied at the drive mounting screws. Vibration may be applied in the X, Y, or Z axis. 2.8.2.1 Operating vibration The maximum vibration levels that the drive may experience while meeting the performance standards specified in this document are specified below. -
Page 17: Electromagnetic Immunity
Drive Specifications 2.10 Electromagnetic Immunity When properly installed in a representative host system, the drive operates without errors or degradation in performance when subjected to the radio frequency (RF) environment as defined in Table Table 8 Radio Frequency Environments Performance Reference Test Description... -
Page 18: Data Loss Under Power Interruption With Write Cache Enabled
Drive Specifications 2.11.1 Data loss under power interruption with write cache enabled Drive preserves its data during all operations except in cases where power to the drive is interrupted during write operations. This could result in either an uncorrected data error being reported, or the entire sector/track becoming unreadable. This can be permanently recovered by rewriting to the same location on the drive. -
Page 19: South Korean Kc Certification Mark
Drive Specifications 2.12.5 South Korean KC Certification Mark The South Korean KC Certification Mark means the drives comply with paragraph 1 of Article 11 of the Electromagnetic Compatibility control Regulation and meet the Electromagnetic Compatibility (EMC) Framework requirements of the Radio Research Agency (RRA) Communications Commission, Republic of Korea.These drives have been tested and comply with the Electromagnetic Interference/ Electromagnetic Susceptibility (EMI/EMS) for Class B products. -
Page 20: Environmental Protection
2.13 Environmental protection Seagate designs its products to meet environmental protection requirements worldwide, including regulations restricting certain chemical substances. 2.13.1 European Union Restriction of Hazardous Substance Law 2.13.1.1 Restriction of Hazardous Substances in Electrical and Electronic Equipment Seagate drives are designed to be compliant with the European Union RoHS "Recast" Directive 2011/65/EU (RoHS 2) as amended by Directive (EU) 2015/863. -
Page 21: Taiwan Requirements - Taiwan Rohs
Drive Specifications 2.14.3 Taiwan Requirements — Taiwan RoHS Taiwan RoHS refers to the Taiwan Bureau of Standards, Metrology and Inspection’s (BSMI) requirements in standard CNS 15663, Guidance to reduction of the restricted chemical substances in electrical and electronic equipment. Seagate products must comply with the “Marking of presence”... -
Page 22: Configuring And Mounting The Drive
Configuring and Mounting the Drive This section contains the specifications and instructions for configuring and mounting the drive. Handling and Static-Discharge Precautions After unpacking, and before installation, the drive may be exposed to potential handling and electrostatic discharge (ESD) hazards. Observe the following standard handling and static-discharge precautions. -
Page 23: Drive Grounding
Configuring and Mounting Drive Grounding Care should be taken when mounting the drive in a system chassis. The drive should be mounted using four screws in the side mounting holes (positions A, B, C, as in ) or bottom mounting holes (positions 1, 2, 3, as in Figure 4... -
Page 24: Drive Mounting
Configuring and Mounting Drive Mounting Users can mount the drive in any orientation using four screws in the side-mounting holes or four screws in the bottom-mounting holes. Refer to Figure 6 through Figure 8 for drive mounting dimensions. Follow these important mounting precautions when mounting the drive: •... -
Page 25: Figure 7 Mounting Dimensions (For 1-Disk Models) (Alternate Basedeck)
Configuring and Mounting Figure 7 Mounting Dimensions (for 1-disk models) (alternate basedeck) 0.200 100.350 0.250 69.850 ± 0.250 (22.450) 2.499 ± 1.270 7.949 ± 1.270 (16.520) (90.600) (14.000) BASE 2X M3 X 0.5-6H 2X (3.000) MOUNTING HOLES: BOTH SIDES 7.000 0.200 4MM MIN. - Page 26 Configuring and Mounting Figure 8 Mounting Dimensions (for 2-disk models) (3.500) 0.20 100.35 0.25 (13.430) 69.850 0.250 22.450 16.520 2.499 1.270 7.949 1.270 (90.600) (14.000) BASE 2X M3 X 0.5-6H MOUNTING HOLES: BOTH SIDES 4MM MIN SCREW DEPTH 2X (3.000) BOTH SIDES 7.000 0.200 FROM M3 PADS.
-
Page 27: Serial Ata (Sata) Interface
Serial ATA (SATA) Interface Serial ATA (SATA) Interface These drives use the industry-standard Serial ATA interface that supports FIS data transfers. It supports ATA programmed input/output (PIO) modes 0–4; multiword DMA modes 0–2, and Ultra DMA modes 0–6. The drive also supports the use of the IORDY signal to provide reliable high-speed data transfers. -
Page 28: Supported Ata Commands
Serial ATA (SATA) Interface Supported ATA Commands Table 13 lists Serial ATA standard commands that the drive supports. For a detailed description of the ATA commands, refer to the Serial ATA International Organization: Serial ATA (Revision 2.6). Refer to www.sata-io.org. Refer to S.M.A.R.T. - Page 29 Serial ATA (SATA) Interface Table 13 Supported ATA commands ATA-standard commands names Command code (in hex) S.M.A.R.T. Enable/Disable Auto Offline B0h/DBh S.M.A.R.T. Enable One Attribute Modification B0h/E0h S.M.A.R.T. Execute Offline B0h/D4h S.M.A.R.T. Free Fall Protection Host Interface S.M.A.R.T. Read Attribute Thresholds B0h/D1h S.M.A.R.T.
-
Page 30: Identify Device Command
Serial ATA (SATA) Interface 4.3.1 Identify Device command The Identify Device command (command code EC ) transfers information about the drive to the host following power up. The data is organized as a single 512-byte block of data, whose contents are shown in Table 14. - Page 31 Serial ATA (SATA) Interface Table 14 Identify Device command Word Description Value Advanced PIO modes supported (modes 3 and 4 supported) 0003 Minimum multiword DMA transfer cycle time per word (120 ns) 0078 Recommended multiword DMA transfer cycle time per word (120 ns) 0078 Minimum PIO cycle time without IORDY flow control (240 ns) 0078...
- Page 32 Serial ATA (SATA) Interface Table 14 Identify Device command Word Description Value Seagate reserved 0000 108-111 The mandatory value of the world wide name (WWN) for the drive. Each drive will have a unique value. NOTE: This field is valid if word 84, bit 8 is set to 1 indicating 64-bit WWN support. 112-118 ATA-reserved 0000...
- Page 33 Serial ATA (SATA) Interface Table 15 Bit Descriptions Description (if bit is set to 1) Word 63 Multiword DMA mode 0 is supported. Multiword DMA mode 1 is supported. Multiword DMA mode 2 is supported. Multiword DMA mode 0 is currently active. Multiword DMA mode 1 is currently active.
-
Page 34: Set Features Command
Serial ATA (SATA) Interface 4.3.2 Set Features command This command controls the implementation of various features that the drive supports. When the drive receives this command, it sets BSY, checks the contents of the Features register, clears BSY and generates an interrupt. If the value in the register does not represent a feature that the drive supports, the command is aborted. -
Page 35: Commands
Serial ATA (SATA) Interface 4.3.3 S.M.A.R.T. commands S.M.A.R.T. provides near-term failure prediction for disk drives. When S.M.A.R.T. is enabled, the drive monitors predetermined drive attributes that are susceptible to degradation over time. If self-monitoring determines that a failure is likely, S.M.A.R.T. makes a status report available to the host. Not all failures are predictable. - Page 36 AMERICAS Seagate Technology LLC 10200 South De Anza Boulevard, Cupertino, California 95014, United States, 408-658-1000 ASIA/PACIFIC Seagate Singapore International Headquarters Pte. Ltd. 90 Woodlands Avenue 7, Singapore 737911, 65-6412-3666 EUROPE, MIDDLE EAST AND AFRICA Seagate Technology (Netherlands) B.V. Koolhovenlaan 1, 1119 NB Schiphol-Rijk, Netherlands, 31-20-316-7300 Publication Number: 100813751, Rev. E...
