Operating Manual

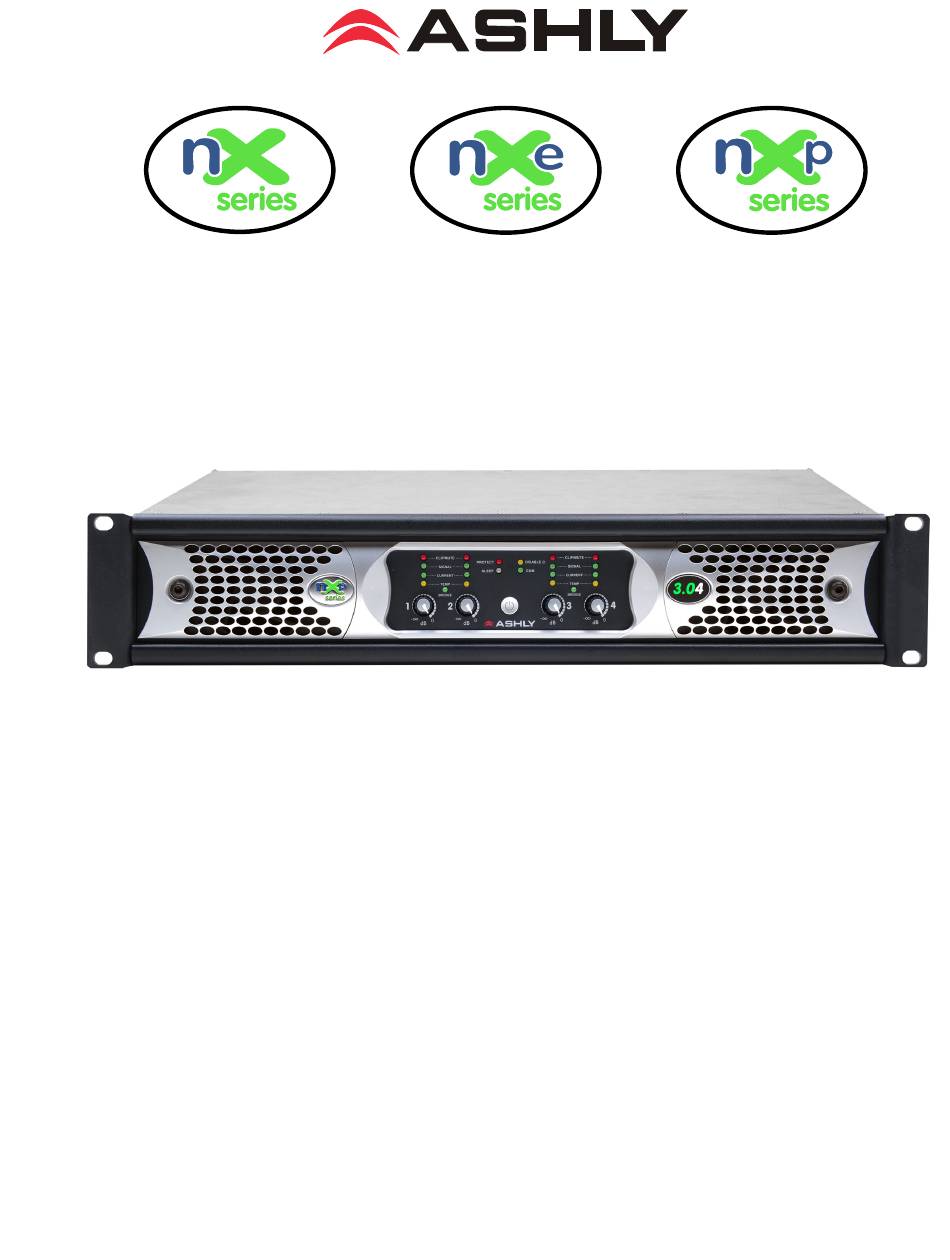

Multi-Mode Power Amplifiers
3,000W, 1,500W, 800W, and 400W Per Channel
Four and Two Channel Models
nX Base Series
nX3.04, nX3.02, nX1.54, nX1.52, nX8004, nX8002, nX4004, nX4002
nXe Ethernet Series
nXe3.04, nXe3.02, nXe1.54, nXe1.52, nXe8004, nXe8002, nXe4004, nXe4002
nXp Ethernet+DSP Series
nXp3.04, nXp3.02, nXp1.54, nXp1.52, nXp8004, nXp8002, nXp4004, nXp4002
ASHLY AUDIO INC.
847 Holt Road
Webster, NY
14580-9103 Phone: (585) 872-0010
Toll-Free: (800) 828-6308 Fax: (585) 872-0739
ashly.com
All Trademarks referred to herein are the property of their respective owners.
2017 Ashly Audio, Inc. All rights reserved worldwide.
Advertisement
Table of Contents
Related Manuals for Ashly nX8004
Summary of Contents for Ashly nX8004
- Page 1 Multi-Mode Power Amplifiers 3,000W, 1,500W, 800W, and 400W Per Channel Four and Two Channel Models nX Base Series nX3.04, nX3.02, nX1.54, nX1.52, nX8004, nX8002, nX4004, nX4002 nXe Ethernet Series nXe3.04, nXe3.02, nXe1.54, nXe1.52, nXe8004, nXe8002, nXe4004, nXe4002 nXp Ethernet+DSP Series nXp3.04, nXp3.02, nXp1.54, nXp1.52, nXp8004, nXp8002, nXp4004, nXp4002...
- Page 2 Operating Manual - nX, nXe, and nXp Power Amplifiers Important Safety Instructions Consignes de sécurité à lire attentivement The lightning flash with arrowhead symbol, within an equilateral triangle, Le symbole de la flèche dans un triangle équilateral symbolisant la foudre is intended to alert the user to the presence of uninsulated "dangerous est prévu pour sensibiliser l’utilisateur à...
- Page 3 Unpacking As a part of our system of quality control, every Ashly product is carefully inspected before leaving the factory to ensure flawless appearance. After unpacking, please inspect for any physical damage. Save the shipping carton and all packing materials, as they were carefully designed to reduce to a minimum the possibility of transportation damage should the unit again require packing and shipping.
-
Page 4: Table Of Contents
2.7 Cooling ..... . . 9 9.1a Ashly Network Tree... . 15 3 nX Amplifier Protection 9.1b Ashly Project Canvas . - Page 5 11.6 neWR-5 Programmable Button Control . 47 11.7 FR-8/FR-16 Networked Fader ..47 11.8 INA-1 Inline RS-232 Adapter..47 11.9 Ashly Remote App for iPad ..47 ®...
-
Page 6: Introduction
1 INTRODUCTION Thank you for your purchase of this Ashly nX, nXe, or nXp power amplifier. This product uses state of the art, light weight, high power, high efficiency switching technology developed through years of design and field testing. nX amplifiers are available in the following three series, designed to meet the most demanding live sound and fixed installation sound systems in stadiums, arenas, performance venues, worship spaces and convention centers. -
Page 7: Nx Installation Requirements
A detachable 20A Neutrik PowerCON mains chassis connector is installed on all models ® except for nX 3.04, which uses a 30A PowerCON ® nX4002 nX4004 nX8002 nX8004 120V Plug/Receptacle Nema 5-15 Nema 5-15 Nema 5-15 Nema 5-15 240V Plug/Receptacle Schuko 16A... -
Page 8: Input Signal Wiring
Operating Manual - nX, nXe, and nXp Power Amplifiers 2.2 Input Signal Wiring Use shielded wiring for balanced or unbalanced audio signals. Shielding which is properly grounded will protect the signal from outside electrical interference such as RF, fluorescent lighting, and computer/display emissions. Unbalanced or single-ended (tip- sleeve) lines of less than 10 feet are generally ok, but for greater distance or noisy field environments, always use balanced signal. -
Page 9: Aux Output Wiring
It is not necessary to leave empty rack spaces above or below the amplifier. See the BTU/hr chart below for amplifier thermal output characteristics. Maximum Thermal Output in BTU/hr nX4002 nX4004 nX8002 nX8004 nX1.52 nX1.54 nX3.02 nX3.04 Maximum BTU/hour (Maximum Current@120V) <3.4... -
Page 10: Nx Amplifier Protection
Operating Manual - nX, nXe, and nXp Power Amplifiers 3 nX AMPLIFIER PROTECTION Power-On Delay -All models have a three second warm-up delay to prevent excessive in-rush current when first powered on or awakened from sleep. nXe and nXp models additionally offer programmable Power-On Delay of up to 25 seconds (see section 9.2). -
Page 11: Channel Attenuators
Operating Manual - nX, nXe, and nXp Power Amplifiers 4.4 Channel Attenuators – These control the input signal level to the amplifier, and work in conjunction with the remote DC fader level controls and the software control surface fader controls (if the amp is networked). When an input attenuator is turned fully off, it's red Clip/Mute LED turns on and stays on to indicate mute status for that channel. -
Page 12: Rear Panel Features (Nx Series)
AC Mains Connector ® - Always use the AC cord provided by Ashly for connecting to mains power. The amplifier auto-detects mains voltage from 120VAC to 240VAC. WARNING: Do not remove or lift the mains connector ground. 5.8 Serial Number Sticker - This sticker identifies the product model number, serial number, MAC address (if network- able), and AC mains current/power rating. -
Page 13: Rear Panel Features (Nxe Series)
6.5 Preset - Each pin (P1 through P4) can be connected to the adjacent ground pin (G) via Ashly's WR-2 remote or other contact closure to recall a stored preset or sub preset from the amplifier. Preset pins 1-4 correspond directly to amplifier presets 01 - 04. -
Page 14: Rear Panel Features (Nxp Series)
Cat-5, Cat-5e, or Cat-6 wiring. Maximum Ethernet cable distance is 100 meters (328 ft). Ashly nXe and nXp amplifiers will adapt to either a straight through pin to pin or crossover Ethernet cable. For wireless iPad control using a custom "Ashly Remote"... -
Page 15: Protea Ne Software
The primary canvas is always called "Ashly Project", but additional project files can be saved under different names. Additional visual control objects such as level faders, LEDs, meter bars, preset, standby, mute, and source select buttons can be placed on the canvas and assigned to control a specific parameter on one or more devices in the project. -
Page 16: File Menu
To apply the prepared project file, use the following steps: 1) Connect all Ashly devices to the network and launch the software, verifying that all devices appear green in the network device tree. -
Page 17: Options Menu
If this is checked On, those messages will go away automatically, otherwise they will stay on the display until closed by the user. 9.1h Flash Programmer Menu [Flash Programmer>Launch Flash Programmer] - This is used to update the firmware on any networked Ashly device. All available firmware update files can be downloaded from the Ashly website. -
Page 18: Help Menu
(firmware) to the amplifier over the network. Latest firmware updates, if available, can be found on the Ashly website. When the amplifier is put into flash reprogram mode, all audio functions are suspended, the power switch LED flashes, and the COM LED remains lit until flash reprogram is completed. -
Page 19: Power On Delay
2) Use contact closures to load presets 1-4 from memory by wiring switches to the rear panel contact closure connector. 3) Use an Ashly WR-5 or neWR-5 remote control. 4) Use the event scheduler. Note: A full preset recall event will overwrite any unsaved changes, so be sure the current configuration is saved before continuing or any changes will be lost. -
Page 20: Device Control Tabs
Operating Manual - nX, nXe, and nXp Power Amplifiers 9.4 Device Control Tabs The following device control tabs are available for nXe and nXp models. nXe series amplifiers include Control Surface, Security, Network Properties, Event Scheduler, and Fault Log, plus optional Cobranet if installed. - Page 21 Operating Manual - nX, nXe, and nXp Power Amplifiers 9.4a (continued) Software Control Surface - Channel Stereo/Bridged Status - This shows if a channel pair is in stereo or bridge mode as set by back panel switch. In bridge mode, input signal is automatically taken from the odd chan- nel input and inverted, then sent to the even channel.
-
Page 22: Security
COM LED on the amplifier's front panel for two seconds. The amplifier's firmware revision is shown in the hardware configuration section as well. From time to time Ashly may post updated firmware on our website which can be downloaded and then flash reprogrammed to the amplifier. -
Page 23: Dsp Control
Operating Manual - nX, nXe, and nXp Power Amplifiers 9.4d DSP Control Tab All signal processing is done in the DSP control tab, with separate input and output sections and a cross-linking matrix mixer between. From left to right, each channel in the DSP tab includes the following features: Input/Output Channel Number - Click on this to use each channel's Clear, Copy/Paste, Link, and Sub Preset functions. - Page 24 Operating Manual - nX, nXe, and nXp Power Amplifiers Pluggable DSP Block Descriptions 1) Dynamics Controls Clip (Brick Wall) Limiter The Clip Limiter is a compressor with fixed ratio (infinite). It allows for user-adjustable threshold, attack time and release time. It also allows for assignment to a Link Group to link the parameters of this block with limiters on other channels.
- Page 25 Operating Manual - nX, nXe, and nXp Power Amplifiers Release Time - The rate (in ms/dB) at which the Compressor attenuation will return to normal, once the signal falls below Threshold. Link Group - Group to which all parameters are assigned, to facilitate simultaneous adjustment to multiple Compressors in the system.
- Page 26 Operating Manual - nX, nXe, and nXp Power Amplifiers Threshold Below Target - Determines the relative input signal level above which the Autoleveler increases gain, below which no action is taken. Ratio - This is the ratio of the input level change in dB to output level change in dB. It determines the degree of boost or cut applied to a signal to maintain the target level.
- Page 27 Operating Manual - nX, nXe, and nXp Power Amplifiers Ducking At Mixer(s) This feature is particularly useful when setting up multiple zones where only some of the output channels should be ducked (e.g. restaurants, courtrooms, etc.). When this feature is selected, each Matrix Mixer is allowed to enable or disable the Duck- ing on that particular output.
- Page 28 Operating Manual - nX, nXe, and nXp Power Amplifiers Ambient Noise Compensation (output channels only) Ambient Noise Compensation (ANC) is an automatic output level control that uses a microphone to monitor background noise in a specific zone, then adjusts the out- put level to that zone accordingly in order to maximize intelligibility.
- Page 29 Operating Manual - nX, nXe, and nXp Power Amplifiers ANC Setup Procedure 1) In the control software, assign the ANC function to the channel to be used for background music or voice paging (program audio). Set the ANC controls to the "typical" settings described above, which is also the default settings of a new ANC function when it is first placed in the signal processing block.
- Page 30 VCA Groups. RD-8C Remote Control Gain Remote Gain allows the user to choose where Ashly's RD-8C will apply gain to a signal path (WR5s are handled by the WR5 Gain Block). When the remote is assigned to a channel, it applies gain/attenuation within the remote gain block, allowing the other gain blocks to remain unaffected by the remotes.
- Page 31 Operating Manual - nX, nXe, and nXp Power Amplifiers neWR-5 Remote Control Gain WR-5, The WR5/neWR5 Gain block is the DSP block where channel gain adjustments are made via the WR5 or ne-WR5 remote. This block is nearly identical to the standard gain block except that it is also controllable via the WR5 or ne-WR5 remote and does not have polarity inversion.
- Page 32 Operating Manual - nX, nXe, and nXp Power Amplifiers Parametric Equalizers (10, 6, 4, or 2 band PEQ) The Parametric Equalizer (PEQ) provides several types of filters to tailor the signal response with high precision. Four sizes are provided, with 2, 4, 6 or 10 filters. Filter types include Parametric, High-Shelf, Low-Shelf, Variable-Q High-Pass, Variable-Q Low-Pass, All-Pass, Band-Pass and Notch.
- Page 33 Operating Manual - nX, nXe, and nXp Power Amplifiers Level - Selected filter boost/cut amplitude. Bandwidth - Selected filter bandwidth (or Q). . Filter Type Details Parametric EQ Filters Parametric EQ uses peak filters with the ability to control boost or cut, frequency center, and bandwidth. Think of one band of parametric EQ as a single graphic equalizer fader, except that the frequency is variable, and that the bandwidth, or how "wide"...
- Page 34 Operating Manual - nX, nXe, and nXp Power Amplifiers Feedback Suppressor (Inputs only) The Feedback Suppressor (FBS) provides automatic feedback control. This is done by constantly monitoring the audio and automatically adjusting any one of 12 filters to remove feedback. Notch and Parametric Filter types are used, depending on the characteristics of the feedback.
- Page 35 Operating Manual - nX, nXe, and nXp Power Amplifiers Background Information The feedback suppressor uses both notch filters and parametric filters to automatically and quickly suppress multiple feedback tones and also produce a smooth equalized response which sounds pleasing for music and speech program. Before using the FBS (Feedback Suppressor), it is helpful to understand the following basic concepts in order to effectively suppress feedback and achieve good sounding audio program.
- Page 36 Operating Manual - nX, nXe, and nXp Power Amplifiers 4) Crossover Functions Four-Way, Three-Way, and Two-Way Crossover (outputs only) The Crossover tool offers a convenient way to configure amplifier outputs. Depending on whether the desired crossover is two, three, or four-way, all High-Pass (HPF) and Low-Pass Filters (LPF) are automatically placed on output channels. Initial crossover frequencies are assigned with the default filter type of 24dB/oct Butterworth, both of which can be changed.
- Page 37 Bessel These filters, as implemented in Ashly's NE devices, are always -3dB at the displayed crossover frequency. Bessel filters have a maximally flat group delay. Stated another way, Bessel filters have the most linear phase response. When a Bessel HPF and LPF of the same corner frequency are summed, the combined response is +3dB for 12dB/oct, 18dB/oct, and 48dB/oct Bessel filters, and -2dB for 24dB/oct Bessel filters.
- Page 38 Operating Manual - nX, nXe, and nXp Power Amplifiers 5) Delay Speaker Delay and Delay Both the Speaker Delay and Delay allow the signal to be delayed by a given number of samples (a given amount of time). The only differences between the Speaker Delay and Delay is the total amount of delay available and the amount of DSP resources used by each block.
-
Page 39: D - I/O Matrix Router
Operating Manual - nX, nXe, and nXp Power Amplifiers 9.4d DSP Control Tab functions, continued ..Input/Output Matrix Router - Any input can be routed to any or all outputs. Click and drag from the input to output to assign routing. For faster routing of a single input or output to multiple channels, highlight its node and then press Ctrl+Click over the desired nodes to connect to. - Page 40 Automixer Setup Setting-up the Ashly gain-sharing automixer is quite simple compared to other gating-type automixers. The following procedure is recommended for most multi-microphone speech applications.
-
Page 41: Input Source
Operating Manual - nX, nXe, and nXp Power Amplifiers 9.4e Input Source Tab Inputs are analog balanced line, AES3 digital audio (optional), or network audio (optional). Setting the input source to Auto gives priority to network audio, then AES3, then analog. 9.4f Metering Tabs (not shown) There are three meter tabs, including general I/O Meters, Meter Dynamics for gate and compressor/limiter functions, and Auto-... -
Page 42: Nx Remote Control Functions
"Ashly Remote" can be downloaded from the iTunes App Store. “Ashly Remote” is an application used to create a custom and secure graphical user interface (GUI) for Ashly networked devices via iPad wire- less control. The sound system designer creates a GUI specifically tailored for the end user and their networked Ashly products, allowing them remote control access to select audio functions. -
Page 43: Front Panel Disable
Operating Manual - nX, nXe, and nXp Power Amplifiers 10.4 Sleep Clock Timer On all amplifier models, the sleep clock timer can be enabled or disabled using the front panel factory reset switch as described in section 4.3. On nXe and nXp series models only, the sleep clock timer can be adjusted from zero (off) to 120 minutes. If sleep mode is enabled, and there is no audio activity for the duration of the sleep clock timer (fixed at 30 minutes for nX series), the amplifier goes to sleep until signal is present again or until the power switch is pressed. -
Page 44: Channel Mute
Operating Manual - nX, nXe, and nXp Power Amplifiers 3) neWR-5 - The neWR-5 function buttons are assigned gain control function in the same manner as the WR-5, but instead of connecting to the amplifier's data port, the neWR-5 uses an Ethernet network connection. 4) RD-8C - The RD-8C is programmed from Protea software when wired to a nXe or nXp amplifier under software control. -
Page 45: Ashly Remote Control Devices
Operating Manual - nX, nXe, and nXp Power Amplifiers 11 ASHLY REMOTE CONTROL DEVICES In addition to iPad control, the following Ashly devices are available for remote control of amplifier functions. 11.1 WR-1 Level Control (All nX models) - The WR-1 is a dual potentiometer remote volume control de- signed to fit in a standard wall electrical box, and is wired to the amplifier back panel Euroblock connector labeled “CH... -
Page 46: Programmable Button Control
The WR-5 is phantom powered from the amplifier. Up to four different WR-5 remotes can be wired in series and phantom powered from one amplifier, and more remotes can be added by using an Ashly RPS-18 remote power supply or equivalent. -
Page 47: Newr-5 Programmable Button Control
Connecting and powering the neWR-5 is done using Cat-5 Ethernet cable and an IEEE 802.3af Power over Eth- ernet (PoE) switch, hub, or in-line PoE injector. If PoE is unavailable, the Ashly RPS-18 (sold separately) provides 15-48VDC capable of at least 2 watts per neWR-5 and can be hard wired to the back of the neWR-5. PoE current draw is 38mA @48VDC and 80mA@15VDC. -
Page 48: Aes3 Digital Audio Input/Pass-Through
Operating Manual - nX, nXe, and nXp Power Amplifiers 12 AES3 DIGITAL AUDIO INPUT/PASS-THROUGH nXe and nXp amplifiers support factory installed two or four channel AES3 input options, named OPAES2* and OPAES4*. The AES3 format uses two channels of digital audio transmitted over a single cable, main- taining a completely digital signal path into the amplifier stage or into the DSP stage if DSP is installed. -
Page 49: Network Audio Options
Operating Manual - nX, nXe, and nXp Power Amplifiers 13 NETWORK AUDIO OPTIONS Ashly offers a CobraNet and Dante network audio interface module that must be factory installed on nXe and nXp amplifiers. will become available from Ashly in the future. -
Page 50: Cobranet Configuration
Operating Manual - nX, nXe, and nXp Power Amplifiers CobraNet Receiver Control Bundle: Selected bundle this receiver is listening to. Status: Indicates if a valid (green) bundle is being received. Channel Status (1-8): The Signal Status indicates the current bit depth, sampling rate, and latency of the received audio stream. The LED indicates this is a valid stream for this device. -
Page 51: Dante
Dante receiver. Go to the amplifier's Input Source tab and select Network with Analog Backup as shown below. This connects available Dante source channels to Ashly inputs. If the Dante source becomes unavailable, the ampli- fier input will automatically switch to it's analog input source. -
Page 52: Nx Amplifier Troubleshooting
Operating Manual - nX, nXe, and nXp Power Amplifiers 14 nX AMPLIFIER TROUBLESHOOTING No AC Power 1) Is the detachable AC power cord properly installed? Is it plugged into a known live outlet? 2) Has the power switch been disabled? (sec 4.7, 9.4a, 10.2) 3) Is the Power-On Delay time set high? (sec 3, 9.2c) 4) Is the amp asleep? (sec 4.6) - Page 53 2) Is the amplifier successfully communicating with the network? (sec 8) 3) Does the amplifier name appear as green text in the Ashly Network device tree? (sec 9.1a) 4) Is the amplifier device icon placed on the software project canvas a virtual device instead of a live amp? Any virtual device MAC address will always read FF-FF-FF-FF-FF-FF.
-
Page 54: Nx Amplifier Specifications
General Power Amplifier Specifications 0dBu = 0.775V rms) nX Amplifier Model nX3.04 nX3.02 nX1.54 nX1.52 nX8004 nX8002 nX4004 nX4002 Maximum Output Power CEA-2006/490A, 20ms 1kHz 1%THD+N, 480ms 1kHz -20dB, 120VAC, all channels driven at rated load Low Z output, per channel 2 Ohm . - Page 55 Operating Manual - nX, nXe, and nXp Power Amplifiers Distortion (SMPTE, typical) ......<0.5% Distortion (THD-N, typical) (8 Ohm, 10dB below rated power, 20Hz-20kHz) .
- Page 56 Operating Manual - nX, nXe, and nXp Power Amplifiers Cooling..........Continuously variable temperature controlled axial fan(s) Power Cable Connector .
- Page 57 Operating Manual - nX, nXe, and nXp Power Amplifiers 2, 4, 6, or 10 Band Parametric Equalizers Maximum Time and Distance @ 48kHz Sample Rate, 72°F: Filter Types: Speaker Delay ....0-21ms (24ft, 7.3m) Delay .
-
Page 58: Limited Warranty
ASHLY AUDIO, INC. shall be obli- gated to only correct defects in the product itself. ASHLY AUDIO, INC. is not liable for any damage or injury, which may result from, or be incidental to, or a consequence of, such defects. -
Page 59: Nx, Nxe, And Nxp Block Diagrams
Operating Manual - nX, nXe, and nXp Power Amplifiers 17 nX, nXe, and nXp BLOCK DIAGRAMS... - Page 60 Fax: (585) 872-0739 Toll Free (800) 828-6308 www.ashly.com 2017 Ashly Audio, Inc. All rights reserved worldwide. Ashly Audio is a division of Jam Industries, Ltd. All features, specifications, and graphical representations are subject to change or improvement without notice. Printed in USA...
