Summary of Contents for Ashly ne800

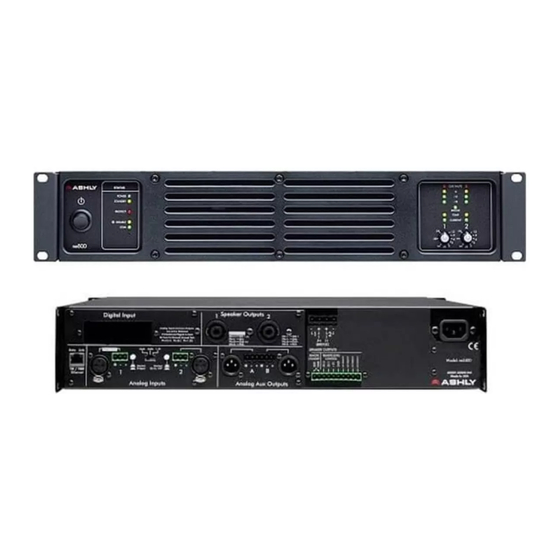

- Page 1 Network Enabled Two Channel Power Amplifiers Operating Manual ASHLY AUDIO INC. 847 Holt Road Webster, NY 14580-9103 Phone: (585) 872-0010 Toll-Free: (800) 828-6308 Fax: (585) 872-0739 www.ashly.com...
-
Page 2: Table Of Contents
Operating Manual - NE Two Channel Power Amplifiers Table Of Contents 1 INTRODUCTION ....... . . 3 2 UNPACKING . -
Page 3: Introduction
Ashly’s exclusive Five Year, Worry Free Warranty remains one of the most liberal policies available on any com- mercial grade product. The warranty covers every product with the Ashly brand name, and is offered at no extra cost to you, our customer. -
Page 4: Ne1600 And Ne2400 Models
Ethernet control using Protea software, remote standby for power up, and DC remote level control using an Ashly WR-1 or equivalent. All NE two channel amplifiers also include Analog Aux Outputs on XLR and Euroblock connectors. The Aux Outputs are buffered signals taken just before the power amplifier driver stage. -
Page 5: Protection
Operating Manual - NE Two Channel Power Amplifiers Protection Ashly NE two channel power amplifiers come standard with several protection circuits: Over Current Protection - Is controlled in the output stage. Thermal Protection - When the internal temperature is below 40°C the fan runs at its slowest speed. Above 40°C the speed is increased until it reaches its maximum value. -
Page 6: Rear Panel Features
10. Remote Standby - Connect these two contact closure pins to remotely place the amp in standby. 11. Remote Level Control - These pins can be wired to remote potentiometers such as the Ashly WR-1 for level control of individual channels. -
Page 7: Remote Amplifier Control
Operating Manual - NE Two Channel Power Amplifiers Requirements Ashly NE two channel amplifiers have specific physical, electrical and signal requirements for proper operation. These requirements will vary depending on your specific application, setup, and the settings on the amplifier. When setting up and testing your system, please take special care to double check all connections and settings. -
Page 8: Protea Software
SOFTWARE Protea software offers a comprehensive suite of tools for controlling Ashly NE amplifiers as well as other Ashly products. The standard NE two channel amplifiers allow for Ethernet control and monitoring of power functions, level, mute, polarity, and live speaker load analysis. With the DSP option installed, software control and monitoring of major audio functions can be custom configured on a per channel basis, as well as through linked channels. -
Page 9: The Dsp Window
Operating Manual - NE Two Channel Power Amplifiers 5) Attenuators - These two dials indi- cate the physical position of hardware controls on either the amp front panel or the remote level control (if present). Note that these will display the position of attenuators even when DISABLED in software. -
Page 10: Specifications
Operating Manual - NE Two Channel Power Amplifiers Protea Two Channel Amplifier DSP Control Surface (DSP option must be installed) 6) Output Mixer - For a given amplifier output channel, all inputs that have been routed in the matrix router are mixed together here. - Page 11 Operating Manual - NE Two Channel Power Amplifiers Distortion (SMPTE, typical) - 8 ohm load, 10dB below rated power: ....<0.5% Distortion (THD-N, typical) - 8 ohm load, 10dB below rated power, 20Hz-20kHz: ..<0.5% Frequency Response .
-
Page 12: Warranty Information
Long Delay: ..0-341 ms tive only for FIVE years from the original date of purchase of the product. ASHLY AUDIO, INC. shall be obligated to only correct defects in the product itself. ASHLY AUDIO, INC. is not liable for any damage or injury which may result from or be incidental to or a consequence Ashly Audio Inc.
