Product description – quick reference

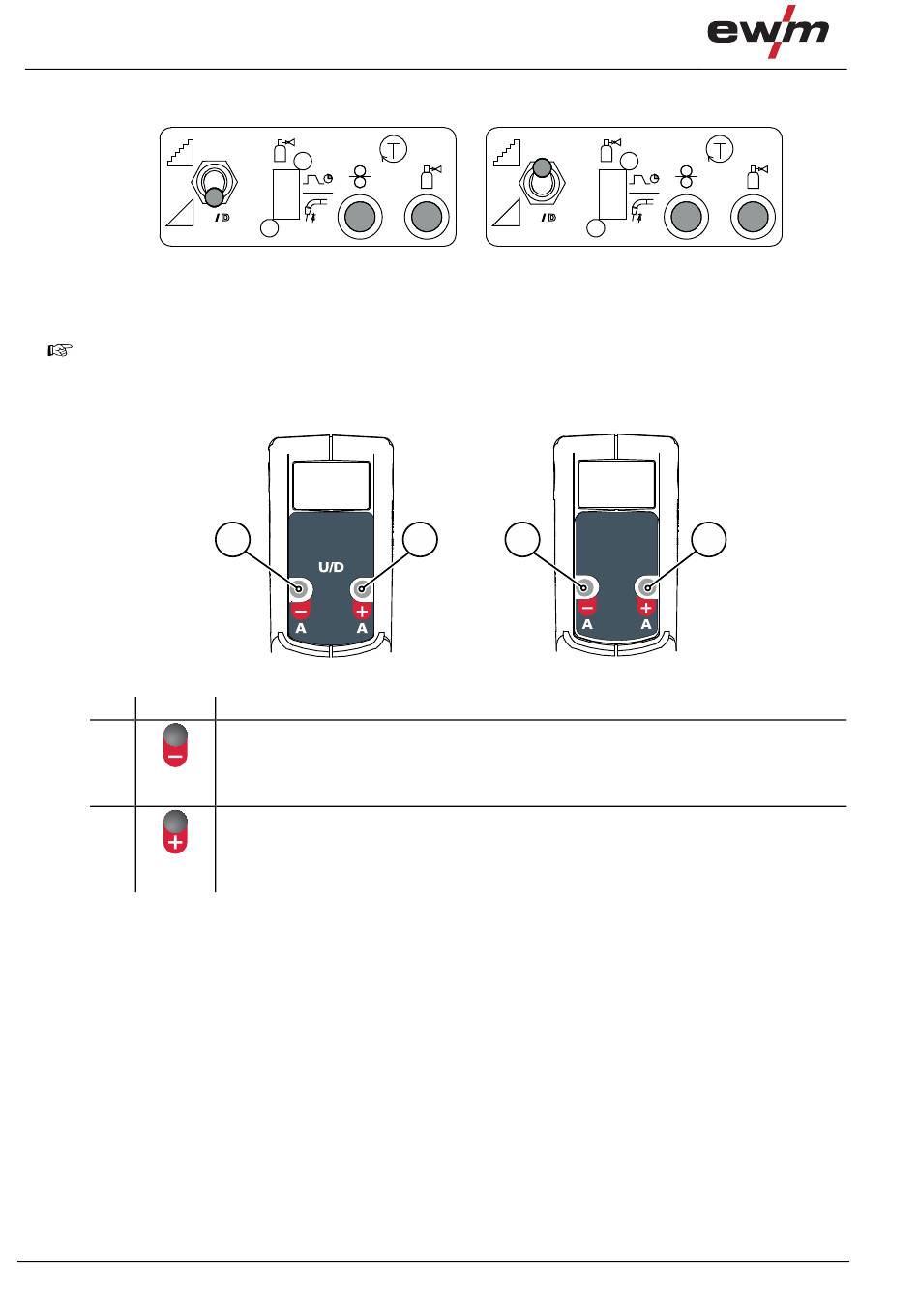

Function torch
4.3.1

Operating elements

Programm
Up / Down
• Switch the"Program or up/down mode" changeover switch at the welding machine to the up/down or
program mode position (see chapter "Design and function").
The 'Program or up/down function' changeover switch may look different on your machine. Use
the operating instructions for your power source to operate the switch.
4.3.2

Operating elements for up/down welding torch

Item Symbol
1
2
14
1
Description 0
"A -" button (Program mode)
Decrease program number
"A -" button (Up/Down mode)
Reduce welding performance (welding current/wire-feed speed)
"A +" button (Program mode)
Increase program number
"A +" button (Up/Down mode)
Increase welding performance (welding current/wire-feed speed)
Programm
Up / Down
Figure 4-3
2 1
Figure 4-4
2
U/D
X
