Samsung WF203ANS/XAA Quick Start Manual

Model:
WF203ANS/XAA
WF203ANW/XAA
SUPPORT INFORMATION
Training — Plus One http://my.plus1solutions.net/clientPortals/samsung/
Help — GSPN http://service.samsungportal.com/
Samsung Product Support TV
Customer information videos and chat programs. Programs for Fridges, Laundry, Ranges & D/W

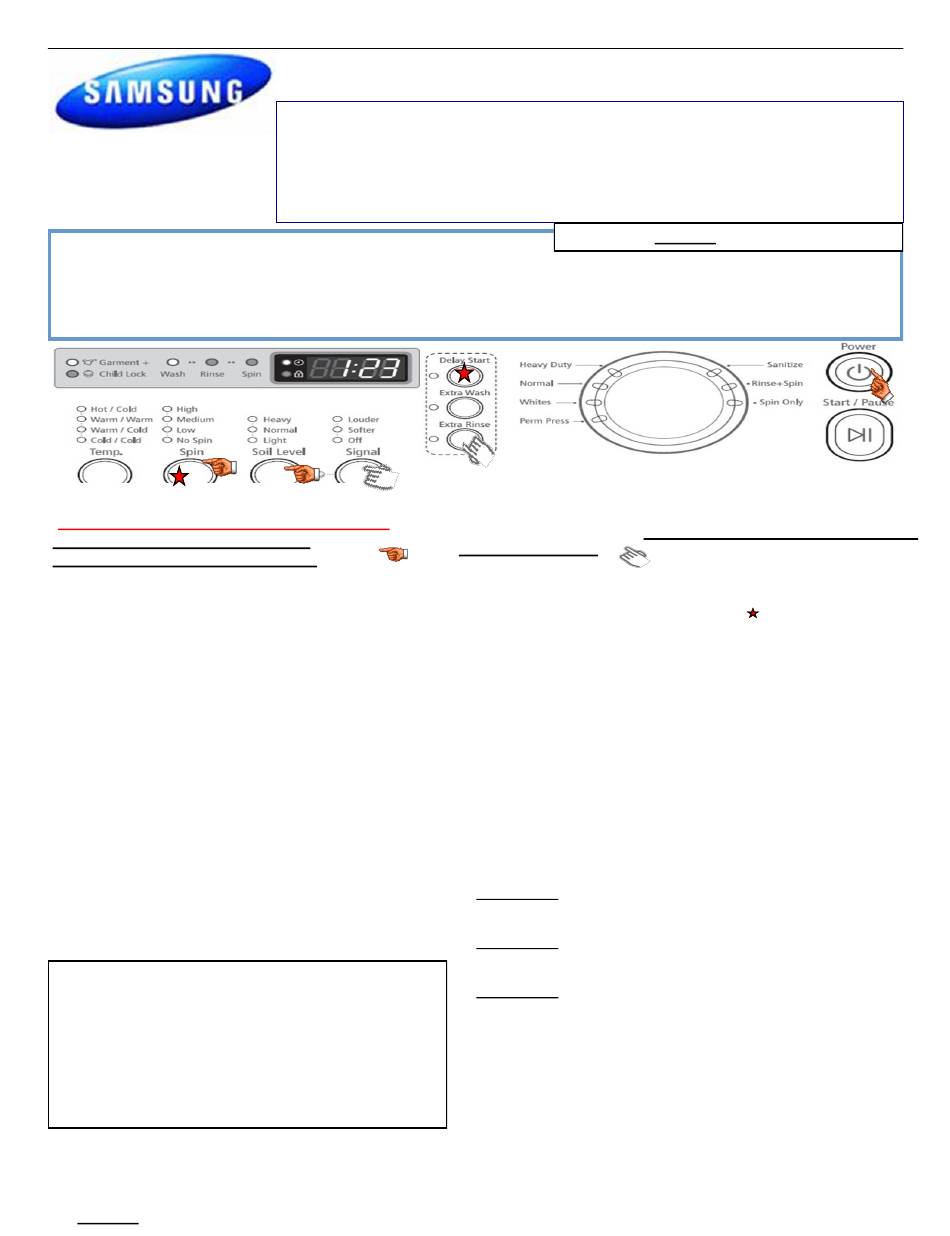

Quick Test Mode
Note: This test erases all faults and memory
To enter press Spin, Soil, & Power
simultaneously with the power off.
1. All LED's light up and the washer beeps as it
enters the Quick Test Mode.
2. The unit displays the software version for a
second then clears the EEprom.
3. After the displaying the software version, LCD
will display Model information. If EEEE is displayed
the PCB ass'y is defective.
4. When the version is displayed. Press the follow-
ing keys to test the various components
Press Temp Key to cycle through the Water Valves in
this order: Cold Main, Bleach, Cold Main & Bleach for
Fabric Softener, Hot, then off.
Press Spin Key to test Motor circuit.
Press Signal Key to test Drain Pump
Press Soil to test door lock - unlock circuit
EEPROM Clear Check
Power off, Press Delay Start, Signal and Power Key at
the same time. Good = Good Fail = FAiL
All memory will be cleared, including Fault Codes
This should be done when a new Main PCB is
installed
# tsWF203 RevD 03/21/2011
Fast Track Troubleshooting
IMPORTANT SAFETY NOTICE – "For Technicians Only" This service data sheet is
intended for use by persons having electrical, electronic, and mechanical experience
and knowledge at a level generally considered acceptable in the appliance repair trade.
Any attempt to repair a major appliance may result in personal injury and property
damage. The manufacturer or seller cannot be responsible, nor assume any liability for
injury or damage of any kind arising from the use of this data sheet.
http://support-us.samsung.com/spstv/howto.jsp
:
Publication # tsWF203 Revision Date 03/21/2011
Service Mode: (Can be entered while operating)
This mode allows more detailed operation tests and trouble-
shooting, to enter press Signal & Extra Rinse simultaneously
with the power on.
While in Service Mode the following tests can be performed:
Quick Spin Test = Delay Start & Spin:
drum motor from 0 to maximum RPM over a few minutes.
Note: Stay with the washer during this test, out of balance
detection is bypassed and the door may not lock.
Start/Pause button during the test to hold its spinning speed for
10 minutes before going back to Quick Spin Test Mode
Cycle Count = Press the Signal button to see how many times
the unit was used
Soft Ware # = Press Soil button shows software version
Fast Time Down = Press Temp button to advance to next cycle
Fault Code Test = Press the Spin button to view the stored fault
codes – then turn Dial to view error codes (Push Start/Pause
while the code is displayed to view the number of cycles since the
error occurred)
Peripheral (Main PCB) input Tests
1. Extra Wash. Then turn the Dial so that the Normal is turned
on. Next, press the Start/Pause Key. The Water Temperature will
be displayed in Fahrenheit.
2. Extra Wash. Then turn the Dial so that the Whites is turned
on. Next, press the Start/Pause Key. The door status will be dis-
played (OP if open, CL if closed).
3. Extra Wash. Then turn the Dial so that the Perm Press is
turned on. Next, press the Start/Pause Key. The door lock Switch
status will be displayed (UL if unlocked, Lo if locked).
Water Frequency/Water Sensor Testing
Select a cycle & start the washer, enter Service Mode &
press Extra Wash.
Turn the Dial so that the Quick Wash is turned on. Next, press
the Start/Pause Key. The Water Frequency will be displayed. The
frequency will change as the unit fills.
This accelerates the
Press the
