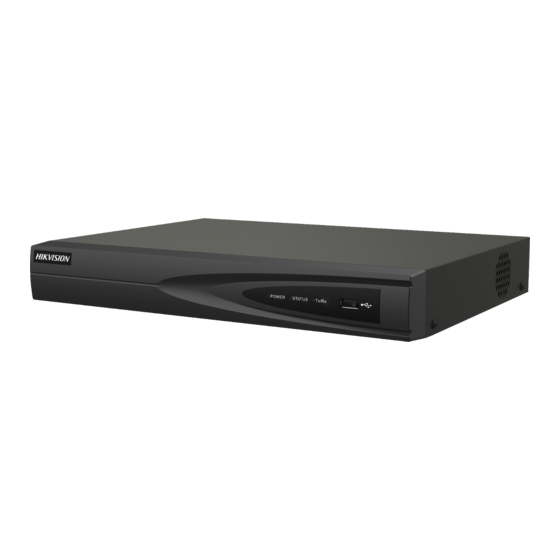

- Page 1 Network Video Recorder Quick Start Guide...
-
Page 2: Table Of Contents
Network Video Recorder Quick Start Guide TABLE OF CONTENTS Chapter1 Panels Description ..................... 6 1.1 Front Panel ......................6 DS-7600NI-Q1 (/P) and DS-7600-K1(/P) (B)Series ............ 6 DS-7600NI-Q2 (/P) Series ..................6 1.2 Rear Panel ......................7 DS-7600NI-Q1, DS-7600NI-K1 (B) and DS-7600NI-Q2 Series ........7 DS-7600NI-Q1/P, DS-7600NI-K1/P(B) and DS-7600NI-Q2/P Series ...... - Page 3 INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS.
- Page 4 Network Video Recorder Quick Start Guide Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
- Page 5 Network Video Recorder Quick Start Guide Applicable Models This manual is applicable to the models listed in the following table. Series Model DS-7604NI-Q1 DS-7600NI-Q1 DS-7608NI-Q1 DS-7616NI-Q1 DS-7608NI-Q2 DS-7600NI-Q2 DS-7616NI-Q2 DS-7604NI-Q1/4P DS-7600NI-Q1/P DS-7608NI-Q1/8P DS-7608NI-Q2/8P DS-7600NI-Q2/P DS-7616NI-Q2/16P DS-7604NI-K1(B) DS-7600NI-K1(B) DS-7608NI-K1(B) DS-7616NI-K1(B) DS-7604NI-K1/4P(B) DS-7600NI-K1/P(B) DS-7608NI-K1/8P(B) Symbol Conventions...
- Page 6 Network Video Recorder Quick Start Guide Safety Instructions Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user. In the use of the product, you must be in strict compliance with the electrical safety regulations of the nation and region.
-
Page 7: Chapter1 Panels Description
Network Video Recorder Quick Start Guide Chapter1 Panels Description 1.1 Front Panel DS-7600NI-Q1 (/P) and DS-7600-K1(/P) (B)Series Figure 1-1 DS-7600NI-Q1 (/P) and DS-7600-K1(/P) (B) Series Table 1-1 Panel Description No. Name Description Power indicator turns green when system is Power running. -
Page 8: Rear Panel
Network Video Recorder Quick Start Guide Table 1-2 Panel Description No. Name Connections POWER Turns green when device is powered up. Flickers red when data is being read from or written to HDD. Flickers blue when network connection is functioning Tx/Rx properly. -
Page 9: Ds-7600Ni-Q1/P, Ds-7600Ni-K1/P(B) And Ds-7600Ni-Q2/P Series
Network Video Recorder Quick Start Guide DS-7600NI-Q1/P, DS-7600NI-K1/P(B) and DS-7600NI-Q2/P Series Figure 1-4 DS-7600NI-Q1/4P and DS-7604NI-K1/4P(B) Series Figure 1-5 DS-7600NI-Q2/16P Series Table 1-4 Panel Description Item Description Power Supply 100~240 VAC power supply. Audio In RCA connector for audio input. HDMI Interface HDMI video output connector. -
Page 10: Chapter 2 Installation And Connections
Network Video Recorder Quick Start Guide Chapter 2 Installation and Connections 2.1 NVR Installation During installation of the NVR: Use brackets for rack mounting. Ensure ample room for audio and video cables. When routing cables, ensure that the bend radius of the cables are no less than five times than its diameter. - Page 11 Network Video Recorder Quick Start Guide Figure 2-2 Connect Data Cable Step 3 Connect the power cable to the HDD. Figure 2-3 Connect Power Cable Step 4 Place the HDD on the bottom of the device and then fasten the screws on the bottom to fix the HDD.
-
Page 12: Hdd Storage Calculation Chart
Network Video Recorder Quick Start Guide 2.3 HDD Storage Calculation Chart The following chart shows an estimation of storage space used based on recording at one channel for an hour at a fixed bit rate. Bit Rate Storage Used 128K 160K 192K 224K... -
Page 13: Chapter 3 Menu Operation
Network Video Recorder Quick Start Guide Chapter 3 Menu Operation 3.1 Menu Structure Refer to the following figure for the menu structure: Menu Playback Shutdown Export VCA Search Record Camera Maintenance Manual Configuration Behavior Normal Normal Schedule Camera General System Info Logout Record General... -
Page 14: Activating Your Device
Network Video Recorder Quick Start Guide Step 2 Press the POWER button on the front panel. The Power LED should turn blue. The unit will begin to start. After the device starts up, the wizard will guide you through the initial settings, including modifying password, date and time settings, network settings, HDD initializing, and recording. - Page 15 Network Video Recorder Quick Start Guide Figure 3-3 Set Admin Password STRONG PASSWORD RECOMMENDED–We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product.
-
Page 16: Using The Unlock Pattern For Login
Network Video Recorder Quick Start Guide 3.4 Using the Unlock Pattern for Login For the Admin user, you can configure the unlock pattern for device login. After the device is activated, you can enter the following interface to configure the device unlock pattern. -
Page 17: Using The Setup Wizard
Network Video Recorder Quick Start Guide If NVR has logged out, you must login the device before operating the menu and other functions. Step 1 Select the User Name in the dropdown list. Figure 3-7 Login Step 2 Input Password. Step 3 Click OK to log in. -
Page 18: Network Settings
Network Video Recorder Quick Start Guide 3.7 Network Settings Purpose: Network settings must be properly configured before you operate NVR over network. Step 1 Enter the Network Settings interface. Menu > Configuration > Network Figure 3-9 Network Settings Step 2 Select the General tab. Step 3 In the General Settings interface, you can configure the following settings: NIC Type, IPv4 Address, IPv4 Gateway, MTU and DNS Server. -
Page 19: Live View
Network Video Recorder Quick Start Guide You can select one of the following three options to add the IP camera. OPTION 1: Step 1 Click to select an idle window in the live view mode. Step 2 Click the icon in the center of the window to pop up the Add IP Camera interface. -
Page 20: Recording Settings
Network Video Recorder Quick Start Guide 3.10 Recording Settings Before you start: Make sure that the disk has already been installed. If not, please install a disk and initialize it. You may refer to the user manual for detailed information. Purpose: Two kinds of record types are introduced in the following section, including Instant Record and All-day Record. - Page 21 Network Video Recorder Quick Start Guide Figure 3-12 Playback Interface Step 4 Select the channel(s) to or execute simultaneous playback of multiple channels.
-
Page 22: Chapter 4 Accessing By Web Browser
Network Video Recorder Quick Start Guide Chapter 4 Accessing by Web Browser You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection. - Page 23 Network Video Recorder Quick Start Guide If the device is already activated, enter the user name and password in the login interface, and click the Login button. Figure 4-2 Login Step 3 Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug-in.
- Page 24 Network Video Recorder Quick Start Guide UD08041B...
