Summary of Contents for Chauvet Professional Ovation E-190WW

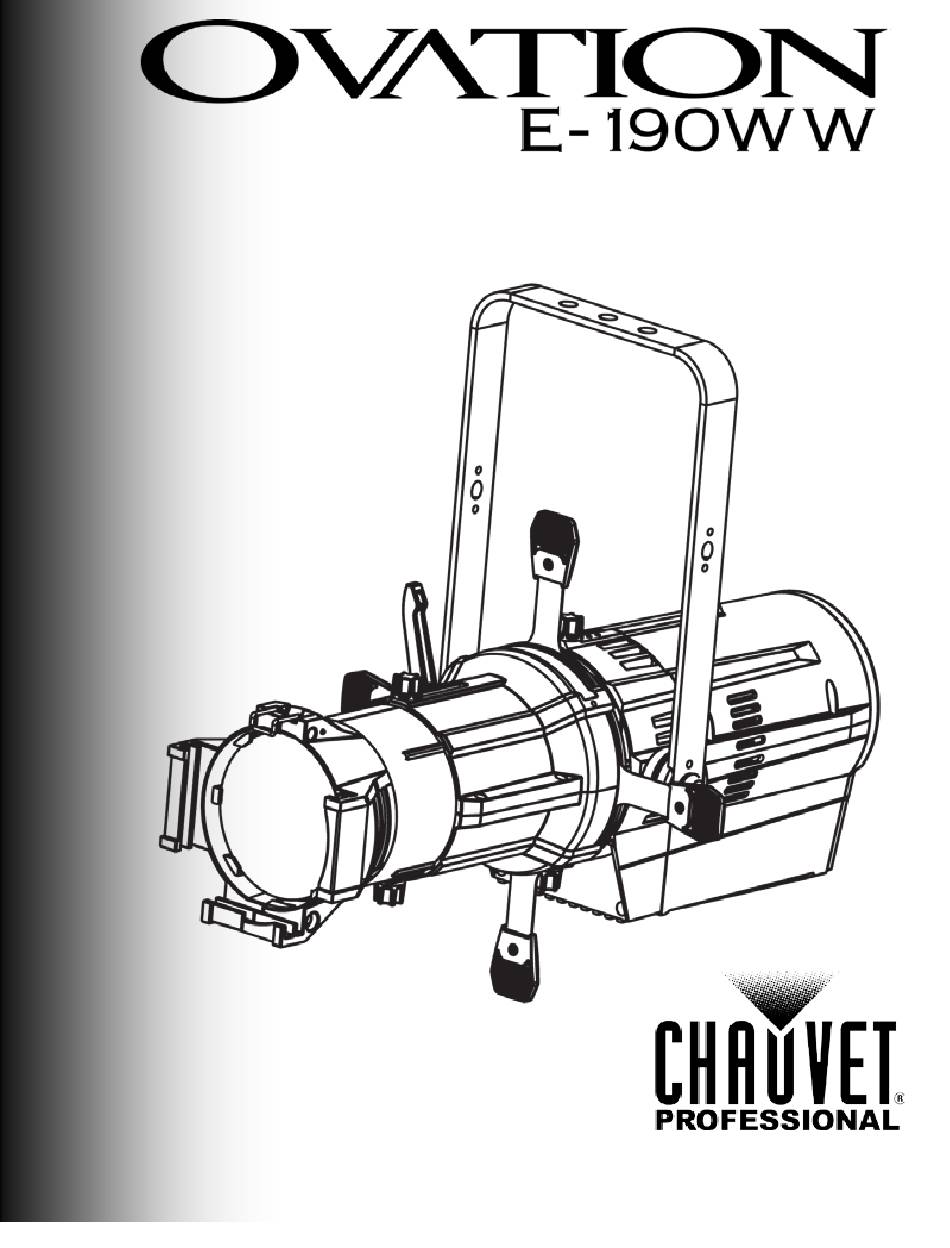

- Page 1 User Manual *Lens tubes sold separately...
- Page 2 Chauvet may issue a revision of this manual or a new edition to incorporate such changes. The OVATION E-190WW User Manual Rev. 8 supersedes all previous versions of this Document Revision manual. Discard any older versions of this manual and replace with this version. Go to www.chauvetprofessional.com...
-
Page 3: Table Of Contents
Menu Access Lock ................................12 Reset ....................................13 Performance Power Output Options ............................ 13 Manual Beam Focus Control ............................... 13 Rotating the Barrel Assembly .............................. 13 Master/Slave Mode ................................14 Drop-In Iris Slot ................................... 14 OVATION E-190WW User Manual Rev. 8... - Page 4 Table of Contents 5. Technical Information ..........................15 Product Maintenance ............................15 Cleaning the Reflector Housing Lens ........................... 15 Technical Specifications ............................16 Returns .................................17 Contact Us ..............................17 -ii- OVATION E-190WW User Manual Rev. 8...
-
Page 5: Before You Begin
The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data transmission protocol. Product at a Glance Use on Dimmer Auto Programs Auto-Ranging Power Outdoor Use Supply Sound-Active Replaceable Fuse User-Serviceable Master/Slave Duty Cycle OVATION E-190WW User Manual Rev. 8... -
Page 6: Safety Notes
100,000 hours. If extending this lifespan is vital, lower the operating temperature by improving the ventilation around the product and reducing the ambient temperature to an optimal operating range. In addition, limiting the overall projection intensity may also help to extend the LEDs’ lifespan. OVATION E-190WW User Manual Rev. 8... -
Page 7: Introduction

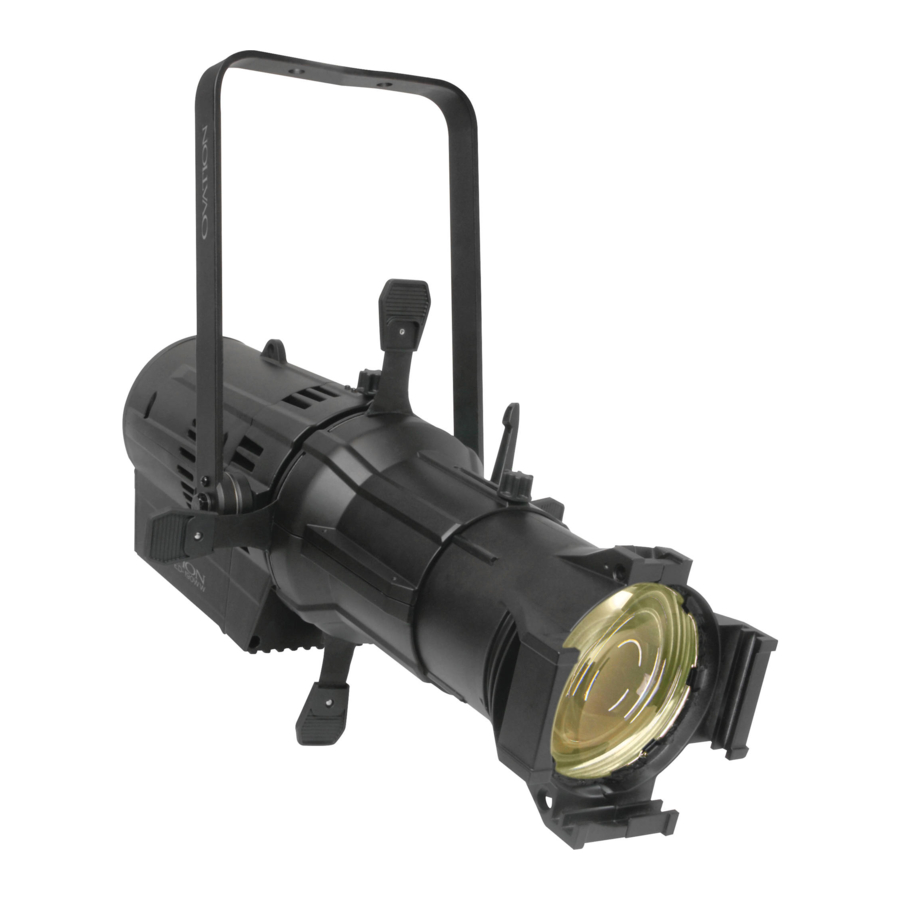

Introduction 2. Introduction The OVATION E-190WW delivers an excellent white light with a warm color temperature Description and a beautiful flat field. It also features standard beam shaping shutters, a gobo/effect slot and lens barrels that are interchangeable with other popular ERS fixtures. Selectable dimming curves ensure smooth fading cues that intermix well with the output of conventional theatre ellipsoidals. -
Page 8: Overview
Gel Frame Holder Side View Barrel Lens Tube Light Assembly (sold separately) Engine Handle Menu Buttons Fuse Holder Display powerCON® Input 3- and 5-pin DMX In powerCON® 3- and 5-pin DMX Out Output Rear View OVATION E-190WW User Manual Rev. 8... -
Page 9: Dimensions
6.7 in 15 in 8.7 in 171 mm 380 mm 222 mm 12 in 7.1 in 305 mm 180 mm 25.4 in 645 mm Top View 6.9 in 6.25 in 159 mm 174 mm OVATION E-190WW User Manual Rev. 8... -
Page 10: Setup
Each OVATION E-190WW has an auto-ranging power supply that works with an input AC Power voltage range of 100~240 VAC, 50/60 Hz. To determine the power requirements for each OVATION E-190WW, refer to the label affixed to the product. You can also refer to Technical Specifications chart in this manual. -
Page 11: Power Linking
The Master/Slave mode allows a single OVATION E-190WW (the “master”) to control Master/Slave the actions of one or more OVATION E-190WW units (the “slaves”) without the need of a Connectivity DMX controller to control the slaves. Once set and connected, the slaves will operate in unison with the master. -
Page 12: Mounting
Notes. For our CHAUVET® Mounting Professional line of mounting clamps, go to http://trusst.com/products/. Always mount this product in a safe position. The OVATION E-190WW may be mounted Orientation in any position; however, make sure there is adequate room for ventilation, configuration, and maintenance. -
Page 13: Operation
Scrolls down the list of menu options or decreases the numeric value when in a function You can set the starting address of the OVATION E-190WW in the 001–512 DMX range. Control Options This enables control of up to 170 products in the 3-channel STD.P personality. -
Page 14: Menu Map
Continues with last command upon loss of SAVE DMX signals **** REST REST Resets the fixture to factory defaults (Enter Passcode) SELF No DMX signals are sent through DMX output MCON Sends DMX signals to OVATION E-190WW MAST slaves -10- OVATION E-190WW User Manual Rev. 8... -
Page 15: Dmx Values
2. Select the DERR programming level. · Select BLAK to turn off the LEDs when the signal is lost. · Select SAVE to use the last command programmed when the signal is lost. OVATION E-190WW User Manual Rev. 8 -11-... -
Page 16: Dimmer - Menu Control
Operation To adjust the light output of the OVATION E-190WW, select the dimmer setting as Dimmer - Menu follows. Control 1. Go to the DIM main level. 2. Select the desired dimmer setting D.000–D.100 (0–100% light output). Select the dimmer speed of the OVATION E-190WW by selecting the DIMX Dimmer Speeds programming level. -
Page 17: Reset
Operation To reset the OVATION E-190WW to the factory default settings, follow the instructions Reset below. 1. Go to the SET main level. 2. Select the REST programming level and then the display becomes blank. Enter the passcode as described in Passcode. After successfully entering the passcode, REST blinks on the display during the reset process. -
Page 18: Master/Slave Mode
The Master/Slave mode allows a single OVATION E-190WW (the “master”) to control Master/Slave Mode the actions of one or more OVATION E-190WW units (the “slaves”) without the need of a DMX controller to control the slaves. The master will be set to operate in Master mode (MAST), while the slaves will be set to operate in Slave mode (SLAV). -
Page 19: Technical Information
To remove the lens tube (sold separately), unscrew the beam focus knobs. Follow any maintenance and cleaning instructions supplied with the lens tube. Always close the framing shutters when transporting or storing the product. OVATION E-190WW User Manual Rev. 8 -15-... -
Page 20: Technical Specifications
Cooling System 113 °F (45 °C) Fan-Assisted Convection I/O Connectors Connector Type Channel Range 3- and 5-pin XLR Sockets 1, 2 or 3 Ordering Product Name Item Code UPC Number OVATION E-190WW 01120650 781462209988 -16- OVATION E-190WW User Manual Rev. 8... -
Page 21: Returns
+32 9 388 93 97 Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux contact the dealer of record. Follow their instructions to request support or to return a product. Visit our website for contact details. OVATION E-190WW User Manual Rev. 8...
