TABLE OF CONTENTS
1 Safety Precautions----------------------------------------------- 2
2 Specifications ----------------------------------------------------- 3
3 Location of Controls and Components ------------------- 5
4 Installation Instructions ---------------------------------------- 6
5 Operating Instructions------------------------------------------ 8
6 Test Mode ----------------------------------------------------------10
7 Service Mode -----------------------------------------------------12
8 Troubleshooting Guide ----------------------------------------13
9 Torque Values ----------------------------------------------------14
10 Disassembly and Assembly Instructions ---------------15

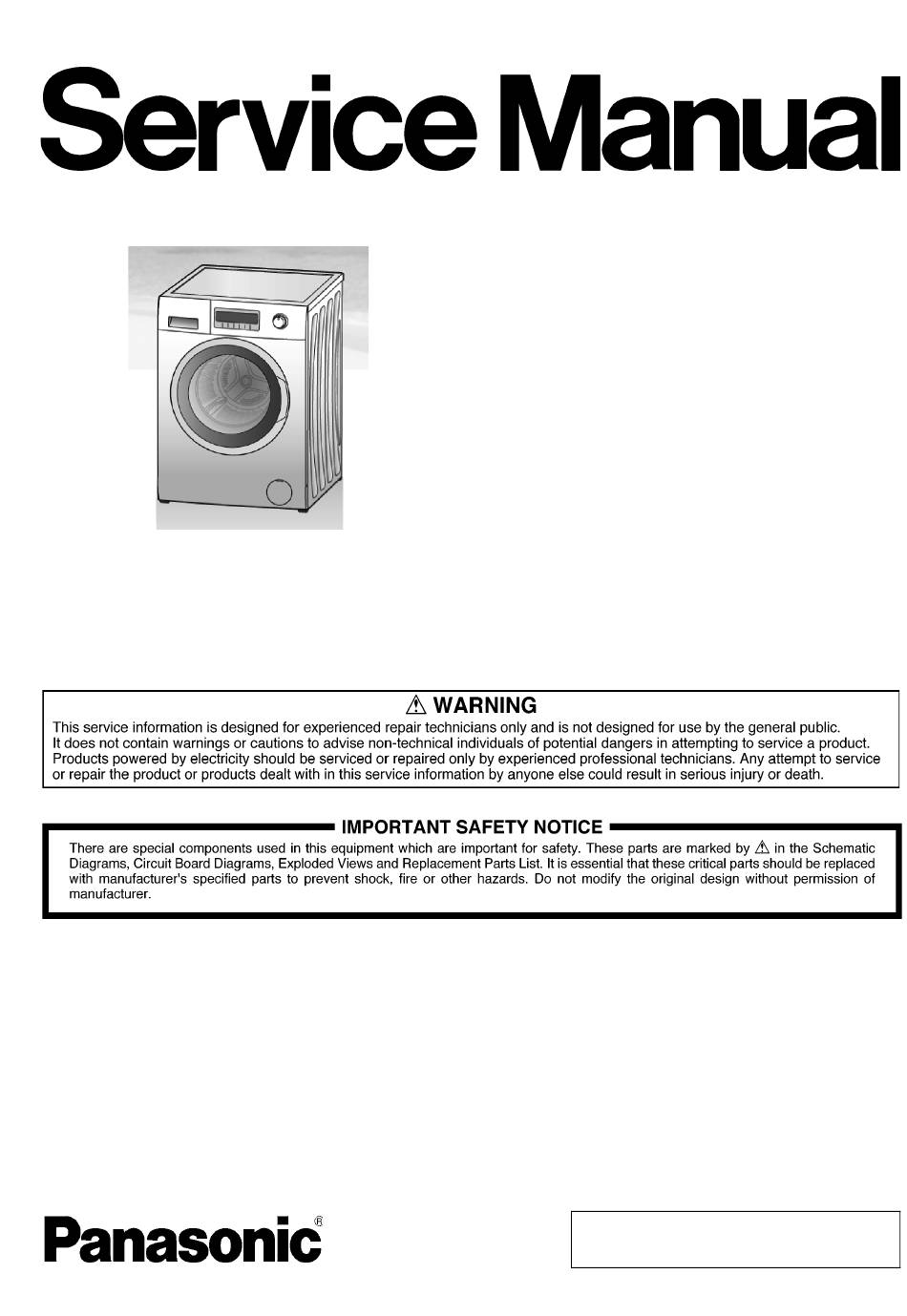

Drum Type Washing Machine
Model No.
Model No.
Model No.
Model No.
Model No.
Model No.
Model No.
Product Color : White
Destination
PAGE
11 Component Specifications ---------------------------------- 26
12 Wiring Connection Diagram--------------------------------- 34
13 Exploded View and Replacement Parts List ----------- 36
© Panasonic Corporation 2015 Unauthorized copy-
ing and distribution is a violation of law.
Order No. VES1504003CE
NA-127VB6WGB
NA-127VB6WFR
NA-127VB6WES
NA-127VB6WTA
NA-127VB6WPL
NA-127VB6WGN
NA-127VB6WNR
: UK, Ireland, France, Spain, Italy, Poland,
Estonia, Latvia, Lithuania, Czech, Hun-
gary, Romania, Slovakia, Croatia, Ser-
bia, Slovenia, Bosnia-Herzegovina,
Holland, Belgium, Sweden, Norway,
Denmark, Finland
PAGE
Advertisement
Table of Contents
Related Manuals for Panasonic NA-127VB6WGB
Summary of Contents for Panasonic NA-127VB6WGB
-
Page 1: Table Of Contents
5 Operating Instructions------------------------------------------ 8 6 Test Mode ----------------------------------------------------------10 7 Service Mode -----------------------------------------------------12 8 Troubleshooting Guide ----------------------------------------13 9 Torque Values ----------------------------------------------------14 10 Disassembly and Assembly Instructions ---------------15 © Panasonic Corporation 2015 Unauthorized copy- ing and distribution is a violation of law. -
Page 3: Specifications
2. Specifications 2.1. Product Specifications Model NA-127VB6 Product Type Front Loader Capacity 7 kg Max Spin Speed 1200 rpm Drum Volume 50 lt Energy Label Rating A+++ Energy Consumption 162 kWh / annum Water Consumption 9240 L / annum Wash 58 dBA Noise Level Spin... - Page 4 2.3. Dimension in millimetres NA-127VB6...
-
Page 5: Location Of Controls And Components
3. Location of Controls and Components... -
Page 6: Installation Instructions
4. Installation Instructions Moving and Installing 4.1. 4.1.1. Removal of Transportation Screw 4.1.2. Foot Adjustment 1. Transportation screws, which are located at the back side of 1. Do not install machine on rugs or similar surfaces. the machine, must be removed before running the machine. 2. - Page 7 4.1.4. Water Supply Connection 1. Washing machine is supplied with a single (cold) water inlet. 2. To prevent leakage from the connection joints, a rubber washer is included in the hose packing. Fit this washer at the end of water inlet hose on the tap side. 3.
-
Page 8: Operating Instructions
5. Operating Instructions 5.1. LCD Screen, Function Buttons & Knobs Program selector 16 programs including off position Switch 1, Start / Pause Switch 2, Temperature Selection Switch 3, Spin Speed Selection Switch 4, Delay Timer Selection Switch 5, Extra Rinse Option Switch 6, Easy Ironing Option Switch 7, Eco/Speed Mode Option 7 Segment LCD for Temperature Display... - Page 9 5.2. Program Details...
-
Page 10: Test Mode
5.3. Child Lock Activation The Child Lock Symbol on appears on the LCD display as Child Press SW7 for 5 seconds. Lock is active. Deactivation Press SW7 for 5 seconds. The Child Lock Symbol will disappear on LCD display upon deactivation. - Page 11 AUTOTEST Time in seconds (to be adjusted) Entering autotest Changing power to 220 50Hz Main Voltage 50 Hz Door Lock Powered (Depends on door lock) Motor Ramp to max spin (max. is 15 sec.) Time until motor is stopped (Depends on the motor stop time) Motor Preferred Run (Direction to Right) Motor Inverse Run (Direction to Left) EV1 (flowrate dependent of washer)
-
Page 12: Service Mode
7. Service Mode 7.1. Service Autotest 1. Set PR to program 3 (Colours) and press SW2 (T°C) 2. While pressing the SW2, change PR position from third to second, and release the SW2 button. 3. Bring PR to desired test step (1 ,2nd or 3 program position) as soon as “SAU”... -
Page 13: Troubleshooting Guide
7.2. Failure Codes Indication For User Indication For Service Error Indication Error Number Yes/No Yes/No Door is not locked Door is unlocked during programme Lack of water Pump failure Overflow NTC or Heater Failure Motor Failure - 1 (Tachometer open-short circuit or motor connector is disconnected) Motor Failure - 2 (triac short circuit) Electronic Pressure Sensor... -
Page 14: Torque Values
FAILURE PROBABLE CAUSE METHODS OF ELIMINATION Press the start/pause button. In order to stop the foam, dilute one table-spoon of softener in Too much detergent has been half liter of water and pour it in the detergent Excessive foam in used. -
Page 15: Disassembly And Assembly Instructions
10. Disassembly and Assembly Instructions 10.1. Top Plate Remove two screws that fix the top-plate at the back. Push the top-plate back and pull it up. 10.2. Door Remove two screws that fix the door. (by using T25 tool) Pull the door up. Remove screws that fix the door group. - Page 16 Remove the door handle. Remove the door handle pin. 10.3. Spring Wire First remove the spring wire fixing the tub bellows seal by using the small size screw driver. Pull the tub bellows Remove the tub bellows seal-body fixing spring. seal.
- Page 17 Pull the control panel out 10.6. Electronic Card Release the socket fixing plastic by depressing the taps with Depress the taps fixing the card by using a screwdriver the help of a screwdriver Remove the card out off panel Remove the sockets on the card. After releasing sockets, remove PCB box from its housing Disassemble the PCD box and its cover.
- Page 18 Remove the LCD screen by depressing the taps by using a Remove the card from its housing and unplug its connector. screwdriver. 10.7. Front Panel Remove the screw fixing the front panel at the bottom Remove two screws fixing the door lock Remove the tub bellows seal.
- Page 19 10.8. Support Bracket Remove two clips fixing detergent drawer housing to upper support bracket 10.9. Detergent Drawer Housing Remove the tub bellow hose by releasing the holder Unplug connectors from feed valve extensions of bellow hose Slightly turn the feed valve counter-clockwise to remove Remove the detergent drawer housing assembly 10.10.
- Page 20 Pull the power cable group up Remove EMI filter 10.11. Electronic Pressure Switch (EPS) Unplug EPS connector Pull EPS up 10.12. Door Lock Remove clamp from EPS hose Unplug door lock connector 10.13. Drain Pump Remove clamp holding drain hose by using a plier Remove clamp fixing tub outlet hose...
- Page 21 Unplug drain pump connector Remove screws holding drain pump 10.14. Front Counterweight Remove three screws on the front counterweight. Gently pull counterweight out (Wrench size 13 mm) 10.15. Heater Unplug heater connectors Remove nut (8 mm) fixing the heater Pull heater out gently holding both sides.
- Page 22 10.16. Twinjet System Remove twinjet hoses from tub bellow seal pulling Remove screw fixing circulation pump them up Lay the appliance down and press on ratchet holding Remove circulation pump circulation pump Remove cable connector Remove hose connecting circulation pump to drain pump 10.17.
- Page 23 10.18. Transport Screw Remove four transport screws Hold the transport screw and pull it out. 10.19. Upper Counterweight Remove two screws fixing the upper counterweight by Hold and carry upper-counterweight out. using box wrench size 13 mm 10.20. Washing Group Unplug motor connectors Cut all the cable ties which fix cable group Remove the screws fixing hanger bracket...
- Page 24 10.21. Shock Absorber Pin 10.22. Driven Pulley Remove shock absorber pins squeezing the ratchet by a Remove the belt rotating the driven pulley pliers 10.23. Driven Pulley Remove the bolt at the center of pulley by tucking a Remove pulley wooden bar avoids rotation 10.24.
- Page 25 Remove tub outlet bellowed hose loosening screwed- Remove 19 screws around tub using box wrench size 8 mm clamp Remove front tub Remove drum...
- Page 26 Component Specifications 11.1. Drain Pump Drain pump is both a mechanical and electrical component which is used to drain water inside the washing machine. It has a synchronous motor inside. For better performance maintenance, pump filter should be cleaned regularly. Drain pump Technical features Nominal voltage...
- Page 27 11.2. Heater Heating element (Resistance) is a component which is designed to regulate temperature of water inside the drum. It three connections: Phase, neutral ground connections. Resistance Technical features Heater type Tubular heating element Nominal power 2000 W (±5%) with NTC – sensor Resistance 26.4 ±5% Ω...
- Page 28 11.3. NTC Component which sends signals to PCB about the water temperature inside the tub. The Resistance (Ohm) value of the NTC decreases as the temperature increases. Technical features R min R max R min R max (°C) (kΩ) (kΩ) (°C) (kΩ) (kΩ)
- Page 29 11.4. Valve Valve is an electrical and mechanical component which is designed to take water from the network system into the washing machine. It is operated by PCB card. Valve Technical features Nominal voltage 220-240 V Rated flow 7 L/min (±15 %) Nominal power 8 VA Operating water pressure...
- Page 30 11.5. Electronic Pressure Sensor (EPS) Electromagnetic field occurs due to movement of pressurized membrane. The spring moves vertically by nucleus due to electromagnetic field. The water level is regulated according to the frequency changes of the spring by electronic card. Testing component Push the door lock slider with screwdriver Select the 1st program and start the machine...
- Page 31 11.6. Motor The washing machine has an asynchronous motor. It is controlled by the PCB. It is essential to check the motor for correct diagnosis and quick servicing. In the below picture, socket points on the motor is shown to measure with multimeter.
- Page 32 11.7. Door Lock Door lock is activated at the beginning of the program in order to prevent the door from opening. Locking is generated by supplying power to PTC-bimetal, after max 6sec (220V), the bimetal will be warm and ready to close the contacts.
- Page 33 11.8. Circulation Pump The component is used for circulation of water inside the drum in order to increase washing performance. Circulation Pump Technical features Nominal voltage 220 - 240 V Frequency 50 Hz Resistor (coil) 169.5 Ω (±5%) Testing component Check the resistance value on the component with multimeter as shown below.
