Panasonic NA-127VB6WSR Service Manual

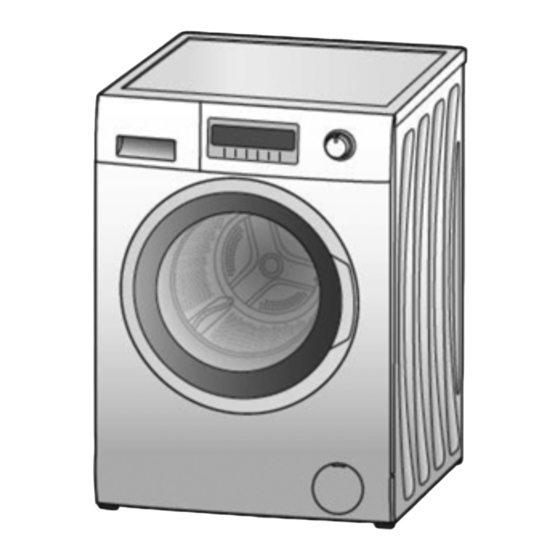

Drum type washing machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

TABLE OF CONTENTS

1 Safety Precautions----------------------------------------------- 2
2 Specifications ----------------------------------------------------- 3
4 Installation Instructions ---------------------------------------- 6
5 Operating Instructions------------------------------------------ 8
6 Test Mode ----------------------------------------------------------10
7 Service Mode -----------------------------------------------------12
8 Troubleshooting Guide ----------------------------------------14
9 Critical Torque Values -----------------------------------------15
11 Component Specifications -----------------------------------32
12 Wiring Connection Diagram ---------------------------------40
Drum Type Washing Machine
Model No.
Product Colour : White
Destination
PAGE
© Panasonic Corporation 2016 Unauthorized copy-
ing and distribution is a violation of law.
Order No. VES1605003CE
NA-127VB6WSR
: ISRAEL
PAGE

Advertisement

Table of Contents
loading

Related Manuals for Panasonic NA-127VB6WSR

Summary of Contents for Panasonic NA-127VB6WSR

  • Page 1: Table Of Contents

    9 Critical Torque Values -----------------------------------------15 10 Disassembly and Assembly Instructions ---------------16 11 Component Specifications -----------------------------------32 12 Wiring Connection Diagram ---------------------------------40 13 Exploded View and Replacement Parts List -----------42 © Panasonic Corporation 2016 Unauthorized copy- ing and distribution is a violation of law.

  • Page 2: Safety Precautions

    1 Safety Precautions...

  • Page 3: Specifications

    2 Specifications 2.1. Product Specifications Model NA-127VB6 Product Type Front Loader Capacity 7 kg Max Spin Speed 1200 rpm Drum Volume 50 lt Energy Label Rating A+++ Energy Consumption 162 kWh / annum Water Consumption 9240 L/annum Wash 58 dBA Noise Level Spin 74 dBA...
  • Page 4 2.3. Dimension Dimension in millimetres NA-127VB6...

  • Page 5: Location Of Controls And Components

    3 Location of Controls and Components...

  • Page 6: Installation Instructions

    4 Installation Instructions 4.1. Moving and Installing 4.1.1. Removal of Transportation Screw 4.1.2. Foot Adjustment 1. Transportation screws, which are located at the back side 1. Do not install machine on rugs or similar surfaces. of the machine, must be removed before running the 2.
  • Page 7 4.1.4. Water Supply Connection 4.2. Detergent Box Group 1. Washing machine is supplied with a single (cold) water inlet. 2. To prevent leakage from the connection joints, a rubber washer is included in the hose packing. Fit this washer at the end of water inlet hose on the tap side.

  • Page 8: Operating Instructions

    5 Operating Instructions 5.1. LCD Screen, Function Buttons & Knobs Program selector 16 programs including off position Switch 1, Start / Pause Switch 2, Temperature Selection Switch 3, Spin Speed Selection Switch 4, Delay Timer Selection Switch 5, Extra Rinse Option Switch 6, Easy Ironing Option Switch 7, Eco/Speed Mode Option 7 Segment LCD for Temperature Display...
  • Page 9 5.2. Program Details...

  • Page 10: Test Mode

    5.3. Child Lock Activation Deactivation 1. Press SW7 for 5 seconds. 1. Press SW7 for 5 seconds. 2. The Child Lock Symbol on appears on the LCD display as 2. The Child Lock Symbol will disappear on LCD display Child Lock is active. upon deactivation.

  • Page 12: Service Mode

    7 Service Mode 7.1. Service Autotest 1. Set PR to program 3 (Colours) and press SW2 (T°C) 2. While pressing the SW2, change PR position from third to second, and release the SW2 button. 3. Bring PR to desired test step (1st ,2nd or 3rd program position) as soon as “SAU” is displayed on LCD. LCD Display status: I2 Door Lock Symbol ...
  • Page 13 7.2. Failure Codes Indication For User Indication For Service Error Indication Error Number Yes/No Yes/No Door is not locked Door is unlocked during programme Lack of water Pump failure Overflow NTC or Heater Failure Motor Failure - 1 (Tachometer open-short circuit or motor connector is disconnected) Motor Failure - 2 (triac short circuit) Electronic Pressure Sensor...

  • Page 14: Troubleshooting Guide

    8 Troubleshooting Guide All repairs which must be done on the machine should be done by authorized agents only. When a repair is required for machine or you are unable to eliminate the failure with the help of the information given below: •...

  • Page 15: Critical Torque Values

    9 Critical Torque Values ASSEMBLY LOCATION BOLT/NUT TORQUE TORQUE TORQUE Air Pressure MIN. (Nm) NOM. (Nm) MAX. (Nm) Wrench (rpm) * Transport Screw Assembly Transport Screws 6.50 6.50 7.00 1000 * Motor Assembly Motor Screws 6.00 6.50 7.50 * Front Concrete Weight - Front Front Counterweight Screws 14.00 14.50...

  • Page 16: Disassembly And Assembly Instructions

    Disassembly and Assembly Instructions 10.1. Top Plate 10.2. Door 1. Remove two screws that fix the top-plate at the back. 1. Remove two screws that fix the door. (by using T25 tool) 2. Push the top-plate back and pull it up. 2.
  • Page 17 3. Remove screws that fix the door group. 6. Remove six screws that fix the door hinge. 4. Put the door outside plastic with helping screwdriver. 7. Remove the door handle. 5. Remove the door inside plastic. 8. Remove the door handle pin.
  • Page 18 10.3. Spring Wire 10.4. Detergent Drawer 1. First remove the spring wire fixing the tub bellows seal by 1. Gently pull the detergent drawer. using the small size screwdriver. Pull the tub bellows seal. 2. While pressing siphon cover keep pulling drawer to remove it.
  • Page 19 10.5. Control Panel 10.6. Electronic Card 1. Remove the screw which fixes the control panel to the 1. Depress the taps fixing the card by using a screwdriver. front panel. 2. Release the socket fixing plastic by depressing the taps 2.
  • Page 20 5. After releasing sockets, remove PCB box from its housing 9. Remove the card from its housing and unplug its connec- around the box. tor. 6. Disassemble the PCD box and its cover. 10. Remove the LCD screen by depressing the taps by using a screwdriver.
  • Page 21 10.7. Front Panel 4. Remove the tub bellows seal. 1. Remove the screw fixing the front panel at the bottom. 2. Remove two screws fixing the door lock. 5. Remove two screws fixing front panel to body. 6. Pull front panel up. 7.
  • Page 22 10.8. Support Bracket 10.9. Detergent Drawer Housing 1. Remove two clips fixing detergent drawer housing to 1. Remove the tub bellow hose by releasing the holder upper support bracket.. extensions of bellow hose. 2. Unplug connectors from feed valve. 3. Slightly turn the feed valve counter-clockwise to remove. 4.
  • Page 23 10.10. Power Cable Group and EMI 4. Remove EMI filter. Filter 1. Remove the five connectors that is connected to the EMI filter. 2. Remove two screws fixing the EMI filter. 3. Pull the power cable group up.
  • Page 24 10.11. Electronic Pressure Switch 10.12. Door Lock (EPS) 1. Unplug door lock connector. 1. Unplug EPS connector. 10.13. Drain Pump 2. Pull EPS up. 1. Remove clamp holding drain hose by using a plier. 3. Remove clamp from EPS hose. 2.
  • Page 25 3. Unplug drain pump connector. 10.14. Front Counterweight 1. Remove three screws on the front counterweight. (Wrench size 13 mm) 4. Remove screws holding drain pump. 2. Gently pull counterweight out.
  • Page 26 10.15. Heater 10.16. Twinjet System 1. Unplug heater connectors. 1. Remove twinjet hoses from tub bellow seal pulling them 2. Remove nut (8 mm) fixing the heater. 2. Remove screw fixing circulation pump. 3. Pull heater out gently holding both sides. 3.
  • Page 27 4. Remove circulation pump. 10.17. Tub Bellow Seal 1. Remove the tub gasket clip by using small screwdriver. 5. Remove cable connector. 2. Hold the tub bellows seal and gasket-body fixing spring together, and pull them out. 6. Remove hose connecting circulation pump to drain pump.
  • Page 28 10.18. Transport Screw 10.19. Upper Counterweight 1. Remove four transport screws. 1. Remove two screws fixing the upper counterweight by using box wrench size 13 mm. 2. Hold the transport screw and pull it out. 2. Hold and carry upper-counterweight out.
  • Page 29 10.20. Washing Group 4. Remove the washing group carrying it out through front side. 1. Unplug motor connectors. 2. Cut all the cable ties which fix cable group. 10.21. Shock Absorber Pin 1. Remove shock absorber pins squeezing the ratchet by a pliers.
  • Page 30 10.22. Belt 10.24. Motor 1. Remove the belt rotating the driven pulley. 1. Remove two screws holding motor by using box wrench. 2. Pull motor up. 10.23. Driven Pulley 1. Remove the bolt at the center of pulley by tucking a wooden bar avoids rotation.
  • Page 31 10.25. Tub 4. Remove 19 screws around tub using box wrench size 8 1. Remove tub inlet bellow hose loosening the clamp squeezing it by using a pliers. 5. Remove front tub. 2. Remove screw holding EPS reservoir. 3. Remove tub outlet bellowed hose loosening screwed- clamp.

  • Page 32: Component Specifications

    11 Component Specifications 11.1. Drain Pump Drain pump is both a mechanical and electrical component which is used to drain water inside the washing machine. It has an synchronous motor inside. For better performance maintenance, pump filter should be cleaned regularly. Technical features 136 ...
  • Page 33 11.2. Heater Heating element (Resistance) is a component which is designed to regulate temperature of water inside the drum. It has three connections: Phase, neutral and ground con- nections. Technical features Nominal power 2000 W (±5%) Heater type Tubular heating element with NTC-sensor 26.4 ±5% ...
  • Page 34 11.3. NTC Component which sends signals to PCB about the water temperature inside the tub. The Resistance (Ohm) value of the NTC decreases as the temperature increases. Technical features Testing component Check the resistance value on the component with multimeter as shown below. You can determine the ohm value by measuring from the socket with two black cables (referring to X7 on the wiring diagram).
  • Page 35 11.4. Valve Valve is an electrical and mechanical component which is designed to take water from the network system into the washining machine. It is operated by PCB card. Technical features Nominal voltage 220-240 V Rated flow 7 L/min (±15 %) Nominal power 8 VA Operating water pressure...
  • Page 36 11.5. Electronic Pressure Sensor (EPS) Electromagnetic field occurs due to movement of pressur- ized membrane. The spring moves vertically by nucleus due to electromagnetic field. The water level is regulated according to the frequency changes of the spring by elec- tronic card.
  • Page 37 11.6. Motor The washing machine has an asynchronous motor. It is controlled by the PCB. It is essential to check the motor for correct diagnosis and quick servicing. In the below picture, socket points on the motor is shown to measure with multi- meter.
  • Page 38 11.7. Door Lock Door lock is activated at the beginning of the program in order to prevent the door from opening. Locking is gener- ated by supplying power to PTC-bimetal, after max 6sec (220V), the bimetal will be warm and ready to close the contacts.
  • Page 39 11.8. Circulation Pump The component is used for circulation of water inside the drum in order to increase washing performance. Technical features Nominal voltage 220-240 V Frequency 50 Hz 169,5  (±5%) Resistor (coil) Testing component Check the resistance value on the component with multimeter as shown below. Resistance value should be between 160 - 180 ...

  • Page 40: Wiring Connection Diagram

    12 Wiring Connection Diagram 12.1. Wiring Diagram (Board)
  • Page 41 12.2. Wiring Diagram (Socket)

  • Page 42: Exploded View And Replacement Parts List

    13 Exploded View and Replacement Parts List 13.1. Control Panel Parts 13.1.1. Exploded View Control Panel Parts 13.1.2. Control Panel Spare Parts (U) : Indicates parts at the remarks that can be replaced by user. : Components identified with have special characteristics important for safety. When replacing any of these components use only manufacture’s specified parts.
  • Page 43 13.2. Front Panel Spare Parts 13.2.1. Exploded View Front Panel Spare Parts 13.2.2. Front Panel Spare Parts List Safety Ref. No. Part Name & Description Parts No. Remarks BODY GROUP PAINTED AXW1AB-13489 UPPER TRAY GROUP AXW11N-16356 FRONT PANEL GROUP AXW1BB-27924 ADJUSTABLE FEET GR.
  • Page 44 13.3. Washing Group Spare Parts 13.3.1. Exploded View Washing Group Spare Parts...
  • Page 45 13.3.2. Washing Group Spare Parts List Safety Ref. No. Part Name & Description Parts No. Remarks REAR TUB GROUP AXW12A-90585 FRONT TUB AXW32G-59330 DRUM GROUP AXW22B-13458 MOTOR AXW401-13066 TUB SEAL AXW212-15077 DRIVEN PULLEY AXW502-00499 BELT AXW412-25178 COUNTERSUNK HEAD BOLT 8X28 TORX AXWSS1-07899 TUB ENTERANCE WITH BELLOW HOSE AXWEBH-87110...
  • Page 46 13.4. Detergent Drawer Group Spare Parts 13.4.1. Exploded View Detergent Drawer Group Spare Parts 13.4.2. Detergent Drawer Group Spare Parts List Safety Ref. No. Part Name & Description Parts No. Remarks DETERGENT DRAWER AXW1V-065303 SIPHON COVER AXW1PV-65308 DETERGENT DRAWER LOC. PART-BLUE AXW1DD-65309 WATER DISTRIBUTION PLATE GR AXW1WD-65322...
  • Page 47 13.5. Pressure Switch Hose Group Spare Parts 13.5.1. Exploded View Pressure Switch Hose Group Spare Parts 13.5.2. Pressure Switch Hose Group Spare Parts List Safety Ref. No. Part Name & Description Parts No. Remarks PRESSURE SWITCH HOSE (EPDM) AXW1PS-78599 PRESSURE SWITCH WATER RESERVOIR AXW1PS-88879 TUB EXIT BELLOWS GR(HOSE+BALL) AXW1250-7585...
  • Page 48 13.6. Body Group Spare Parts 13.6.1. Exploded View Body Group Spare Parts...
  • Page 49 13.6.2. Body Group Spare Parts List Safety Ref. No. Part Name & Description Parts No. Remarks WATER ENTRY HOSE GROUP AXW12C-14423 UPPER SUPPORT BRAKET AXW1US-96100 PUMP GROUP AXW8FT-06391 DRAIN HOSE ROUTER PLASTIC AXW1DH-19322 DRAIN HOSE AXW1DH-74837 ELECTRONIC PRESSURE SENSOR AXW1EP-06187 EMI FILTER AXW2EF-15002 CABLE GR...
  • Page 50 13.7. Porthole Group Spare Parts 13.7.1. Exploded View Porthole Group Spare Parts 13.7.2. Porthole Group Spare Parts List Safety Ref. No. Part Name & Description Parts No. Remarks OUTER DOOR PLASTIC AXW1DP-93322 DOOR GLASS AXW1GD-03771 INNER DOOR PLASTIC AXW1DP-86999 HINGE II-M5 AXW192-15559 HINGE BUSHING II AXW192-23907...
  • Page 51 13.8. CIRCULATION GROUP 13.8.1. Exploded View of Circulation Pump Spare Parts 13.8.2. Circulation Pump Spare Parts List Safety Ref. No. Part Name & Description Parts No. Remarks TUB BELLOWS SEAL AXW212-25995 PUMP GROUP(FILTER)(THER. PROTECT.) AXW8FT-06391 SCREW 4X14 PAN HEAD TYPE 2 AXWSB8-16360 ISO 7049 ST 42x13 TYPE 2 AXWSS2-08716...
  • Page 52 13.9. Accessories 13.9.1. Accessories 13.9.2. Accessories Spare Parts List Safety Ref. No. Part Name & Description Parts No. Remarks USER'S MANUEL AXW4F-157593 SERVICE LIST AXW9911-9390 ENERGY LABEL AXW90EL-8560 LIQUID DETERGENT LEVEL PLATE AXW51D-65310 DRAIN HOSE COAT RACK AXW90HC-0601 TRANSPORT SCREW STOPPER AXW1TS-16405...
  • Page 53 13.10. Packaging Group Spare Parts 13.10.1. Exploded View of Packaging Group Spare Parts...
  • Page 54 13.10.2. Package Group Spare Parts List Safety Ref. No. Part Name & Description Parts No. Remarks BOTTOM STYROFOAM AXWPV-154370 TOP CARTON AXWPV-152496 REAR STYROFOAM(LEFT) AXWPV-277830 REAR STYROFOAM(RIGHT) AXWPV-277820 FRONT STYROFOAM LEFT AXWPV-277810 FRONT STYROFOAM RIGHT AXWPV-280760 CORNER CARDBOARD AXWPV-002040 TUB SUPPORT STYROFOAM AXWPV-053000 PACKAGE CARTON AXWPV-160507...
