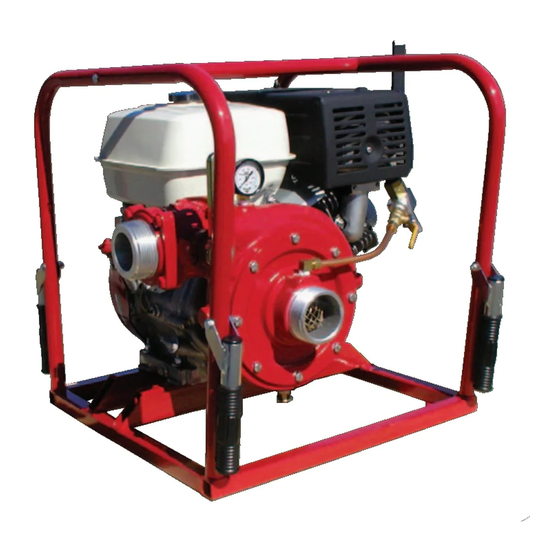

PFP-9hpHND-M
Congratulation, you have just purchased a C.E.T. portable pump. If you follow the procedures in this
operation manual, it will give you years of use without any problems.
ENGINE SPECIFIC TIONS
• Honda 9hp at 3600 RPM, air cooled engine.
• Single cylinder gasoline engine.
• Manual recoil start.
• 6 quarts (6.5 l) integrated fuel tank.
PUMP UNIT SPECIFIC TIONS
• Direct drive C.E.T. single stage centrifugal pump.
• Pump body made from resistant aluminum alloy.
• Bronze impeller.
• Mechanical shaft seal.
• Exhaust priming system, guaranteed up to 20' (6 meter) lift.
• One 2 1/2" (65 mm) delivery outlet with 1/4-turn ball valve.
• One 2 1/2" (65 mm) suction inlet.
• Dimensions : Length : 22 1/4" (565 mm); Width : 23 1/4" (590 mm); Height : 22 5/8" (574 mm).
• Weight : 105 lbs (48 kg).
INCLUDED
CCESSORIES
• Pressure gauge.
• Low oil alert.
PERFORM NCE
190 GPM (718 LPM) @ 25 PSI (1.7 bar)
115 GPM (435 LPM) @ 50 PSI (3.5 bar)
75 GPM (284 LPM) @ 75 PSI (5.2 bar)
40 GPM (151 LPM) @ 100 PSI (6.9 bar)
Your pump comes with a full year warranty on all mechanical components.
DOS
ND DONTS
Do...
• Read your Honda owner's manual
• Close your drain valve on the pump casing before starting the engine
• Seal up any air that could leak into the suction side
• Stop your pump before fuelling
Do Not...
• Let your pump freeze up with water in it (drain the casing )
• Allow sand in the suction it will damage the wear ring and the mechanical seal (use floating strainer if water supply doubtful)
• Run your pump dry for more than 2 minutes at idle (prime as soon as possible)
• Run the engine with exhaust closed after the pump is primed
• Use your pump with less than 12 in of water below the inlet of the suction hose
• Allow your pump to run without surveillance
• Run the pump with the discharge valve closed for more than 1 minute
ACCEPT ONLY THE BEST
75 Hector St., P.O. Box 90, Pierreville (Québec) Canada J0G 1J0
A C E N T U R Y O F E N G I N E E R I N G F O R T H E B R AV E S T
INSTRUCTIONS M NU L
Telephone: 1-800-567-2719
Fax: 1-800-434-2613
www.fire-pump.com
