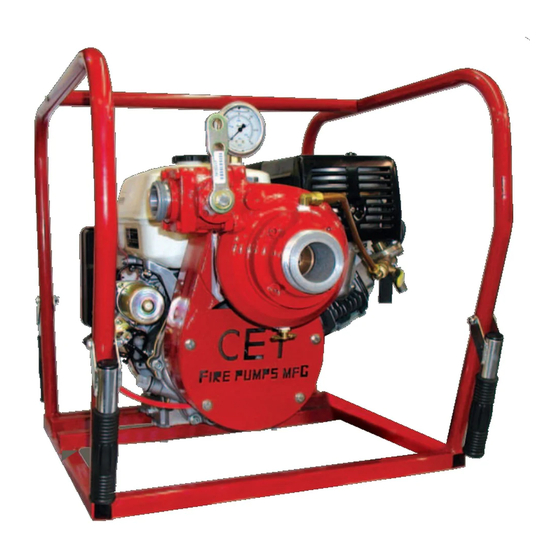

CET PFP-11hpHND-M-HP Instruction Manual

PFP-11hpHND-M-HP
Congratulation, you have just purchased a C.E.T. portable pump. If you follow the procedures in this
operation manual, it will give you years of use without any problems.
ENGINE SPECIFIC TIONS
• Honda 11hp at 3600 RPM, air cooled engine.
• Single cylinder gasoline engine.
• Manual recoil start.
• 6 quarts (6.5 l) integrated fuel tank.
PUMP UNIT SPECIFIC TIONS
• Transmission drive C.E.T. single stage centrifugal pump.
• Pump body made from resistant aluminum alloy.
• Bronze impeller.
• Mechanical shaft seal.
• Stainless steel pump shaft
• Exhaust priming system, guaranteed up to 15' (4.5 meter) lift.
• One 1 1/2" (38 mm) delivery outlet with 1/4-turn ball valve.
• One 2 1/2 " (65 mm) suction inlet.
• Dimensions : Length : 24" (609 mm); Width : 26 3/4 " (679 mm); Height : 23 7/8" (606 mm).
• Weight : 150 lbs (68 kg).
INCLUDED CCESSORIES
• Pressure gauge.
• Low oil alert.
PERFORM NCE
72 GPM (272 LPM) @ 50 PSI (3.5 bar)
65 GPM (246 LPM) @ 100 PSI (6.9 bar)
42 GPM (159 LPM) @ 150 PSI (10.3 bar)
15 GPM (57 LPM) @ 175 PSI (12.1 bar)
5 GPM (19 LPM) @ 200 PSI (13.8 bar)
Your pump comes with a full year warranty on all mechanical components.
