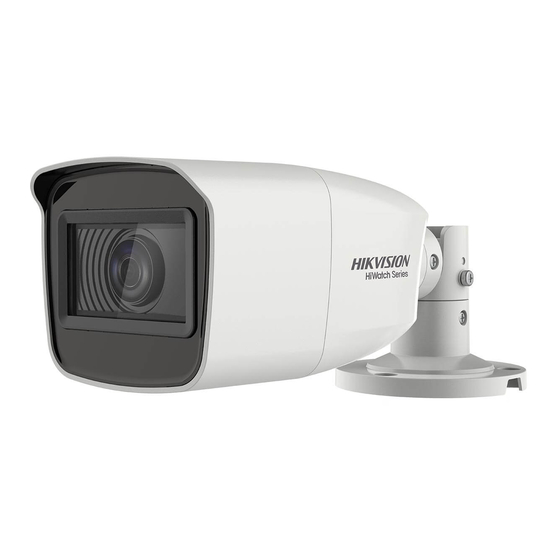

HIKVISION HWT-B323-Z User Manual

Hd vf bullet & turret & dome camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Bullet & Turret & Dome
User Manual
Thank you for purchasing our product. If there are any
questions, or requests, do not hesitate to contact the
dealer.
This manual applies to the models below:
Type
Type I Camera
Type II Camera
Type III Camera
This manual may contain several technical incorrect
places or printing errors, and the content is subject to
change without notice. The updates will be added to
the new version of this manual. We will readily improve
or update the products or procedures described in the
manual.
User Manual
Model
HWT-B323-Z
HWT-T323-Z
HWT-D323-Z
HD VF
Camera
0100001080814

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HWT-B323-Z and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HIKVISION HWT-B323-Z

Summary of Contents for HIKVISION HWT-B323-Z

  • Page 1 This manual applies to the models below: Type Model Type I Camera HWT-B323-Z Type II Camera HWT-T323-Z Type III Camera HWT-D323-Z This manual may contain several technical incorrect places or printing errors, and the content is subject to change without notice.

  • Page 2: Regulatory Information

    Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
  • Page 3 Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions”. Warnings: Serious injury or death may occur if any of the warnings are neglected.
  • Page 4 Keep the camera away from liquid while in use for  non-water-proof device. While in delivery, the camera shall be packed in its  original packing, or packing of the same texture. Mark Description Table 0-1 Mark Description Mark Description DC Voltage 1 Introduction 1.1 Product Features...
  • Page 5 1.2.3 Overview of Type III Camera Switch Button Mounting Base Power Cord DC12V 12 VDC Video Cable Black Liner Bubble Figure 1-3 Overview of Type III Camera Note: Press and hold the switch button for 5 seconds to switch the video output. Four kinds of video outputs are available: TVI, AHD, CVI, and CVBS.

  • Page 6: Installation

    2 Installation Before you start: Make sure that the device in the package is in good  condition and all the assembly parts are included. Make sure that all the related equipment is power-off  during the installation. Check the specification of the products for the ...
  • Page 7 Note: The supplied screw package contains self-tapping  screws, and expansion bolts. For cement wall, expansion bolts are required to  fix the camera. For wooden wall, self-tapping screws are required. 5. Connect the corresponding power cord, and video cable. 6.
  • Page 8 Figure 2-5 Drill Template Note: Drill the cable hole, when adopting the ceiling outlet to route the cable 4. Attach the mounting base to the ceiling, and secure them with supplied screws. Figure 2-6 Attach the Mounting Base to the Ceiling Note: The supplied screw package contains ...
  • Page 9 not, adjust the camera according to the figure below to get an optimum angle. Pan Position [0° to 360°] Tilt Position [0° to 75°] Rotation Position [0° to 360°] Figure 2-8 3-axis Adjustment 1). Rotate the enclosure to adjust the pan position [0°...
  • Page 10 Figure 2-11 Secure the Mounting Base Note: In the supplied screw package, both self-tapping  screws and expansion bolts are contained. For cement ceiling, expansion bolts are required  to fix the camera. For wooden ceiling, self-tapping screws are required. 5.

  • Page 11: Menu Description

    3 Menu Description Purpose: Call the menu by clicking button on the PTZ Control interface, or call the preset No.95. Steps: 1. Connect the camera with the TVI DVR, and the monitor, shown as the figure 3-1. Figure 3-1 Connection 2.

  • Page 12: Video Format

    3). Click left/right direction button to adjust the value of the selected item. 3.1 VIDEO FORMAT You can select the video format as 2MP@25fps , or 2MP@30fps. Note: When switching the video output as CVBS, you can set the video format as PAL, or NTSC. 3.2 EXPOSURE You can set the EXPOSURE MODE as GLOBAL, BLC, or WDR.

  • Page 13: Video Settings

    Figure 3-3 DAY NIGHT IR LIGHT  You can turn on/off the IR Light to meet the requirements of different circumstances. SMART IR  The Smart IR function is used to adjust the light to its most suitable intensity, and prevent the image from over exposure.

  • Page 14: Image Mode

    IMAGE MODE IMAGE MODE is used to adjust the image saturation, and you can set it as STD (Standard) or HIGH-SAT (High Saturation). BRIGHTNESS Brightness refers to the brightness of the image. You can set the brightness value from 1 to 9 to darken or brighten the image.
