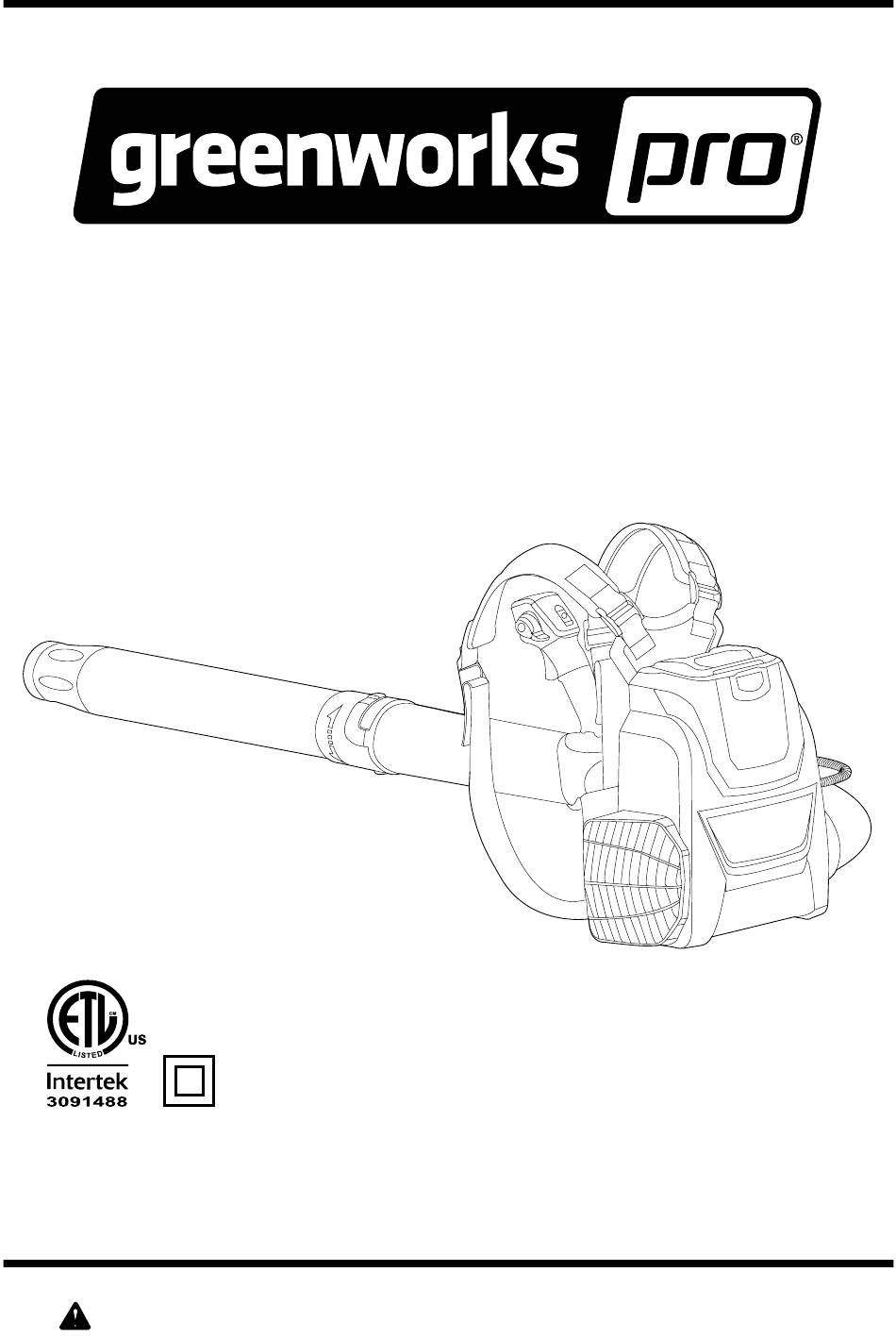

- Page 1 60V BACKPACK BLOWER BPB60L510 Owner’s Manual TOLL-FREE HELPLINE: 1-855-345-3934 www.GreenWorksTools.com Read all safety rules and instructions carefully before operating this tool.
-
Page 2: Table Of Contents
CONTENTS Contents ...........................2 Product Specifications ......................2 Important Safety Instructions ....................3 Symbols ............................6 Know Your Blower........................8 Assembly...........................9 Operation..........................15 Environmentally Safe Battery Disposal..................18 Troubleshooting ........................19 Limited Warranty........................20 Exploded View........................21 Parts List..........................21 PRODUCT SPECIFICATIONS 60V BACKPACK BLOWER Type .................... Cordless, battery-operated Motor ......................60V Brushless Air Volume........................540 CFM Air Speed........................140 MPH Battery Charging Time.....................180 Minutes... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING (THIS POWER TOOL) W A R N I N G Read and understand all instructions before using this product. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury. When using an electrical appliance, basic precautions should always be followed, including the following: •... - Page 4 IMPORTANT SAFETY INSTRUCTIONS • When not in use, product should be stored indoors in a dry, locked place out of the reach of children. • Maintain tool with care. Keep fan area clean for best and safest performance. Follow instructions for proper maintenance. •...
- Page 5 IMPORTANT SAFETY INSTRUCTIONS • Under extreme usage or temperature conditions, battery leakage may occur. If liquid comes in contact with your skin, wash immediately with soap and water, then neutralize with lemon juice or vinegar. If liquid gets into your eyes, flush them with clean water for at least 10 minutes, then seek immediate medical attention.
-
Page 6: Symbols
SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles per second) - Page 7 SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING Indicates an imminently hazardous situation, which, if not DANGER avoided, will result in death or serious injury. Indicates a potentially hazardous situation, which, if not WARNING avoided, could result in death or serious injury.
-
Page 8: Know Your Blower
KNOW YOUR BLOWER Fig. 1 KNOW YOUR BLOWER ( See Figure 1. The safe use of this product requires an understanding of the information on the product and in this operator’s manual as well as a knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features and safety rules. -
Page 9: Assembly
ASSEMBLY UNPACKING This product requires assembly. • Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. • Inspect the tool carefully to make sure no breakage or damage occurred during shipping. •... - Page 10 ASSEMBLY W A R N I N G To avoid serious personal injury, the blower tube must be used when operating this unit. NOTE: The blower tube is not assembled on this unit. Installation is required to provide safe and easy use for the operator.
- Page 11 ASSEMBLY ASSEMBLY (See Fig.2) 1. The flexible tube (B) is connected to the fan outlet tube (A) from the manufacturer. 2. Connect the operating tube (C) to the flexible hose (B) with the hose clamp (D). Use a screw driver (not provided) to loosen and tighten the hose clamp. Turn clockwise to tighten, and coun- ter clockwise to loosen.
- Page 12 ASSEMBLY BATTERY IMPORTANT! The battery pack is not charged when it is purchased. Before using the blower for the first time, place the battery pack in the battery charger and charge. Make sure to read all safety precautions, and follow the instructions in the Battery Charger section. To Remove (See Fig 4.) 1.
- Page 13 ASSEMBLY HARNESS ADJUSTMENT A well adjusted backpack blower and harness makes work easier. Adjust the harness to give you the best working stance. Adjust the side straps so the weight is equally distributed across your shoulders. Once the blower is properly fitted on your back, pull the ends of the straps downward to tighten the harness.
- Page 14 ASSEMBLY PUT ON THE SHOULDER STRAP 1. Adjust the harness straps (1) to the correct length. 2. Adjust chest strap (2) to correct length and fasten it together. The back padding must fit firmly and securely against your back. Harness Removal •...
-
Page 15: Operation
OPERATION W A R N I N G Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury. W A R N I N G Always wear eye protection with side shields marked to comply with ANSI Z87.1, along with hearing protection. - Page 16 OPERATION STARTING/STOPPING THE BLOWER (See Fig 6.) Before start-up, make sure that the blower is in perfect condition to guarantee safe operation. • Squeeze the switch trigger to start. • To change speed, press or release trigger by degrees to increase or decrease the speed. USING CRUISE CONTROL LEVER (See Fig 6.) This blower is equipped with a cruise control function.
- Page 17 OPERATION OPERATING TIPS • Ensure that the unit is not directed at anybody or any loose debris before starting the unit. • Verify that the unit is in good working condition. Make sure the tubes and guards are in place and secure.
-
Page 18: Environmentally Safe Battery Disposal
ENVIRONMENTALLY SAFE BATTERY DISPOSAL The following toxic and corrosive materials are in the batteries used in this blower battery pack: Lithium-Ion, a toxic material. W A R N I N G All toxic materials must be disposed of in a specified manner to prevent contamination of the environment. -
Page 19: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Battery is not secure. Check to ensure the latches are tightly secured into place on the back of the blower and the battery. (Reference Page 12 of the instruction manual). Battery is not charged. Charge the battery pack according to the Unit will not start. -
Page 20: Limited Warranty
LIMITED WARRANTY GREENWORKS™ hereby warranties this product, to the original purchaser with proof of purchase, 4 year consumer warranty, 1 year commercial warranty against defects in materials, parts or workmanship. GREENWORKS™, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. -
Page 21: Exploded View
EXPLODED VIEW PARTS LIST IETM NO. PART NO. DESCRIPTION 341101949 Upper Blower Tube 34103811A Lower Blower Tube 311031949 Blower Assembly 349011949 Harness 341091949 Flexible Hose 333011949 Hose Clamps... - Page 22 Greenworks Tools PO Box 1238 Mooresville, NC 28115 TOLL-FREE HELPLINE: 1-855-345-3934 Rev: 00 (09-20-16) Printed in China on 100% Recycled Paper...
