Summary of Contents for U-Line Wine Captain HWC518

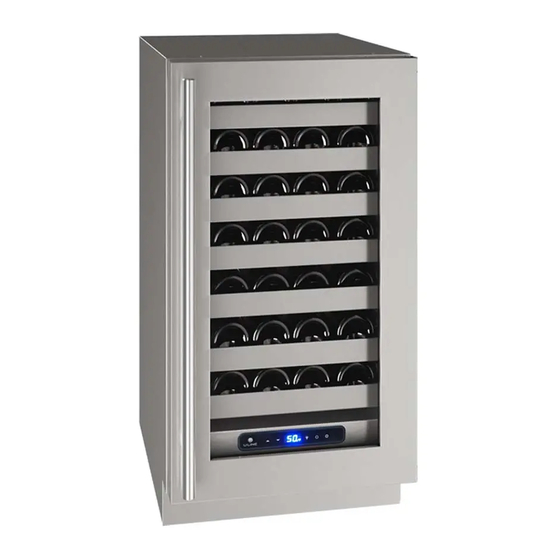

- Page 1 USER GUIDE & SERVICE MANUAL 5 Class UHWC518 18” Wine Captain ® ● ●...
- Page 2 USER GUIDE u-line.com SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE Contents Intro Installation Integrated Panel Dimensions...
-
Page 3: Product Information
1. U-Line Customer Care must be contacted immediately at +1.800.779.2547. 2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been altered or repaired in the field without prior written approval from U-Line, claims will not be eligible. -
Page 4: Integrated Panel Dimensions
USER GUIDE u-line.com Integrated Panel Dimensions Integrated Panel Dimensions Metric measurements rounded and optimized. BACK SURFACE MUST HAVE AMPLE FLAT SURFACE TO MOUNT OVERLAY PANEL FLAT AND WITHOUT " INTERFERENCE INTEGRATED PANEL (20 mm) NOTICE " (445 mm) Due to differences in surrounding cabinetry the panel may not perfectly align with door. - Page 5 USER GUIDE u-line.com HANDLELESS INTEGRATED DOOR PANEL 3. Prepare the insert(s) that will back up the handleless design. Wooden Insert – Cut 1/8" (3 mm) thick The following procedure is designed to provide a finished, wooden insert(s) to the dimensions below.
- Page 6 USER GUIDE u-line.com Handleless Integrated Panel Dimensions 1/8" (3 mm) Top Design 1/4" (6 mm) 7/8" (22 mm) Ref. R 5/8" 2-3/8" (R 16 mm) (60 mm) 17-5/8" (445 mm) 2-3/4" 70 mm Insert Notch 2-3/4" (70 mm) Wooden Insert Notch Depth: 1/8"...
- Page 7 USER GUIDE u-line.com EXTENDED INTEGRATED PANEL 3. Optional: Install handles and hardware. NOTICE Due to differences in surrounding cabinetry the NOTICE panel may not perfectly align with door. The The door panel must not weigh more than 20 lbs procedure below is designed to provide a (10 kg).
- Page 8 If you would like to cover the grille with an integrated BACK SURFACE MUST HAVE AMPLE FLAT SURFACE TO MOUNT INTEGRATED PANEL FLAT AND 3/4" panel, purchase U-Line’s adjustable grille accessories. WITHOUT INTERFERENCE (20 mm) 17-5/8" 18” - Sales Accessory: ULAGRILLE18...
