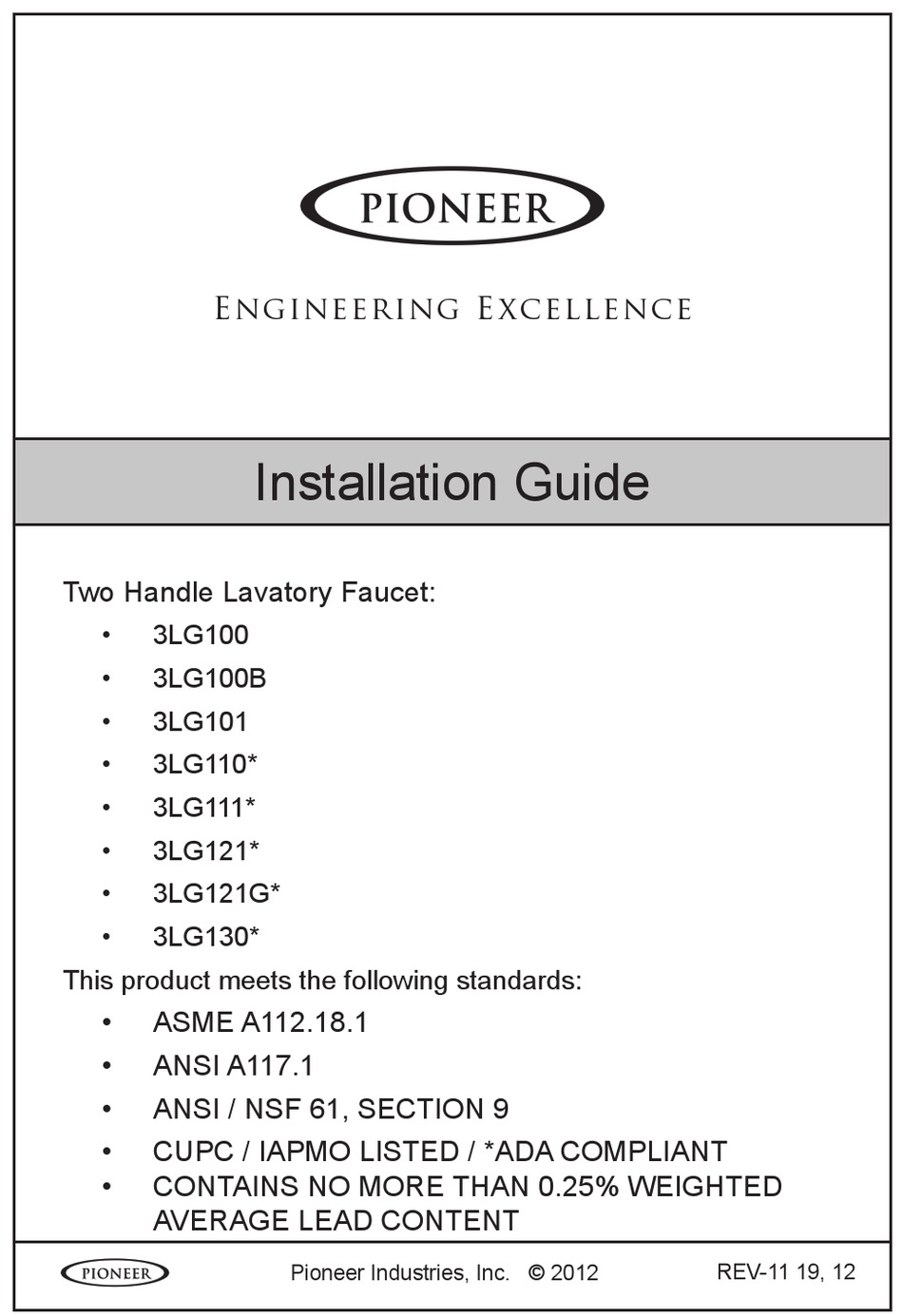

Two Handle Lavatory Faucet:
•
3LG100
•
3LG100B
•
3LG101
•
3LG110*
•
3LG111*
•
3LG121*
•
3LG121G*
•
3LG130*
This product meets the following standards:
•
ASME A112.18.1
•
ANSI A117.1
•
ANSI / NSF 61, SECTION 9
•
CUPC / IAPMO LISTED / *ADA COMPLIANT
•
CONTAINS NO MORE THAN 0.25% WEIGHTED
AVERAGE LEAD CONTENT
Engineering Excellence
Engineering Excellence
Engineering E xcellence
Installation Guide
Pioneer Industries, Inc. © 2012
REV-11 19, 12
Advertisement
Related Manuals for Pioneer 3LG110 Series
Summary of Contents for Pioneer 3LG110 Series
- Page 1 ASME A112.18.1 • ANSI A117.1 • ANSI / NSF 61, SECTION 9 • CUPC / IAPMO LISTED / *ADA COMPLIANT • CONTAINS NO MORE THAN 0.25% WEIGHTED AVERAGE LEAD CONTENT REV-11 19, 12 Pioneer Industries, Inc. © 2012 Engineering Excellence...
-
Page 2: Prior To Installation
• For replacement installations, carefully remove the existing faucet and clean the entire surface of the sink mounting holes. • Pioneer reserves the right to make changes in the design of faucets without notice as specified in the pricebook. REV-11 19, 12... -
Page 3: Faucet Installation
Faucet Installation • Clean lavatory surface (A) from oil, grease or debris. • Apply adequate amount of plumbers putty or sealant underneath of base plate. Lead the faucet shank (B) through faucet holes. • Slide the mounting washers (C) through faucet shank (B). •... - Page 4 Pop-up Drain Installation Remove the pop-up stopper (E) and pop-up flange (F) from the pop-up assembly. Apply adequate amount of plumbers putty underside of pop-up flange (F). Then insert pop-up drain assembly from underside of the sink and secure the pop-up flange (F) from the top. Rotate the drain body so that horizontal rod hole faces back of the fau- cet.Hold the pop-Up assembly in place and tighten the locknut (G). Remove the excess putty.
- Page 5 Pop-up Drain Installation REV-11 19, 12...
- Page 6 Grid Drain Installation Remove the grid trim ring (N) from the grid drain assembly (O). Apply adequate amount of plumbers putty underside of the grid trim ring (N). Attache the grid trim ring (N) from top of the drain hole. Insert the grid drain assembly (O) from under the lavatory sink.
-
Page 7: Main Supply Connection
Turn on water. Check for any leaks. Make sure all the connections are secure. • Remove aerator (S). • Open the handle. • Flush and allow water to run at full flow for at least one minute. • Replace aerator (S). For more care information or trouble shooting inquiries about your Pioneer Product, please see the contact information on the back page. REV-11 19, 12... - Page 8 Engineering Excellence Engineering E xcellence 3325 S. Garfield Ave. | Commerce, CA 90040 Telephone: (800) 338-9468 | (323) 888-8873 | Fax: (323) 888-9515 Hours: M - F, 7:30am to 5:00pm PST www.pioneerind.com REV-11 19, 12...
