PIONEER INDUSTRIES, INC.
3325 S. Garfield Ave.
Commerce, CA 90040
(800) 338-9468
www.pioneerind.com
Model Number: 3MO160, 3MO180, 3MO168,
3MO160-WD, 3MO180-WD
Warnings and Notes:
Check with local plumbing code requirements before installation.
This product should be installed by a local listed plumber.
Do not use plumbers putty on threads.

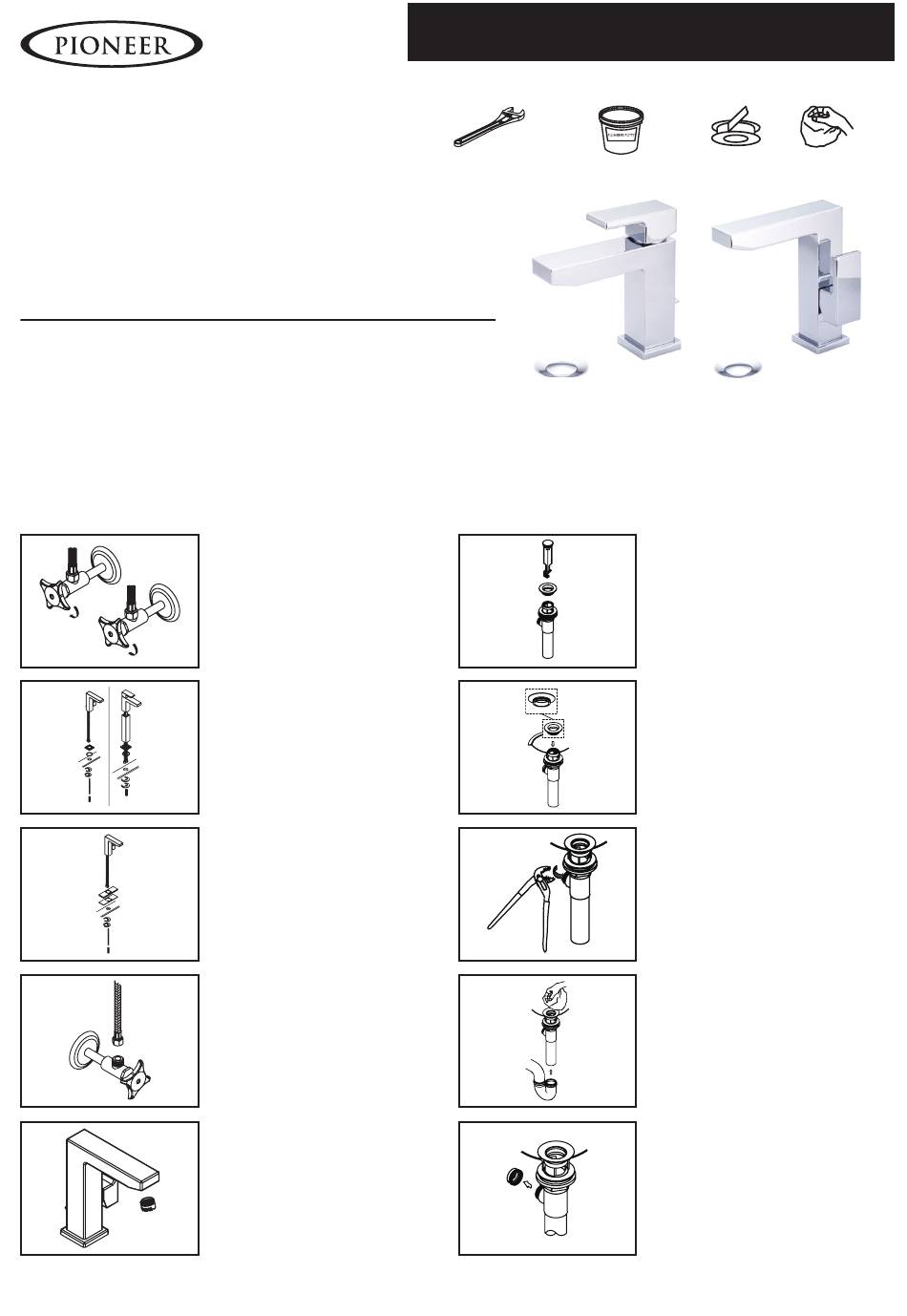

Single Handle Lavatory Faucet
(1) Shut off water supplies. Remove old faucet.
Clean mounting surface in preparation for new
faucet.
(2a) For 1-Hole Installation:- Install mounting
bolt.
For 3MO168 :- Install mounting bolt. Place 8"
extension and align it.
For Both:- Place escutcheon with gasket
under the faucet then place faucet in position
on the sink. Slide mounding washer and
mounting plate through mounting bolt from
underneath of the sink, tighten locknut to
mounting bolt.
(2b) For 3-Hole Installation:- Install mounting
bolt. Place deck plate with gasket under the
faucet then place faucet in position on the
sink. Slide mounding washer and mounting
plate through mounting bolt from underneath
of the sink, tighten locknut to mounting bolt.
(3) Connect hot and cold inlet supply hoses
to supply stops. For 1/2" connection; use 3/8"
male to 1/2" female adapter for installation.
Adapters are optional and not provided with
the faucet.
(4) Important: After installation is complete,
remove aerator. Turn water supplies on and
allow both hot and cold water to run at least
one minute each. While water is running,
check for leaks. Turn off water and replace
aerator.
Tools:
Adjustable Wrench Plumbers Putty Teflon Tape
Pop-up Drain Installation:
INSTALLATION
(1) Remove pop-up flange from body
(2) Place a ring of putty on the bottom of
flange.
(3) Insert pop-up flange through drain hole
and attach fIange to body. Ensure the pop-up
outlet faces towards the back of the slnk
Tíghten the locknut securely with a wrench Do
not overtighten.
(4) Remove the excess putty. Connect the
trap (check manufacturer's instructions for
ínstallation)
(5) Remove pivot rod nut from pop-up body,
ensure the washers is in place, insert pivot
rod, tighten pivot rod nut back to pop-up body.
Rags
