Single Handle Lavatory Faucet:
•
3LG160*
•
3LG161*
•
3LG170*
•
3LG180B
This product meets the following standards:
•
ASME A112.18.1
•
ANSI A117.1
•
ANSI / NSF 61, SECTION 9
•
CUPC / IAPMO LISTED / ADA COMPLIANT
•
CONTAINS NO MORE THAN 0.25% WEIGHTED
AVERAGE LEAD CONTENT
Engineering Excellence
Engineering Excellence
Engineering E xcellence
Installation Guide
•
•
•
•
Pioneer Industries, Inc. © 2012
3LG171*
3LG160B*
3LG180
3LG181
•
3LG170B*
•
3LG161G*
•
3PM160*
REV-11 19, 12
Advertisement
Related Manuals for Pioneer 3LG171
Summary of Contents for Pioneer 3LG171

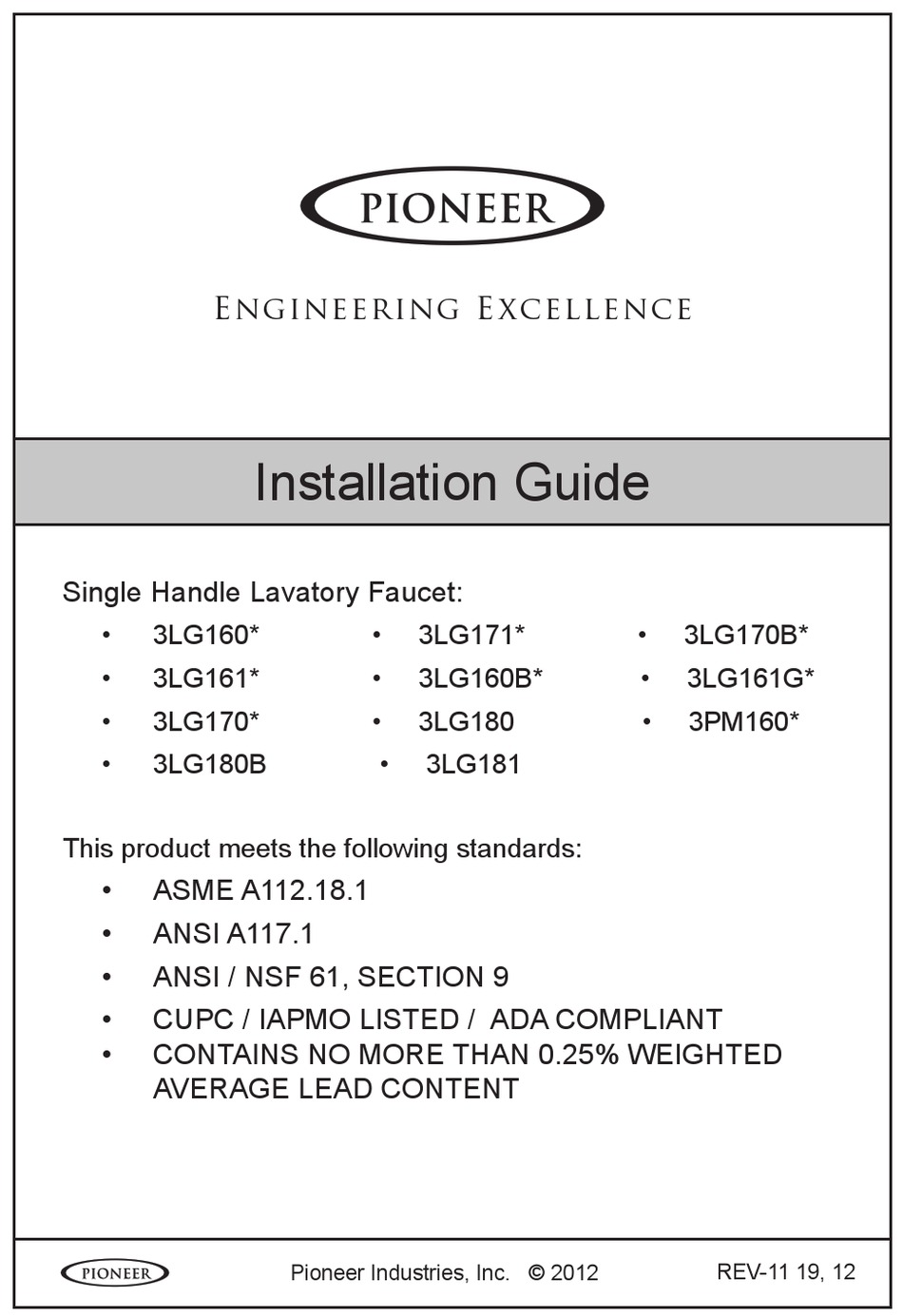

- Page 1 ASME A112.18.1 • ANSI A117.1 • ANSI / NSF 61, SECTION 9 • CUPC / IAPMO LISTED / ADA COMPLIANT • CONTAINS NO MORE THAN 0.25% WEIGHTED AVERAGE LEAD CONTENT REV-11 19, 12 Pioneer Industries, Inc. © 2012 Engineering Excellence...
-
Page 2: Prior To Installation
For replacement installations, carefully remove the existing faucet and clean the entire surface of the sink mounting holes. • Pioneer reserves the right to make changes in the design of faucets without notice as specified in the pricebook. REV-11 19, 12... -
Page 3: Faucet Installation
Faucet Installation • Slide the base plate (A) to the underside of the faucet. • Apply adequate plumbers putty or sealant along the boundary of the base plate (A) if necessary. • Clean the mounting surface If necessary. • Insert the faucet through sink hole. •... - Page 4 Pop-up Drain Installation Remove the pop-up stopper (E) and pop-up flange (F) from the pop-up assembly. Apply adequate amount of plumbers putty underside of pop-up flange (F). Then insert pop-up drain assembly from underside of the sink and secure the pop-up flange (F) from the top. Rotate the drain body so that horizontal rod hole faces back of the fau- cet.Hold the pop-up assembly in place and tighten the locknut (G).
- Page 5 Pop-up Drain Installation REV-11 19, 12...
- Page 6 Grid Drain Installation Remove the grid trim ring (N) from the grid drain assembly (O). Apply adequate amount of plumbers putty underside of the grid trim ring (N). Attache the grid trim ring (N) from top of the drain hole. Insert the grid drain assembly (O) from under the lavatory sink.
-
Page 7: Main Supply Connection
Main Supply Connection • Connect the faucet inlet tubes (Q) to inlet supply lines (R). Connect the supply stops (S) to the inlet supply lines (R) (left is hot water supply and right is cold water supply). Make sure inlet supply lines (R) are securely tighten. - Page 8 Reassemble and test until desired safe temperature is reached. (Note: Ensure proper alignment of cartridge with notch in valve body.) For more care information or trouble shooting inquiries about your Pioneer Product, please see the contact information on the back page. REV-11 19, 12...
- Page 9 Engineering Excellence Engineering E xcellence 3325 S. Garfield Ave. | Commerce, CA 90040 Telephone: (800) 338-9468 | (323) 888-8873 | Fax: (323) 888-9515 Hours: M - F, 7:30am to 5:00pm PST www.pioneerind.com REV-11 19, 12...
