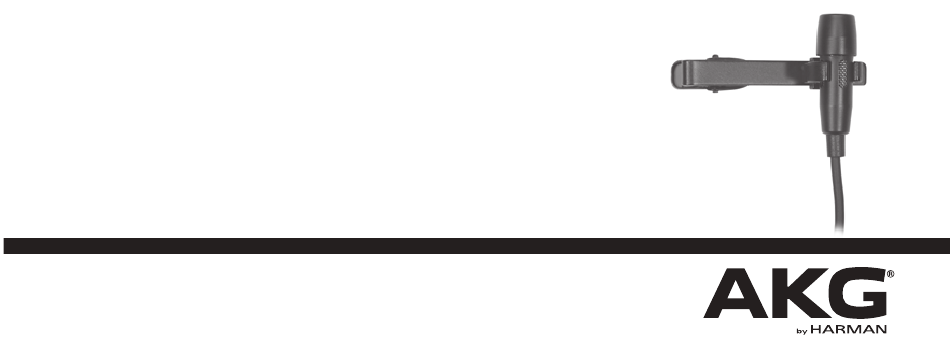

CK 99 L
B E DI E NUNGSANL EI TU NG
. . . . . . . . . . . . . .
Bitte vor Inbetriebnahme des Gerätes lesen!
U SE R I NSTRUCTI ONS
. . . . . . . . . . . . . . . . . . .
Please read the manual before using the equipment!
M ODE D'EMPL OI
. . . . . . . . . . . . . . . . . . . . . . . . .
Veuillez lire cette notice avant d'utiliser le système!
S. 2
ISTRUZIONI P ER L' USO
Prima di utilizzare l'apparecchio, leggere il manuale!
p. 8
M ODO DE EMP L EO
¡Sirvase leer el manual antes de utilizar el equipo!
p. 14
INSTRUÇÕES DE USO
Favor leia este manual antes de usar o equipamento!
p. 20
. . . . . . . . . . . . . . . .
p. 26
. . . . . . . . . . . . . . . . . . . . . .
p. 32
. . . . . . . . . . . . . . . . . .
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Harman AKG CK99 L
Summary of Contents for Harman AKG CK99 L
- Page 1 CK 99 L B E DI E NUNGSANL EI TU NG S. 2 ISTRUZIONI P ER L’ USO p. 20 ......Prima di utilizzare l’apparecchio, leggere il manuale! Bitte vor Inbetriebnahme des Gerätes lesen! U SE R I NSTRUCTI ONS...
- Page 2 Table of Ccontents 1 Description/Safety Precaution 1 Description/Safety ..... 8 • Please make sure that the piece of equip- 2 Interfacing ......9 ment your microphone will be connected to fulfills the safety regulations in force in 3 Use .

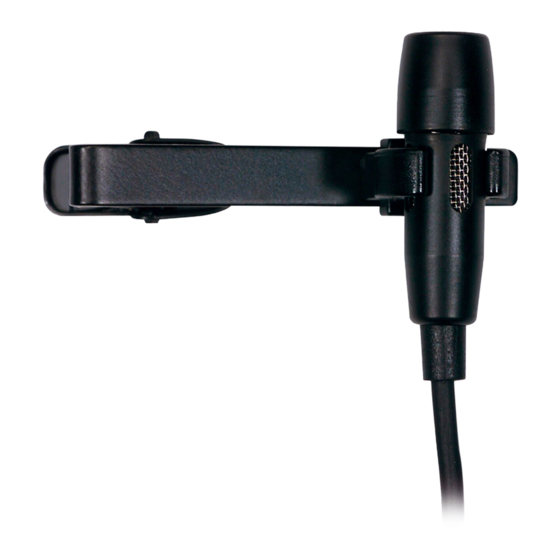

- Page 3 Optional Accessories Brief Description with the MPA V L phantom power adapter or AKG bodypack transmitters. • For optional accessories, refer to the current The CK 99 L is a professional miniature condens- AKG catalog or folder, or visit www.akg.com. er clip-on microphone with a cardioid polar pat- Your dealer will be glad to help.
- Page 4 Connecting via MPA V LRefer to fig. 1. 1. Push the mini XLR connector (1) on the micro- phone cable all the way into the mini XLR socket (2) on the cable of the MPA V L (3). The connector will lock automatically. To disconnect the cable, press the unlocking button on the mini XLR connector (1) and pull the connector(1) out of the socket (2).
- Page 5 Connecting to a Bodypack Transmitter Operating Notes 2. Attach the microphone to the talker's clothes, e.g., on the lapel, • Refer to the manual of your bodypack trans- placing it as close as mitter. possible to the talk- er's mouth. 3 Use (See fig.
- Page 6 4 Cleaning • Talking outside the pickup angle of the micro- phone will reduce the microphone’s output level considerably. • To clean the microphone case, use a soft cloth moistened with water. Fig. 4: Microphone pickup angle. 3. Ask the user not to turn their head more than 30 degrees to the left or right while talking.
- Page 7 5 Specifications Type: pre-polarized condenser microphone Polar pattern: cardioid Frequency Response Frequency range: 150 Hz to 18 kHz Sensitivity at 1 kHz: 8.8 mV/Pa (-41 dBV re 1 V/Pa) Electrical impedance at 1 kHz: 200 ohms Power requirement: 1.5 to 10 VDC via MPA V L phantom adapter or AKG WMS body- pack transmitter Cable length: 1.6 m (5 ft.
- Page 8 Microphones · Headphones · Wireless Microphones · Wireless Headphones · Headsets · Electroacoustical Components Mikrofone · Kopfhörer · Drahtlosmikrofone · Drahtloskopfhörer · Kopfsprechgarnituren · Akustische Komponenten Microphones · Casques HiFi · Microphones sans fil · Casques sans fil · Micros-casques · Composants acoustiques Micrófonos ·...
