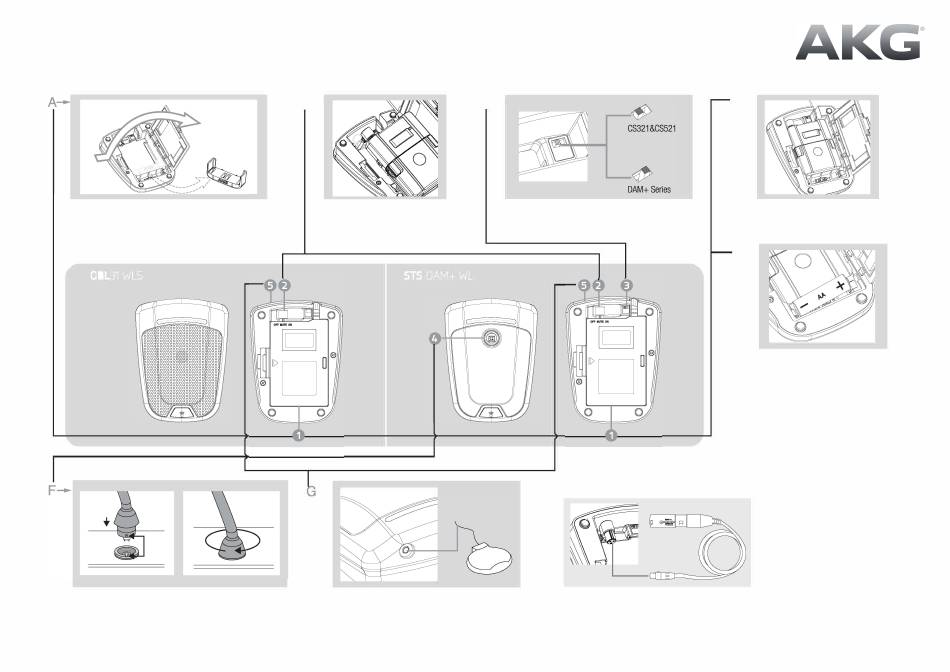

Setting Up

Open the battery
lidQ
as above shown.
NOTE: When using the unit with DPT700, you need to remove
the rubber sleeve from the wireless tabletop.
:
Align the pin on the microphone !lange with the
STS DAM+ WL. Insert the gooseneck* into the slot and lock it
in place by rotating the gooseneck sleeve clockwise.
*
AKG
AM+ series microphone or CS321 , CS521 gooseneck microphone
Quick Start Guide
Wi re l ess T a bl etop
B--
Connect the wireless transmitter with
the Mini-XLR Plugf).
--
slot9
on the
Connect CBL410 PCC microphone to the wireless tabletop
through 3.5 stereo jackC,.
NOTE: Laptop or MP3 player can also connect its
headphone output to the 3.5 stereo jack for wireless
transmission of audio.
c--
For STS DAM+ WL, switch to select the CS321 &CS521 or
DAM+ Series gooseneck
microphoneE)
according to the
gooseneck model.
This product conforms to the standards listed in the Declaration of Conformity. Ta order a free copy of the
Declaration of Conformity, visit http://www.akg.com or contact customer.support@harman.com.
bvHARMAN
o--
Place the wireless transmitter into the
wireless tabletop.
E--
Insert one "AA" battery into the battery slot.
Make sure the "+/-" terminals are properly
oriented.
NOTE: lt this battery runs out of power, the
LED indicators of the wireless tabletop and
the LED ring on the gooseneck will light out.
The speak button on the wireless tabletop will
not work but you can still talk through the
built-in microphone of CBL31 WLS or the
gooseneck on STS DAM+ WL if the wireless
transmitter has power.
More ...
The wireless tabletop can be converted to wired
tabletops by using AKG MPA V-L phantom
power adapter.
NOTE: The wireless tabletop will only have its
LED indicators and speak button work when it
installed battery.
