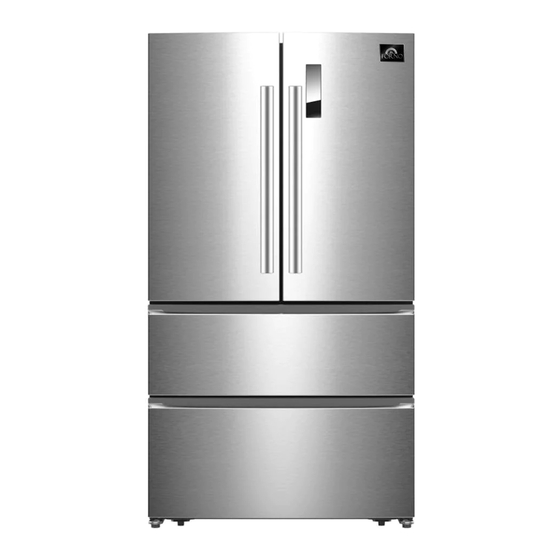

- Page 1 FFFFD1907-33SB 33” French Door Refrigerator BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATINGINSTRUCTIONS. RETAIN THIS INSTRUCTION MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE. IF YOU TRANSFER THE APPLIANCE TO A THIRD PARTY, ALSO HAND OVER THIS INSTRUCTION MANUAL.
-
Page 2: Table Of Contents
Index Customer Care Safety information S ignal words Safety instructions C limatic classes I nstallation Accessories Door handle installation Space and ventilation requirements Leveling Flipper clapboard Operation Description of the appliance Operating buttons and display Key lock / Child protection Setting of the temperature Selection of the modes Sabbath control mode steps... -
Page 3: Customer Care
Or email: info@forno.ca Digital instruction manual can be downloaded from www.forno.ca If your appliance ever requires servicing, be sure to use a FORNO Factory Certified Service provider recommended by our customer care center. All Factory Certified Service providers are carefully selected and thoroughly trained by us. - Page 4 This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 5: Safety Information
Do not dispose of this appliance together with your domestic waste. The appliance must be disposed of at a collecting centre for recyclable electric and electronic appliances. Do not remove the symbol from the appliance. The figures in this instruction manual may differ in some details from the current design of your appliance. -
Page 6: Signal Words
persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised. - Page 7 CAUTION – Risk of fire or explosion due to puncture of refrigerant tubing; Follow handling instructions carefully. Flammable refrigerant used. DANGER - Risk of child entrapment. Before you throw away your old refrigerator or freezer: Take off the doors. Leave the shelves in place so that children may not easily climb inside. WARNING! To reduce the risk of burns, electrocution, fire or injury to persons: 1.
- Page 8 23. Do not use any electric appliances inside the food storage compartments of your appliance unless they are recommended by the manufacturer of your refrigerator. 24. Do not put any heat-radiating appliances onto your appliance. 25. Do not install the appliance in a place where it may come in contact with water/rain; otherwise the insulation of the electrical system will be damaged.
-
Page 9: Climatic Classes
10. When you unpack the appliance, you should take note of the position of every part of the interior accessories in case you have to repack and transport it at a later point of time. 11. Do not operate the appliance unless all components are installed properly. 12. -
Page 10: Accessories
damp cloth using lukewarm water and mild detergent (see also chapter CLEANING AND MAINTENANCE). Never remove any components ofthe back ofthe appliance! 4. Install the appliance in a suitable position with an adequate distance from sources ofheat and cold. 5. Ifinstallation near a heat source is unavoidable, use a suitable insulation plate or keep the following minimum distances to the heat source: To electric cookers At least 30mm... -
Page 11: Space And Ventilation Requirements
Space and ventilation requirements Observe the required minimum distances for proper ventilation. All dimensions in this chapter are given in millimeters Space requirements of the appliance A = Depth / B = Width / C = Depth (when the doors are open) / D = Space requirement of the doors 600mm 830mm... -
Page 12: Leveling
MINIMUM DISTANCES REQUIRED FOR PROPER VENTILATION: Back ↔ wall Mind. 50mm Sides ↔ wall Mind. 30cm Door opening angle Mind. 132° SPACE REQUIREMENT INCL. MINIMUM DISTANCES FOR PROPER VENTILATION: A 1= Depth / B 1 = Width / C 1 = Depth (when the doors are open) / D 1 = Space requirement of the doors Mind. -
Page 13: Flipper Clapboard
NOTICE! The rollers are no castors and intended to move the appliance forward and backwards only. Lateral movements can damage your floor and the rollers. Flipper clapboard 1. Ensure that the flipper clapboard (depending on model) is in proper position; otherwise the door cannot be closed properly. -
Page 14: Description Of The Appliance
these aspects should be taken into account. 7. Operate the appliance according to the instructions described in the following chapters. Description of the appliance The figure above is an example only. Modifications are possible. Fridge Internal light of the fridge (LED) Door trays Bottle shelf Crispers... -
Page 15: Operating Buttons And Display
Operating buttons and display WARNING! To disconnect the appliance from the mains, you must unplug the appliance or use a cut-off device. ※ Operate the appliance according to the instructions about the control of the functions and modes described in the following paragraphs ※When you operate the appliance for the first time, the default temperatures are: Fridge + 5 °C(41°F) -
Page 16: Key Lock / Child Protection
display goes off. ※During normal operation the display indicates the set temperature of the fridge or freezer. Key lock / Child protection ※The appliance is equipped with a KEY LOCK / CHILD PROTECTION. ACTIVATION OF THE KEY LOCK / CHILD PROTECTION: ※Press the button MODE (C) for 3 seconds to turn the KEY LOCK / CHILD PROTECTION on. -
Page 17: Selection Ofthe Modes
until the desired temperature is displayed (3) >After a few seconds without using any operation buttons, the settemperature will be activated >The temperature changes by 1°C(33.8°F)each time you press the Button TEMP (B) >The sequence ofthe temperature setting is: FREEZER: ※You can setthe temperature from -15 °C(5°F)to -25 °C(-13°F). - Page 18 If you have configured individual temperature settings for the fridge and / or freezer, the temperature(s) will be reset to the previous setting. If the ARTIFICIAL INTELLIGENCE MODE is activated, the appliance operates with the highest efficiency regarding food preservation and food storage. You can also set the artificial intelligence mode manually at any time: >Press the MODE BUTTON (C) repeatedly until the indicator of the ARTIFICIAL INTELLIGENCE MODE (6) goes on.
-
Page 19: Sabbath Control Mode Steps
into the freezer compartment of the appliance as their containers could explode . FAST COOLING: >Press the MODE BUTTON (C) repeatedly until the indicator of the FAST COOLING MODE (4) goes on. >After a few seconds without using any operation buttons, the FAST COOLING MODE will be activated. -
Page 20: Door Alarm
Door alarm ※The appliance is equipped with an automatic alarm which indicates that one of the doors of the appliance are opened for a longer period of time. 1. If one of the doors is opened for more than 2 minutes, an acoustic warning signals sound. 2. -
Page 21: Door Trays
※Store fresh, packaged food on the shelves, fresh fruit and vegetable in the crisper. ※Store fresh meat packaged in protective foil for max. 2 days. ※Let warm food such as cooked meals cool down before you store them in the appliance。 ※Store food in such a way that the cooled air can circulate properly. -
Page 22: Environmental Protection
plastic bags, polyethylene containers or other suitable plastic containers with a lid. ※ Leave some free space between the single pieces of frozen food as proper air circulation is required. ※ The food is frozen completely after 24 hours (you find the relevant information about the maximum freezing capacity within 24 hours in chapter TECHNICAL DATA). -
Page 23: Meaning Of The *-Labeling Of Freezers
※ Permanently check, that the appliance is well-ventilated. The appliance has to be well-ventilated from all sides. ※ Defrost the appliance periodically as encrusted ice will decrease the power and increase the energy consumption of the appliance. ※ 355 kWh per year based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located. -
Page 24: Storage Of Food
Storage of food Your appliance has the accessories as the “Description of the appliance” showed in general, with this part instruction you can have the right way to storage your food. Food is not allowed to touch directly all surfaces inside the appliance. It has to be wrapped separately in aluminum sheet or in cellophane sheet or in airtight plastic boxes. - Page 25 Precooked foods and leftovers These food should be stored in suitable covered containers so that the food will not dry out. Keep for only 1-2 days. Reheat leftovers only once and until steaming hot. Vegetable container The vegetable container is the optimum storage location for fresh fruit and vegetables. Take care not to store the following at temperatures of less than 7°C (44.6°F) for long periods: Citrus fruit, melons, aborigines, pineapple, papaya, curette, passion fruit, cucumber, peppers, tomatoes.
-
Page 26: Operational Parameters
mayonnaise. Packing frozen food To prevent food from losing its flavor or drying out, place food in airtight packaging. 1. Place food in packaging. 2. Remove air. 3. Seal the wrapping. 4. Label packaging with contents and dates of freezing. Suitable packaging: Plastic film, tubular film made of polyethylene, aluminum foil. -
Page 27: Cleaning And Maintenance
operation. 3. The freezing temperature should not be warmer than -18°C (-0.4°F). 4. When the ambient temperature is very high, it is recommended to set the thermostat to a colder setting if needed. If the colder setting should cause strong formation of encrusted ice, please select a lower setting. -
Page 28: Defrosting
INTERNAL CLEANING: 1. Clean the shelves and the inside with warm water and a mild detergent. 2. Use clear water to rinse. 3. Dry the cleaned surfaces with a cloth. 4. Check the water drain and clean it if needed. DOOR SEALS: >Clean with warm water and a mild, non- acidic detergent. -
Page 29: Replacing Of The Illuminate
9. After cleaning leave the door open for some time to ventilate the appliance. Replacing of the illuminate WARNING! The LED-illuminate must be replaced by a competent person only. If the LED-illuminate is damaged, please contact a qualified professional. Replacing of the power cord DANGER! The power cord must be replaced by a qualified and authorized professional only. - Page 30 touches a wall or another object. 3. Remove the items. 2. Frozen food is stored improperly. 3. Items have dropped behind the appliance. WATER DRIPS ON THE FLOOR 1. The water pan (located at the rear bottom of 1. You may need to pull the refrigerator away the cabinet) may not be properly leveled, or from the wall to check the pan and spout.
-
Page 31: Decommissioning
Decommissioning DECOMMISSIONING, TEMPORARILY: IF THE APPLIANCE IS NOT USED FOR A LONGER PERIOD OF TIME: 1. Disconnect the appliance from the mains. To disconnect the appliance from the mains, you must unplug the appliance or use a cut-off device. 2. Remove all food stored in the appliance. 3. -
Page 32: Technical Data
Technical data Technical data* Model Freezer-Fridge Energy efficiency class** Annual energy consumption in kW/h*** Voltage / frequency 115V AC/60 Hz Volume gross in Cu. Ft. 18.9 Net volume fridge / freezer in Cu. Ft. 12.35/6.53 Adjustable thermostat Compressor Refrigerant / total quantity R600a / 65 g Display Control lamps:... -
Page 33: Wire Diagram
REFRIGERANT: 1. The refrigerant circuit of the appliance contains the refrigerant R600a, a natural gas of high environmental compatibility. WARNING! Do not damage any components of the refrigerant circuit while transporting the appliance. FIRE HAZARD! Materials marked with this Please contact your local The refrigerant R600a is symbol are recyclable.
Need help?
Do you have a question about the Alta Qualita FFFFD1907-33SB and is the answer not in the manual?
Questions and answers
Refrigerator is not cooling but the freezer portion is working fine
If the freezer is working but the refrigerator is not cooling, possible reasons include:
1. Blocked Airflow – Cold air from the freezer circulates into the fridge. If vents are blocked by food items or ice buildup, the fridge may not cool properly.
2. Temperature Settings – The fridge temperature may be set too high. Adjust it within the range of +8°C (46.4°F) to +2°C (35.6°F).
3. Malfunctioning Fan – The fan that moves cold air from the freezer to the fridge may not be working.
4. Defrost Issues – Ice buildup can block airflow, preventing the fridge from cooling.
5. Door Seals – If the fridge door is not sealing properly, cold air can escape, reducing cooling efficiency.
6. Compressor or Thermostat Issues – If the compressor runs but the fridge is not cooling, the thermostat or temperature control system may be faulty.
Check these factors and adjust settings or inspect components as needed.
This answer is automatically generated

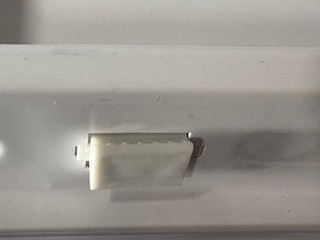

Hello, the bracket that p/n 1.02.00.000249 slides into has broken off (#49, QTY 3). The broken bracket is mounted on the inside of the door. It's purpose is to secure the bearing assembly that is part of the french door flap opening and closing function. I don't see it in the parts diagram. It appears to be apart of the door assembly? Seeking guidance how to replace the broken piece. Image shows the upper like bracket that is not broken. Thanks Forno Alta Qualita FFFFD1907-33SB
