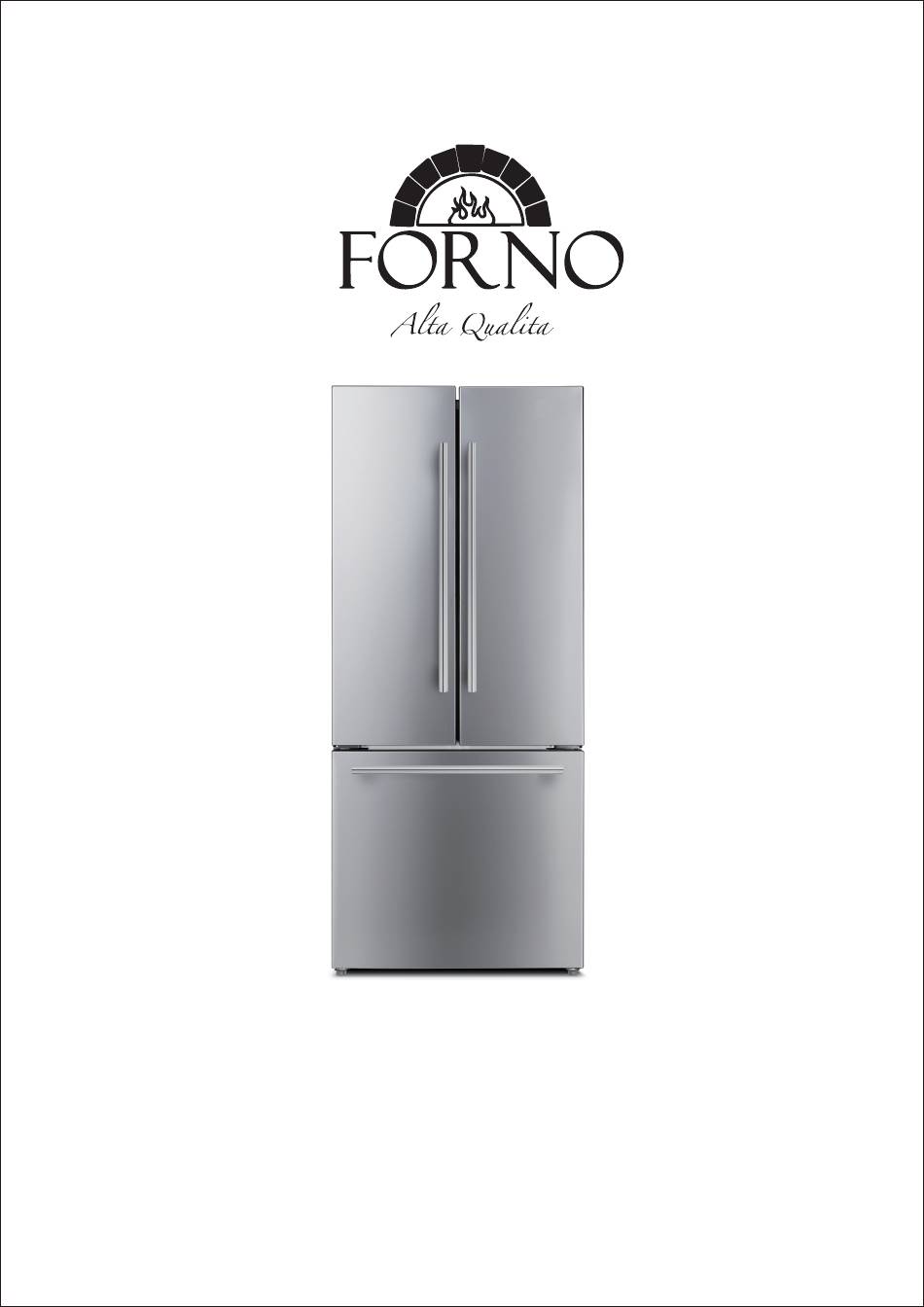

- Page 1 FFFFD1974-31SB 31" French Door 17.5cf. Forno Handle VCM SS with Ice Marker BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Customer Care Appliance Safety Important Safeguards Parts and Features Important Safety Instructions Installation Instructions Electrical Connection Ice Maker warning Sabbath Mode Operating Your Appliance Care and Maintenance Cleaning Your Appliance Power Failure / Vacation Time / Moving Your Appliance Energy Saving Tips Troubleshooting Guide Wiring Diagram... -
Page 3: Customer Care
Thank you for purchasing a FORNO product. Please read the entire instruction manual before operating your new appliance for the first time. Whether you are an occasional user or an expert , it will be beneficial to familiarize yourself with the safety practices, features, operation and care recommendations of your appliance. -
Page 4: Warranty
30-Day Cosmetic Warranty The Purchaser must inspect the product at the time of delivery. Forno warrants that the Product is free from manufacturing defects in materials and workmanship for a period of thirty (30) days from date of the original retail purchase of the Product. - Page 5 DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF FORNO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST FORNO BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY FORNO AND CAUSING THE ALLEGED DAMAGE.WITHOUT PREJUDICE TO THE FOREGOING, PURCHASER ASSUMES ALL RISK AND...
-
Page 6: Appliance Safety
APPLIANCE SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can kill or injure you and others. -
Page 7: Important Safeguards
Follow handling instructions carefully. Flammable refrigerant used. IMPORTANT SAFEGUARDS Before the beverage cooler is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury when using the beverage cooler, follow basic precautions, including the following: •... -
Page 8: Parts And Features
PARTS AND FEATURES (6)Six Refrigerator Door Bins 4 (2)Two Vegetable Crispers with Glass Cover (2)Two Refrigerator Shelves (1)Freezer Drawers (1)Refrigerator LED Light (1)Ice maker Assembly Inside the Freezer Drawer Note The section separator area contains a condensation-free heater and will be warm to the touch during the anti-condensation cycle to prevent condensation forming between the two sections. -
Page 9: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, electrical shock, or WARNING injury when using your refrigerator-freezer, follow these basic precautions: •Read all instructions before using the refrigerator-freezer. • DANGER or WARNING: Risk of child entrapment. Before you throw away your old refrigerator or freezer: - Take off the doors. -
Page 10: Installation Instructions
• Plug the unit into an exclusive, properly-installed grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed to a certified electrician or an authorized FORNO Products service centre. Door alarm ... -
Page 11: Electrical Connection
Improper use of the grounded plug can result in an electrical shock hazard. If the power cord is damaged, have it replaced by an authorized FORNO Products service centre. This appliance should be properly grounded for your safety. The power cord of this appliance is equipped with a three-prong plug, which mates with standard three prong wall outlets to minimize the chance of electrical shock. -
Page 12: Ice Maker Warning
Ice Maker This ice maker works automatically (automatic water supply, automatic production and detaching of ice cubes), therefore there is no need to supply water manually. When the ice cube storage is full, the sensor rod will automatically send a signal to the machine to stop making ice. •... -
Page 13: Sabbath Mode
OPERATING YOUR APPLIANCE Sabbath Mode 1. How to enter Sabbath mode: when the freezer is open, press and hold the "Fridge" button + the "Lock" button for 10 seconds; 2. In Sabbath mode: a.There is no door opening alarm; b.The LED lights in both refrigerator and freezer compartment are off; c.The display panel does not display unless it is adjusted manually ;... -
Page 14: Operating Your Appliance
OPERATING YOUR APPLIANCE Default is Fahrenheit when power is on. Press "MODE" button 5 seconds, to switch between °C and °F. Other buttons use the same method to switch between two modes. Set temperature range: Celsius degree mode 1.Fridge temperature range: 0~6℃ (Default value 3℃) 2.Freezer temperature range: -23~-15℃... - Page 15 PRE-PROGRAMMED FUNCTIONS: • FAST FREEZE MODE This mode will set the freezer temperature to -10ºF for a quick drop in temperature when storing large amounts of warm or room-temperature foods in the freezer. The unit will remain in FAST FREEZE mode for 24 hours or until the temperature reaches -10ºF and will then return to the original setting, or until the function is turned off at the control panel.
-
Page 16: Care And Maintenance
NOTE: WE DO NOT RECOMMEND INSTALLING THE REFRIGERATOR WHERE THE TEMPERATURE WILL DROP BELOW 32ºF (0ºC) OR RISE ABOVE 110ºF (43ºC). THE COMPRESSOR WILL NOT BE ABLE TO MAINTAIN PROPER TEMPERATURES INSIDE THE REFRIGERATOR. FOR INSTALLATIONS WHERE THE TEMPERATURES WILL DROP BELOW 32º, SET THE FREEZER TEMPERATURE CONTROL TO THE “COLDEST”... -
Page 17: Problems With Your Appliance
PROBLEMS WITH YOUR APPLIANCE? You can solve many common refrigerator-freezer problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling for service. TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE Not plugged in. -
Page 18: Wiring Diagram
WIRING DIAGRAM Control Board a-Power L-Piller Heater u-R. Snr c-Compressor m-Water inlet pipe heater v-F. Snr d-Inverter n-Stepping motor w-Def. Snr e-Signal o-C.Fan x-RL.door switch g-Ice water valve p-F.Fan y-RR.door switch h-Protector q-R.Lamp z-F.door switch i-Def. Heater r-F.Lamp j-Protector s-Display board k-Ice Maker t-Temp.
