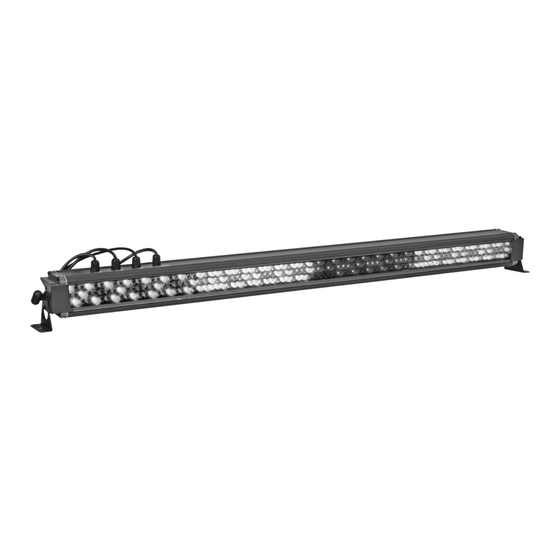

LED BAR FOR OUTDOOR USE
LEDBALK VOOR GEBRUIK BUITENSHUIS
BARRE LED POUR USAGE À L'EXTÉRIEUR
BARRA LED PARA EL USO EN EXTERIORES
LED-BAR FÜR DEN AUßENBEREICH
USER MANUAL
GEBRUIKERSHANDLEIDING
NOTICE D'EMPLOI
MANUAL DEL USUARIO
BEDIENUNGSANLEITUNG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VDPLOW890 and is the answer not in the manual?

Questions and answers

Summary of Contents for HQ Power VDPLOW890

  • Page 1 VDPLOW890 LED BAR FOR OUTDOOR USE LEDBALK VOOR GEBRUIK BUITENSHUIS BARRE LED POUR USAGE À L’EXTÉRIEUR BARRA LED PARA EL USO EN EXTERIORES LED-BAR FÜR DEN AUßENBEREICH USER MANUAL GEBRUIKERSHANDLEIDING NOTICE D’EMPLOI MANUAL DEL USUARIO BEDIENUNGSANLEITUNG...
  • Page 2 VDPLOW890_v2 HQPOWER...
  • Page 3: Safety Instructions

    • Keep the device away from children and unauthorised users. 3. General Guidelines • This device is designed for professional use on stage, in discos, theatres, etc. The VDPLOW890 can be used outdoors with an alternating current of max. 230VAC / 50Hz.
  • Page 4: Installation

    • Choose a suitable mounting spot and fix it in the desired angle. • Connect the power plug to the mains. • Switch off the power by disconnecting the VDPLOW890 from the mains. b) Mounting the Device • Have the device installed by a qualified person, respecting EN 60598-2-17 and all other applicable norms.
  • Page 5 • Auto Mode Flashing Automatic fade in and fade out Automatic transition of 7 colours Chase Chase speed • Sound-Controlled Mode Chase 7-colour flashing • Synchronized Mode Master unit Set as manual, auto or sound-controlled mode All slave units • Detailed DMX Values per Channel Channel Function From...
  • Page 6: Cleaning And Maintenance

    In the case of the 14-channel VDPLOW890, you will have to set the start address of the first VDPLOW890 to 1, the second VDPLOW890 to 15 (1 + 14), the third to 29 (15 + 14) and so on.
  • Page 7: Technical Specifications

    Hebt u vragen, contacteer dan de plaatselijke autoriteiten inzake verwijdering. Dank u voor uw aankoop! De VDPLOW890 is een WASH-effect voor gebruik buitenshuis met hoogwaardige leds van 10mm voor een vloeiende kleurwissel via voorprogramma’s of DMX-sturing. Lees deze handleiding grondig voor u het toestel in gebruik neemt.
  • Page 8: Algemene Richtlijnen

    • De beschikbare netspanning mag niet hoger zijn dan de spanning in de specificaties achteraan de handleiding. • De voedingskabel mag niet omgeplooid of beschadigd zijn. Laat uw dealer zo nodig een nieuwe kabel plaatsen. • Trek de stekker uit het stopcontact (trek niet aan de kabel!) voordat u het toestel reinigt en als u het niet gebruikt. •...
  • Page 9 5. Menu Raadpleeg de tabel op blz. 2. 6. Gebruik OPMERKING: Laat het toestel bij het eerste gebruik een 3-tal uur ingeschakeld om de batterij volledig op te laden. • Manuele modus Rode dimmer Groene dimmer Blauwe dimmer • Automatische modus Flitsen Automatische fade in en fade out Automatische overgang van de 7 kleuren...
  • Page 10 In het geval van de 14-kanaals VDPLOW890, zult u het startadres van het eerste toestel op 1 moeten instellen, van het tweede toestel op 15 (1 + 14), van het derde op 29 (15 + 14) enz.
  • Page 11: Reiniging En Onderhoud

    En cas de questions, contacter les autorités locales pour élimination. Nous vous remercions de votre achat ! Le VDPLOW890 est un effet WASH pour usage à l’extérieur à LED haute qualité de 10mm pour un mixage de couleurs fluide piloté par DMX ou par préprogrammes. Lire la présente notice attentivement avant la mise en service de l’appareil.
  • Page 12: Prescriptions De Sécurité

    • Les dommages occasionnés par des modifications à l’appareil par le client, ne tombent pas sous la garantie. • L’usure mécanique ne tombe pas sous la garantie. • Garder votre VDPLOW890 hors de la portée de personnes non qualifiées et de jeunes enfants. 3. Directives générales •...
  • Page 13 • Fixer votre VDPLOW890 à l’aide d’un câble de sécurité (sécurité supplémentaire). • Éviter de vous positionner en dessous de l’appareil pour l’enlever ou lors du montage ou du nettoyage. Un technicien qualifié...
  • Page 14 Connecter le câble à fiche XLR inclus à la sortie XLR femelle à 3 broches de votre contrôleur et l’autre fiche XLR mâle à 3 broches à l’entrée du VDPLOW890. Il est possible de relier plusieurs VDPLOW890 à partir d’une connexion sérielle. Utiliser un câble de connexion blindé à 2 conducteurs avec des connecteurs d’entrée et de sortie XLR.
  • Page 15: Nettoyage Et Entretien

    Pour le VDPLOW890 à 14 canaux, l’adresse de départ du premier appareil est 1, du deuxième 15 (1 + 14), du troisième 29 (15 + 14), etc.
  • Page 16: Instrucciones De Seguridad

    Si tiene dudas, contacte con las autoridades locales para residuos. ¡Gracias por haber comprado la VDPLOW890! Es un efecto WASH para el uso en exteriores con LEDs de alta calidad de 10mm para una fluida mezcla de colores por efectos preprogramados o controlados por DMX. Lea cuidadosamente las instrucciones del manual antes de usar el aparato.
  • Page 17: Instalación

    • Por razones de seguridad, las modificaciones no autorizadas del aparato están prohibidas. • Utilice sólo la VDPLOW890 para aplicaciones descritas en este manual a fin de evitar p.ej. cortocircuitos, quemaduras, descargas eléctricas, etc. Un uso desautorizado puede causar daños y anula la garantía completamente.
  • Page 18 • Modo automático Destellos ‘fade in’ y ‘fade out’ automático Transición automático de los 7 colores Chase Velocidad del chase • Modo controlado por la música Chase Destellos de 7 colores • Modo sincronizado Aparato maestro Programar el modo manual, automático o control por la música Todos los aparatos esclavos •...
  • Page 19: Limpieza Y Mantenimiento

    Por lo tanto, cambiar los ajustes de un solo canal sólo afecta al canal en cuestión. En el caso de la VDPLOW890 de 14 canales, la dirección inicial del primer aparato es 1, del segundo aparato 15 (1 + 14), del tercero 29 (15 + 14), etc.
  • Page 20: Especificaciones

    Falls Zweifel bestehen, wenden Sie sich für Entsorgungsrichtlinien an Ihre örtliche Behörde. Wir bedanken uns für den Kauf der VDPLOW890! Das Gerät ist einen WASH-Effekt für den Außenbereich mit hochwertigen 10mm-LEDs für einen fließenden Farbwechsel über vorprogrammierte Effekte oder DMX-Steuerung.
  • Page 21: Allgemeine Richtlinien

    • Vergewissern Sie sich, dass die anzuschließende Netzspannung nicht höher ist als die Netzspannung beschrieben in dieser Bedienungsanleitung. • Achten Sie darauf, dass die Netzleitung nicht gequetscht oder durch scharfe Kanten beschädigt werden kann. Bei Beschädigungen soll eine Fachkraft das Kabel ersetzen. •...
  • Page 22 • Oberirdische Montage erfordert erhebliche Sachkenntnis in Bezug auf das Berechnen der maximalen Lasten, das geeignete Montagematerial…Lassen Sie das Material und das Gerät regelmäßig kontrollieren. Versuchen Sie das Gerät nicht selber zu installieren, denn wenn Sie nicht über diese Qualifikationen verfügen, könnte es zu Verletzungen führen.
  • Page 23 • Detaillierte DMX-Werte pro Kanal Kanal Funktion Umschreibung Stroboskop ‘Fade In’ und ‘Fade Out’ (ch2-14 Dimmer nicht gültig) Automatischer Farbwechsel (ch2-14 Dimmer nicht gültig) Chase 1 Chase 2 Effekt Chase 3 Chase 4 Chase 5 Chase 6 Chase 7 Chase 8 Chase 9 Chase 10 Chase 11...
  • Page 24: Reinigung Und Wartung

    Gerät auf einem anderen Kanal Signale empfangen. Wenn Sie die Einstellungen ändern, wird nur das besagte Gerät beeinflusst. Im Falle der 14-Kanal VDPLOW890, werden Sie die Startadresse des ersten Gerätes auf 1, der zweiten Einheit auf 15 (1 + 14), der dritten Einheit auf 29 (15 + 14) usw. einstellen müssen.
