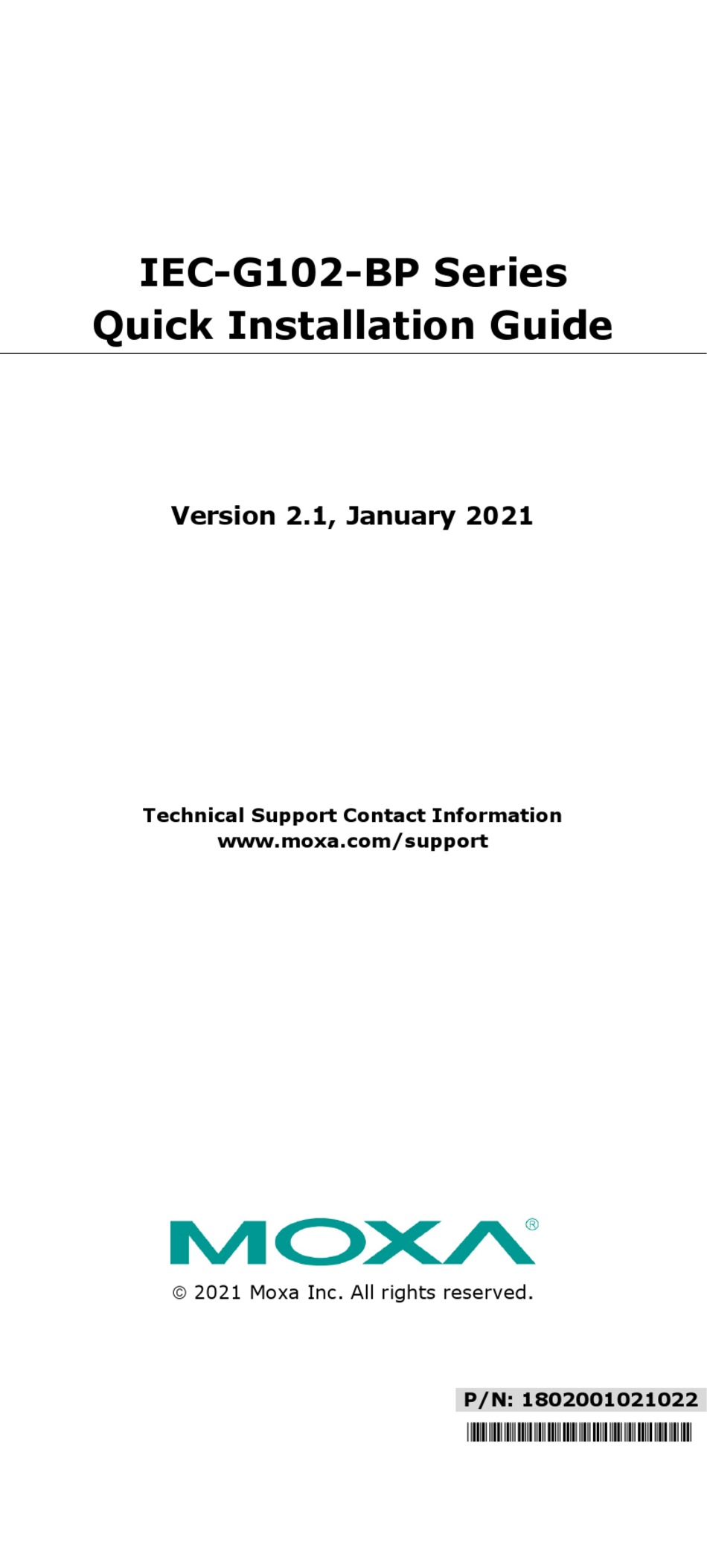

- Page 1 IEC-G102-BP Series Quick Installation Guide Version 2.1, January 2021 Technical Support Contact Information www.moxa.com/support 2021 Moxa Inc. All rights reserved. P/N: 1802001021022 *1802001021022*...
-
Page 2: Package Checklist
Package Checklist The IEC-G102-BP Series, which is an industrial next-generation IPS, is shipped with the items listed below. If any of these items are missing or damaged, please contact your customer service representative for assistance. • 1 Industrial next-generation IPS •... - Page 3 Panel Views of IEC-G102-BP Series Front Panel Front Panel: 1. USB port for ABC-02-USB 2. Power input PWR1 LED indicator 3. Power input PWR2 LED indicator 4. MANAGED status LED indicator 5. IPS/IDS state LED indicator 6. USB mount status and FAULT LED indicator 7.
-
Page 4: Mounting Dimensions
Mounting Dimensions DIN-rail Mounting In the package, the metal DIN-rail mounting kit is fixed to the back panel of the IEC-G102-BP Series. Mount the IEC-G102-BP Series on the corrosion-free mounting rail that adheres to the EN 60715 standard. Suggested Installation Method STEP 1: Insert the upper lip of the DIN-rail kit into the mounting rail. -
Page 5: Wall Mounting
Suggested Removal Method STEP 1: Pull down the latch on the DIN-rail kit with a screwdriver. STEP 2: Slightly pull the IEC-G102-BP Series forward and lift up to remove it from the mounting rail. Wall Mounting For some applications, you will find it convenient to mount the IEC-G102-BP Series on the wall, as shown in the following illustrations. -
Page 6: Wiring Requirements
Wiring Requirements WARNING Do not disconnect modules or wires unless power has been switched off or the area is known to be non-hazardous. The devices may only be connected to the supply voltage shown on the type plate. The devices are designed for operation with a Safety Extra-Low Voltage. -
Page 7: Wiring The Redundant Power Inputs
Grounding the IEC-G102-BP Series Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw (M3 type) to the grounding surface prior to connecting devices. ATTENTION This product is intended to be mounted to a well-grounded mounting surface such as a metal panel. - Page 8 TYPE-C to DB9 Cable Wiring BROWN GREEN BLUE ORANGE PURPLE YELLOW GREY BLACK WHITE PIN Definition Description A5, B5 A6, B6 A7, B7 A8, B8 A3, B3 10/100/1000BaseT(X) Ethernet Port Connection The 10/100/1000BaseT(X) ports located on the IEC-G102-BP Series front panel are used to connect to Ethernet-enabled devices.
-
Page 9: The Reset Button
1000BaseT RJ45 Pinouts MDI-X BI_DA+ BI_DB+ BI_DA- BI_DB- BI_DB+ BI_DA+ BI_DC+ BI_DD+ BI_DC- BI_DD- BI_DB- BI_DA- BI_DD+ BI_DC+ BI_DD- BI_DC- The Reset Button The reset button has two features: 1. Reboot system: Press and hold the reset button for between 2 and 10 seconds. -
Page 10: Specifications
Color State Description An ABC-02-USB has been detected. Green Blinking USB data transmitting. USB/F Hardware or system fault. Hardware BYPASS is enabled. BYPASS Amber Hardware BYPASS is NOT enabled. Ethernet link up. 1000M Green Ethernet link down. Blinking Data is being transmitted. Ethernet link up.
