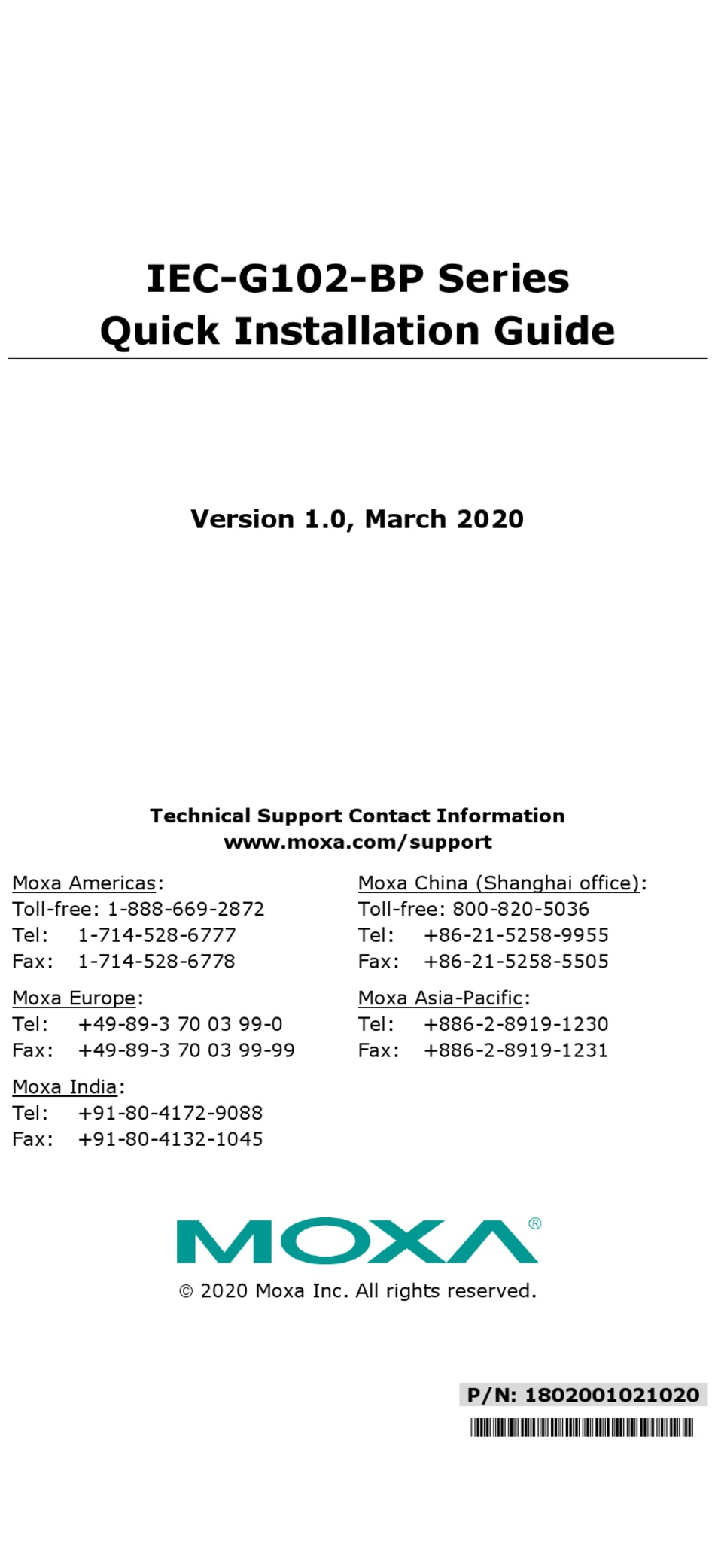

IEC-G102-BP Series
Quick Installation Guide
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045
Version 1.0, March 2020
Technical Support Contact Information
www.moxa.com/support
 2020 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802001021020
*1802001021020*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IEC-G102-BP Series and is the answer not in the manual?

Questions and answers

Related Manuals for Moxa Technologies IEC-G102-BP Series

Summary of Contents for Moxa Technologies IEC-G102-BP Series

  • Page 1 IEC-G102-BP Series Quick Installation Guide Version 1.0, March 2020 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0...

  • Page 2: Package Checklist

    Package Checklist The IEC-G102-BP Series, which is an industrial next-generation IPS, is shipped with the items listed below. If any of these items are missing or damaged, please contact your customer service representative for assistance. • 1 Industrial next-generation IPS •...
  • Page 3 Panel Views of IEC-G102-BP Series Front Panel Front Panel: 1. USB port for ABC-02-USB 2. Power input PWR1 LED indicator 3. Power input PWR2 LED indicator 4. MANAGED status LED indicator 5. IPS/IDS state LED indicator 6. USB mount status and FAULT LED indicator 7.

  • Page 4: Mounting Dimensions

    Mounting Dimensions DIN-rail Mounting In the package, the metal DIN-rail mounting kit is fixed to the back panel of the IEC-G102-BP Series. Mount the IEC-G102-BP Series on the corrosion-free mounting rail that adheres to the EN 60715 standard. Suggested Installation Method...

  • Page 5: Wall Mounting

    G102-BP Series on the wall, as shown in the following illustrations. STEP 1: Remove the aluminum DIN-rail attachment plate from the rear panel of the IEC-G102-BP Series, and then attach the wall mount plates with M3 screws, as shown in the below figure.

  • Page 6: Wiring Requirements

    ATTENTION Safety First! Be sure to disconnect the power cord before installing and/or wiring your IEC-G102-BP Series. Calculate the maximum possible current in each power wire and common wire. Observe all electrical codes dictating the maximum current allowable for each wire size.

  • Page 7: Wiring The Redundant Power Inputs

    Wiring the Redundant Power Inputs The IEC-G102-BP Series has two sets of power inputs—power input 1 and power input 2. The top and side views of the terminal block connector are shown below.
  • Page 8 A8, B8 A3, B3 10/100/1000BaseT(X) Ethernet Port Connection The 10/100/1000BaseT(X) ports located on the IEC-G102-BP Series front panel are used to connect to Ethernet-enabled devices. Most users will choose to configure these ports for Auto MDI/MDI-X mode, in which case the port’s pinouts are adjusted automatically depending on the type of Ethernet cable used (straight-through or cross-over), and the type of device (NIC-type or HUB/Switch-type) connected to the port.

  • Page 9: The Reset Button

    NOTE DO NOT power off the device when loading default settings. LED Indicators The front panel of the IEC-G102-BP Series has several LED indicators. The function of each LED is described in the following table: Color State...

  • Page 10: Specifications

    Color State Description Intrusion Detection and Prevention System is disabled. An ABC-02-USB has been detected. Green Blinking USB data transmitting. USB/F Hardware or system fault. Hardware BYPASS is enabled. BYPASS Amber Hardware BYPASS is NOT enabled. Ethernet link up. 1000M Green Ethernet link down.
