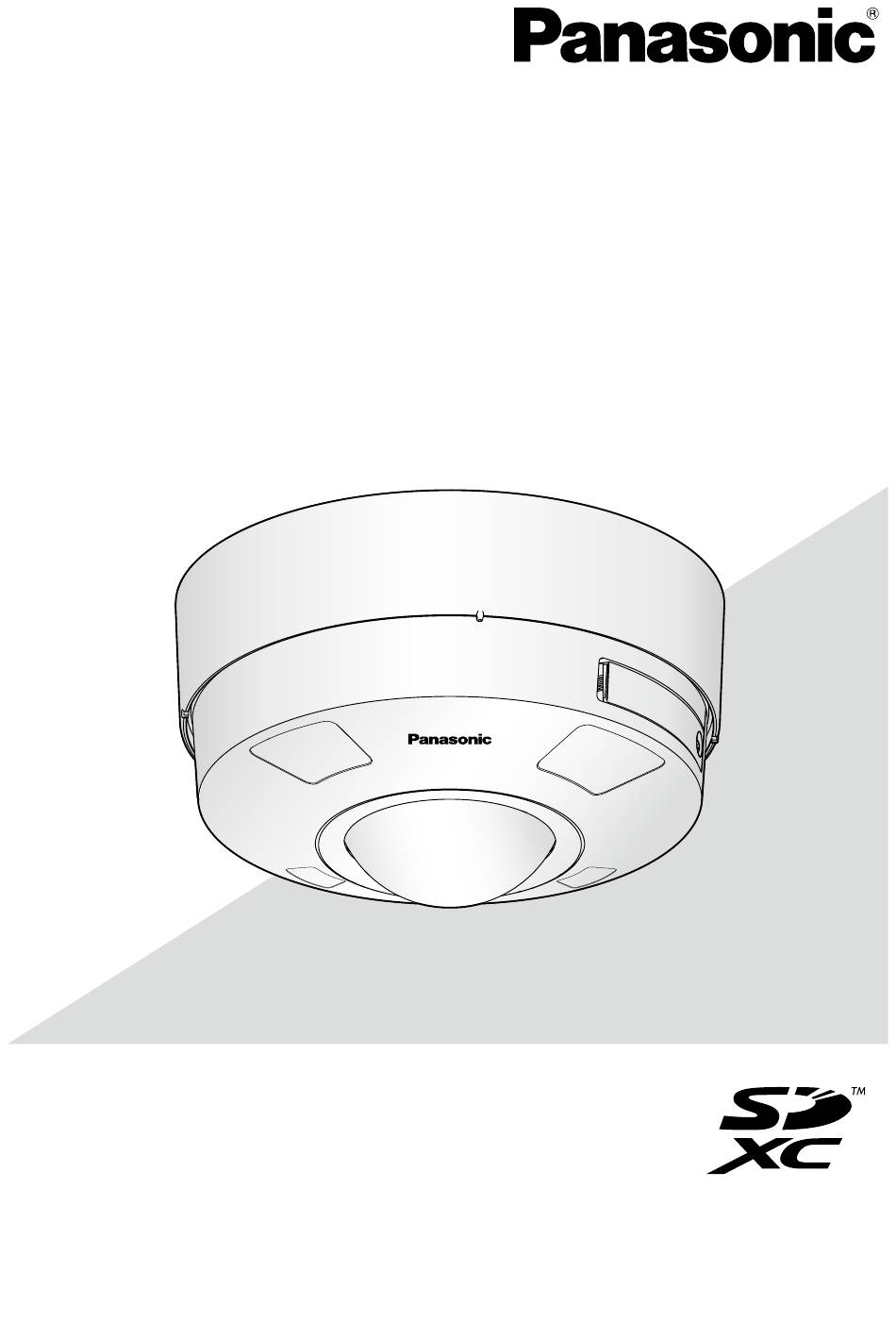

WV-X4571L / WV-X4571LM
Model No.
WV-S4550L / WV-S4550LM
* For information about the installation tasks, refer to the provided Installation
Guide. For information about how to perform the settings and how to
operate the camera, refer to the Operating Instructions on the provided
CD-ROM.
* WV-S4550LPJ is the same model as the Network Camera WV-S4550L.
please read these instructions carefully and save this manual for future use.
The model number is abbreviated in some descriptions in this manual.
Important Information
WV-S4550L
Before attempting to connect or operate this product,
Network Camera
WV-S4550LPJ
WV-S4550L
Advertisement
Table of Contents
Related Manuals for Panasonic WV-S4550LPJ
Summary of Contents for Panasonic WV-S4550LPJ
- Page 1 Operating Instructions on the provided CD-ROM. * WV-S4550LPJ is the same model as the Network Camera WV-S4550L. Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use.
-
Page 2: Table Of Contents
Contents Limitation of liability ........................3 Disclaimer of warranty ........................3 Preface ............................4 About notations ..........................4 Main functions ..........................4 About the user manuals ........................ 6 System requirements for a PC ...................... 6 Trademarks and registered trademarks..................7 Copyright ............................ -
Page 3: Limitation Of Liability
IMPROVEMENTS OF THIS PUBLICATION AND/OR THE CORRESPONDING PRODUCT (S). Disclaimer of warranty IN NO EVENT SHALL Panasonic Corporation BE LIABLE TO ANY PARTY OR ANY PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW:... -
Page 4: Preface
Preface This product is an outdoor use Fisheye monitoring camera with a 10BASE-T/100BASE-TX network port for network connection. By connecting to a network (LAN) or the Internet, images and audio from the camera can be moni- tored on a PC via a network. Note: •... - Page 5 Panasonic's own intelligent auto (iA) feature provides increased discernibility even in environments with poor visibility Improvements to the Super Dynamic (SD) feature and shutter speed optimization provides clear discernibility even when monitoring moving people or car silhouettes. Equipped with SD memory card slot It is possible to save H.265 / H.264 videos and JPEG images on the SD memory card manually...
-
Page 6: About The User Manuals
About the user manuals Product documentation is composed of the following documents. • Important Information (this document): Provides basic information about the product. • Installation Guide: Explains installation, mounting, cable connections, and adjusting the field of view. • Operating Instructions (included in the CD-ROM): Explains how to perform the settings and how to operate this camera. -
Page 7: Trademarks And Registered Trademarks
Modern UI design. • When using the 4K monitor, it may be necessary to install an additional video card on the PC in use. For further information, refer to our website (https://security.panasonic.com/support/info/). Note: • For further information about PC system requirements and precautions for when using Microsoft Windows or Windows Internet Explorer, click “Manual”... -
Page 8: Open Source Software
• Refer to the “readme.txt” file on the provided CD-ROM for further information about open source software licenses and the source code. • Please note that Panasonic shall not respond to any inquiries regarding the contents of the source code. -
Page 9: Precautions
Precautions Do not insert any foreign objects. Do not attempt to disassemble or modify Fire or electrical shock may be caused if water this product. or any foreign objects, such as metal objects, Failure to observe this may cause fire or electric enter inside the unit. - Page 10 The screws and bolts must be tightened to [Precautions for use] the specified torque. When the product is accessible from the Failure to observe this may cause a drop Internet resulting in injury or accidents. To prevent unauthorized access, note the fol- lowing.
- Page 11 About the automatic status detection What to do if “WARMING UP-PLEASE function WAIT” appears on the display. When this product malfunctions due to exoge- This message indicates that the temperature nous noise, etc. for 30 seconds or more, the inside the camera has become extremely low. product will automatically reset and will return The camera will be automatically restarted to normal state.
- Page 12 AVC Patent Portfolio License THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL USE OF A CONSUMER OR OTHER USES IN WHICH IT DOES NOT RECEIVE REMUNERATION TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”) AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A...
-
Page 13: Precautions For Installation
Precautions for installation Panasonic assumes no responsibility for injuries or property damage resulting from failures arising out of improper installation or operation inconsistent with this documentation. For information about the installation tasks, refer to the provided Installation Guide. In order to prevent injury, the product •... - Page 14 Installing in low temperature environments When noise disturbance may happen This product may not function properly if it is Conduct the power distribution work to keep a installed and operated in an environment where distance of 1 m {3.28 feet} or more from the the temperature is –20 °C {–4 °F} or lower.
-
Page 15: Parts And Functions
Parts and functions ■ Cables X4571LM S4550LM M12 (female) Network cable cable (category 5e Ethernet X4571L S4550L or better, straight) RJ45 (female) Network cable 4P alarm cable (accessory) Alarm input/output cable 12 V DC (red) 2P power 12 V DC power GND (black) cable supply terminal... - Page 16 12 V DC power supply terminal / 2P power cable (accessory) Caution: A READILY ACCESSIBLE DISCONNECT DEVICE SHALL BE INCORPORATED TO THE EQUIPMENT POWERED BY 12 V DC POWER SUPPLY. ONLY CONNECT 12 V DC CLASS 2 POWER SUPPLY (UL 1310/CSA 223) or LIMITED POWER SOURCE (IEC/EN/UL/CSA 60950-1).
- Page 17 Audio input cable (white) Connect a microphone or the line out of an external device using a stereo mini plug (ø3.5 mm). <For microphone input> Recommended microphone: Plug-in power type (locally procured) (Sensitivity of microphone: –48 dB ±3 dB (0 dB=1 V/Pa,1 kHz)) ...
- Page 18 When connecting to a network using a PoE hub Before starting the installation, check the entire system configuration. The following illustration gives a wiring example of how to connect the camera to the network via a PoE device (hub). Powered speaker Adjustment monitor PoE device (hub) Ethernet cable...
- Page 19 ■Indicators and buttons * This illustration represents WV-S4550L INITIAL SET button <Inside view of the SD memory card slot cover (Initializing button) (with SD memory card slot cover opened)> SD slot cover SD memory card slot SD ON/OFF button ACT indicator SD MOUNT indicator LINK indicator DSD ERROR/ABF indicator...
- Page 20 ACT indicator When data is being sent via the network camera Blinks green (accessing) LINK indicator When the camera is able to communicate with Lights orange the connected device SD ERROR/ABF indicator SD ERROR indicator S4550L X4571L S4550LM X4571LM ...
-
Page 21: Insert/Remove An Sd Memory Card
Insert / remove an SD memory card Note: Refer to the Operating Instructions on the provided CD-ROM for further information about the SD memory card settings. ■ Insert an SD memory card 【１】 Open the SD slot cover on the side of the camera, insert an SD memory card fully into the SD memory card slot until a click is heard. - Page 22 ■ Remove an SD memory card When removing an SD memory card, reverse the procedure. To remove the SD memory card, hold down the SD ON/OFF button for about 2 seconds. When the flashing SD MOUNT indicator goes out, you can remove the SD memory card. IMPORTANT: ...
-
Page 23: Troubleshooting
Or install the software to format the SD memory card on the PC. Refer to our website S4550L S4550LM (https://security.panasonic.com/support/info/) for fur- ther information about the supported software. • Isn't the inserted SD memory card faulty? Replace the card with a normal one. - Page 24 Reference Symptom Cause/solution pages • Check the following. • Grounding of the camera, a switching hub or peripheral devices are not done. • The camera is used near an electrical power line. • The camera is used near a device which produces Audio input contains strong magnetic field or radio waves (such as near noise.
-
Page 25: Specifications
Specifications Basic • Power source * DC 12 V PoE (IEEE802.3af compliant) Power consumption * X4571L X4571LM DC 12 V : 1.04 A/Approx. 12.5 W PoE DC 48 V : 260 mA/Approx. 12.5 W (Class 0 device) S4550L S4550LM DC 12 V : 910 mA/Approx. - Page 26 ECE-R10 (E approval) X4571LM S4550LM *1 Refer to our website (https://security.panasonic.com/support/info/) for further information about Power source and Power consumption information. *2 In the environment where IR-LED is always turned on, make sure that the temperature is between –40° C and +50 °C {–40 °F to +122 °F}.
- Page 27 Minimum illumination: S4550L S4550LM Color : 0.3 lx {0.02787 footcandle} (F2.4, Maximum shutter: Off (1/30 s), AGC: 11) 0.02 lx {0.00186 footcandle} (F2.4, Maximum shutter: max. 16/30 s, AGC: 11)* BW :0 lx {0 footcandle} (F2.4, Maximum shutter: Off (1/30 s), AGC: 11, when the IR LED is lit)) 0.04 lx {0.0372 footcandle} (F2.4, Maximum shutter: Off (1/30 s), AGC: 11)
- Page 28 Focus range: 0.5 m {19-11/16 inches} – ∞ X4571L X4571LM 0.3 m {11-13/16 inches} – ∞ S4550L S4550LM Aperture range: F1.9 (Fixed) X4571L F2.4 (Fixed) S4550L S4550LM X4571LM Angular field of view: Horizontal: 183 ° / Vertical: 183 ° X4571L X4571LM Horizontal: 186 °...
- Page 29 Resolution* <Ceiling> H.265/ H.264 S4550L S4550LM JPEG (MJPEG) Double Panorama mode (max. 30 fps) 1920×1080, 1280×720, 640×360, 320×180 Fisheye + Double Panorama mode (max. 30 fps) (Fisheye) 2192×2192, 1280×1280, 640×640, 320×320 (Double Panorama) 1280×720, 640×360, 320×180 Fisheye + Quad PTZ mode (max. 30 fps) (Fisheye) 2192×2192, 1280×1280, 640×640, 320×320 (Quad PTZ) 1280×960, 800×600, VGA, QVGA Quad streams mode...
- Page 30 Up to 16 camera images can be displayed simultaneously on a multi-screen. (Including the camera itself) Compatible SDXC/SDHC/SD Manufactured by Panasonic (SD speed class 4 or higher) memory card* SDXC memory card : 64 GB, 128 GB, 256 GB SDHC memory card : 4 GB, 8 GB, 16 GB, 32 GB...
-
Page 31: Optional Accessories
Microsoft Windows or Windows Internet Explorer, click “Manual” - “Open” from the supplied CD-ROM and refer to “Notes on Windows / Internet Explorer versions”. *5 Refer to our website (https://security.panasonic.com/support/info/) for latest information about the compatible SD memory cards. *6 When repeatedly recording images on an SD memory card using the auto overwrite function, make sure to use an SD memory card with high reliability and durability. - Page 32 For U.S. and Canada: For Europe and other countries: Panasonic Corporation of North America Panasonic Corporation Two Riverfront Plaza, Newark, NJ 07102-5490 http://www.panasonic.com http://business.panasonic.com/ Panasonic Canada Inc. Panasonic Corporation Osaka, Japan 5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 Canada 1-877-495-0580 Authorised Representative in EU: https://www.panasonic.com/ca/...
