Main Ac Wiring; Service Entrance Decals - Generac Power Systems EcoGen G0070340 Installation Manuallines

183

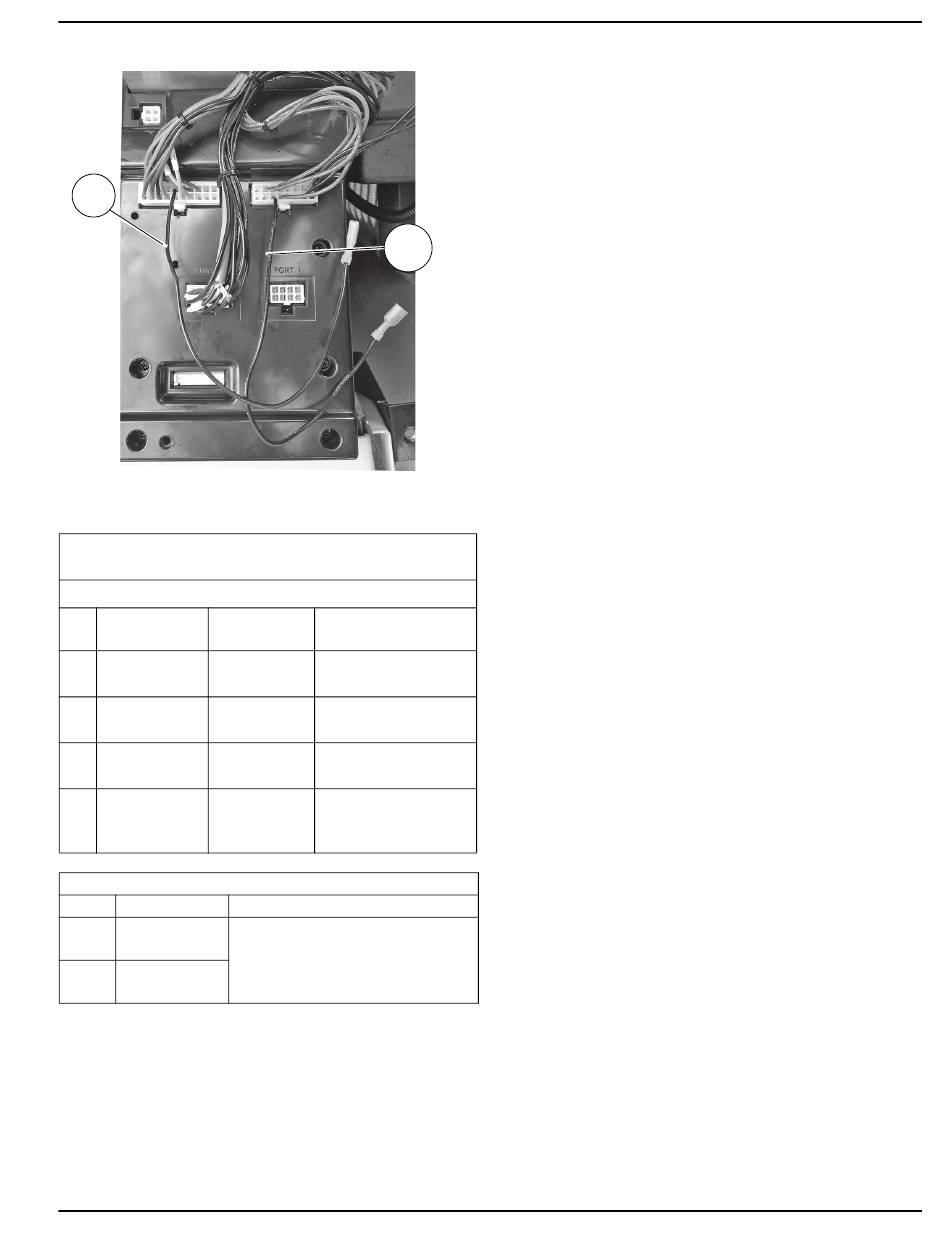

Figure 6-2. Two-Wire Start Connections
Table 6-4. Ground and Neutral Connections
(Copper or Aluminum Conductors)
Refer to national and/or local codes to verify correct wire sizes.
Recommended
No. Description
Wire Size
Power wire
1 2/0 to 8 AWG
terminals
Large neutral
2 2/0 to 14 AWG
lug
Large ground
3 2/0 to 14 AWG
lug
4-6 AWG
4 Neutral bus bar
10-14 AWG
Table 6-5: Remote Start Connections
Wire Connection
Female Faston
178
Two-Wire Start
Female Faston
183
Two-Wire Start
Installation Guidelines For 60 Hz EcoGen™ Generators
178
Torque Spec
120 in-lb (13.56 Nm)
120 in-lb (13.56 Nm)
120 in-lb (13.56 Nm)
35 in-lb (3.95 Nm)
8 AWG 25 in-lb (2.82 Nm)
20 in-lb (2.26 Nm)
Location
Hanging from controller above battery
compartment

Main AC Wiring

NOTE: Main AC wiring must be in accordance with local
jurisdiction and codes.
NOTE: The generator lugs are rated at 167 °F (75 °C),
copper or aluminum.
1. Strip the insulation off the wire ends. Do not remove
excessive insulation.
2. See Figure
ground (G), and power wire (mains) terminals (E1,
E2).
3. Connect the ground wire to the ground lug and torque
to the required specification. See
4. Connect the neutral wire to the neutral lug if
applicable. Torque to the required specification. See
Table 6-4.
5. Insert the power wires (E1 and E2) into their
corresponding lugs. Torque to the proper specification.
6. Verify the factory-installed ground and neutral
connections are properly tightened to 25 in-lb (2.82
001464
Nm).
NOTE: The neutral wire must remain connected to keep
the battery charged whether the generator is running or
not.
NOTE: Neutral bonding – For installations that require
the neutral to be bonded to the ground, this is done on
the customer connections terminals inside the generator.
See Figure 6-1. Connect a suitably sized wire from the
neutral bar (J) to the ground stud (F). Torque the nut on
the ground stud to 35 in-lbs (3.95 Nm). This is normally
required when the generator is the source in a separately
derived system. The installation must be made in
accordance with NEC Articles 250.30 and 250.35(A) if
the generator will be installed as a separately derived
system.
NOTE: Torque all wiring lugs, bus bars, and connection
points to the proper torque specifications.
Conductors of AC and DC circuits, rated 1000 volts
nominal or less, shall be permitted to occupy the same
equipment, cable, or conduit. All conductors shall have
an insulation rating equal to at least the maximum circuit
voltage applied to any conductor within the equipment,
cable, or conduit. See NEC 300.3(C)(1).

Service Entrance Decals

See Figure 2-6. Locate the service entrance-related
decals in the loose parts bag.
•
Place the service disconnect decal next to the Main
Line Circuit Breaker (Generator Disconnect).
•
Place the service entrance warning decal in an
appropriate location according to the instructions
printed on the decal.
Electrical Connections
6-1. Loosen the lugs at neutral (D),
Table 6-4.
27
