Summary of Contents for AVANT A37389

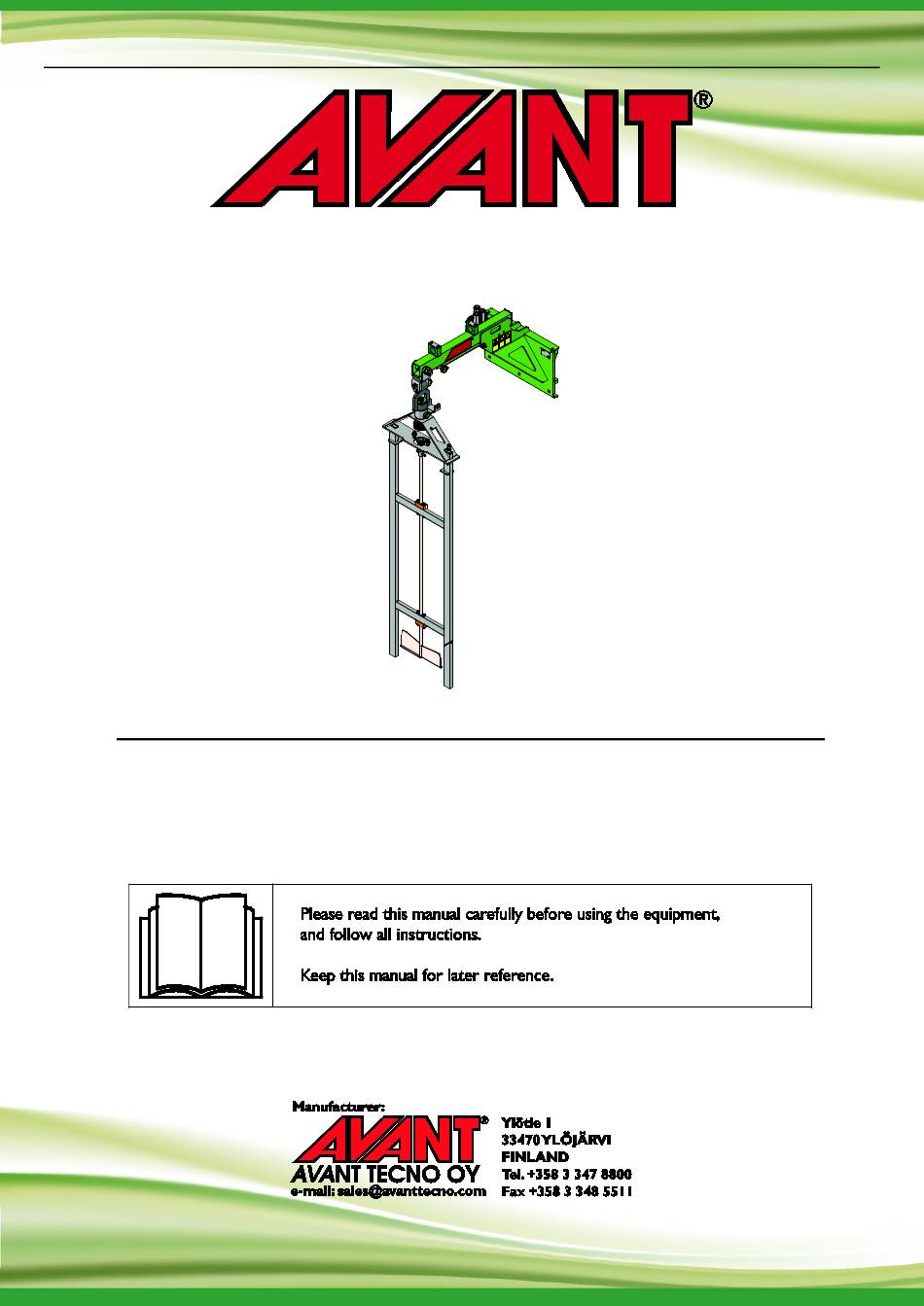

- Page 1 English Slurry mixer 2018 1 Operator's Manual for Attachment Slurry mixer Product number A37389 www.avanttecno.com A430958 2018 1 EN 2018-...
- Page 2 Slurry mixer 2018 1...
-
Page 3: Table Of Contents
Slurry mixer 2018 1 CONTENTS 1. FOREWORD ............................4 Warning symbols used in this manual ........................... 5 2. DESIGNED PURPOSE OF USE......................6 3. SAFETY INSTRUCTIONS FOR USING THE SLURRY MIXER ............7 4. TECHNICAL SPECIFICATIONS ....................... 9 Safety labels and main components of the attachment ..................9 5. -
Page 4: Foreword
If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer. -
Page 5: Warning Symbols Used In This Manual
5 (22) Warning symbols used in this manual The following warning symbols are used throughout this manual. They indicate factors that must be taken into account to reduce the risk of personal injury or damage to property: WARNING: SAFETY ALERT SYMBOL This symbol means: “Warning, be alert! Your safety is involved!”... -
Page 6: Designed Purpose Of Use
2. Designed purpose of use The AVANT slurry mixer is an attachment suitable for use with AVANT multi purpose loaders shown in Table The unit is equipped with a propeller which mixes the slurry, powered by a hydraulic motor. The mixer is 25 mm thick and 490 mm wide, meant to fit through the floor slat into the storage tank. -
Page 7: Safety Instructions For Using The Slurry Mixer
7 (22) 3. Safety instructions for using the slurry mixer Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage. - Page 8 8 (22) Shut down the loader and place the attachment to a safe position as shown in Safe stopping procedure before any cleaning, maintenance, or adjustments. Pay attention to the surroundings and any other persons and machines moving in the vicinity.
-
Page 9: Technical Specifications
Height: 2155 mm Weight: 75 kg Compatible AVANT loader models: See Table 1 4.1 Safety labels and main components of the attachment Listed below are the labels and markings on the attachment. They must be visible and readable on the equipment. - Page 10 10 (22) Attachment identification plate A423234 Table 3 - Decal locations and warning messages Decal Warning message Misuse hazard - Read instructions before 1 A46771 use. Crushing hazard - Do not go under a 2 A46772 raised attachment; stay away from raised equipment.
- Page 11 11 (22) Table 4 - Slurry mixer - Main components 1 Mixer frame 2 Propeller 3 Position indicator for propeller (Red) 4 Support bracket for transport 5 Hydraulic motor 6 Frame with quick attach brackets 7 Multi connector hydraulics coupling 8 Locking pin 9 Bearings 10 Water supply...
-
Page 12: Assembling The Attachment
Do not stay in the area between the attachment and the loader. Mount the attachment only on level surface. WARNING Never move or lift an attachment that has not been locked. Avant quick coupling system: Step 1: Lift the quick attach plate locking pins up and turn them backwards into the slot so that they are locked in the upper position. -
Page 13: Connecting And Disconnecting Hydraulic Hoses
5.1 Connecting and disconnecting hydraulic hoses On Avant loaders the hydraulic hoses are connected using the multi connector system. If you have an Avant 300-700 series loader with the conventional quick couplers and wish to change to the multi connector system, contact your Avant dealer or service point for instructions or installation services. - Page 14 14 (22) Keep all fittings as clean as possible; use the protective caps on both the attachment and the loader. Dirt, ice, etc. may make using the fittings significantly more difficult. Never leave the hoses hanging on the ground; place the couplings onto the holder on the attachment.
-
Page 15: Operating The Attachment
15 (22) 6. Operating the attachment Check the attachment and the operating environment once more before starting to work, and that all obstacles have been removed from the operating area. Quick inspection of the equipment and the operating area before use are parts of ensuring safety and the best performance of the equipment. -
Page 16: Transport Position
16 (22) 6.2 Transport position Before driving: 1. Turn the support bracket (1) into the transport position. 2. Lock the support bracket with locking pin (2). When transporting the slurry mixer: When driving with the loader, keep the slurry mixer in the position shown in the figure below. Avoid sharp turns while transporting the slurry mixer. -
Page 17: Use
17 (22) 6.3 Use Before starting to work: Read all safety instructions. Using the slurry mixer: Set the slurry mixer to working position. The slurry mixer is started by turning the auxiliary hydraulics control lever to its locking position. Start the mixer at the driver's seat, and make sure that the mixer rotates clockwise. -
Page 18: Maintenance And Service
Finding any fault means that the hydraulic hose or component must be replaced and the equipment must not be used until it is repaired. Spare parts are available from your nearest AVANT retailer or authorised service point. Leave the repair work to professional service technicians, if you don’t have adequate knowledge and... -
Page 19: Cleaning The Attachment
19 (22) 7.2 Cleaning the attachment Clean the attachment regularly to prevent accumulation of dirt which is more difficult to remove. A pressure washer and mild detergent can be used for cleaning. Do not use strong solvents, and do not spray directly at the hydraulic components, or at the labels on the attachment. -
Page 20: Warranty Terms
20 (22) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows: Work costs are covered, if the repair is not performed at the factory. - Page 21 Mallit / Modeller / Models: Avant Hydraulitoiminen lietekuilin sekoitin; Avant-kuormaajan työlaite Hydraulisk Flytgödselblandare; arbetsredskap för Avant lastare A37389 Hydraulic slurry mixer; attachment for Avant loaders 20.4.2018 Ylöjärvi, Finland Risto Käkelä, Toimitusjohtaja / Verkställande direktör / Managing Director Original language version...
