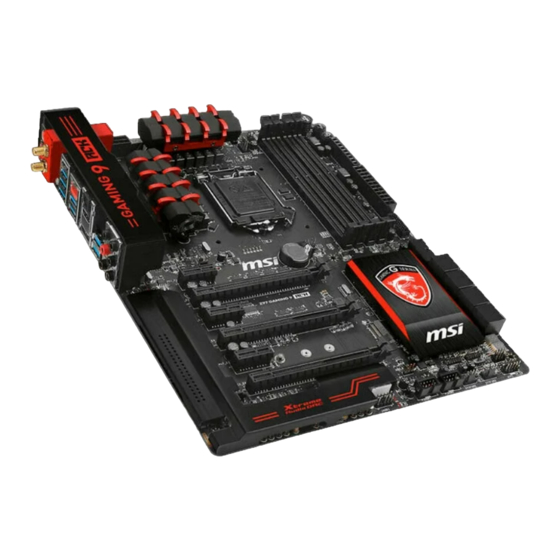

Z97U GAMING 9 ACK
Motherboard
G52-79261X7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z97U GAMING 9 ACK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MSI Z97U GAMING 9 ACK

Summary of Contents for MSI Z97U GAMING 9 ACK

  • Page 1 Preface Z97U GAMING 9 ACK Motherboard G52-79261X7...
  • Page 2 Apple Inc. ￭ Qualcomm Atheros and Killer are trademarks of Qualcomm Atheros Inc. Revision History Revision Revision History Date V1.1 First release for ACK version 2014/ 09 V1.2 Update release for Z97U GAMING 9 ACK 2015/ 01 Preface...
  • Page 3 If a problem arises with your system and no solution can be obtained from the user’s manual, please contact your place of purchase or local distributor. Alternatively, please try the following help resources for further guidance. Visit the MSI website for technical guide, BIOS updates, driver updates, and other information: http://www.msi.com/support/ Contact our technical staff at: http://register.msi.com/...
  • Page 4 Safety Instructions ￭ Always read the safety instructions carefully. ￭ Keep this User’s Manual for future reference. ￭ Keep this equipment away from humidity. ￭ Lay this equipment on a reliable flat surface before setting it up. ￭ The openings on the enclosure are for air convection hence protects the equipment from overheating.
  • Page 5 FCC-B Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 6 Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment and its antenna should be installed and operated with minimum distance 20 cm between the radiator and your body. This equipment and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.
  • Page 7 Replace only with the same or equivalent type recommended by the manufacturer. Chemical Substances Information In compliance with chemical substances regulations, such as the EU REACH Regulation (Regulation EC No. 1907/2006 of the European Parliament and the Council), MSI provides the information of chemical substances in products at: http://www.msi.com/html/popup/csr/evmtprtt_pcm.html Preface...
  • Page 8 MSI will comply with the product take back requirements at the end of life of MSI-branded products that are sold into the EU. You can return these products to local collection points.
  • Page 9 MSI će poštovati zahtev o preuzimanju ovakvih proizvoda kojima je istekao vek trajanja, koji imaju MSI oznaku i koji su prodati u EU. Ove proizvode možete vratiti na lokalnim mestima za prikupljanje.
  • Page 10 MSI si adeguerà a tale Direttiva ritirando tutti i prodotti marchiati MSI che sono stati venduti all’interno dell’Unione Europea alla fine del loro ciclo di vita.
  • Page 11 2008 № 1057. Việt Nam RoHS Kể từ ngày 01/12/2012, tất cả các sản phẩm do công ty MSI sản xuất tuân thủ Thông tư số 30/2011/TT-BCT quy định tạm thời về giới hạn hàm lượng cho phép của một số...

  • Page 12: Table Of Contents

    ▍ CONTENTS Chapter 1 Getting Started................1-1 Packing Contents ....................1-2 Assembly Precautions ..................1-3 Motherboard Specifications .................. 1-4 Connectors Quick Guide ..................1-7 Back Panel Quick Guide ..................1-9 CPU (Central Processing Unit) ................1-11 Introduction to the LGA 1150 CPU .............. 1-11 CPU &...
  • Page 13 JBAT1: Clear CMOS Jumper ............... 1-30 SLOW_1: Slow Mode Booting Jumper ............1-30 Switches ......................1-31 BIOS_SW1: Multi-BIOS Switch ..............1-31 AUD_SW1: Audio Power Switch ..............1-32 LED Status Indicators ..................1-33 LED Status Table ..................1-33 Debug Code LED Table ................1-34 Drivers and Utilities ....................
  • Page 14 OC PROFILE ..................... 3-28 HARDWARE MONITOR ..................3-29 Appendix A Realtek Audio ................A-1 Software Configuration ..................A-2 Software panel overview ................A-2 Auto popup dialog ..................A-3 Hardware Default Setting ..................A-4 Appendix B Intel RAID ................B-1 Introduction ......................B-2 Using Intel Rapid Storage Technology Option ROM..........B-3 Degraded RAID Array ..................B-10 System Acceleration (optional) ................B-12 RST Synchronization (optional) .................B-14...

  • Page 15: Chapter 1 Getting Started

    Chapter 1 Getting Started Thank you for choosing the Z97U GAMING 9 ACK Series (MS-7926 v1.X) ATX motherboard. The Z97U GAMING 9 ACK Series motherboards are Z97 chipset for optimal system efficiency. Designed to fit based on Intel ® the advanced Intel ®...

  • Page 16: Packing Contents

    Packing Contents Drivers & Utilities Motherboard I/O Shield Motherboard Disc User Guide Software & Application Audio Power V-Check Cable x6 SATA Cable x6 User Guide Adapter Wi-Fi/Bluetooth Antenna x2 SLI Cable x2 M-Connector module eSATA Power eSATA Bracket eSATA Cable IO Cover Cable Case Badge...

  • Page 17: Assembly Precautions

    Assembly Precautions ■ The components included in this package are prone to damage from electrostatic discharge (ESD). Please adhere to the following instructions to ensure successful computer assembly. ■ Always turn off the power supply and unplug the power cord from the power outlet before installing or removing any computer component.

  • Page 18: Motherboard Specifications

    ■ ASMedia ASM1074 Chipset - 6x USB 3.0 ports on the back panel ■ ASMedia ASM1142 Chipset - 2x USB 3.1 ports on the back panel * Internal JUSB1 connector supports MSI Super Charger. ■ Realtek ® Audio ALC1150 Codec - 7.1-Channel High Definition Audio...
  • Page 19 ■ 1x Killer E2205 Gigabit LAN controller* * The Killer Network Manager is only available for Windows 7 and Windows 8/ 8.1 currently. The supported drivers for other operating systems would be available on the website if provided by vendor. ■...
  • Page 20 - Live Update 6 - Smart Utilities - Super Charger - Fast Boot - ECO Center - MSI Gaming APP ■ 7-ZIP ■ Intel Extreme Tuning Utility ■ Norton Internet Security Solution ■ Sound Blaster Cinema 2 ■ XSplit Gamecaster ■...

  • Page 21: Connectors Quick Guide

    Connectors Quick Guide DIMM3 CPUFAN2 Wi-Fi/Bluetooth expansion module connector DIMM2 DIMM4 DIMM1 JPWR2 CPU Socket SLOW_1 CPUFAN1 RESET1 POWER1 Back Panel JPWR1 JBAT1 JUSB3 JCI1 PCI_E1 SYSFAN1 PCI_E2 JUSB4 SATA1_2 PCI_E3 SATA3_4 PCI_E4 SATA5_6 PCI_E5 AUD_SW1 SATA7_8 PCI_E6 M2_1 AUDPWR1 JTPM1 JFP2 JFP1...
  • Page 22 Connectors Reference Guide Port Name Port Type Page Back Panel I/O Ports AUDPWR1 Direct Audio Power Connector 1-25 AUD_SW1 Audio Power Switch 1-32 BIOS_SW1 Multi-BIOS Switch 1-31 CPU Socket LGA1150 CPU Socket 1-12 CPUFAN1~2,SYSFAN1~3 Fan Power Connectors 1-21 DIMM1~4 DDR3 Memory slots 1-15 V-Check Connectors 1-27...

  • Page 23: Back Panel Quick Guide

    Back Panel Quick Guide Optical PS/2 Keyboard/ S/PDIF-Out Mouse Combo USB 3.0 Port LAN Port Port* Line-In RS-Out USB 3.1 Port Clear CMOS HDMI Line-Out CS-Out Button SS-Out USB 3.0 Port USB 2.0 Port* DisplayPort * Gaming Device Port. ▶ PS/2 Keyboard/Mouse Combo Port A combination of PS/2 ®...
  • Page 24 ▶ LAN Port The standard RJ-45 LAN jack is for connecting to a Local Area Network (LAN). LED Status Description No link Link/ Activity LED Yellow Linked LINK/ACT SPEED Blinking Data activity 10 Mbps connection Speed LED Green 100 Mbps connection Orange 1 Gbps connection ▶...

  • Page 25: Cpu (Central Processing Unit)

    This motherboard is designed to support overclocking. Before attempting to overclock, please make sure that all other system components can tolerate overclocking. Any attempt to operate beyond product specifications is not recommend. MSI does not guarantee the damages or risks caused by inadequate operation beyond product specifications.

  • Page 26: Cpu & Heatsink Installation

    CPU & Heatsink Installation When installing a CPU, always remember to install a CPU heatsink. A CPU heatsink is necessary to prevent overheating and maintain system stability. Follow the steps below to ensure correct CPU and heatsink installation. Wrong installation can damage both the CPU and the motherboard.
  • Page 27 3. Align the notches with the socket alignment keys. Lower the CPU straight down, without tilting or sliding the CPU in the socket. Inspect the CPU to check if it is properly seated in the socket. 4. Close and slide the load plate under the retention knob. Close and engage the load lever.
  • Page 28 7. Locate the CPU fan connector on the motherboard. 8. Place the heatsink on the motherboard with the fan’s cable facing towards the fan connector and the fasteners matching the holes on the motherboard. CPU fan connector 9. Push down the heatsink until the four fasteners get wedged into the holes on the motherboard.

  • Page 29: Memory

    Memory These DIMM slots are used for installing memory modules. DIMM1 DIMM2 DIMM3 DIMM4 Video Demonstration Watch the video to learn how to install memories. http://youtu.be/76yLtJaKlCQ Dual-Channel mode Population Rule In Dual-Channel mode, the memory modules can transmit and receive data with two data bus channels simultaneously.

  • Page 30: Mounting Screw Holes

    Mounting Screw Holes When installing the motherboard, first install the necessary mounting stands required for an motherboard on the mounting plate in your computer case. If there is an I/O back plate that came with the computer case, please replace it with the I/O backplate that came with the motherboard package.

  • Page 31: Power Supply

    Power Supply Video Demonstration Watch the video to learn how to install power supply connectors. http://youtu.be/gkDYyR_83I4 JPWR1~2: ATX Power Connectors These connectors allow you to connect an ATX power supply. To connect the ATX power supply, align the power supply cable with the connector and firmly press the cable into the connector.

  • Page 32: Expansion Slots

    Expansion Slots This motherboard contains numerous slots for expansion cards, such as discrete graphics or audio cards. PCI_E1~6: PCIe Expansion Slots The PCIe slot supports the PCIe interface expansion card. PCIe x16 Slot PCIe x1 Slot Important When adding or removing expansion cards, always turn off the power supply and unplug the power supply power cable from the power outlet.

  • Page 33: Video/ Graphics Cards

    Adding on one or more discrete video cards will significantly boost the system’s graphics performance. For best compatibility, MSI graphics cards are recommended. Video Demonstration Watch the video to learn how to install a graphics card on PCIe x16 slot with butterfly lock.

  • Page 34: Internal Connectors

    Internal Connectors SATA1~8: SATA Connectors This connector is a high-speed SATA interface port. Each connector can connect to one SATA device. SATA devices include disk drives (HDD), solid state drives (SSD), and optical drives (CD/ DVD/ Blu-Ray). Video Demonstration Watch the video to learn how to Install SATA HDD. http://youtu.be/RZsMpqxythc SATA2 SATA1...

  • Page 35: Cpufan1~2,Sysfan1~3: Fan Power Connectors

    CPUFAN1~2,SYSFAN1~3: Fan Power Connectors The fan power connectors support system cooling fans with +12V. If the motherboard has a System Hardware Monitor chipset on-board, you must use a specially designed fan with a speed sensor to take advantage of the CPU fan control. Remember to connect all system fans.

  • Page 36: Jfp1, Jfp2: System Panel Connectors

    JFP1, JFP2: System Panel Connectors These connectors connect to the front panel switches and LEDs. The JFP1 connector ® is compliant with the Intel Front Panel I/O Connectivity Design Guide. When installing the front panel connectors, please use the optional M-Connector to simplify installation.

  • Page 37: Jusb1~2: Usb 2.0 Expansion Connectors

    • Please only connect one device per USB port to ensure stable charging. • Super-Charger Technology is only available on select MSI motherboard models. Please refer to the MSI website to check if your motherboard has Super-Charger technology. • For iPad, JUSB1 (red mark) can still charge iPad in S3, S4, S5 state.

  • Page 38: Jusb3~4: Usb 3.0 Expansion Connectors

    JUSB3~4: USB 3.0 Expansion Connectors The USB 3.0 port is backwards compatible with USB 2.0 devices. It supports data transfer rates up to 5Gbits/s (SuperSpeed). Important • Note that the VCC and GND pins must be connected correctly to avoid possible damage.

  • Page 39: Jaud1: Front Panel Audio Connector

    JAUD1: Front Panel Audio Connector This connector allows you to connect the front audio panel located on your computer case. AUDPWR1: Direct Audio Power Connector This connector is used to provide direct power to back panel audio ports. The direct audio power can provide the better audio quality.

  • Page 40: M2_1: M.2 Port

    M2_1: M.2 Port The M.2 port supports either M.2 SATA module or M.2 PCIe module. Important • The SATA5 and SATA6 ports will be unavailable when installing a module in the M.2 port. • Intel RST does not support PCIe M.2 SSD with Legacy ROM. •...

  • Page 41: Voltage Checkpoints

    Voltage Checkpoints These voltage checkpoints are used to measure the current system voltages. A multimeter (not included) will be required to check voltages. FV1: V-Check Connectors To check the voltage, please use the optional voltage checkpoint cables included in the motherboard package. Attach the positive lead of the multimeter to the voltage checkpoint cable and the negative lead to the ground connector.

  • Page 42: Buttons

    BIOS section of the manual for instructions on how to turn off OC Genie from the BIOS. • The usage of OC Genie is at the user’s own risk. Overclocking is never guaranteed by MSI. • To ensure successfully OC Genie usage, MSI components are recommended. 1-28 Getting Started...

  • Page 43: Power1: Power Button

    POWER1: Power Button This button is used to turn-on and turn-off the system. Press the button once to turn-on or turn-off the system. RESET1: Reset Button This reset button is used to reset the system. Press the button to reset the system. 1-29 Getting Started...

  • Page 44: Jumpers

    Jumpers JBAT1: Clear CMOS Jumper There is CMOS RAM onboard that is external powered from a battery located on the motherboard to save system configuration data. With the CMOS RAM, the system can automatically boot into the operating system (OS) every time it is turned on. If you want to clear the system configuration, set the jumpers to clear the CMOS RAM.

  • Page 45: Switches

    Preparation: 1. Prepare a bootable USB flash drive. 2. Download the latest BIOS file from the MSI official website at www.msi.com, and then decompress the file. 3. Copy the AFUDE238.exe and the BIOS file to the bootable USB flash drive BIOS recovery steps: 1.

  • Page 46: Aud_Sw1: Audio Power Switch

    AUD_SW1: Audio Power Switch This switch specifies the power mode for back panel audio ports. Onboard Power mode (Default) Direct Power mode Important • Before switching to "Direct Power mode", please make sure the "Direct Audio Power Connector” (AUDPWR1) has been connected to the power supply. •...

  • Page 47: Led Status Indicators

    LED Status Indicators MSI LED BIOS A LED BIOS B LED Debug Code LED HDD LED LED Status Table The following table describes the status of LED indicators. LED Status Description MSI LED Debug HDD LED Blinking HDD activity BIOS A LED...

  • Page 48: Debug Code Led Table

    Debug Code LED Table Please refer to the table below to get more information about the Debug Code LED message. Post Status Power on CPU Initialization 02,07 03,08 Power on North Bridge Initialization Power on South Bridge Initialization 04,09 Power on Cache Initialization 11~14,32~36,56~5A Early CPU Initialization 15~18,37~3A...

  • Page 49: Drivers And Utilities

    After you install the operating system you will need to install drivers to maximize the performance of the new computer you just built. MSI motherboard comes with a Driver Disc. Drivers allow the computer to utilize your motherboard more efficiently and take advantage of any special features we provide.
  • Page 51 Chapter 2 Quick Installation This chapter provides demonstration diagrams about how to install your computer. Some of the installations also provide video demonstrations. Please link to the URL to watch it with the web browser on your phone or tablet. You may have even link to the URL by scanning the QR code. Important The diagrams in this chapter are for reference only and may vary from the product you purchased.
  • Page 52 CPU Installation http://youtu.be/bf5La099urI Quick Installation...

  • Page 53: Chapter 2 Quick Installation

    Quick Installation...

  • Page 54: Memory Installation

    Memory Installation http://youtu.be/76yLtJaKlCQ Quick Installation...

  • Page 55: Motherboard Installation

    Motherboard Installation Quick Installation...
  • Page 56 Quick Installation...

  • Page 57: Power Connectors Installation

    Power Connectors Installation http://youtu.be/gkDYyR_83I4 Quick Installation...
  • Page 58 Quick Installation...

  • Page 59: Sata Hdd Installation

    SATA HDD Installation http://youtu.be/RZsMpqxythc Quick Installation...

  • Page 60: M.2 Module Installation

    M.2 module Installation http://youtu.be/JCTFABytrYA 30° Quick Installation 2-10...

  • Page 61: Front Panel Connector Installation

    Front Panel Connector Installation JFP1 Connector Installation http://youtu.be/DPELIdVNZUI Front Panel Audio Connector Installation 2-11 Quick Installation...

  • Page 62: Peripheral Connector Installation

    Peripheral Connector Installation USB2.0 Connector Installation USB3.0 Connector Installation Quick Installation 2-12...

  • Page 63: Graphics Card Installation

    Graphics Card Installation http://youtu.be/mG0GZpr9w_A 2-13 Quick Installation...
  • Page 64 Quick Installation 2-14...

  • Page 65: Chapter 3 Bios Setup

    Chapter 3 BIOS Setup CLICK BIOS is a revolutionary UEFI interface that allows you to setup and configure your system for optimum use. Using your mouse and keyboard, users can change BIOS settings, monitor CPU temperature, select the boot device priority and view system information such as the CPU name, DRAM capacity, the OS version and the BIOS version.

  • Page 66: Entering Setup

    (optional) on the motherboard to enable the system going to BIOS setup directly at next boot. Click "GO2BIOS" tab on "MSI Fast Boot" utility screen. Important Please be sure to install the “MSI Fast Boot” utility before using it to enter the BIOS setup. BIOS Setup...

  • Page 67: Overview

    Overview After entering BIOS, the following screen is displayed. Temperature monitor My Favorites Language System information Boot device priority bar Virtual OC Genie Button BIOS menu BIOS menu selection selection Menu display ▶ BIOS menu selection The following options are available: ■...
  • Page 68 Enables or disables the OC Genie function by clicking on this button. When enabled, this button will be light. Enabling OC Genie function can automatically overclock with MSI optimized overclocking profile. Important We recommend that you do not to make any modification in OC menu mode and do not to load defaults after enabling the OC Genie function.
  • Page 69 Adding BIOS item to Favorite 1~5 1. Move the mouse cursor to highlight a BIOS setting item. 2. Right-click (or press "F2" key) and then choose a favorite menu (Favorite 1~5) to add the BIOS item. Choose a favorite menu to add the BIOS item Deleting BIOS item from Favorite 1~5 1.

  • Page 70: Operation

    Operation You can control BIOS settings with the mouse and the keyboard. The following table lists and describes the hot keys and the mouse operations. Hot key Mouse Description <↑↓→← > Select Item Move the cursor <Enter> Select Icon/ Field Click/ Double-click the left button <Esc>...

  • Page 71: Updating Bios

    Updating BIOS Updating the BIOS with M-FLASH ▶ Before updating Please download the latest BIOS file that matches your motherboard model from MSI website. And then save the BIOS file into the USB flash disk. Important Only the FAT32/ NTFS format USB flash disk supports updating BIOS by M-FLASH.

  • Page 72: Settings

    SETTINGS System Status ▶ System Date Sets the system date. Use tab key to switch between date elements. The format is <day> <month> <date> <year>. <day> Day of the week, from Sun to Sat, determined by BIOS. Read-only. <month> The month from Jan. through Dec. <date>...

  • Page 73: Advanced

    Advanced ▶ PCI Subsystem Settings Sets PCI, PCI express interface protocol and latency timer. Press <Enter> to enter the sub-menu. ▶ CPU PCI-E Lane Configuration [Auto] It can help you conveniently and directly manage the configuration of the PCI-E lanes from CPU. ▶...
  • Page 74 ▶ Ipv6 PXE Support [Enabled] When “Enabled”, the system UEFI network stack will support Ipv6 protocol. This item will appear when “Network Stack” is enabled. [Enabled] Enables the Ipv6 PXE boot support. [Disabled] Disables the Ipv6 PXE boot support. ▶ SATA Mode [AHCI Mode] Sets the operation mode of the onboard SATA controller.
  • Page 75 ▶ Integrated Graphics Share Memory [default] Selects a fixed amount of system memory allocated to the onboard graphics. This item defines the exact memory size shared to the onboard graphics. [Options: 32M, 64M, 128M, 256M, 512M, 1024M] ▶ IGD Multi-Video [Disabled] Enables or disables the multi-screen output from integrated graphics and external graphics card.
  • Page 76 ▶ RapidStart Display Save/Restore [Enabled] Enables or disables the Intel Rapid Start Display screen to be saved or restored. The screen will be saved before the system enters sleep mode. Then the system will restore the screen when wakened. [Enabled] Enables this function.
  • Page 77 Disables this function. ▶ MSI Fast Boot [Disabled] MSI Fast Boot is the fastest way to boot the system. It will disable more devices to speed up system boot time which is faster than the boot time of “Fast Boot”.
  • Page 78 Disables the Fast Boot configuration. Important If you want to enter BIOS with enabled “MSI Fast Boot” mode or enabled "Fast Boot" mode, you have to click the "GO2BIOS" tab on MSI Fast Boot utility screen or press the "GO2BIOS" button (optional) on the motherboard. And then the system will enter to BIOS setup directly at next boot.

  • Page 79: Boot

    ▶ Date (of month) Alarm/ Time (hh:mm:ss) Alarm Sets RTC alarm date/ Time. If Resume By RTC Alarm is set to [Enabled], the system will automatically resume (boot up) on a specified date/hour/minute/second in these fields (using the <+> and <-> to select the date & time settings). ▶...

  • Page 80: Security

    ▶ Boot Mode Select [LEGACY+UEFI] Sets the system boot mode from legacy or UEFI architecture depending on OS installation requirement. This item will become unselectable and will be configured automatically by BIOS when “Windows 8/ 8.1 Feature” is enabled. [UEFI] Enables UEFI BIOS boot mode support only.

  • Page 81: Save & Exit

    ▶ Chassis Intrusion Configuration Press <Enter> to enter the sub-menu. ▶ Chassis Intrusion [Disabled] This function will be available if the chassis equips a chassis intrusion switch. Once the chassis is opened, the system will record and issue a warning message. To clear the warning message, set the item to [Reset], then it will return to [Enabled] later.
  • Page 82 Important • Overclocking your PC manually is only recommended for advanced users. • Overclocking is not guaranteed, and if done improperly, can void your warranty or severely damage your hardware. • If you are unfamiliar with overclocking, we advise you to use OC Genie for easy overclocking.
  • Page 83 Enables the OC Genie function by virtual button in BIOS or physical button on motherboard. Enabling OC Genie function can automatically overclock the system with MSI optimized overclocking profile. [By BIOS Options] OC Genie function is enabled by clicking the virtual OC Genie button at the top left corner of BIOS setup screen.
  • Page 84 ▶ DRAM Timing Mode [Auto] Selects the memory timing mode. [Auto] DRAM timings will be determined based on SPD (Serial Presence Detect) of installed memory modules. [Link] Allows user to configure the DRAM timing manually for all memory channel. [UnLink] Allows user to configure the DRAM timing manually for respective memory channel.
  • Page 85 ▶ CPU Vdroop Offset Control [Auto] Sets a percentage of offset voltage for CPU vdroop. If set to "Auto", BIOS will configure this setting automatically. ▶ CPU Over Voltage Protection [Auto] Sets the voltage limit for CPU over-voltage protection. If set to "Auto", BIOS will configure this setting automatically.
  • Page 86 ▶ CPU Core/Ring/GT Voltage Mode [Auto]* Selects the control mode for CPU Core/ Ring/ GT voltages. [Auto] This setting will be configured automatically by BIOS. [Adaptive Mode] Sets the adaptive voltage automatically for optimizing the system performance. [Override Mode] Allows you to set the voltage manually. [Offset Mode] Allows you to set the offset voltage and select the voltage offset mode.
  • Page 87 ▶ CPU SA/ IO Analog/ IO Digital Voltage [Auto]* Sets CPU SA/ IO Analog/ IO Digital voltage. If set to "Auto", BIOS will set these voltages automatically or you can set it manually. This item appears when "CPU SA/ IOA/IOD Voltage Mode" sets to [Manual Mode]. ▶...
  • Page 88 ▶ Execute Disable Bit [Enabled] Intel’s Execute Disable Bit functionality can prevent certain classes of malicious “buffer overflow” attacks where worms attempt to execute code to damage the system. It is recommended that keeps this item enabled always. [Enabled] Enables NO-Execution protection to prevent the malicious attacks and worms.
  • Page 89 ▶ C1E Support [Disabled] Enables or disables the C1E function for power-saving in halt state. This item appears when "Intel C-State" is enabled. [Enabled] Enables C1E function to reduce the CPU frequency and voltage for power-saving in halt state. [Disabled] Disables this function.
  • Page 90 ▶ Internal VR OVP OCP Protection [Auto] Enables or disables the over-voltage protection and over-current protection for CPU internal VR (Voltage Regulator). [Auto] This setting will be configured automatically by BIOS. [Enabled] Sets the voltage limit on the CPU internal VR for over-voltage protection and over-current protection.

  • Page 91: M-Flash

    M-FLASH Important M-Flash funcion allows you to update BIOS from USB flash disk (FAT32/ NTFS format only). ▶ Select one file to update BIOS and ME Selects a BIOS file, includes the ME management settings, in the USB flash disk (NTFS/ FAT 32 format) to update the BIOS and ME.

  • Page 92: Oc Profile

    OC PROFILE ▶ Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6 Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6 management. Press <Enter> to enter the sub- menu. ▶ Set Name for Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6 Names the current overclocking profile. ▶...

  • Page 93: Hardware Monitor

    HARDWARE MONITOR Current Temperature & Speed information control field Setting Buttons Voltage display ▶ Current Temperature & Speed information Shows the current CPU temperature, system temperature and fans' speeds. ▶ Fan control field This motherboard provides a fan speed control feature call “Smart Fan Mode”. Please check the “Smart Fan Mode”...

  • Page 95: Appendix A Realtek Audio

    Appendix A Realtek Audio The Realtek audio provides 10-channel DAC that simultaneously supports 7.1 sound playback and 2 channels of independent stereo sound output (multiple streaming) through the Front-Out-Left and Front-Out-Right channels.

  • Page 96: Software Configuration

    Software Configuration After installing the audio driver (see Chapter 1 - Driver and Utilities), the “Realtek HD Audio Manager” icon will appear at the notification area (lower right of the screen). You may double click the icon and the GUI will pop up accordingly. double click the icon It is also available to enable the audio driver by clicking the Realtek HD Audio Manager from the Control Panel.

  • Page 97: Auto Popup Dialog

    ▶ Device Selection Here you can select a audio output source to change the related options. The “check” sign indicates the devices as default. ▶ Volume Adjustment You can control the volume or balance the right/left side of the speakers that you plugged in front or rear panel by adjust the bar.

  • Page 98: Hardware Default Setting

    Hardware Default Setting The following diagrams are audio back panel default setting. ■ Backpanel audio jacks to 2-channel speakers diagram F r o ■ Backpanel audio jacks to 4-channel speakers diagram F r o R e a Realtek Audio...
  • Page 99 ■ Backpanel audio jacks to 6-channel speakers diagram F r o C e n R e a t e r & S u b w o o f ■ Backpanel audio jacks to 8-channel speakers diagram F r o C e n R e a t e r &...

  • Page 101: Appendix B Intel Raid

    Appendix B Intel RAID This appendix will assist users in configuring and enabling RAID functionality and accelerating system on platforms...

  • Page 102: Introduction

    Introduction The motherboard comes with the Intel RAID controller that allows you to configure SATA hard drives as RAID sets. SATA hard drives deliver blistering transfer speeds up to 6 Gb/s. Serial ATA uses long, thin cables, making it easier to connect your drive and improving the airflow inside your PC.

  • Page 103: Using Intel Rapid Storage Technology Option Rom

    Using Intel Rapid Storage Technology Option ROM The Intel Rapid Storage Technology Option ROM should be integrated with the system BIOS on all motherboards with a supported Intel chipset. The Intel Rapid Storage Technology Option ROM is the Intel RAID implementation and provides BIOS and DOS disk services.
  • Page 104 After pressing the <Ctrl> and <I> keys simultaneously, the following window will appear: MAIN MENU MAIN MENU Recovery Volume Options Create RAID Volume Acceleration Options Delete RAID Volume Reset Disks to Non-RAID Exit DISK / VOLUME INFORMATION RAID Volumes : None defined.
  • Page 105 3. In the Disk field, press <Enter> key and use <Space> key to select the disks you want to create for the RAID volume, then click <Enter> key to finish selection. This field will become available according to the selected RAID level. 4.
  • Page 106 6. Go to the Create Volume field and press <Enter>, the following screen appears for you to confirm if you are sure to create the RAID volume. Press <Y> to continue. CREATE VOLUME MENU Name : Volume0 RAID Level : RAID1(Mirror) Disks : Select Disks...
  • Page 107 ■ Delete RAID Volume Here you can delete the RAID volume, but please be noted that all data on RAID drives will be lost. Important If your system currently boots to RAID and you delete the RAID volume in the Intel RAID Option ROM, your system will become un-bootable.
  • Page 108 ■ Reset Disks to Non-RAID Select option 3 Reset Disks to Non-RAID and press <Enter> to delete the RAID volume and remove any RAID structures from the drives. The following screen appears: MAIN MENU Recovery Volume Options Create RAID Volume Delete RAID Volume RESET RAID DATA Recovery Volume Options...
  • Page 109 ■ Recovery Volume Options Select option 4 Recovery Volume Options and press <Enter> to change recovery volume mode. The following screen appears: RECOVERY VOLUME OPTIONS Enable Only Recovery Disk Enable Only Master Disk HELP Enable Only Recovery Disk - enables recovery disk if available and disables master disk.

  • Page 110: Degraded Raid Array

    Degraded RAID Array A RAID 1, RAID 5 or RAID 10 volume is reported as degraded when one of its hard drive members fails or is temporarily disconnected, and data mirroring is lost. As a result, the system can only utilize the remaining functional hard drive member. To re-establish data mirroring and restore data redundancy, refer to the procedure below that corresponds to the current situation.
  • Page 111 5. Exit Intel RAID Option ROM, and then reboot to Windows system. 6. When prompted to rebuild the RAID volume, click ‘Yes’. 7. The Intel Rapid Storage Technology application will be launched. Right-click the new hard drive and select ‘Rebuild to this Disk’. The ‘Rebuild Wizard’ will be launched which will guide you through the process of rebuilding to the new hard drive.

  • Page 112: System Acceleration (Optional

    1. Reboot and enter the BIOS steup. 2. Set the SATA Mode to RAID in BIOS. 3. Install Windows operating system. 4. Insert the MSI Driver DVD into the DVD-ROM drive. 5. Install Intel RAID driver 6. Powered off. 7. Connect the SSD.
  • Page 113 9. Run Intel Rapid Storage Technology application. 10. Click "Enable acceleration" under Performance tab. Click here 11. Select the acceleration mode options. 12. Click OK and reboot the system. The page refreshes and reports the new acceleration configuration in the Acceleration View.

  • Page 114: Rst Synchronization (Optional

    RST Synchronization (optional) If you are using Maximized mode as the Acceleration mode, the data on the hard disk is not always synchronized with the data in the SSD cache. In some situations, you may want to manually sync the disks for avoiding data loss. Follow these steps to sync manually.
