IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
®
ROLA-CHEM
Digital Controller
MODEL RC554XP

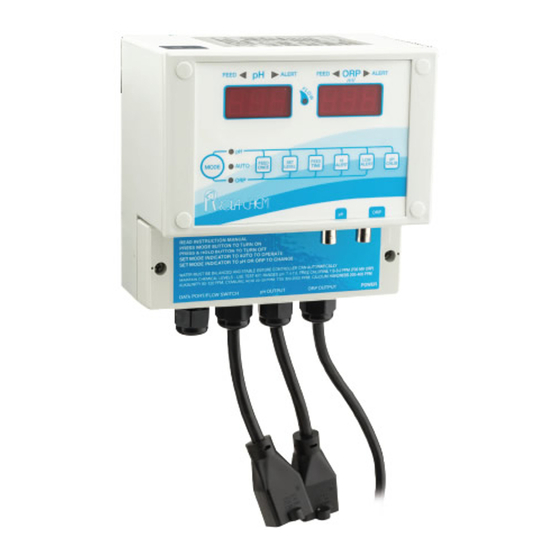

ORP/pH Digital Controller
pH
FEED
pH
MODE
AUTO
ONCE
ORP
SAVE THESE INSTRUCTIONS
ORP
ALERT
FEED
ALERT
FEED
SET
FEED
HI
LOW
LEVEL
TIME
pH
PN 554135
07/11/19
Operating Manual
pH
CALIB
ORP
Page: 1 of 24
Advertisement
Table of Contents
Related Manuals for ROLA-CHEM RC554XP
Summary of Contents for ROLA-CHEM RC554XP
- Page 1 Operating Manual MODEL RC554XP ORP/pH Digital Controller FEED ALERT FEED ALERT FEED FEED MODE AUTO ONCE LEVEL TIME CALIB IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS SAVE THESE INSTRUCTIONS ® ROLA-CHEM Digital Controller PN 554135 07/11/19 Page: 1 of 24...
-
Page 2: Safety Instructions
NSPI recommended ranges or water chemistry must be manually corrected. 1.11 WARNING! Controller uses microprocessor. Wireless communication equipment or other electrical devices operated in close proximity may cause inadvertent actuation of chemical feed pumps. ® ROLA-CHEM Digital Controller PN 554135 07/11/19 Page: 2 of 24... -
Page 3: Table Of Contents
5.3 pH Calibration 5.4 ORP settings 5.5 Operating mode 6. Troubleshooting 7. Warranty 8. Appendix 8.1 Dip switch settings 8.2 Factory default settings 8.3 Water chemistry ranges-NSPI 8.4 Typical system installations ® ROLA-CHEM Digital Controller PN 554135 07/11/19 Page: 3 of 24... -
Page 4: Quick Start Reference
- Calibrating the pH sensor – See section 5.3 - Changing dip switches (pH/ORP interlock, Consecutive Feed Alert Limit, acid/base chemical feed and keypad lockout). – See Appendix section 8.1 ® ROLA-CHEM Digital Controller PN 554135 07/11/19 Page: 4 of 24... -
Page 5: Description And Specifications
The controller incorporates an internal non-volatile memory in which all factory default settings as well as field-modified settings are stored. The internal memory is not affected by power interruption and requires no backup battery. ® ROLA-CHEM Digital Controller PN 554135 07/11/19... - Page 6 Generally, automating an existing body of water with existing feeders will require the output of the feeders be increased accordingly. If feeders are unable to keep up with demand in a short period of time, automation becomes ineffective. ® ROLA-CHEM Digital Controller PN 554135 07/11/19...
-
Page 7: Specifications
+ ORP and pH Interlock + Acid/base feed + Adjustable Consecutive Feed Alert Limit Features and Options + Flow switch input + Individually fused outputs + 120 VAC transformer ® ROLA-CHEM Digital Controller PN 554135 07/11/19 Page: 7 of 24... -
Page 8: Description Of Controls
When ORP standby lamp is illuminated the five SET buttons are enabled. 8- pH/ORP SENSOR CONNECTORS – BNC type FEED ALERT FEED ALERT FEED FEED MODE AUTO ONCE LEVEL TIME CALIB ® ROLA-CHEM Digital Controller PN 554135 07/11/19 Page: 8 of 24... - Page 9 See appendix for Consecutive Feed Alert Limit details. Feed time can also be set to “off”. Note: The controller will overshoot the pH Set Level by 0.1 to reduce on/off cycles. ® ROLA-CHEM Digital Controller PN 554135 07/11/19...
- Page 10 (2) until Consecutive Feed Alert Limit is reached or (3) until Hi/Low Alert limit is reached. See appendix for Consecutive Feed Alert Limit details. Feed time can also be set to “off”. Note: The controller will overshoot the ORP Set Level by 10mV to reduce on/off cycles. ® ROLA-CHEM Digital Controller PN 554135 07/11/19...
- Page 11 Consecutive Feed Alert Limit: The Digital Display numbers will flash and the pump/feeder will not activate if the Set Level is not reached within the preset Consecutive Feed Alert Limit. See appendix for adjusting Limit. ® ROLA-CHEM Digital Controller PN 554135 07/11/19...
-
Page 12: Installation
Wall Installed screw Key hole Do not remove front panel Two screws mounted via the Power panel access Controller with power panel access cover removed ® ROLA-CHEM Digital Controller PN 554135 07/11/19 Page: 12 of 24... -
Page 13: Power Panel Access
The flow switch light on the face of the controller is also a power light that shows that the controller is connected to a live power source. If the terminal does not have a closed circuit, the controller will not turn on. ® ROLA-CHEM Digital Controller PN 554135 07/11/19... -
Page 14: Globe Flowcell
Note: It is recommended that an inline filter be used to help keep the Globe Flowcell (including probes) and flow switch free from debris. Debris may cause obstruction in flow switch and prevent the switch from functioning. ® ROLA-CHEM Digital Controller PN 554135 07/11/19... -
Page 15: Operation
24 hours for the sensors to acclimate to the system so recalibrate 24 hours after the first calibration. The pH sensor calibration should be checked every four to six weeks. If calibration is required more often then probe may need cleaning or replacement. ® ROLA-CHEM Digital Controller PN 554135 07/11/19... -
Page 16: Orp Settings
The controller must be in this mode for the feeders to maintain the desired parameters. ® Note: When using an automatic controller with ROLA-CHEM pumps, the pump switch should be in the CONTINUOUS position (not Timed or Off). -
Page 17: Troubleshooting
* Pump/feeders must be large enough to reach desired set-points in a relatively short time. Automation using controllers may require larger feeder or more concentrated chemicals than system that uses continuous time controlled feeding (i.e. feeders only). ® ROLA-CHEM Digital Controller PN 554135 07/11/19... - Page 18 If these two steps are not performed the controller will remain in test mode and it will not operate properly. ® If an error code continues to appear contact ROLA-CHEM service personnel. 6.5 Digital Display numbers flashing * Consecutive Feed Alert Limit has been reached. See appendix for Consecutive Feed Alert Limit details.
-
Page 19: Warranty
(5) years. ® If this unit fails within the five (5) year period, it will be repaired or replaced (ROLA-CHEM ® option) at no charge when returned to ROLA-CHEM with proof of purchase receipt. -
Page 20: Appendix
#4 OFF factory setting – Keypad operable to set controller parameters #4 ON – Keypad operable only for pH calibration. Other parameters stay at settings established prior to moving dip switch #4 to OFF. ® ROLA-CHEM Digital Controller PN 554135 07/11/19... -
Page 21: Factory Default Settings
Free Chlorine: 1.0-3.0 ppm (> 700 mV ORP) *20-30 ppm of cyanuric acid provides approx. 95% of the shielding effect for chlorine. **When using tri-chlor, recommended alkalinity is 95-125 ppm. ® ROLA-CHEM Digital Controller PN 554135 07/11/19 Page: 21 of 24... -
Page 22: Typical System Installations
8.4 Typical System Installations ® ROLA-CHEM Digital Controller PN 554135 07/11/19 Page: 22 of 24... - Page 23 8.4 Typical System Installations, cont., ® ROLA-CHEM Digital Controller PN 554135 07/11/19 Page: 23 of 24...
- Page 24 -NOTES- ® ROLA-CHEM Digital Controller PN 554135 07/11/19 Page: 24 of 24...
Need help?
Do you have a question about the RC554XP and is the answer not in the manual?
Questions and answers
My rolachem cheical feeder freezes and stop feeding cheicals automaticly why.
The ROLA-CHEM RC554XP chemical feeder stops feeding chemicals automatically when the preset Consecutive Feed Alert Limit is reached. This occurs if the pH or ORP chemical feeder outputs continuously feed for the set time period (20 to 180 minutes). When this limit is reached, the respective feeder output is disabled, and its display flashes to indicate a Consecutive Feed Alert.
